| parameter |
| Max. lifting height | 7.3m |
| Maximum forward reach | 3.5m |
| Forward reach at maximum height | 0.73m |
| Height | 2.51m |
| Length (without fork) | 4.95m |
| Width | 2.35m |
| Wheel base | 3m |
| Distance from the ground, center | 0.4m |
| Ground clearance, wheelbase | 0.44m |
| Max. load capacity | 3500KG |
| Rated load at maximum height | 2800KG |
| Rated load at maximum forward reach | 1250KG |
| Travel speed | 30km/h |
| Tire size | 16/70-20 |
| Rated power | 76 KW |
| Power system | 24V |
| Hydraulic oil | 160L |
| Diesel | 100L |
| Total weight | 7950KG |

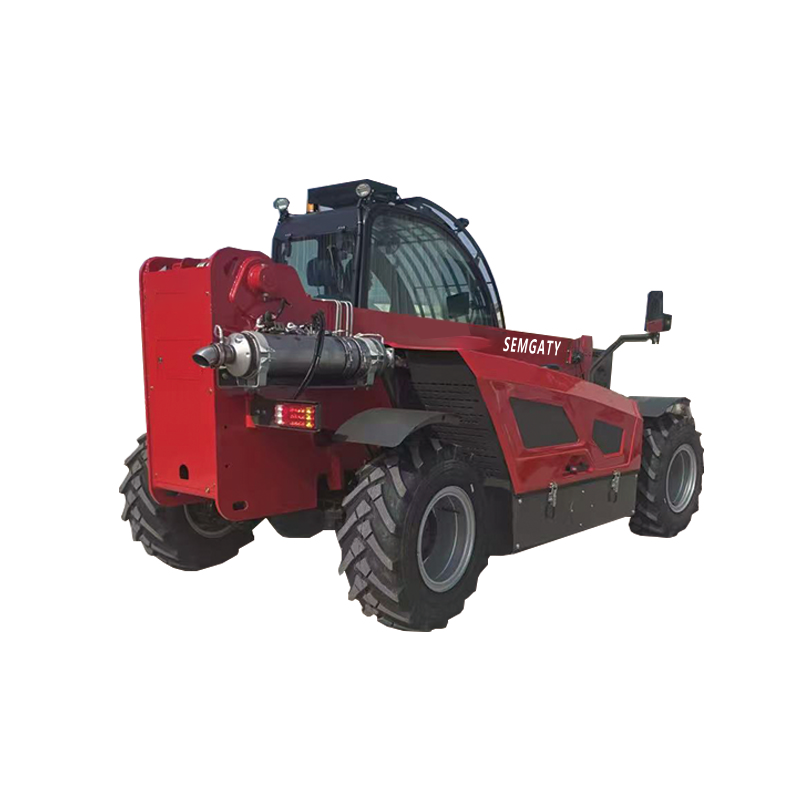

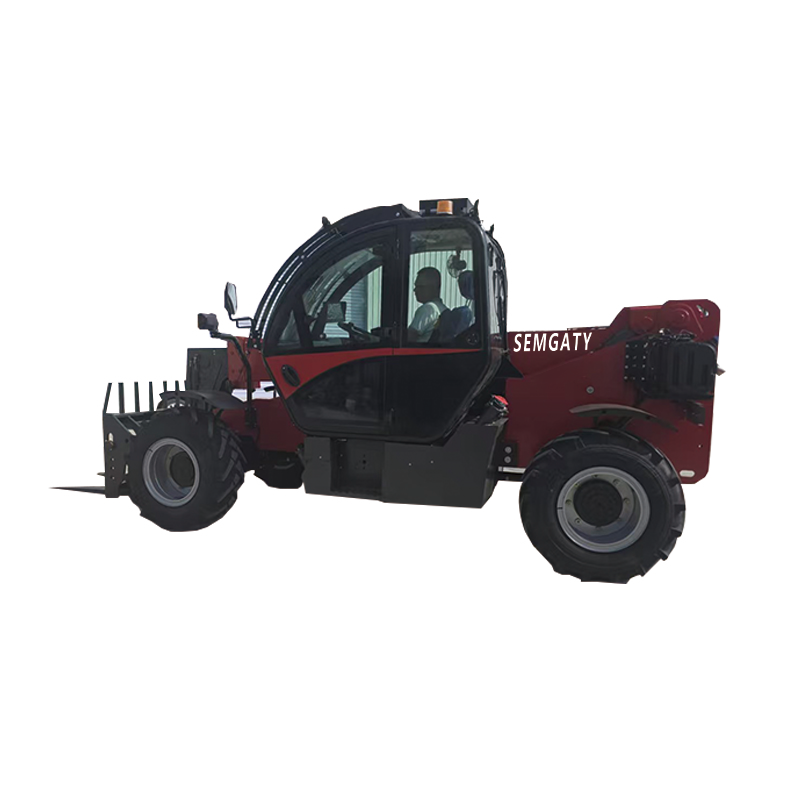

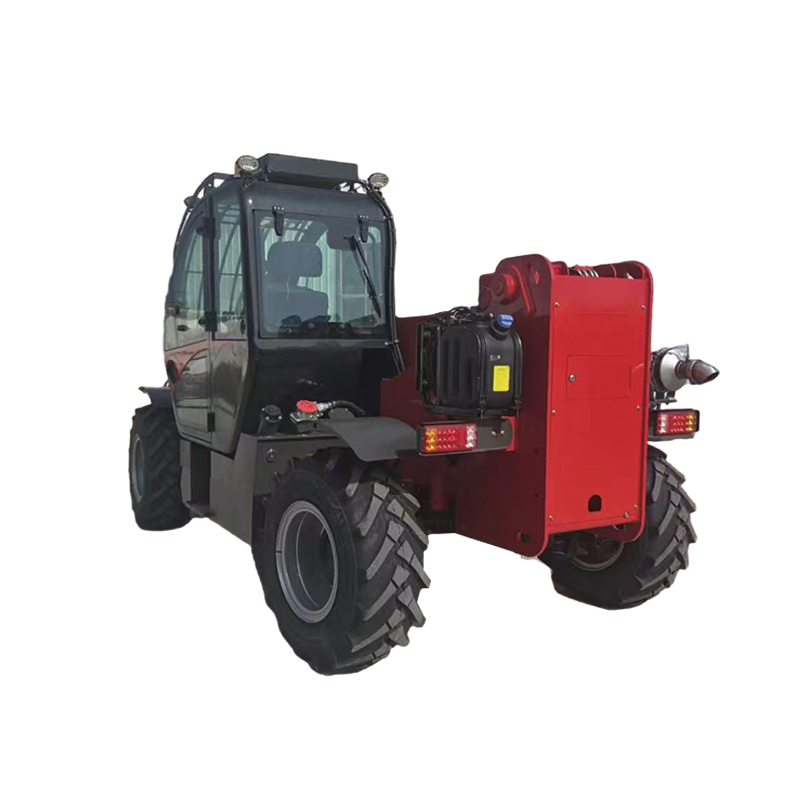

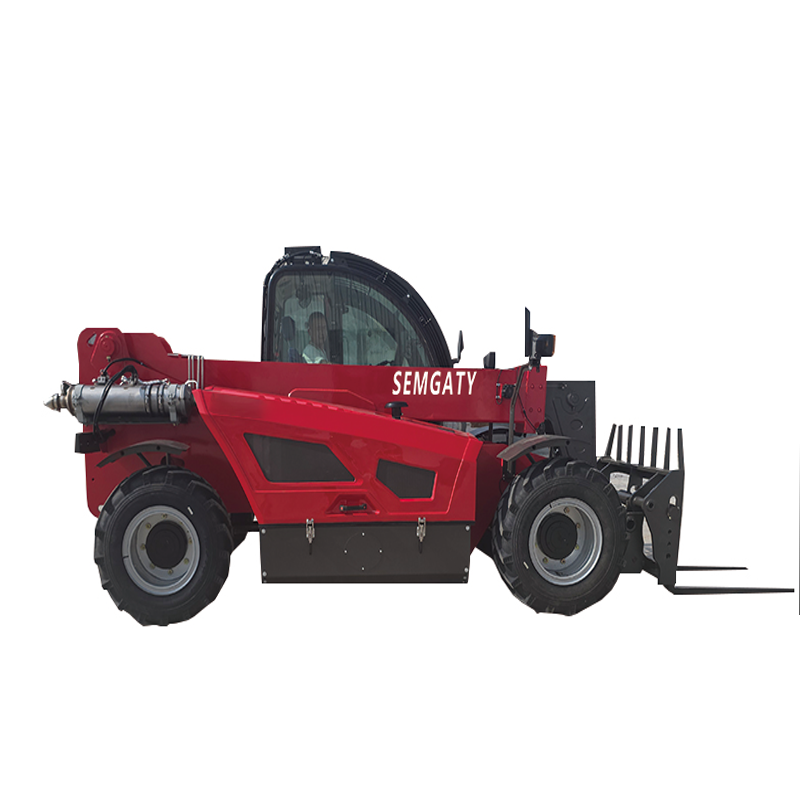

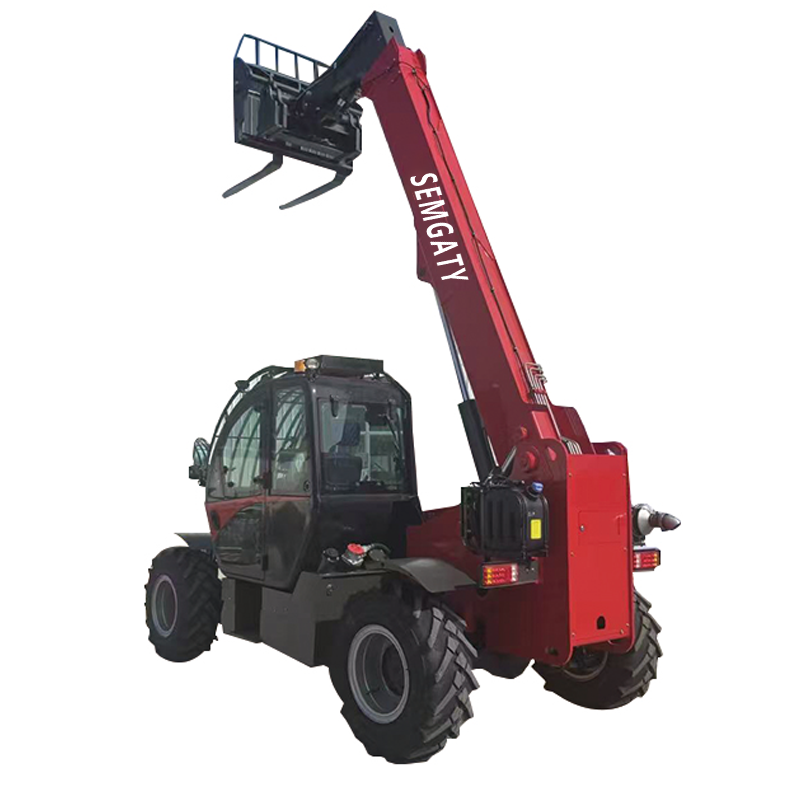

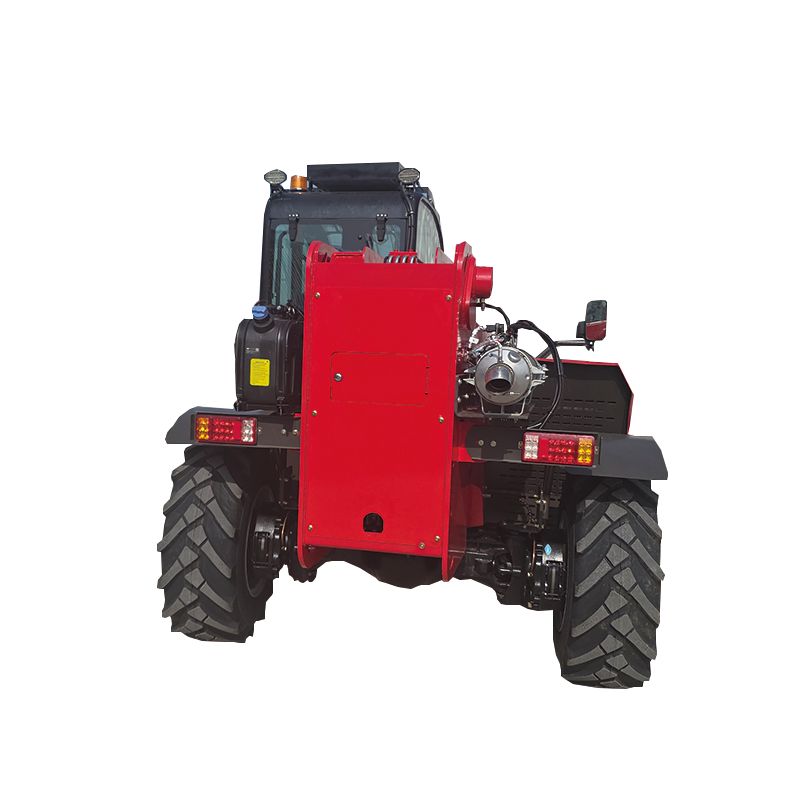

3.5-Ton Telescopic Forklift – Reach Higher, Lift Smarter
Designed for versatility and heavy-duty performance, the 3.5-ton telescopic forklift is ideal for construction sites, warehouses, and industrial operations where height and reach are critical. Its telescopic boom allows operators to lift loads up to 7.3 m, making it perfect for stacking materials on high shelves or reaching over obstacles with ease.
With a maximum forward reach of 3.5 m, this forklift provides unmatched flexibility for precise placement of loads in tight or challenging spaces. Even at full height, it can safely handle 2,800 kg, while a forward reach capacity of 1,250 kg ensures safe handling of extended loads. This combination of lifting strength and reach versatility sets it apart from conventional forklifts.
Powered by a 76 kW diesel engine and a 24V power system, the machine delivers consistent torque and reliable performance for demanding operations. Its hydraulic system with 160 L capacity ensures smooth and precise boom and fork movements, allowing operators to maneuver heavy loads with confidence.
Built for mobility, the forklift travels at up to 30 km/h, while 16/70-20 tires provide traction and stability across varied terrain. The robust chassis, wheelbase of 3 m, and ground clearance of 0.44 m guarantee operational stability, even on uneven ground. Despite its heavy-duty capabilities, the machine maintains a compact profile—2.51 m height, 4.95 m length, and 2.35 m width—making it easy to navigate through narrow aisles or confined work areas.
With a fuel capacity of 100 L and a total weight of 7,950 kg, this telescopic forklift combines strength, endurance, and maneuverability. It is engineered to enhance efficiency, reduce handling time, and improve safety on any site that requires high lifting, extended reach, and precise placement.
The 3.5-ton telescopic forklift is a perfect solution for operators seeking powerful lifting capabilities, extended reach, and versatile material handling in a single, reliable machine.
