| parameter |
| Total weight | 9800KG |
| Grab and load weight | 800KG |
| Engine brand | Cummins |
| Model | 6BT8.3-C215 |
| Rated power | 160Kw, 215HP |
| Max. Walking speed | <20Km/h |
| Swing angle of boom | 360 degree |
| Hydraulic systerm of pressure | 20Mpa |
| Walking pump flux | 80/80ml/r |
| Working pump flux | 63/63ml/r |
| Max.dumping height | 7600mm |
| Max.grabbing radius | 5000mm |
| Slope | 25° |
| Open width of grasping | 1510mm |
| wheel base | 3100mm |
| Distance between axles | 2500mm |
Overall dimension
（L*W*H) | 7500*3600*4000mm |
| Engine Model | Cummins |
| Oil pump | Danfoss |
| Valve | Danfoss |
| Walking Motor | Danfoss |
| Oil cylinder | Qingzhou |
| Axles | YTO |
| Tyre type(four-wheel drived) | 3.1R26（F）23.1/26（R） |

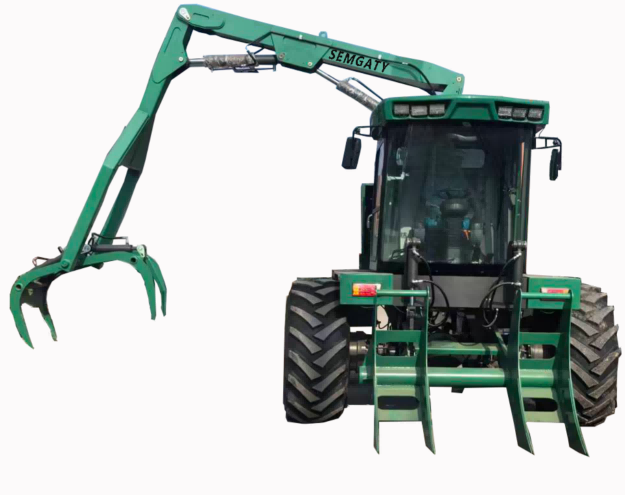

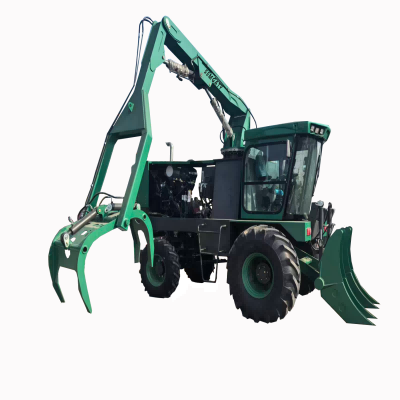

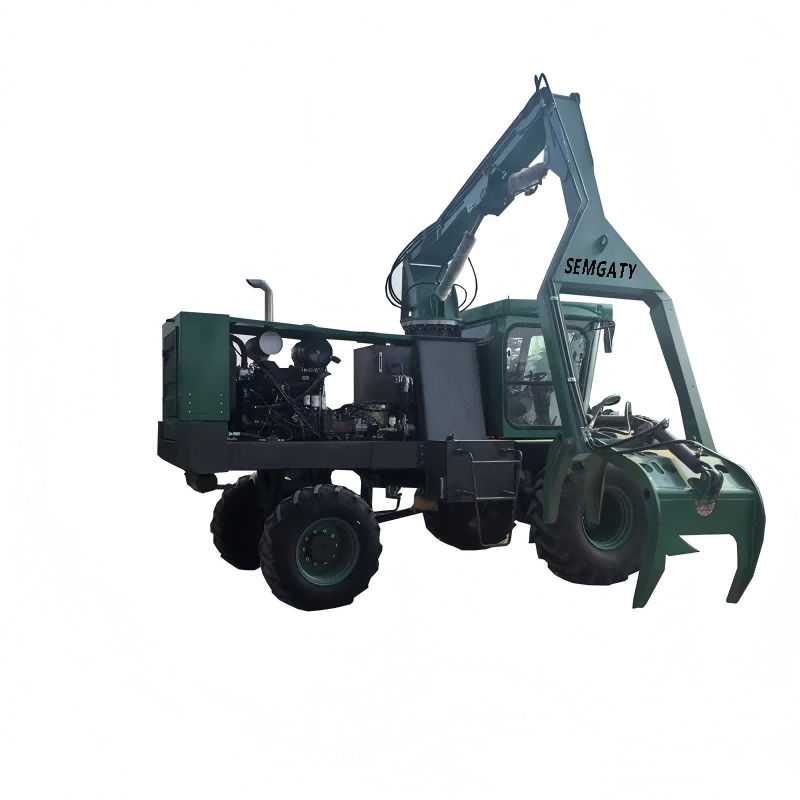

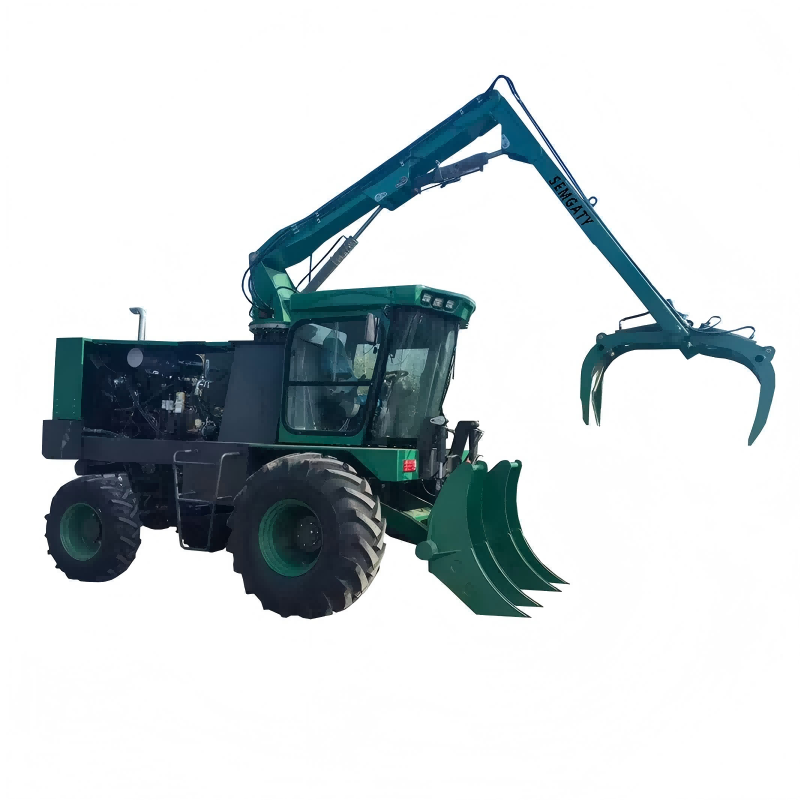

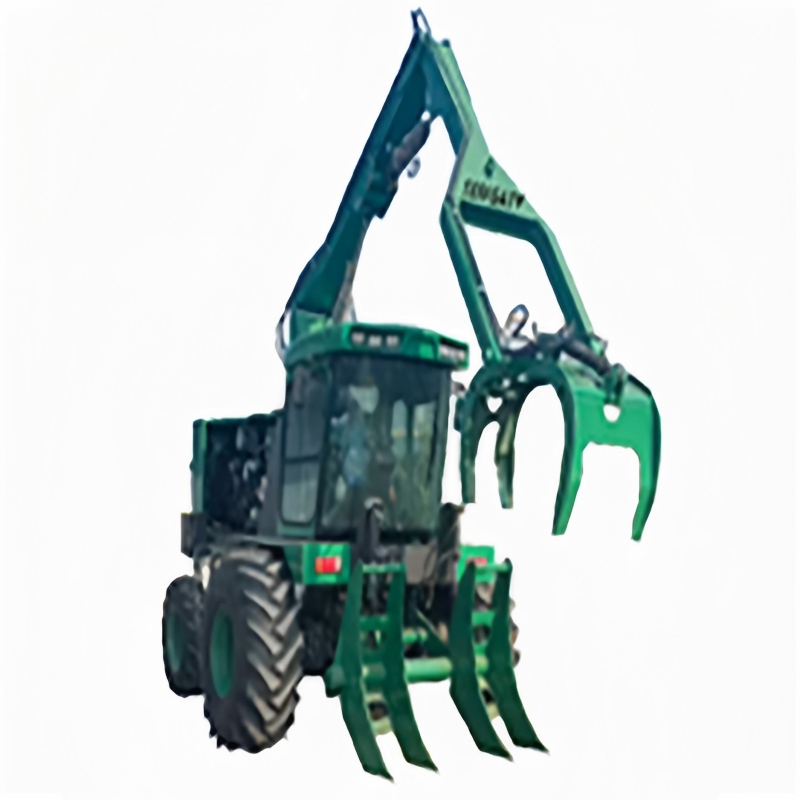

A sugarcane loader is an agricultural machine specifically designed for loading and unloading sugarcane after harvest. It primarily replaces manual labor in grabbing, loading, and transporting sugarcane, significantly improving operational efficiency and reducing labor intensity. These machines typically employ a hydraulic drive system, possessing powerful performance and flexible operation, suitable for complex terrains such as sugarcane fields and sugar mills. Core Functions and Working Principles The core function of a sugarcane loader is to achieve efficient loading and unloading of sugarcane through a hydraulic system. Its working principle mainly includes three aspects: power transmission, motion control, and grabbing/unloading:
Power System: A diesel engine (such as a Cummins brand) serves as the power source. The engine output is divided into two paths: one drives the traveling mechanism, and the other drives the hydraulic pump, providing high-pressure hydraulic fluid to the hydraulic system.
Hydraulic Control: The hydraulic system uses multiple hydraulic cylinders and control valves to collaboratively complete actions such as traveling, steering, lifting, and grabbing. For example, a triple pump and separate distributor can be used to achieve simultaneous operation of multiple actions. Grabbing Device: Equipped with a hydraulically driven rotary grab or side-mounted grab, supporting 360° rotation or simultaneous movement and stacking, adaptable to the loading and unloading needs of various transport vehicles.
Important Notes: When selecting a sugarcane loader, factors such as the scale of the operation, terrain conditions, and budget must be considered. For example, powerful models are more suitable for heavy-duty operations, while lightweight designs facilitate operation in confined spaces. It is recommended to contact the manufacturer directly for customized solutions and technical support.
With technological innovation, our product configuration and parameters will continue to
change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
