| parameter |
| Overall dimension (L*W*H) | 9400X2750X3350mm |
| Min. ground clearance of front axle | 500mm |
| Min. ground clearance of rear axle | 345mm |
| Wheel track | 2130mm |
| Wheel base | 7140mm |
| Wheel base (rear/mid) | 1650mm |
| Operating weight | 18300KG |
| Max. swing angle of front axle | 16° |
| Max. steering angle of front wheels | 45° |
| Frame articulation steering angle | 25° |
| Cutter diameter | 1500mm |
| Blade size (L*W*T) | 4250X600X25mm |
| Blade rotation angle | 360° |
| Blade ground clearance | 450mm |
| Blade cutting depth | 360mm |
| Blade inclination angle | Front 47° /Rear 5° |
| Blade sliding range | Left 600mm / Right 600mm |
| Engine |
| Model | Weichai WP6G220 |
| Emission standard | EUR 2 |
| Rated power | 162KW |
| Transmission system |
| transmission oil capacity | 110L |
| transmission | Powershift |
| Torque converter | Single-stage, single-phase, three element
Beilian YJ375 front four rear four |
|
| Gear shift | 4 forward, 4 reverse |
| Tyre | 17.5-25 |
| Rear axle | Jingda flatland bridge (same as SG) |
| Max. forward speed | 44km/h |
| Max. reverse speed | 33km/h |
| Hydraulic system |
| Type | Open type hydraulic system |
| System pressure | 16Mpa |
| Fuel tank capacity | 280L |
| Hydraulic oil capacity | 165L |
| Operating system | Multi joystick mechanical control |

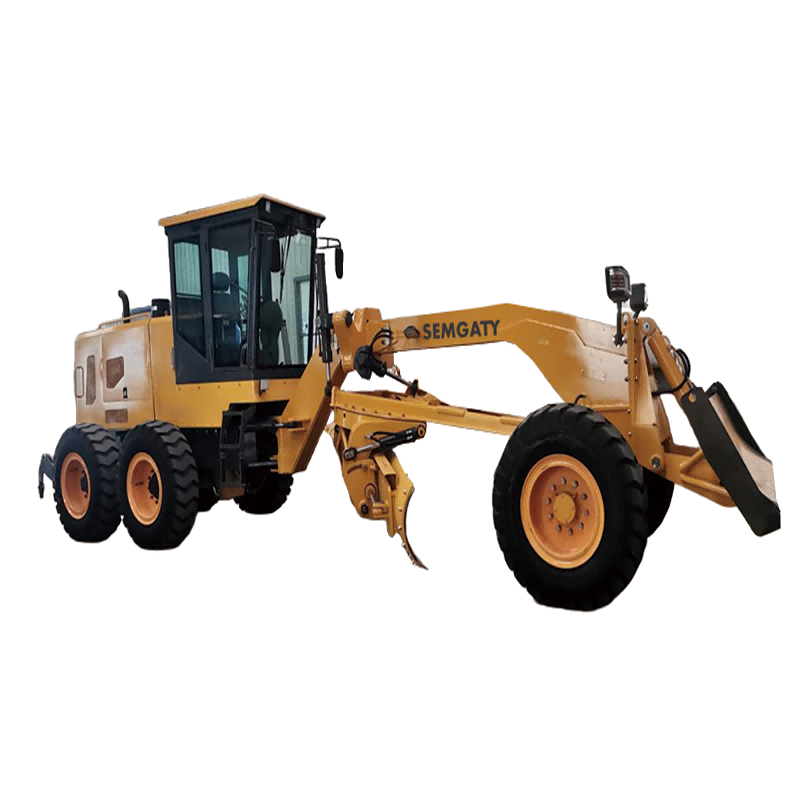

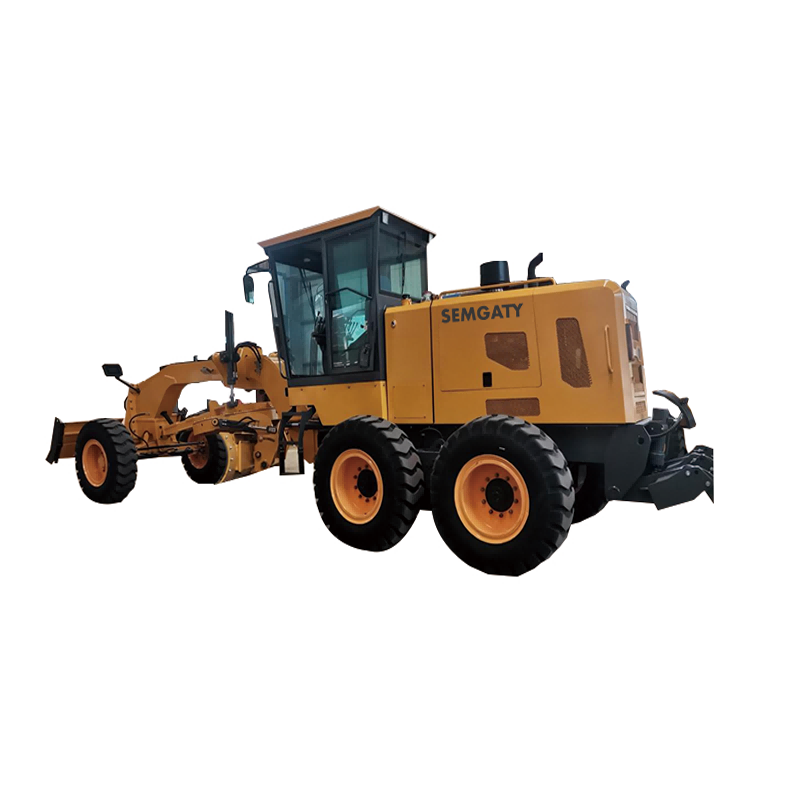

Heavy-Duty Motor Grader – Precision and Efficiency for Large-Scale Earthworks
This heavy-duty motor grader is engineered for high-performance grading and road construction in large-scale projects, combining power, precision, and operational reliability. Its articulated frame and wide, fully rotatable blade provide exceptional control over cutting depth, slope, and surface finishing, making it ideal for highways, industrial yards, airports, and major civil engineering projects.
The grader’s robust hydraulic system and multi-joystick controls allow operators to execute fine adjustments with minimal effort, ensuring consistent accuracy and smooth material distribution. Its blade sliding, tilting, and rotation capabilities make it highly versatile, capable of road shaping, ditching, drainage creation, and precise leveling across diverse terrains.
Designed for demanding environments, the machine features high ground clearance and durable tires for excellent traction on uneven or soft surfaces, while the articulated steering enhances maneuverability despite its large size. The powerful engine and torque-optimized transmission deliver reliable performance under heavy load, supporting continuous operation with minimal downtime.
This motor grader excels in:
Highway and urban road construction and maintenance
Large-scale land development and site preparation
Airport runways and industrial yard leveling
Ditching, slope shaping, and drainage works
Its core value lies in combining high efficiency, precise control, and rugged durability, reducing project time and operational costs while delivering superior surface quality. By integrating advanced hydraulics, strong structural design, and versatile blade operation, it offers a reliable, high-output solution for demanding earthmoving and grading tasks.
With technological innovation, our product configuration and parameters will continue to
change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
