| parameter | |

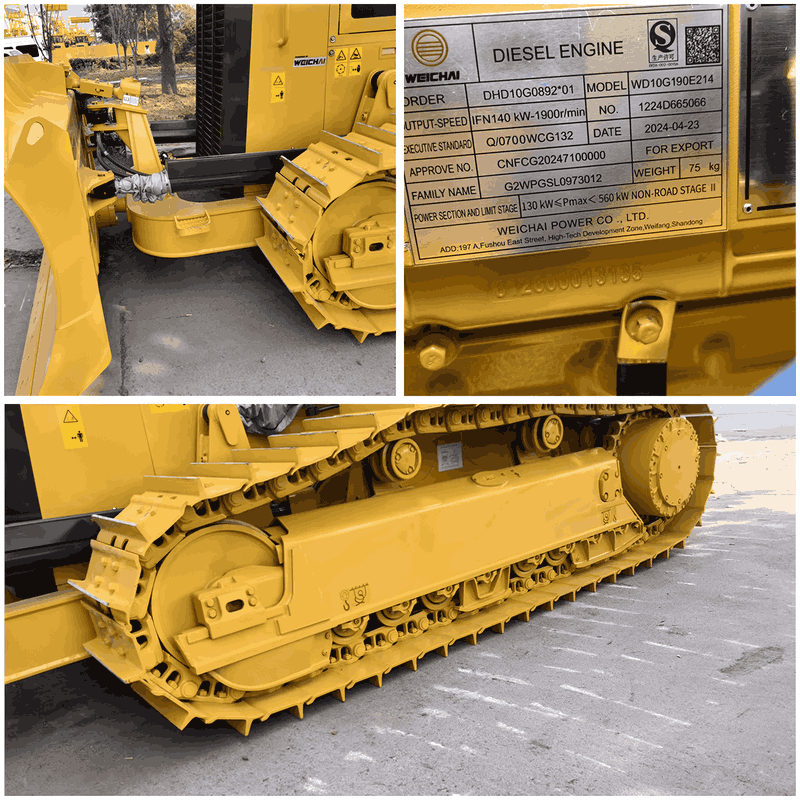

| Engine | Weichai WD10G190E214 |
| Emission | China-II |
| Gross power | 140KW |
| Net power | 127KW |
| Number of cylinder - bore x stroke | 6-126mm*130mm |
| Displacement | 9.726L |
| Max. torque | 900Nm |
| Minimum fuel consumption | Min. fuel consumption external characteristics 194g/kW.h |
| Cooling system | Mechanic fan |
| Drive system | Independent dual-circuit electric control hydrostatic drive, intelligent matching of speed-load, “stepless” variable speed, mono-lever control of travel, speed and steering; steering with load, pivot steering, work flexibly, high eficiency, easy for maintenance |
| System overflow pressure | 45000kPa |
| Traveling speed, Forward | 0~10km/h |
| Traveling speed, Backward | 0~10km/h |
| Max. theoretical traction force | 288.8Kn |
| Steering clutch | Independent drive of track at both sides to ensure the full power output for pivot steering and steering with load |
| Brake | Regular closed multi-disk brake |
| Final drive | Primary spur gear + primary planetary reduction |
| SCHASSIS SYSTEM | |
| Type | Pivot, equalizing beam suspended type, semi-rigid structure |
| Track shoe type | Single grouser |
| Track gauge | 1880mm |
| Width of track shoe | 560mm/ 510mm/610 |
| Track grounding lenght | 2675mm |
| Track grounding area | 29960 cm² |
| Number of track shoe | 39 pcs/single side |
| Grounding pressure (standart configuration) | 60.9 KPa |
| Number of carrier roller | 2 pcs/single side |
| Number of track roller | 7 pcs/single side |
| Pitch | 203mm |
| Minimum turning radius | 3745mm |
| Fuel capacity | 352 L |
| Coolant liquid capacity | 65 L |
| Engine oil capacity | 24 L |
| Hydraulic oil tank | 85 L |
| Final drive | 32L/Single side |
| Operating weight (standard) | 18260KG |
| Blade type | Semi-U/straight tilt-blade |
| Blade capacity | 4.7m³/3.6m³ |
| A Machine height | 3418mm |
| Track grouser heigth | 65mm |
| Ground clearens | 410mm |
| Machine length (without draw bar) | 5465mm(Draw bar)/6700mm(Ripper) |
| Machine length (with draw bar) | 5465mm |
| Max. lifting heigth of blade | 1010mm |
| Max. digging depth of blade | 520mm |
| Digging angle of blade | 52°±3°(deg.) |
| Blade width | 3400mm(semi-U)/3388mm(straight tilt) |
| Track shoe outside width | 2390mm |
| Weigth | 1493KG |
| Max. ripping depth | 475mm |
| Max. lifting heigth | 570mm |
| Ripper length (at deepest ripping) | 1809mm |
| Ripper length (at highest ripping) | 1671mm |
| Ripper width | 2082mm |
| Ripping width | 1900mm |
| Distance between ripper teeth | 950mm |
