| parameter | |
| Overall Dimension(L*W*H) | 7100×3600×3450mm |
| Wheelbase | 3300mm |
| Wheel track | 2240mm |
| Height of shovel blade | 1000mm |
| Weight of complete machine | 17t |
| Maximum lift height of dozer blade | 1060mm |
| Maximum down depth of dozer blade | 400mm |
| Shovel width | 3600mm |
| Gradeability | 25° |
| Model of engine | Steyr WD10G220E22 |
| Pattern | Turbocharger, vertical, water-cooled, 4-stroke, direct injection |
| Rated power | 162KW |
| Specified rotational speed | 2000r/min |
| Max. torque | 860N.m |
| Min. fuel consuming rate | 126g/kw.h |
| Total displacement | 9.726L |
| Fuel | 0# or 10# diesel oil |
| Model of torque device | ZL60D-II |
| Pattern | Fixed-axis power shift |
| Number of gear | 4forward shift 4reverse shift |
| Max. travel speed | 40km/h |
| Axle | Feicheng/Laiyang |
| Main reducer type | Arc taper gear, modelration of first grade |
| Pattern of wheelside moderation | Single stage planetary |
| Tire size | 23.5-25 |
| Pattern | Full hydraulic steering system |
| Min. turning radius(outside of bucket) | 7268mm |
| Max. turning angle | 35°±1 |
| Implement pump | CBGJ2100/1010/2063-0010 |
| Displacement | 250L/min |
| System working pressure | 20.3MPa |
| Distribution device model | 32 |
| Pilot valve model | DJS |
| Brake system | Air assisted oil disc on four wheel |
| Parking brake | Air cutting control inner eapand hoof |
This wheel bulldozer is engineered for heavy-duty earthmoving and material handling, delivering outstanding power and stability in a versatile, wheeled platform. Its robust engine provides strong torque at low speeds, ensuring reliable performance during prolonged operations while maintaining fuel efficiency for cost-effective work cycles.
The bulldozer excels in maneuverability and precision, with a responsive full hydraulic steering system and optimized wheelbase, allowing tight turns and smooth control even in confined or uneven work sites. The adjustable blade provides high lifting and grading capability, enabling operators to move large volumes of material efficiently while maintaining accuracy for construction, roadwork, and landscaping projects.
Durability and reliability are at the core of its design, featuring reinforced axles, a high-strength frame, and advanced torque transfer systems that withstand demanding workloads and challenging terrains. The fully integrated hydraulic system ensures smooth blade operation, reducing operator fatigue and improving productivity over long shifts.

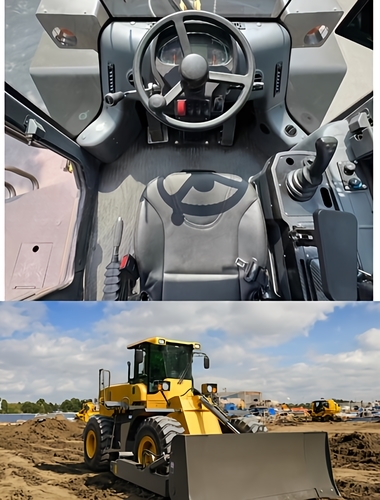

With a focus on operator safety and comfort, the cab offers clear visibility, intuitive controls, and stable braking performance, allowing confident operation under all working conditions. This wheel bulldozer combines power, agility, and reliability, making it ideal for projects that require fast, precise, and dependable material handling without sacrificing mobility or operational efficiency.
With technological innovation, our product configuration and parameters will continue to
change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
Of course. Please let us know the specific product model you are interested in and we will immediately send you the latest technical specifications, test reports and our existing certifications (such as CE, RoHS, FCC, etc.) via email.
Yes, we offer professional OEM and ODM services. We have a strong R&D and engineering team. Please provide us with your detailed requirements or design draft, and we will evaluate the feasibility and provide you with a proposal and quotation.
We accept a variety of secure payment methods, including: · T/T (Telegraphic Transfer): This is our most commonly used method. The down payment ratio is a 30% deposit, and the final payment is 70%, payable before shipment. · L/C (Letter of Credit): We accept letters of credit at sight, but they must be issued by a reputable bank.
Our standard production time is approximately 30 days after receiving the deposit. The specific time may vary slightly depending on the order quantity and production schedule. Once the order is confirmed, we will provide you with a precise production schedule.
