| parameter |
| Engine Model | KubotaD722 |
| Type | Vertical water-cooled 4-stroke diesel engine |
| Number of Cylinders | 3 |
| Rated Power | 14PS(10.2KW) |
| Total Displacement | 719Cm3 |
| Bucket Capacity | 0.03m³ |
| Operating Weight | 1120KG |
| Swing Speed | 14r/min |
| Climbing Ability | 30° |
| Maximum Digging Force | 9.5Kn |
| Set Working Pressure | 15.5Mpa |
| Travel Speed | 2.2Km/h |
| Fuel Tank Capacity | 7L |
| Overall Length (Transportation) | 2450mm |
| Overall Width | 750-950mm |
| Overall Height | 1430mm |
| Track Shoe Width | 180mm |
| Track Length | 1300mm |
| Platform Ground Clearance | 370mm |
| Dozer Blade Width | 750-950mm |
| Maximum Ground Clearance of Dozer Blade | 230mm |
| Maximum Depth of Dozer Blade | 200mm |
| Maximum Digging Height | 2680mm |
| Maximum Unloading Height | 2060mm |
| Maximum Digging Depth | 2000mm |
| Maximum Digging Distance | 1600mm |
| Minimum Swing Radius | 1100mm |

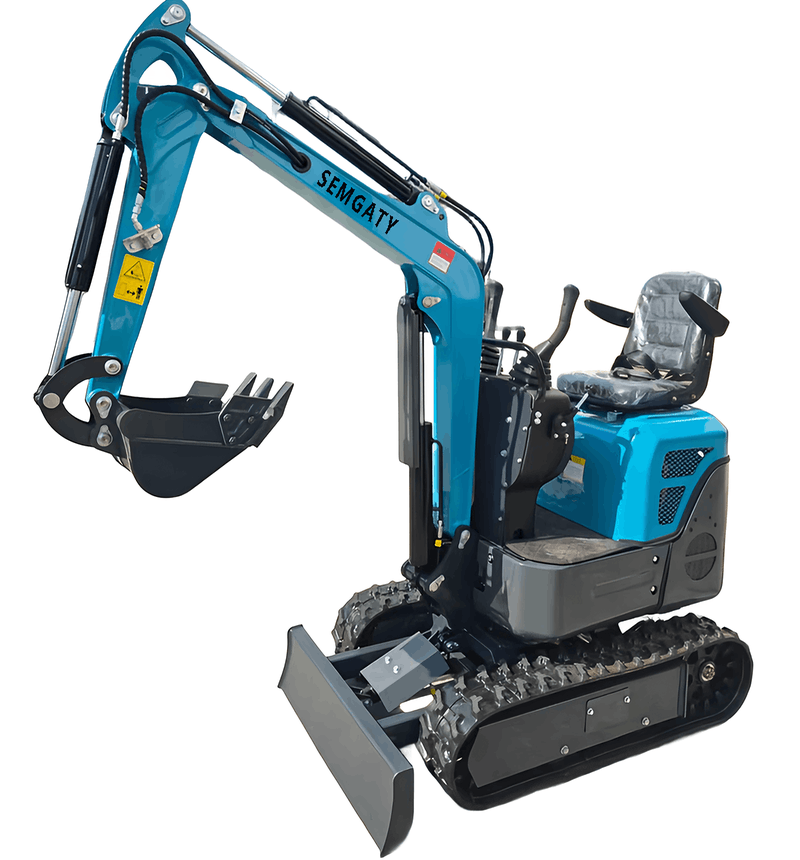

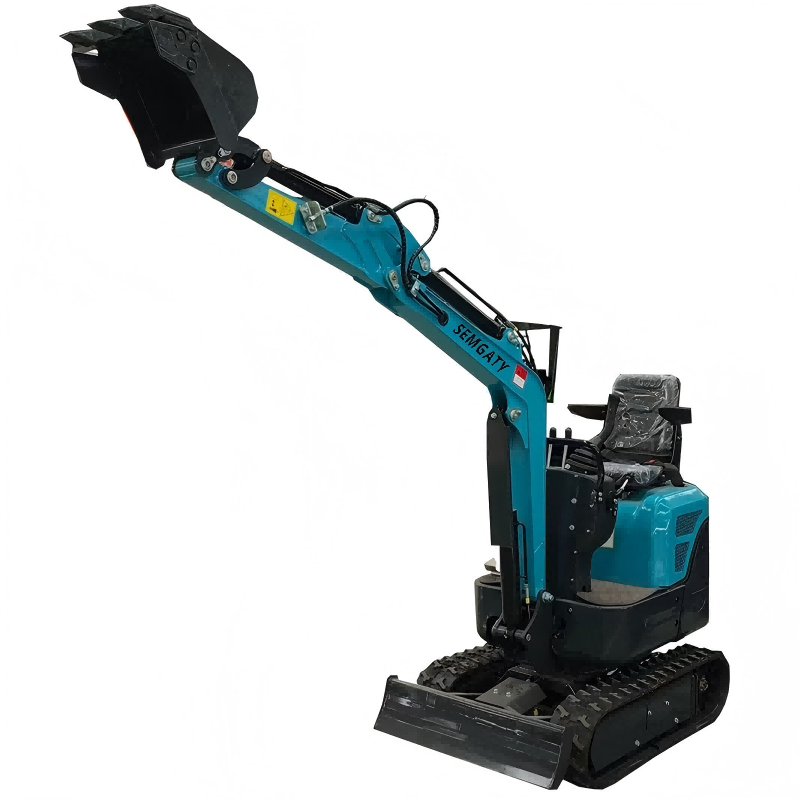

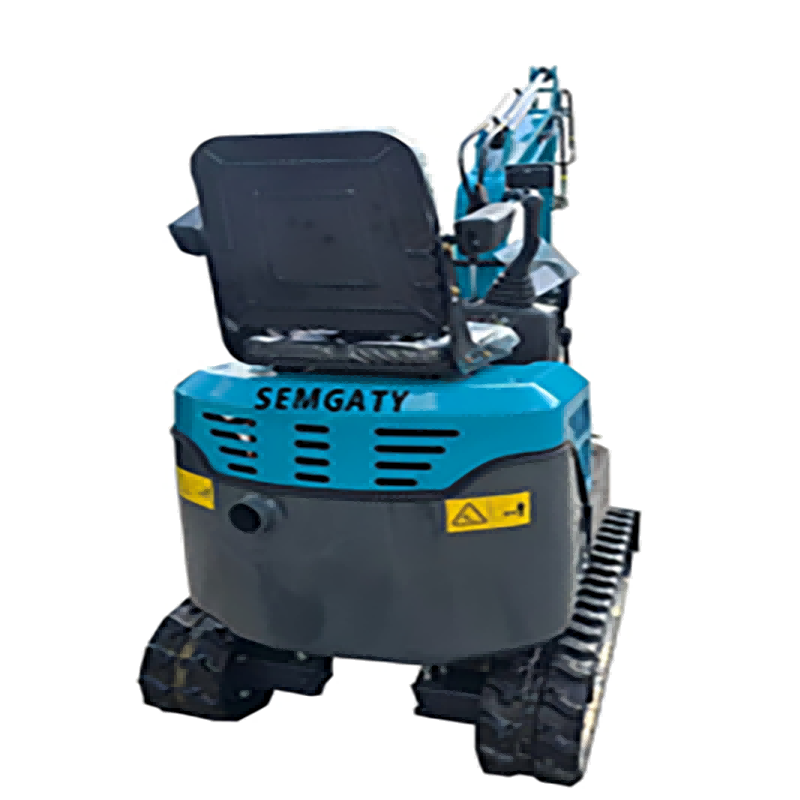

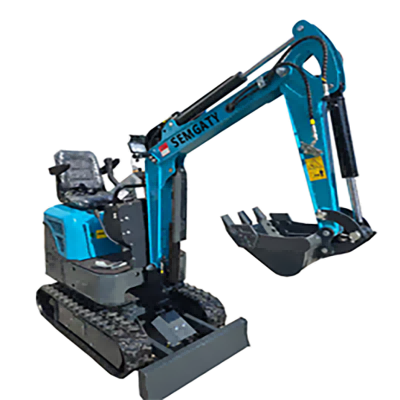

Mini Excavator – Compact, Efficient, and Versatile
The Kubota D722-powered mini excavator is designed for tight spaces and precise digging tasks where traditional machinery cannot operate. With an operating weight of 1,120 kg and ultra-compact dimensions of 2.45 m length, 0.75–0.95 m width, and 1.43 m height, this machine excels in urban construction, landscaping, utility work, and confined site projects.
Its 0.03 m³ bucket delivers efficient digging and material handling, with a maximum digging force of 9.5 kN, enabling excavation of trenches, small foundations, and landscaping pits. The machine can reach a maximum digging depth of 2 m, and a maximum unloading height of 2.06 m, offering flexibility for a variety of small-scale applications.
Powered by a vertical, water-cooled, 3-cylinder Kubota D722 diesel engine producing 10.2 kW, this mini excavator ensures fuel-efficient operation and reliable performance even during extended work periods. The hydraulic system maintains 15.5 MPa working pressure, providing smooth boom and bucket movement with precise control via pilot-operated levers.
Equipped with rubber tracks (180 mm width) and a compact track length of 1.3 m, the machine achieves a climbing ability of 30° and excellent stability on uneven terrain. Its dozer blade, adjustable up to 230 mm height and 200 mm depth, allows easy site leveling, backfilling, and material grading, further increasing operational versatility.
The excavator features a minimum swing radius of 1.1 m and a swing speed of 14 r/min, enabling work in confined areas with full 360° rotation capabilities. With a fuel tank capacity of 7 L and a low transport weight, this machine is easy to transport, maneuver, and operate, making it an ideal choice for contractors, landscapers, and utility teams requiring precision, efficiency, and compact power.
With technological innovation, our product configuration and parameters will continue to
change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
