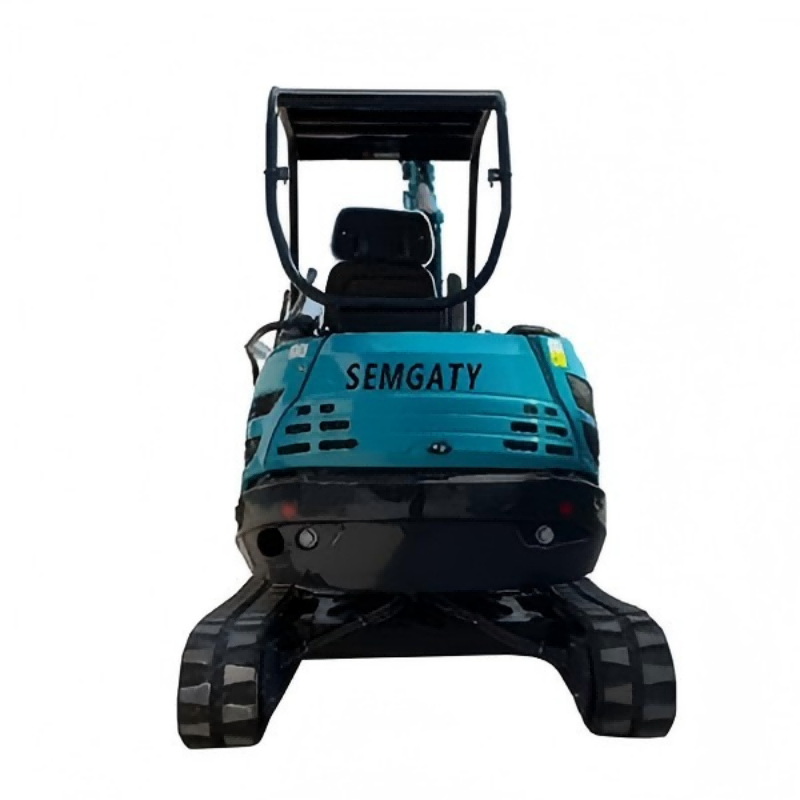

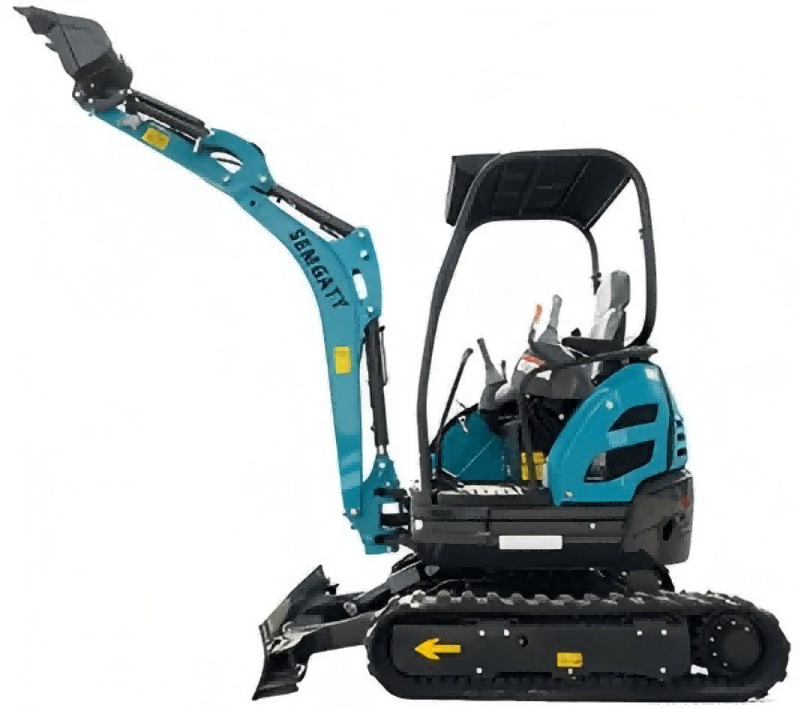

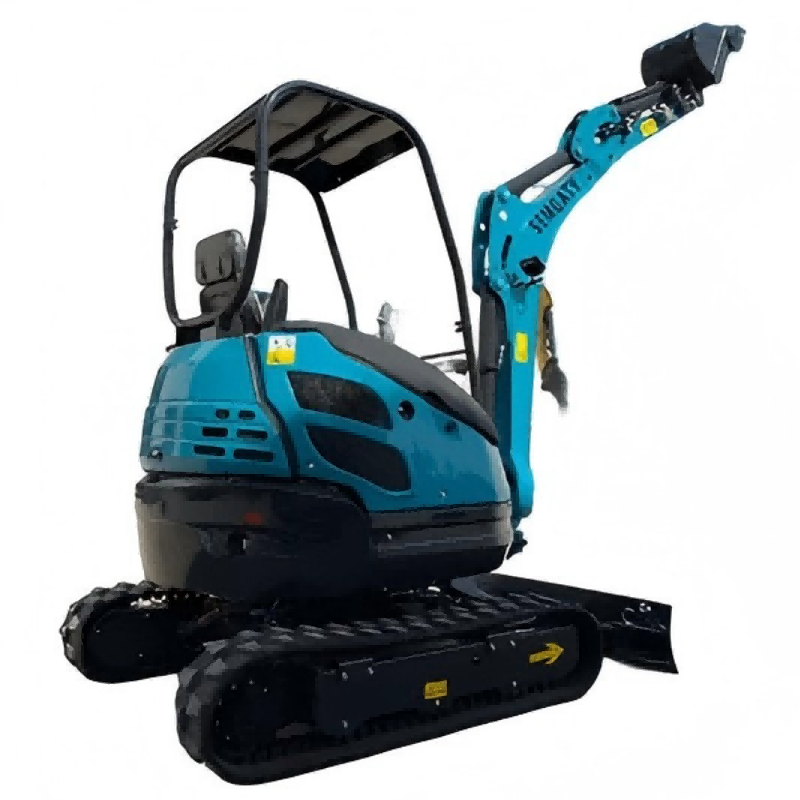

2.5T Mini Crawler Excavator

Compact Mini Excavator – Power and Precision for Confined Spaces

The Compact Mini Excavator is designed for urban construction, landscaping, utility installation, and small-scale excavation projects where space is limited but performance cannot be compromised. Weighing only 2,510 kg, this agile machine combines robust digging power, precise control, and versatile lifting capabilities in a compact frame. Its adjustable width—1.3 m when shrunk and 1.5 m when extended—allows it to navigate narrow alleys, crowded job sites, and tight corners, offering unmatched flexibility compared to larger machinery. With an overall length of 3.85 m and height of 2.28 m, the machine is optimized for both indoor and outdoor projects, providing stability without sacrificing mobility.

Equipped with a 0.075 m³ bucket, this mini excavator delivers strong excavation performance, featuring a maximum bucket digging force of 22.8 kN. It can reach a digging depth of 2.51 m, a maximum digging height of 3.98 m, and a bucket unloading height of 2.66 m, enabling precise material placement and effective trenching, foundation work, pipeline installation, and landscaping tasks. The maximum digging radius of 4.236 m expands the working area without requiring the machine to be repositioned frequently, while the minimum turning radius—from 1.4–1.85 m at the front to 0.71 m at the rear—provides exceptional maneuverability in constrained spaces.

Powered by the D1105-EF09 water-cooled, three-cylinder diesel engine delivering 20.6 PS (15 kW) at 2,500 rpm, this machine combines reliable power with fuel efficiency, supporting continuous operation over extended periods. The hydraulic system operates at 22.5 MPa, providing smooth and responsive control for the boom, arm, and bucket movements. With vertical lifting capability of 800 kg and horizontal lifting capability of 520 kg, this mini excavator can perform small material handling tasks, reducing the need for additional equipment.

The tracked undercarriage, featuring 250 mm wide tracks over a 1.86 m length, ensures excellent stability and traction on uneven or soft ground while maintaining a low ground pressure of 32 kPa, minimizing surface damage and soil disturbance. Its climbing ability of 30° allows operators to work confidently on slopes, embankments, and uneven terrain. The dual-speed travel function, with high speed at 4.5 km/h and low speed at 2.6 km/h, allows operators to balance control and efficiency while moving around the site.

With a rotation speed of 9.5 rpm, the machine offers smooth 360° continuous rotation, giving operators full flexibility to excavate, lift, and place materials without constantly repositioning the excavator. The 28 L fuel tank supports extended operation, reducing downtime for refueling and improving overall project productivity.

Operators benefit from pilot-operated controls and a well-designed hydraulic quick-release system, which allows easy attachment changes and intuitive control of all movements. The compact dimensions, powerful hydraulic performance, and stable tracks make it easy to transport between sites and deploy rapidly for time-sensitive tasks.

This mini excavator is ideal for landscaping projects, urban utility works, municipal construction, and small civil engineering tasks, offering a combination of power, precision, and adaptability. Its adjustable width, robust digging and lifting capabilities, and compact design make it a versatile choice for contractors who require maximum efficiency in confined or challenging working environments. The machine delivers a professional-grade performance while maintaining easy operation, maneuverability, and operational reliability, making it a dependable solution for projects that demand precision, strength, and mobility in tight spaces.

With technological innovation, our product configuration and parameters will continue to

change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail;
