| parameter |
| Model | Single drive, single steel wheel | Dual-drive single steel wheel |
| Operating weight | 16000KG | 16000KG |
| Static line load | 410N/cm | 410N/cm |
| Amplitude | 1.7/0.8mm | 1.7/0.8mm |
| Vibration frequency | 28/32Hz | 28/32Hz |
| Excitation force | 300/180Kn | 300/180Kn |
| Travel speed | 0-6km/h | 0-6km/h |
| 0-10km/h | 0-10km/h |
| Climbing ability | 30% | 35% |
| Turning radius | 7000mm | 7000mm |
| Overall vehicle dimensions (L× W × H) | 5900*2250*3000mm | 5900*2250*3000mm |
| Vibrating wheel width | 2100mm | 2100mm |
| Mini. ground clearance | 450mm | 450mm |
| wheelbase | 3010mm | 3010mm |
| Hydraulic oil tank capacity | 190L | 190L |
| Diesel tank capacity | 300L | 300L |
| Engine power | 110KW | 110KW |
| Engine model | Cummins 6BT5.9 | Cummins 6BT5.9 |

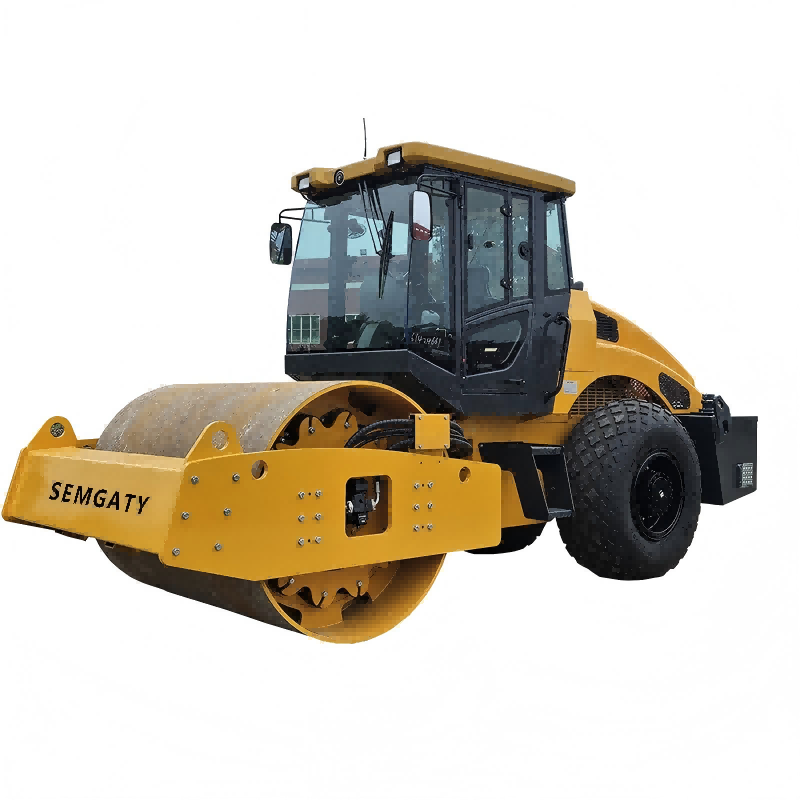

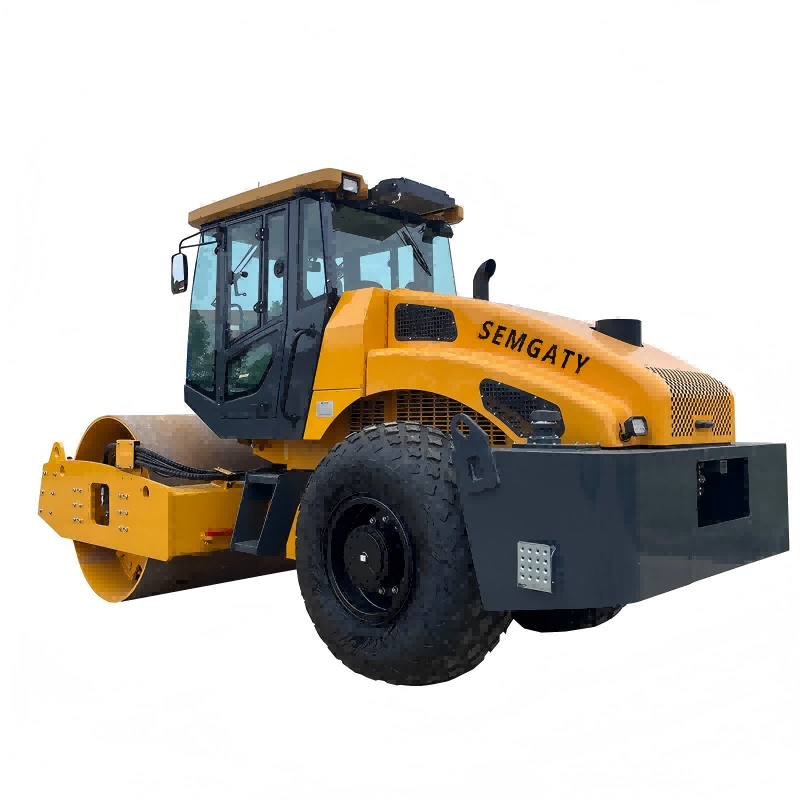

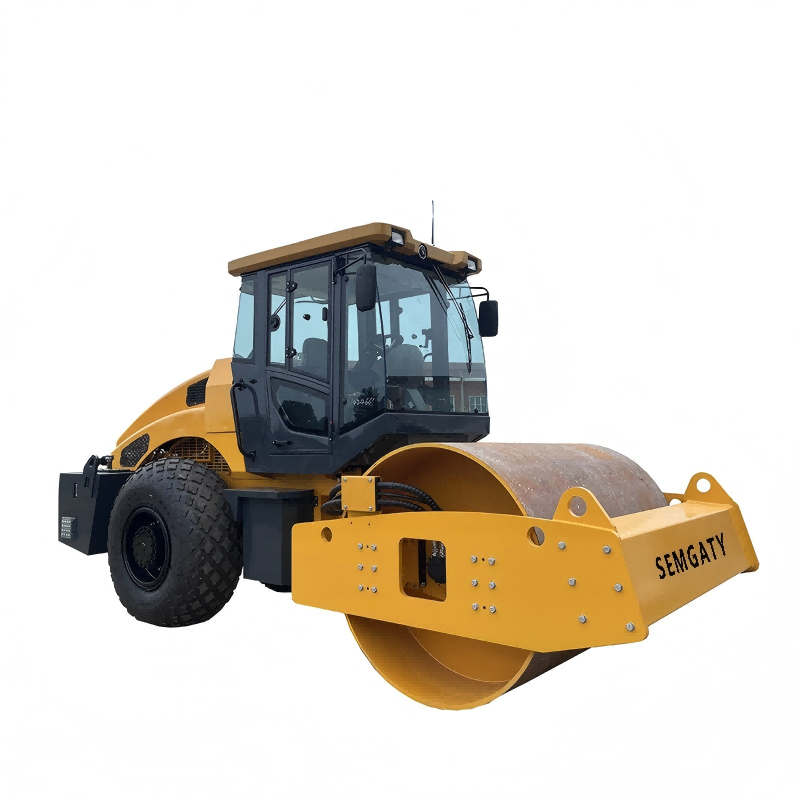

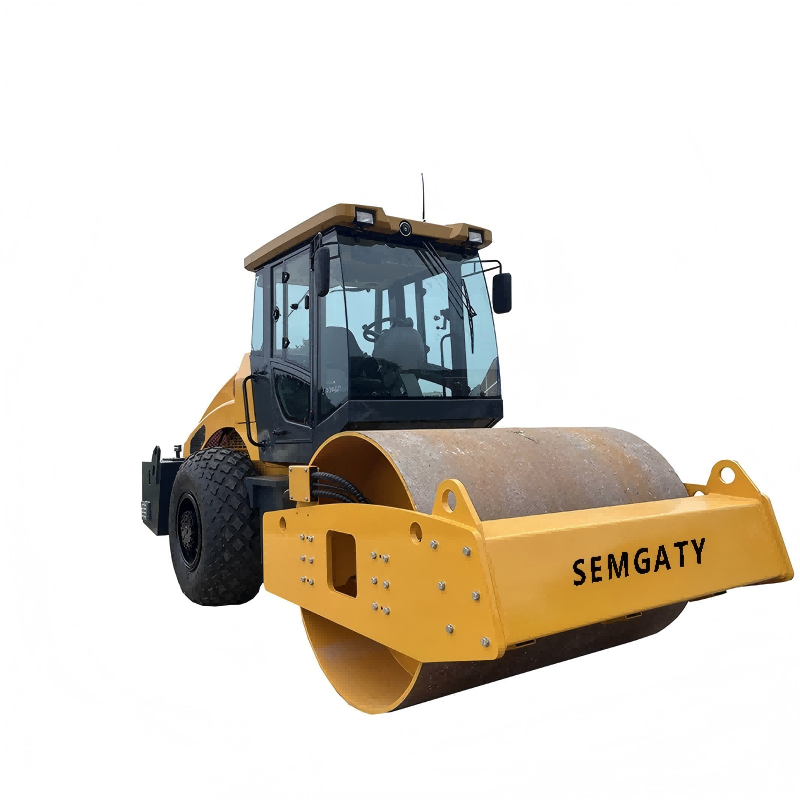

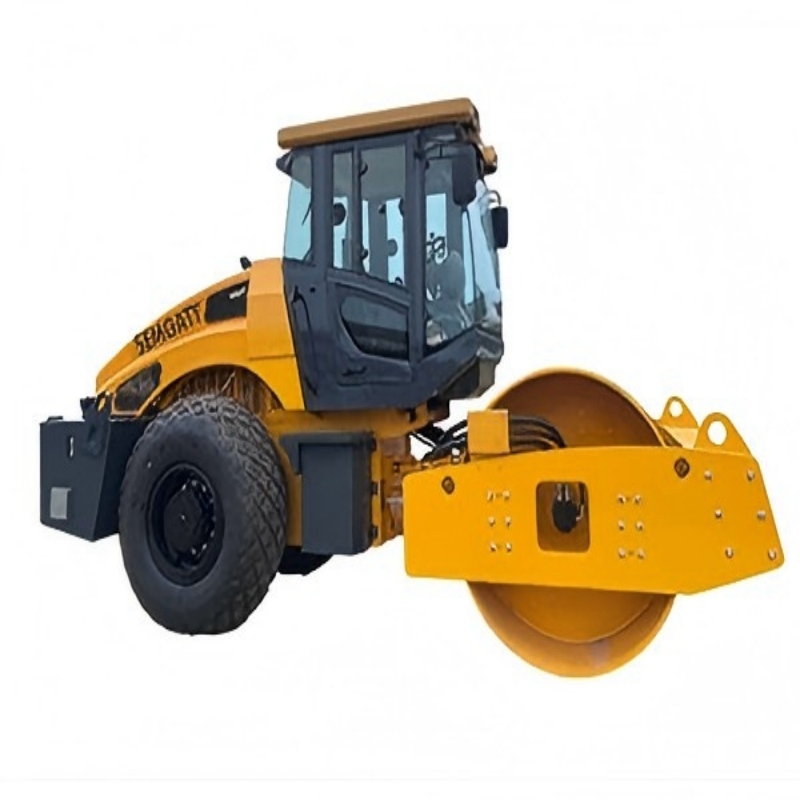

This is a single-drum vibratory roller, available in two models based on drive type: single-drive single-drum and double-drive single-drum. Both models boast superior core performance and are designed for efficient and stable compaction operations.
I. Core Performance and Compaction Parameters
Working Weight: 16,000 KG, providing ample compaction weight.
Static Linear Load: 410 N/cm, ensuring excellent foundation compaction.
Vibration Performance: Equipped with dual-frequency, dual-amplitude functionality.
Amplitude: 1.7 mm (high amplitude) / 0.8 mm (low amplitude), adaptable to different thicknesses of pavement materials.
Frequency: 28 Hz / 32 Hz, matching different amplitudes to achieve optimal compaction efficiency.
Excitation Force: Up to 300 KN (at high amplitude) / 180 KN (at low amplitude), providing powerful compaction energy.
II. Driving and Mobility
Driving Speed: Two-speed continuously variable transmission, operating speed 0-6 km/h, transfer speed 0-10 km/h, balancing compaction accuracy and mobility.
Climbing Ability: Strong and reliable, 30% for single-drive models, 35% for dual-drive models, adapting to more complex working conditions.
Turning Radius: Only 7,000 mm, highly maneuverable, facilitating construction in narrow areas.
Minimum Ground Clearance: 450 mm, good passability.
III. Overall Structure and Power System
Overall Dimensions (L×W×H): 5900 × 2250 × 3000 mm, compact structure.
Vibrating Drum Width: 2100 mm, large single-pass compaction coverage area, high efficiency.
Wheelbase: 3010 mm, stable driving.
Powertrain Core: Equipped with a Cummins 6BT5.9 diesel engine, rated power 110 kW, providing ample power and reliable performance.
Storage and Transportation Capacity:
Hydraulic Oil Tank: 190 L
Diesel Tank: 300 L, ensuring continuous operation for extended periods.
Summary:
This series of single-drum vibratory rollers, with its 16-ton working weight, adjustable vibration parameters, powerful excitation force, and reliable Cummins power system, is an ideal machine for compacting soil, gravel, and other foundation layers. The dual-drive model offers superior climbing ability. Its excellent mobility, passability, and long-endurance design effectively meet the demands of various construction scenarios for efficient and high-quality compaction operations.
With technological innovation, our product configuration and parameters will continue to
change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
