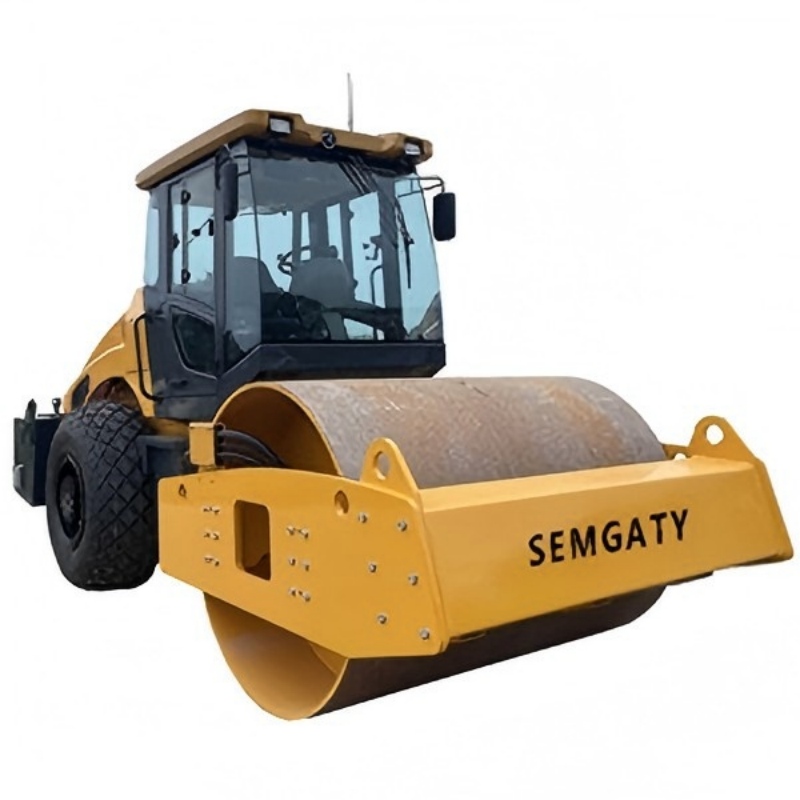

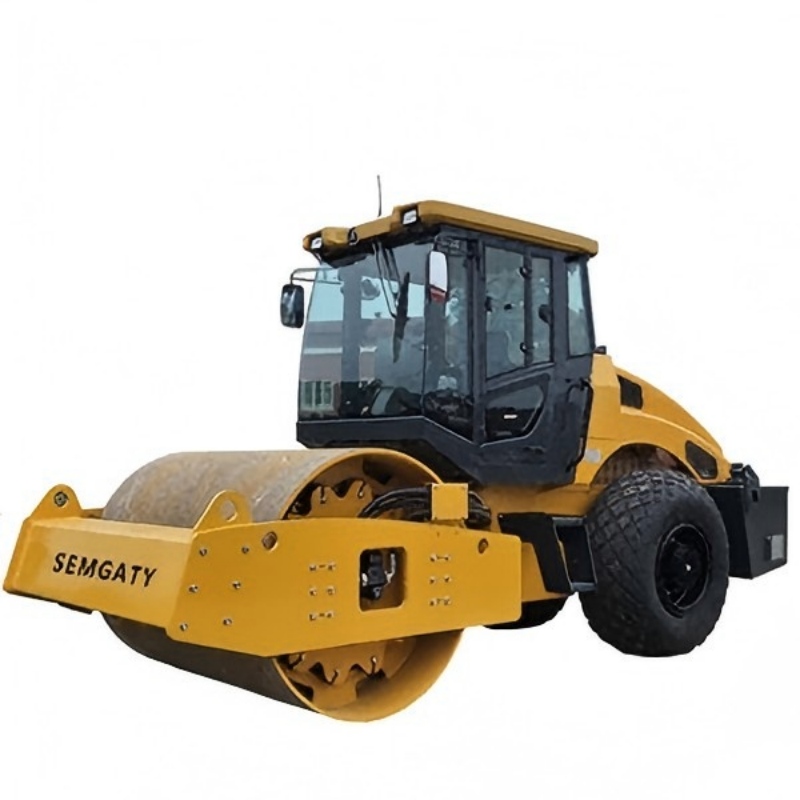

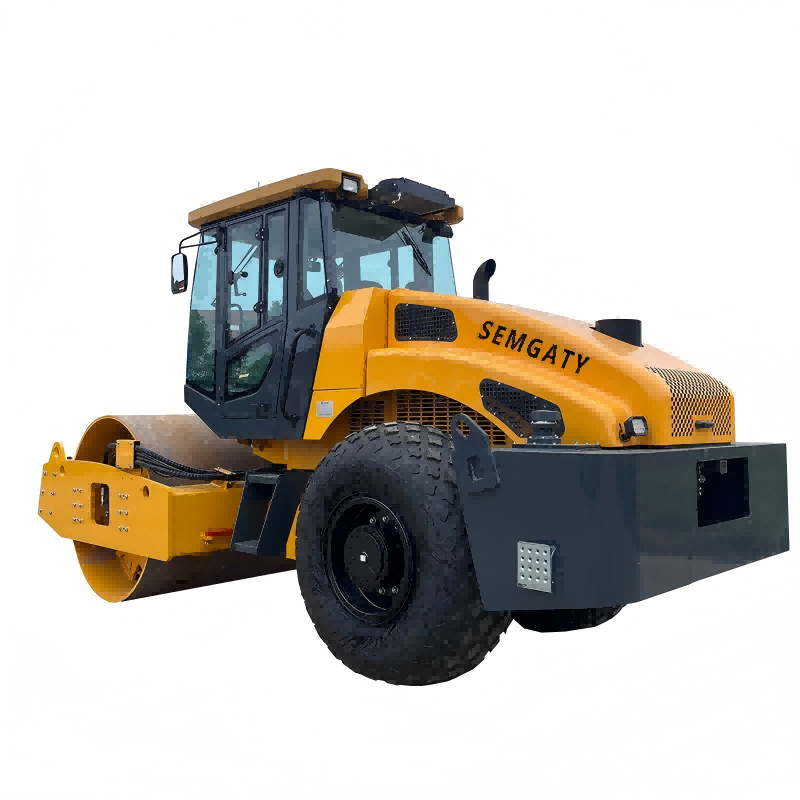

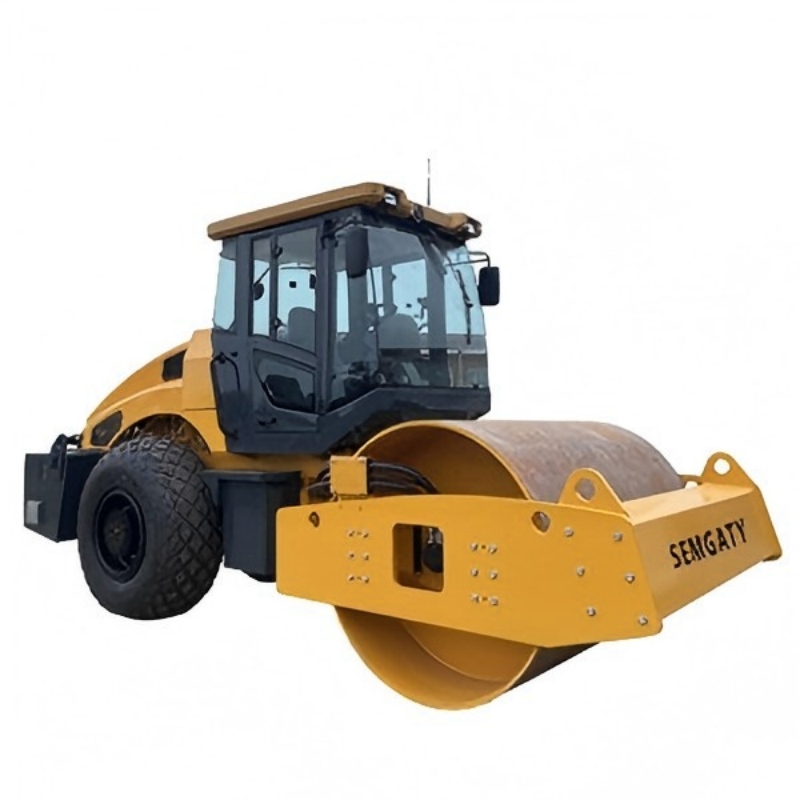

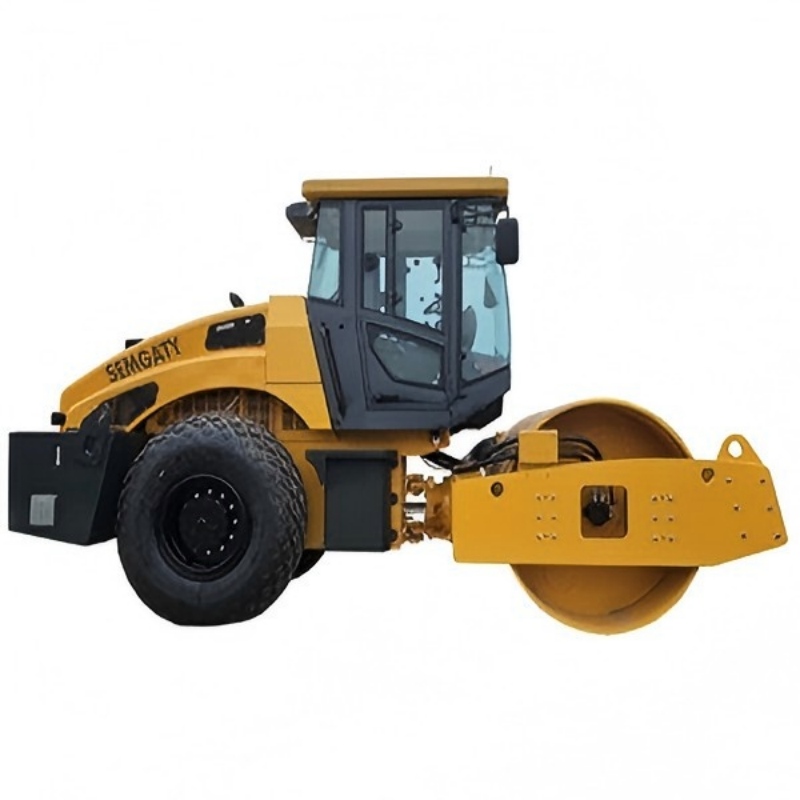

Powerful Hydraulic Road Roller Machine

Product Introduction: Double Drum Vibratory Roller

This series of double drum vibratory rollers offers two models: "single-drive single drum" and "double-drive single drum." It is a high-performance engineering machine suitable for high-grade asphalt pavements and base layer compaction. Both models maintain the same overall structure, dimensions, and core configuration; the main differences lie in the drive method and some power parameters, catering to varying construction intensities and complex working conditions.

I. Core Performance Parameters

Operating Weight: 14,000 kg

Static Line Load: 373 N/cm

Vibration Parameters: Amplitude 1.7/0.8 mm, Frequency 28/32 Hz (Dual-frequency adjustable)

Excitation Force: Single-drive version 260/180 kN, Dual-drive version 280/180 kN

Travel Speed: 0–6 km/h (operating speed) and 0–10 km/h (travel speed)

Climbing Ability: Single-drive version 30%, Dual-drive version 35%

Minimum Turning Radius: 7,000 mm

II. Structural Design Features

Overall Dimensions: 5,900 × 2,250 × 3,000 mm (L×W×H), compact structure, suitable for construction in confined spaces.

Vibrating Wheel Width: 2,100 mm, wide compaction coverage, high work efficiency.

Ground Clearance and Wheelbase: Minimum ground clearance 450 mm, ensuring excellent passability; wheelbase 3,010 mm, providing a smooth ride.

III. Power and Range System

Engine: Utilizes a Cummins 6BT5.9 diesel engine with a rated power of 110 kW, offering reliable power and high fuel economy.

Fuel Tank Capacity: 300 L diesel tank, 190 L hydraulic oil tank, supporting long-term continuous operation and reducing refueling and maintenance time.

IV. Applicable Scenarios

This equipment is suitable for compacting asphalt pavement layers on highways, municipal roads, airport runways, parking lots, etc. It can also be used for vibratory compaction of base stabilized soil and asphalt mixtures, making it a key piece of equipment in high-grade pavement construction.

Product Highlights

Powerful Compaction Performance

Adopts a high-frequency vibration design (28/32Hz dual frequency selectable), with an amplitude of 1.7/0.8 mm and an excitation force of up to 260-280 KN, ensuring efficient and uniform compaction results.

Flexible Drive and Climbing Capability: The dual-drive version boasts enhanced traction and climbing ability (35% gradient), adapting to complex terrain and slope construction. With a turning radius of only 7000mm, it offers superior maneuverability.

Large-Capacity Range Design：Equipped with a 300L diesel fuel tank and a 190L hydraulic oil tank, it supports continuous operation for extended periods, reducing refueling and maintenance frequency and improving construction efficiency.

Reliable Power System: Powered by a Cummins 6BT5.9 diesel engine with 110KW power, providing stable and reliable power suitable for high-intensity construction environments.

Wide Compaction and Excellent Passability: The vibratory rollers are 2100mm wide, ensuring a large compaction area in a single pass; the minimum ground clearance of 450mm allows it to adapt to uneven construction sites.

Product Advantages:

Dual Version Options for Diverse Working Conditions: The single-drive version is economical and practical, while the dual-drive version offers stronger power and superior climbing performance. Users can choose flexibly according to their actual project needs.

High Excitation Force and Multi-Frequency Vibration: The excitation force can reach up to 280KN, equipped with dual vibration frequencies that can be adjusted according to material type and compaction stage, improving compaction quality and efficiency.

Humanized Design and High Passability: The compact body structure (5900×2250×3000mm) and wheelbase of 3010mm allow for agile turning; high ground clearance ensures good passability and adaptability to complex terrain.

Long Range and Low Maintenance: The large-capacity fuel and hydraulic system design supports continuous operation, reducing downtime; mature engine and hydraulic technology ensures simple maintenance and high reliability.

Standardized Configuration and High Compatibility: Key components such as the engine, fuel tank, and wheel width are all standardized, facilitating equipment management, spare parts procurement, and team training.

With technological innovation, our product configuration and parameters will continue to

 change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail;
