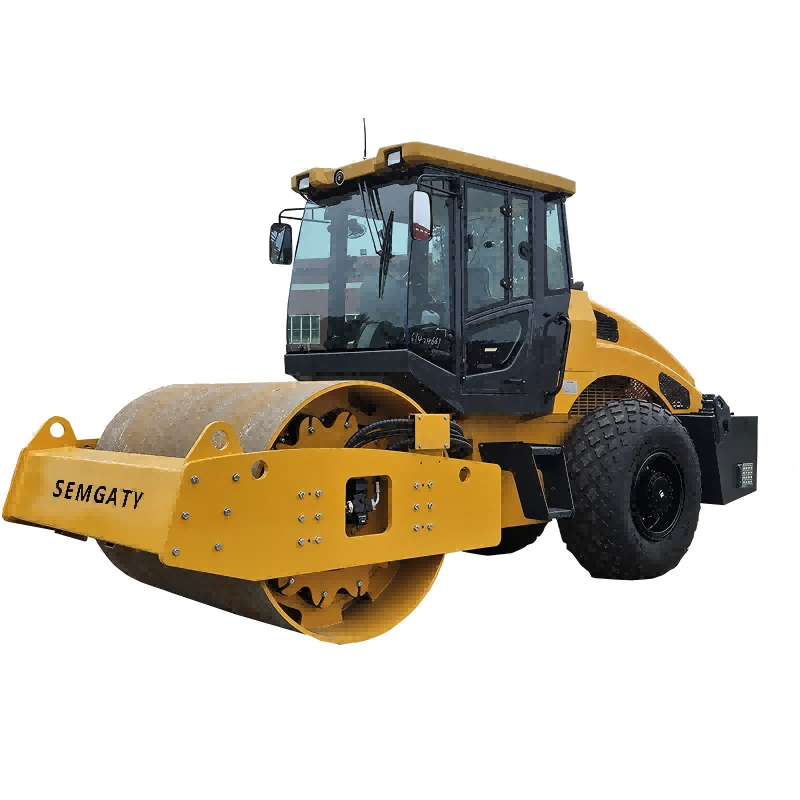

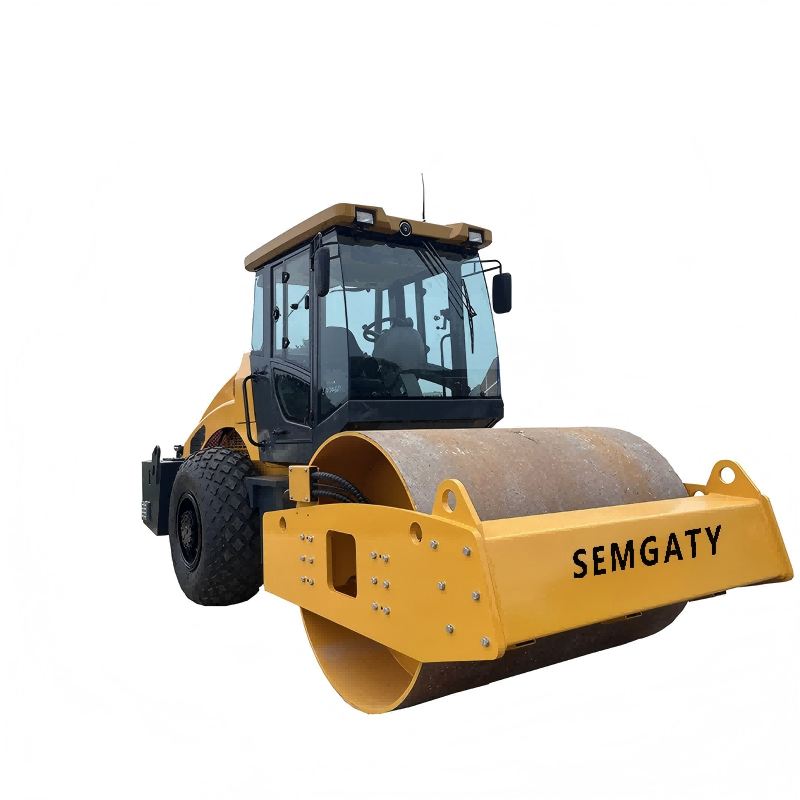

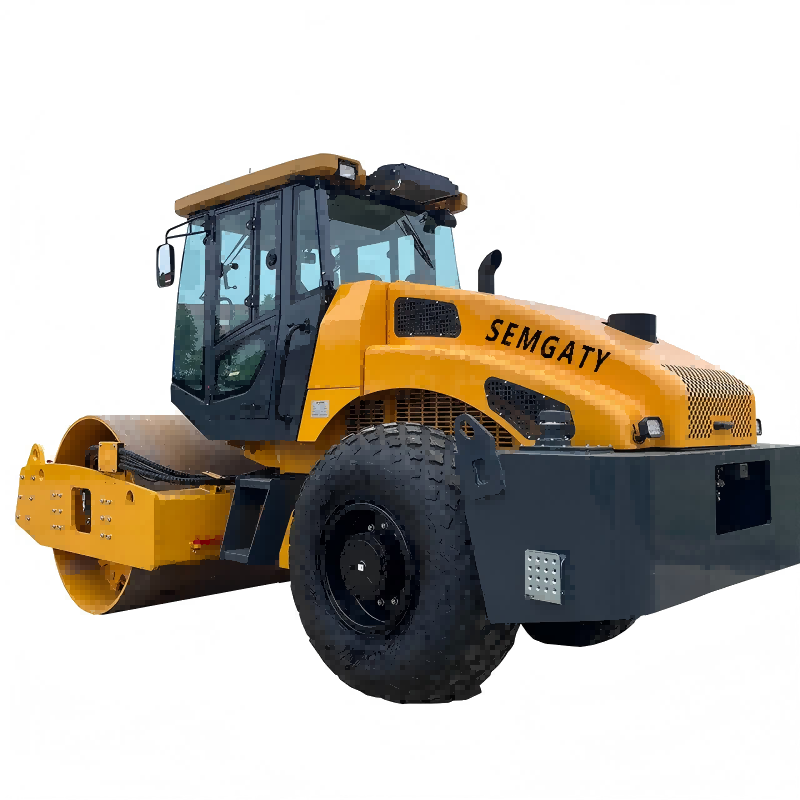

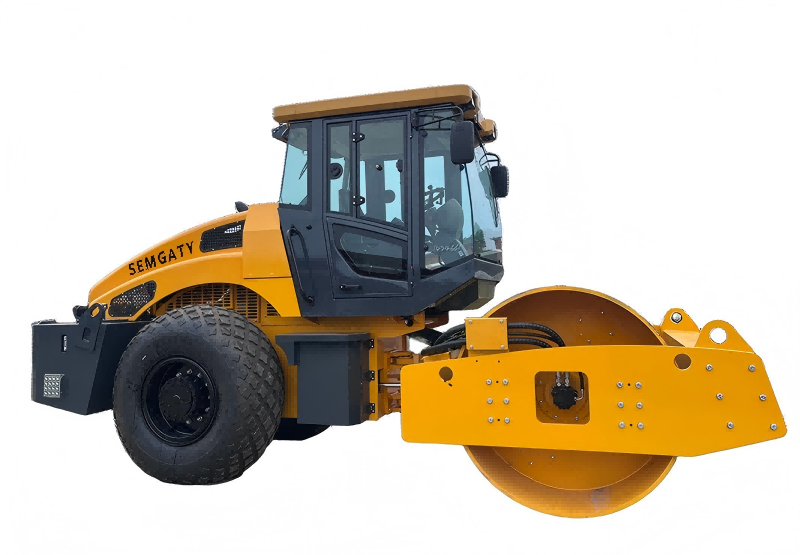

Vibro Road Roller for Smooth Road Compaction

Product Overview

This series of products are hydraulic vibratory rollers, offering both single-drive and dual-drive hydraulic options, suitable for various road compaction operations. The two models are essentially identical in core compaction performance, structural dimensions, and power system, but differ in climbing ability to meet diverse working conditions.

Core Compaction Parameters

Operating Weight: 12,000 kg

Static Line Load: 326 N/cm

Amplitude: 1.7 / 0.8 mm (Dual Amplitude Adjustable)

Vibration Frequency: 28 / 32 Hz (Dual Frequency Adjustable)

Vibrating Drum Dimensions: Width 2100 mm, Diameter 1500 mm

Note: Both models have identical compaction performance parameters and feature dual amplitude and dual frequency adjustment functions to adapt to the compaction needs of different materials and thicknesses.

Walking and Off-Road Performance

Climbing Ability:

Hydraulic Single Drive: 30%

Hydraulic Dual Drive: 35% (Stronger driving force, suitable for steeper slopes)

Turning Radius: 7000 mm

Minimum Ground Clearance: 400 mm

Wheelbase: 2910 mm

Overall Dimensions and Capacity

External Dimensions (L×W×H): 5900 × 2250 × 3000 mm

Hydraulic Tank Capacity: 190 L

Diesel Tank Capacity: 300 L

Powertrain

Engine Model: Cummins 4BT3.9

Engine Power: 93 kW

Note: Both models use the same Cummins engine with identical power output.

Purchase Recommendation

Hydraulic Single Drive: Suitable for general roads, municipal engineering, and compaction scenarios with a slope not exceeding 30%, offering high cost-effectiveness.

Hydraulic dual drive: Recommended for complex working conditions with steep slopes (≤35%) and higher requirements for traction and passability, such as mountain roads or large-scale foundation projects.

With technological innovation, our product configuration and parameters will continue to

change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail;
