| parameter |
| Engine |
| Brand/Model | Yunnei YN25GB |
| Type | In-line arrangement, water-cooled, four cylinder, diesel engine |
| Rated Power | 37KW |
| Overall Dimensions |
| Overall Length: | 4460mm |
| Overall Width: | 1680mm |
| Overall Height: | 2180mm |
| Bucket hinge pin Height: | 3318mm |
|
| Telescopic stroke | 880mm |
|
| Extend the arm length | 3318mm |
|
| Bucket Max.lift height | 4208mm |
|
| Bucket Max.unloading height | 2975mm |
|
| Transmission System |
| Gearbox+Hydraulic converter + Drive shaft + Isuzu axles(Disc brake) |
|
| Optional Hub reduction axle(Disc brake) |
| Bucket |
| Capacity | 0.5 m³ |
| Type | Heavy-duty bolt on teeth |
| Max. Load | 1000kg including bucket or attachment |
|
| Operating Specifications |
| Steering System: | Articulated hydraulic steering |
|
| Driving System | Four wheel drive |
| Hydraulic quick release | Yes |
|
| Mechanical pilot joystick | Yes |
|
| Steady rise | Yes |
| Brake System |
| Service Brake | Four wheel disc brake |
| Parking Brake | Disc brake |
| Tyre |
| Model | 20.5-16 |
| Size | Width: 330mm Diameter: 820mm |
| Optional Model | 31*15.5-15 tubeless tire |
| Wheel base | 2300mm |
| Track | 1620mm |
| System pressure | 16Mpa |
|
| Weight | 3200KG |

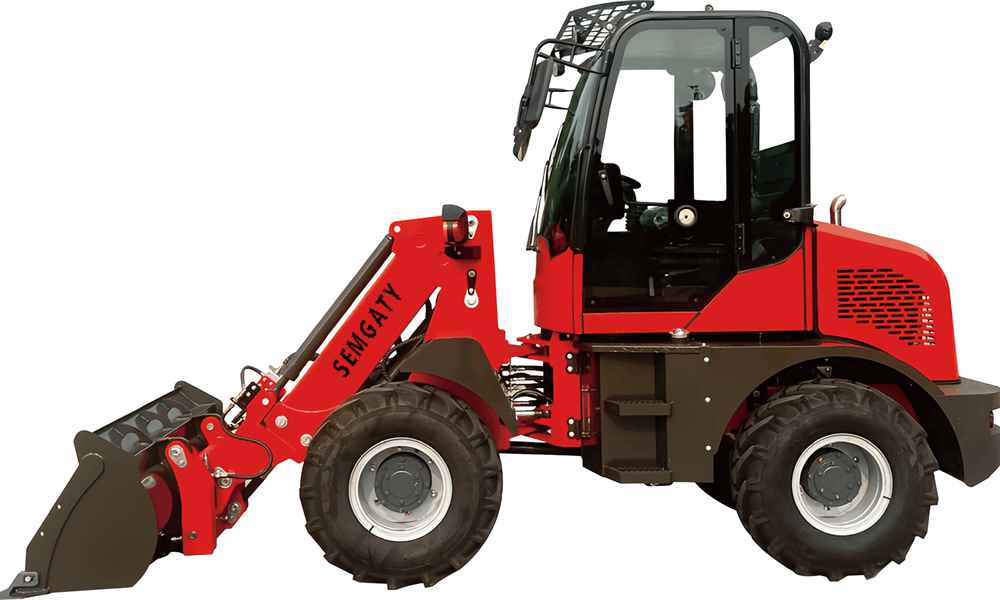

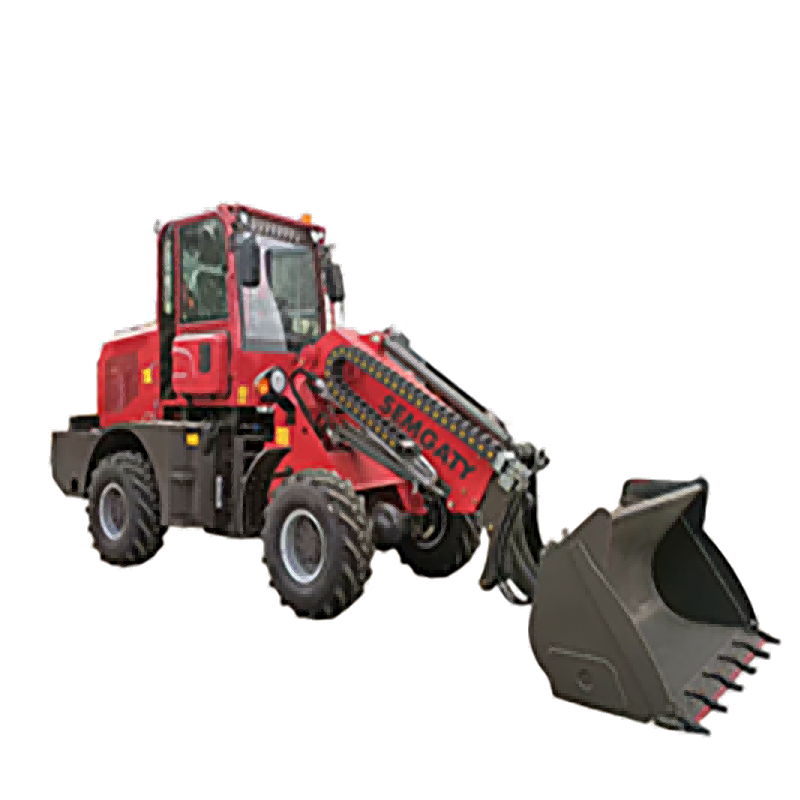

1000 Telescopic Loader – Compact, Efficient, and Versatile
The 1000 Telescopic Loader is a compact yet powerful solution for small to medium construction sites, agricultural operations, and industrial material handling. Designed to combine maneuverability, lifting capability, and operator-friendly controls, it delivers maximum productivity even in tight spaces.

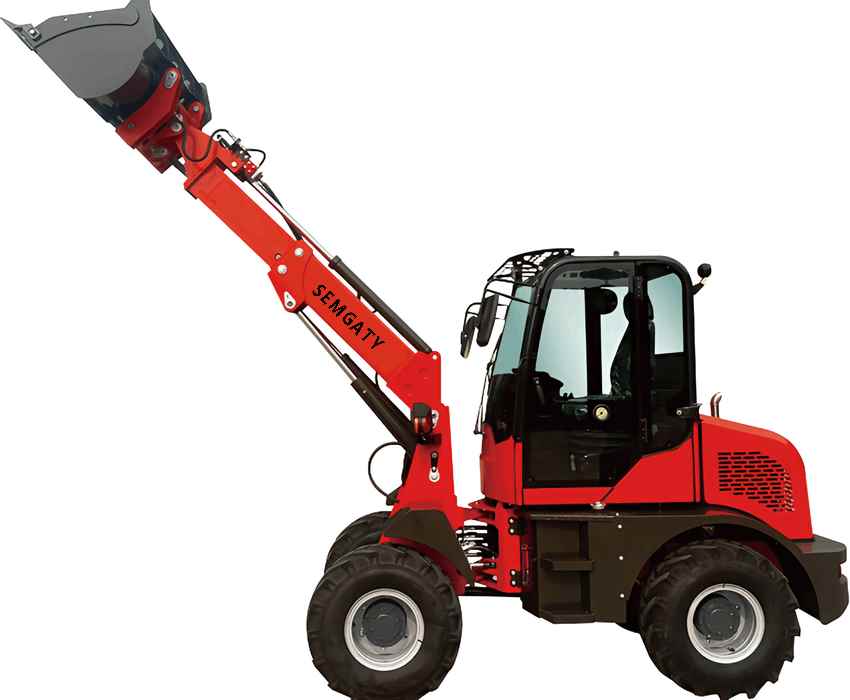

Its telescopic boom extends smoothly to 3.3 m, achieving a maximum lift height of 4.2 m and unloading height of 2.97 m, allowing operators to stack materials, load trucks, or handle pallets with precision. The 0.5 m³ heavy-duty bucket can carry up to 1 t, and optional attachments can be quickly swapped using the hydraulic quick-release system, providing versatility for multiple tasks.
Powered by a 37 kW Yunnei YN25GB diesel engine, the loader ensures reliable performance and fuel efficiency for continuous operation. Its articulated hydraulic steering and four-wheel drive enable smooth maneuvering on uneven terrain or confined areas, while mechanical pilot joystick controls and the steady rise system offer precise and safe handling of loads.
The machine’s compact footprint — 4.46 m length, 1.68 m width, 2.18 m height — combined with a 2300 mm wheelbase and 1620 mm track width, allows excellent stability without sacrificing agility. Equipped with durable disc brakes on all wheels, operators can rely on consistent stopping power in any situation.
Whether it’s loading, stacking, or moving materials, the 1000 Telescopic Loader offers efficient, reliable, and safe operation. Its compact size and versatile lifting capabilities make it ideal for construction, agriculture, landscaping, and small-scale industrial projects, providing operators with a balance of power, control, and productivity in a single, cost-effective machine.
