| parameter |
| Engine |
| Brand/Model | Yunnei YN33GBZ |
| Type | In-line arrangement, water-cooled, four cylinder, turbocharged diesel engine |
|
| Rated Power | 65KW |
| Optional Model: | EPA3 Yanmar engine;EPA3 |
| Cummins engine;EPA4 |
| Overall Dimensions |
| Overall Length | 6150mm |
| Overall Width | 2000mm |
| Overall Height | 2860mm |
| Bucket hinge pin Height: | 4580mm |
|
| Telescopic stroke | 1100mm |
| Extend the arm length | 3000mm |
|
| Bucket Max.lift height | 5330mm |
|
| Bucket Max.unloading height | 4000mm |
|
| Transmission System |
| Gearbox+Hydraulic converter + Drive shaft + Hub reduction axle |
| Bucket |
| Capacity | 1m³ |
| Width | 2000mm |
| Type | Heavy-duty bolt on teeth |
| Max. Load | 2000kg including bucket or attachment |
|
| Operating Specifications |
| Steering System: | Articulated hydraulic steering |
|
| Driving System | Four wheel drive |
| Hydraulic quick release | Yes |
|
| Mechanical pilot joystick | Yes |
|
| Steady rise | Yes |
| Brake System |
| Service Brake | Four wheel disc brake |
| Parking Brake | Disc brake |
| Tyre |
| Model | 16/70-20 Herringbone Tyre |
| Size | Width: 380mm Diameter: 1020mm |
| Wheel base | 2550mm |
| Track | 1600mm |
| System pressure | 20Mpa |
| Weight | 5200KG |

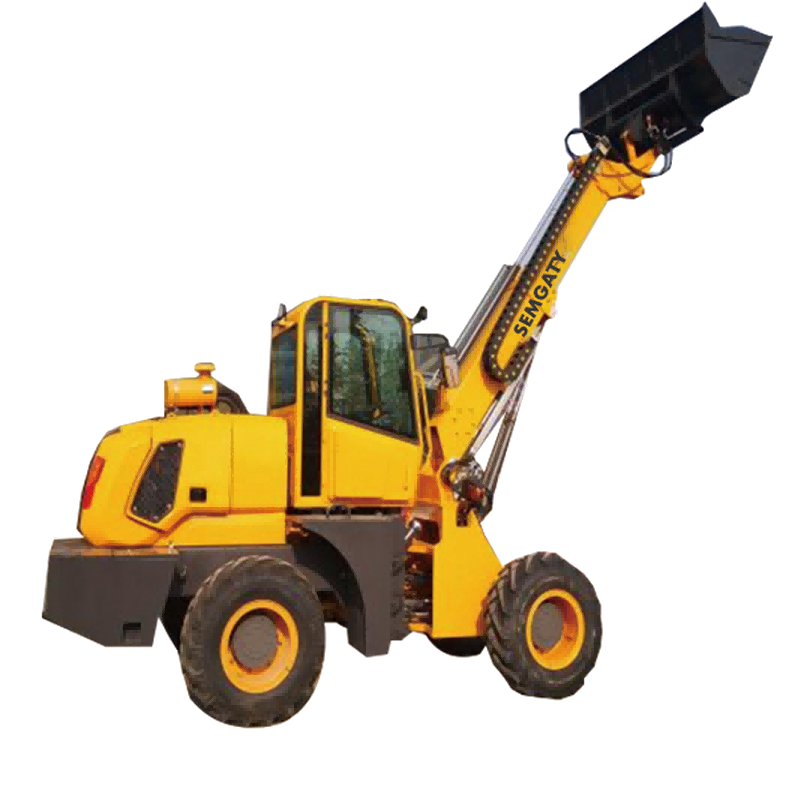

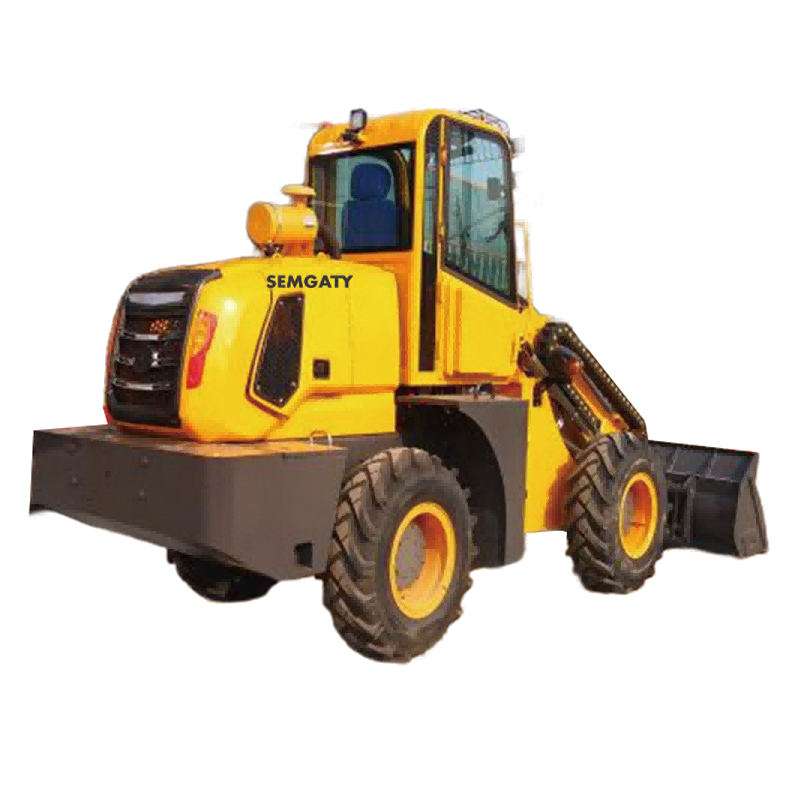

2000 Telescopic Loader – High Performance with Extended Reach
The 2000 Telescopic Loader is designed to deliver efficient material handling and lifting capabilities for medium to large-scale construction and industrial applications. With a 1 m³ heavy-duty bucket capable of carrying up to 2 t, this loader ensures smooth and reliable operations in demanding tasks, from site loading to stacking materials.
Its telescopic boom provides an extended reach of 3 m, achieving a maximum lift height of 5.33 m and unloading height of 4 m, making it ideal for placing loads in high or hard-to-access locations. The steady rise system reduces load sway during lifting, enhancing operator safety and precision. Quick-change attachments are supported through a hydraulic quick-release mechanism, allowing flexible adaptation to different jobs.
Powered by a 65 kW Yunnei YN33GBZ turbocharged diesel engine, the CY2000 combines strong torque, fuel efficiency, and reliable performance, with optional EPA3 Yanmar or Cummins engines for tailored requirements. The articulated hydraulic steering and four-wheel drive provide excellent maneuverability across uneven surfaces, while the mechanical pilot joystick ensures precise control of the boom and bucket.
Compact yet powerful, the loader’s overall dimensions of 6.15 m length, 2 m width, and 2.86 m height along with a 2.55 m wheelbase and 1.6 m track width strike a balance between stability and agility, enabling operations even in tight or confined areas. Durable components and robust construction deliver low maintenance, high uptime, and long-term reliability.
Ideal for construction, logistics, industrial handling, and landscaping, the CY2000 combines lifting strength, extended reach, and operational precision to maximize productivity on every site. Its focus on safety, efficiency, and operator comfort makes it a versatile choice for a variety of demanding applications.
With technological innovation, our product configuration and parameters will continue to
change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
