| parameter |
| Engine |
| Brand/Model: | Yunnei YN27 |
| Type | In-line arrangement, water-cooled, four cylinder, diesel engine |
| Rated Power | 42KW |
| Overall Dimensions |
| Overall Length | 5800mm |
| Overall Width | 1800mm |
| Overall Height | 2680mm |
| Bucket hinge pin Height | 4100mm |
|
| Telescopic stroke | 1100mm |
|
| Extend the arm length | 2950mm |
|
| Bucket Max.lift height | 4700mm |
|
| Bucket Max.unloading height | 3500mm |
|
| Transmission System |
| Gearbox+Hydraulic converter + Drive shaft + Isuzu axles |
| Optional Hub reduction axle(Disc brake) |
| Bucket |
| Capacity | 0.65 m³ |
| Type | Heavy-duty bolt on teeth |
| Max. Load | 1500kg including bucket or attachment |
|
| Operating Specifications |
| Steering System | Articulated hydraulic steering |
| Driving System | Four wheel drive |
| Hydraulic quick release | Yes |
|
| Mechanical pilot joystick | Yes |
|
| Steady rise | Yes |
| Brake System |
| Service Brake | Four wheel disc brake |
| Parking Brake | Disc brake |
| Tyre |
| Model | 23.5/70-16 |
| Size | Width: 330mm Diameter: 920mm |
| Optional Model | 31*15.5-15 tubeless tire |
| Wheel base | 2500mm |
| Track | 1500mm |
| System pressure | 16Mpa |
|
| Weight | 4200KG |

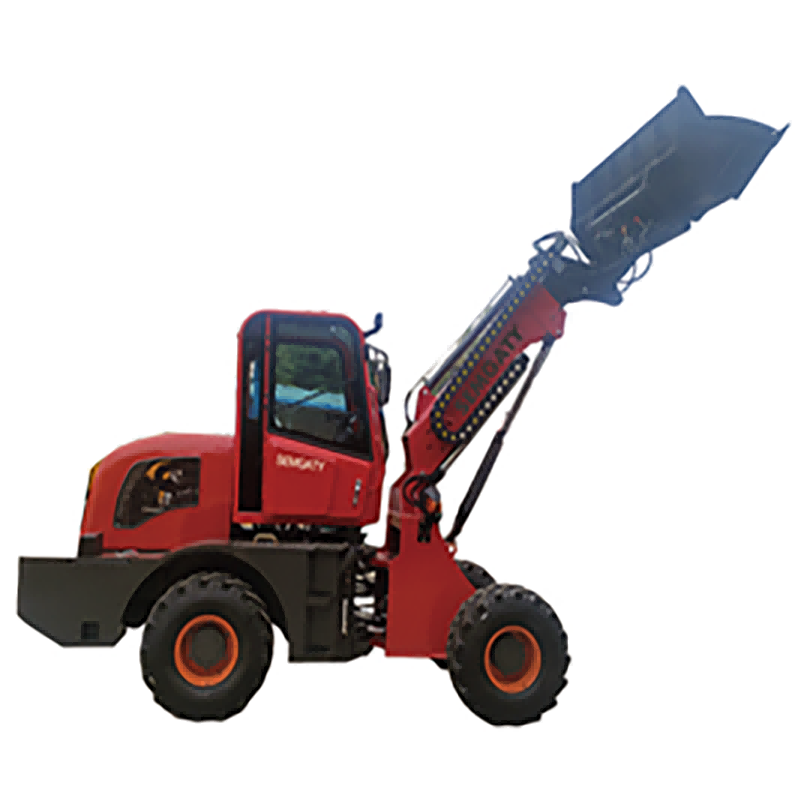

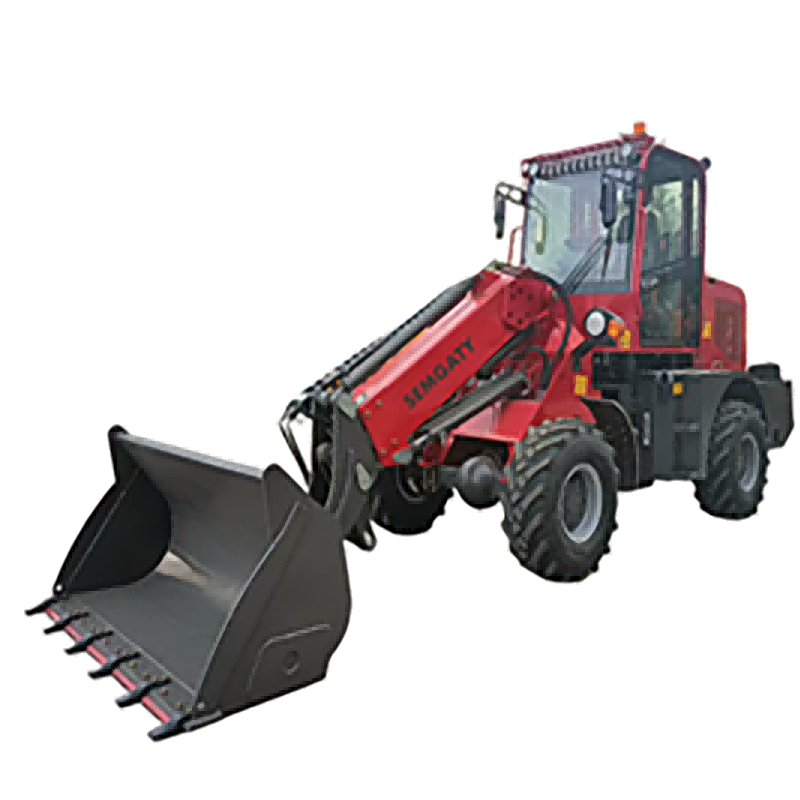

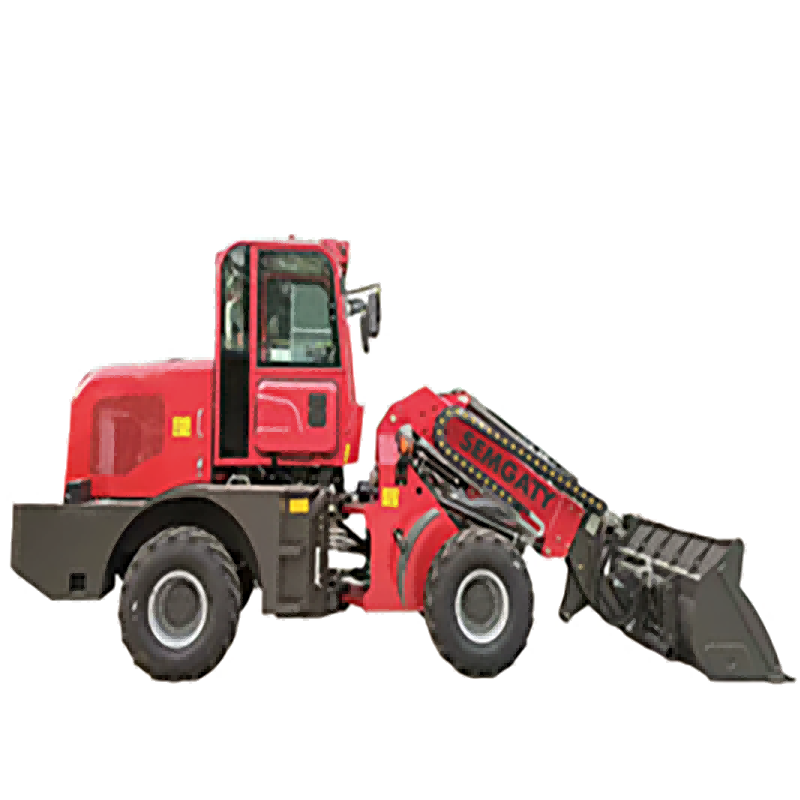

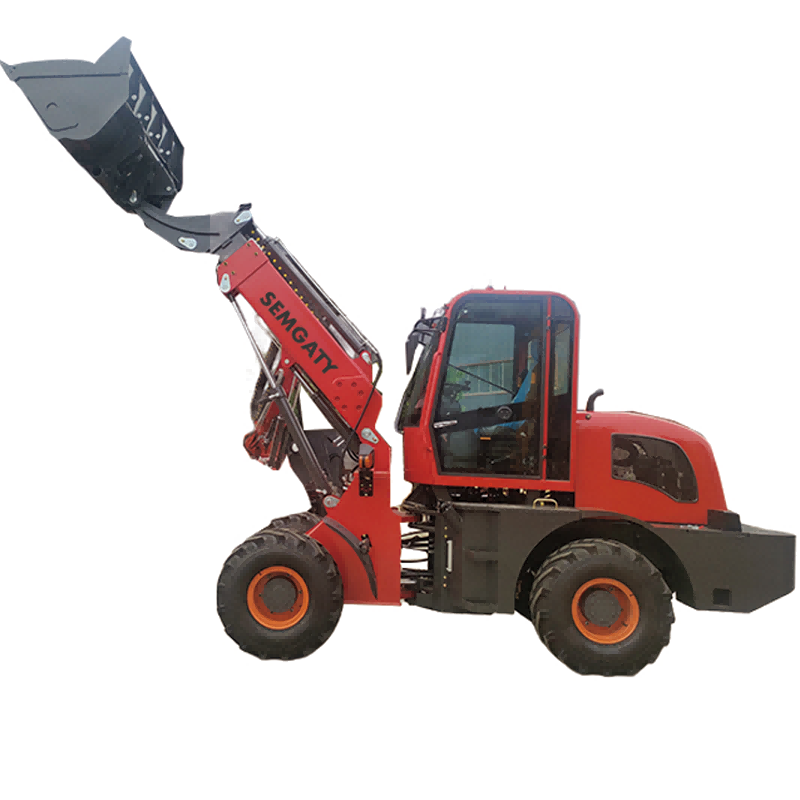

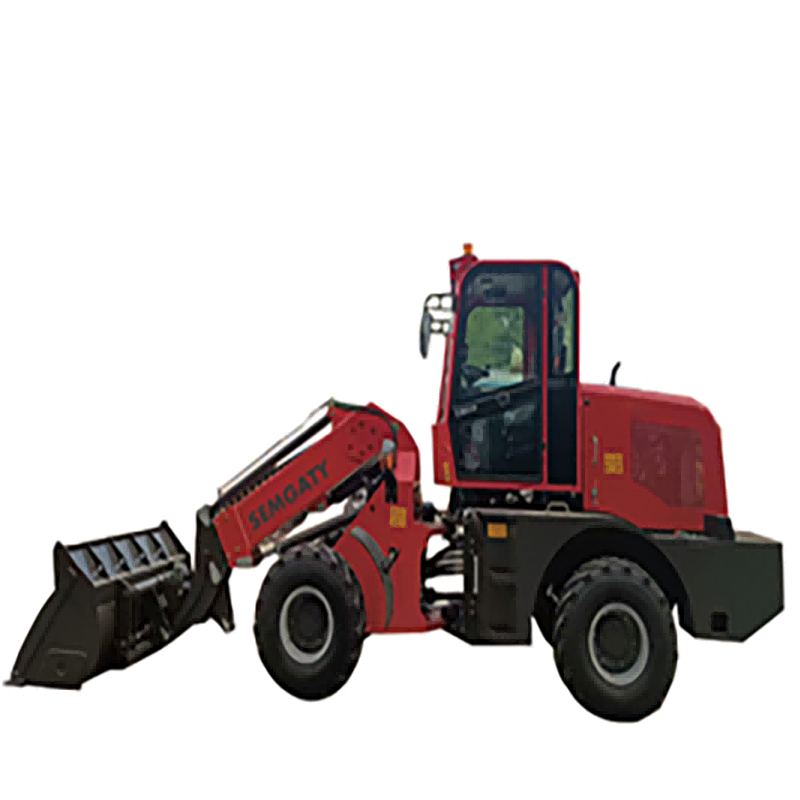

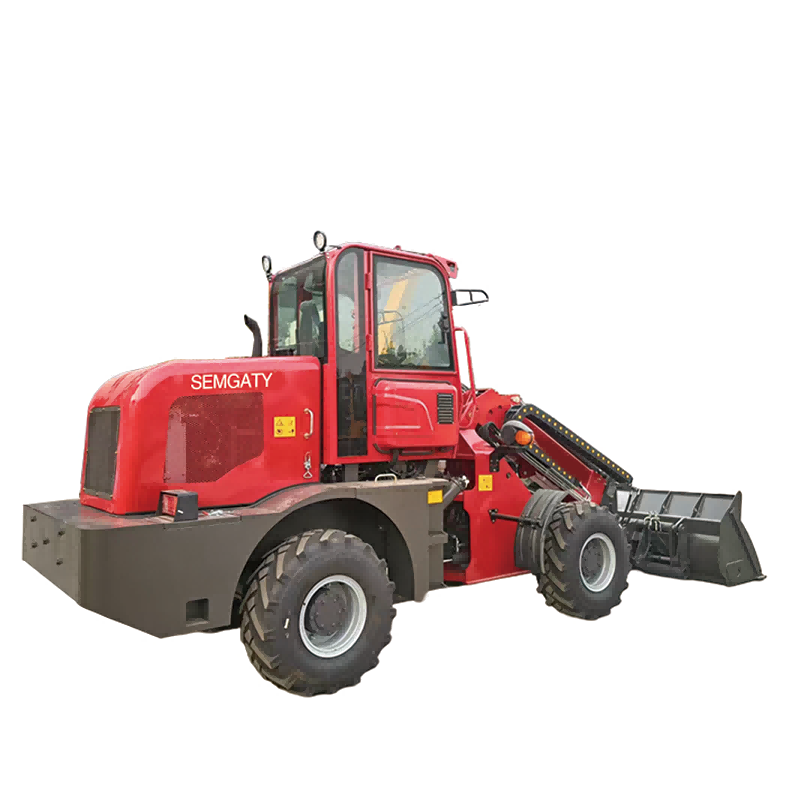

1500 Telescopic Loader – Compact Power with Precision Reach
The CY1500 Telescopic Loader is a versatile solution for medium-scale construction, industrial, and agricultural tasks where reach, lifting capacity, and maneuverability are essential. Its telescopic boom extends smoothly to handle materials at heights up to 4.7 m, with a bucket unloading height of 3.5 m, making it ideal for stacking, loading, or transporting materials efficiently in tight workspaces.
Equipped with a 42 kW Yunnei YN27 diesel engine, this loader balances power and fuel efficiency, providing steady performance across continuous operation. The articulated hydraulic steering system and four-wheel drive ensure precise control and traction on uneven or confined terrain, while the mechanical pilot joystick gives operators smooth and responsive handling of the 0.65 m³ heavy-duty bucket, capable of carrying 1,500 kg.
The 1500 features a hydraulic quick-release system, allowing rapid attachment changes for diverse site requirements. Its steady rise functionality guarantees stable material lifting and reduced load sway, enhancing both safety and productivity. Compact dimensions — 5.8 m length, 1.8 m width, 2.68 m height — paired with a 2.5 m wheelbase and 1.5 m track width, deliver a stable platform without sacrificing agility in restricted areas.
Designed for efficiency, reliability, and operator comfort, the CY1500 excels in construction, material handling, landscaping, and industrial applications, providing a combination of precision, lifting strength, and adaptability. Its durable build ensures minimal downtime, while the advanced hydraulic and drive systems maximize productivity across a variety of demanding tasks.
With technological innovation, our product configuration and parameters will continue to change
without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
