| parameter |
| Engine |
| Brand/Model | Yunnei YN48GBZ |
| Type | In-line arrangement, water-cooled, four cylinder, turbocharged diesel engine |
|
| Rated Power | 92KW |
| Optional Model: | EPA4 Kangmingsi 97KW engine;EPA4
Cummins 125HP engine |
| Overall Dimensions |
| Overall Length | 7100mm |
| Overall Width | 2100mm |
| Overall Height | 2800mm |
| Bucket hinge pin Height | 5300mm |
|
| Telescopic stroke | 1330mm |
| Extend the arm length | 3400mm |
|
| Bucket Max.lift height | 7100mm |
|
| Bucket Max.unloading height | 4500mm |
| Transmission System |
| Gearbox+Hydraulic converter + Drive shaft + Hub reduction axle |
| Bucket |
| Capacity | 1.3m³ |
| Width | 2100mm |
| Type | Heavy-duty bolt on teeth |
| Max. Load | 2500kg including bucket or attachment |
|
| Operating Specifications |
| Steering System: | Articulated hydraulic steering |
|
| Driving System | Four wheel drive |
| Hydraulic quick release | Yes |
|
| Mechanical pilot joystick | Yes |
|
| Steady rise | Yes |
| Brake System |
| Service Brake | Four wheel disc brake |
| Parking Brake | Disc brake |
| Tyre |
| Model | 16/70-24 Herringbone Tyre |
| Size | Width: 410mm
Diameter: 1175mm |
| Wheel base | 2800mm |
| Track | 1700mm |
| System pressure | 20Mpa |
| Weight | 6800KG |

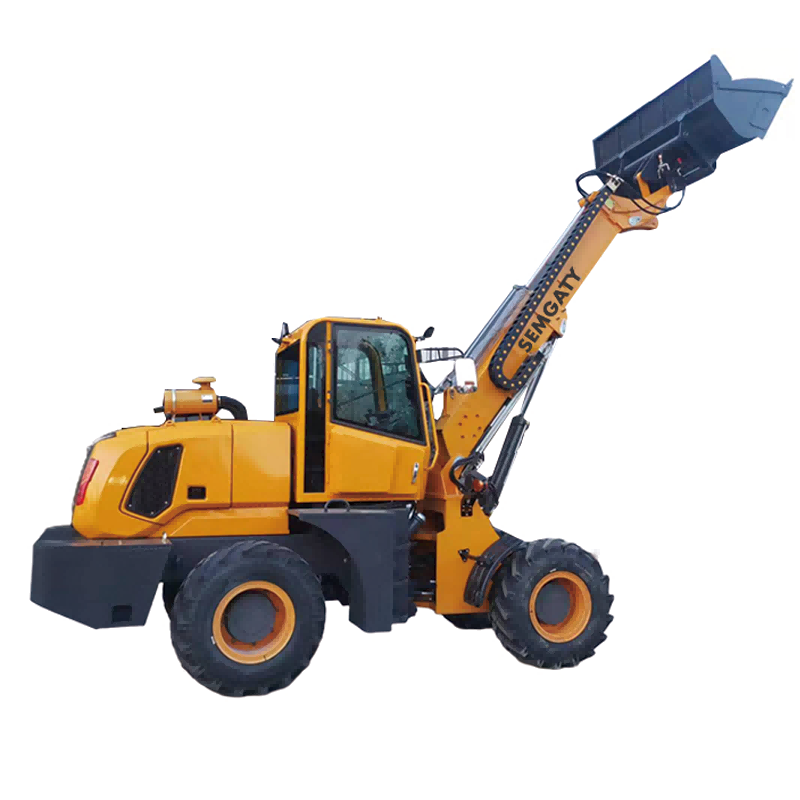

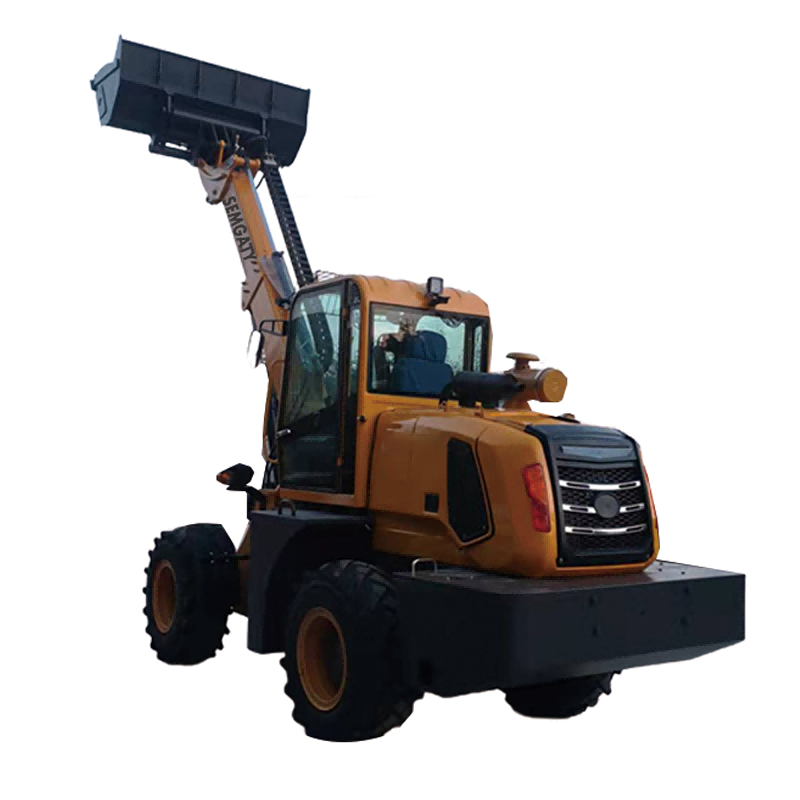

Product Introduction of Model 2500 Telescopic Boom Wheel Loader
I. Overview of Core Performance Parameters
1. Operating Range and Flexibility
Telescopic Boom Travel: 1330mm Provides excellent operational flexibility, covering a wider operating range without frequent machine movement, especially suitable for precise loading and unloading in narrow, confined spaces (such as warehouses, ditches, and material pile edges).
Maximum Boom Length: 3400mm Combined with the telescopic function, it enables medium-distance material transfer, reducing equipment movement frequency and improving operational efficiency.
Maximum Lifting Height: 7100mm Meets the needs of high-level loading and unloading of trucks and stacking, adapting to various material stacking scenarios.
Maximum Unloading Height: 4500mm Ensures efficient docking with standard freight vehicles (such as dump trucks and containers) and smooth unloading.
2. Power System Configuration
Standard Engine: Yuchai YN48GBZ inline four-cylinder turbocharged water-cooled diesel engine, rated power 92kW, powerful, durable and reliable, balancing fuel economy and low maintenance costs.
Optional Engine Options:
Cummins EPA4 Series 97kW Engine
Cummins EPA4 Series 125hp (approx. 93kW) Engine
Meets emission standards in different regions and individual customer needs regarding brand and power.
3. Overall Dimensions and Adaptability
External Dimensions: 7100mm (L) × 2100mm (W) × 2800mm (H)
Compact design with a small turning radius, suitable for working environments with limited space.
Bucket Articulation Pin Height: 5300mm
Optimized loading mechanism mechanical design, improving lifting stability and working force.
II. Core Product Advantages
✅ Multi-functional Telescopic Boom Design: Retains the efficient loading capacity of a traditional loader while also possessing the telescopic and precise positioning functions of a mini excavator, offering multiple uses and reducing equipment investment costs.
✅ Powerful Engine and Reliable Performance: Standard configuration includes a mature Yuchai engine; optional high-end Cummins engine available, adaptable to high-load continuous operation, ensuring high uptime.
✅ Compact and Flexible with Excellent Maneuverability: With a width of only 2.1 meters, it can pass through narrow passages and is suitable for various scenarios such as warehouses, construction sites, farms, and municipal projects.
✅ Balanced Working Height and Range: Maximum lifting height of 7.1 meters and a telescopic boom extension of 3.4 meters cover three-dimensional working spaces from ground level to mid-to-high positions.
III. Customized Solutions
As the original manufacturer, we can provide comprehensive customized services according to your specific needs:
Powertrain Customization: In addition to existing engine options, other brands or power engines can be adapted.
Attachment Customization: In addition to the standard bucket, attachments such as log grapples, hay grapples, sweepers, and ice breakers can be installed.
Size Adjustment: Adjust the overall vehicle height, width, or wheelbase according to transportation or operational limitations.
Configuration Upgrades: Reinforced hydraulic system, air-conditioned cab, remote control system, intelligent monitoring, etc.
Special Painting and Marking: Customized exterior colors and markings according to your company's visual identity.
IV. Typical Application Scenarios
Logistics and Warehousing: Truck loading and unloading, warehouse stacking. Construction: Sand and gravel transportation, small-scale earthmoving operations, and high-altitude auxiliary operations.
Agriculture and Forestry: Feed handling, timber loading and unloading, and straw processing.
Municipal and Environmental Sanitation: Garbage transportation, snow and ice removal, and landscaping maintenance.
V. Summary
This 2500-type telescopic boom wheel loader is a multi-functional piece of equipment integrating efficient loading, telescopic operation, and flexible maneuverability. With its customizable power system, compact structural design, and wide operating range, it can adapt to diverse working conditions. As the original manufacturer, we adhere to a customer-centric approach, providing end-to-end solutions from standard models to fully customized solutions, ensuring that every piece of equipment is precisely matched to your actual application.
For further information or customized solutions, please feel free to contact us. We will provide you with professional technical support and quotation services.
With technological innovation, our product configuration and parameters will continue to
change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
