| parameter |
| Bucket Capacity | 0.045m³ |
| Operating Weight | 1760KG |
| Overall Length | 3350mm |
| Overall Height | 2280mm |
| Overall Width | Shrink 990mm ,stretch1240mm |
| Maximum Digging Height | 3540mm |
| Maximum Unloading Height | 2440mm |
| Maximum Digging Depth | 2310mm |
| Maximum Digging Radius | 3900mm |
| Minimum Turning Radius (Front End) (When Swinging) | 1440mm（1210mm） |
| Minimum Turning Radius (Rear End) | 620mm |
| Engine Model | D722-EF11 |
| Engine Type | Water-cooled inline three-cylinder diesel engine |
| Rated Power | 14PS(10.2KW)/2500rpm |
| Climbing Ability | 30° |
| Maximum Bucket Digging Force | 15.8Kn |
| Hydraulic System Pressure | 18.5Mpa |
| Ground Pressure | 28Kpa |
| Vertical Lifting Force | 502KG |
| Horizontal Lifting Force | 300KG |
| Track Width | 230mm |
| Track Length | 1480mm |
| Travel Speed (High Speed, Low Speed) | 2.2Km/h,4.3Km/h |
Product Introduction

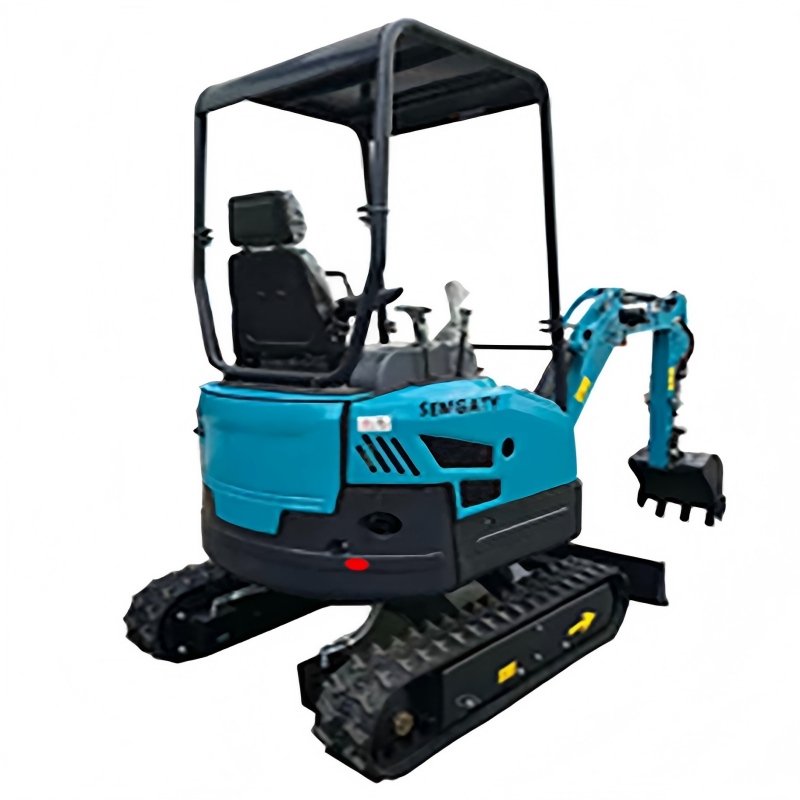

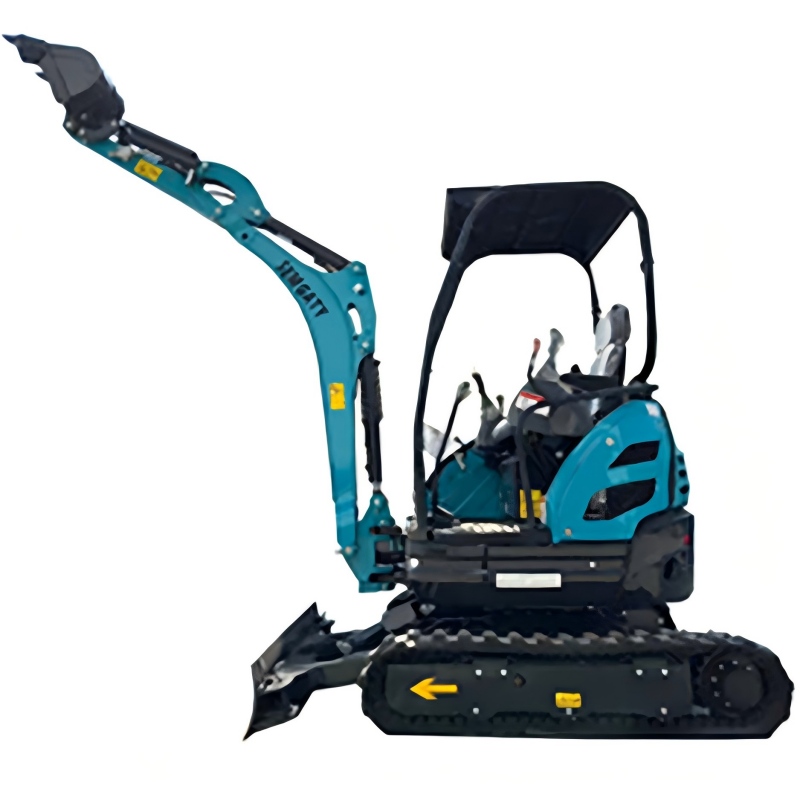

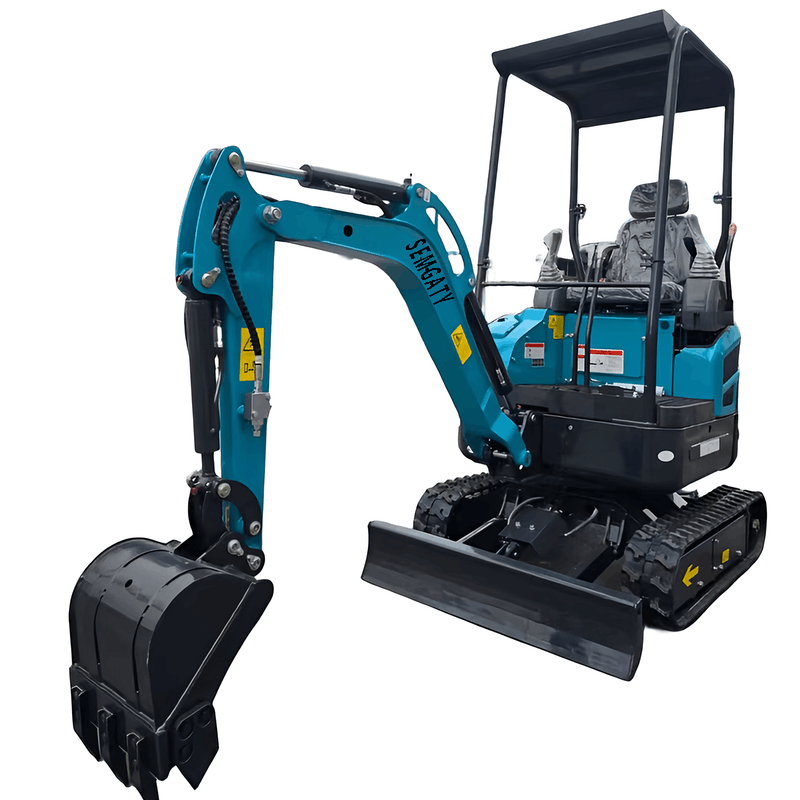

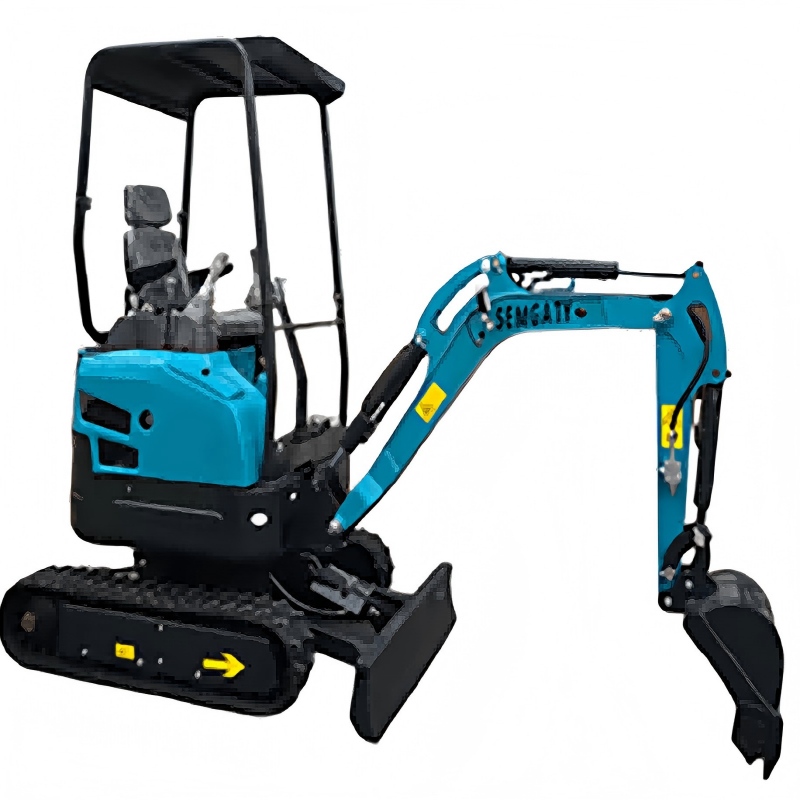

This is a 1.7-ton class small tracked mini excavator, designed specifically for confined spaces, complex terrain, and precision operations. Combining a compact size, agile maneuverability, and powerful performance, it is ideal for municipal engineering, landscaping, farmland irrigation, interior renovation, and small-scale earthmoving projects.
Key Features and Advantages
Ultra-Compact, Unimpeded Passage
Small Size: The overall length is only 3.35 meters, the width is adjustable from 0.99 meters (collapsed) to 1.24 meters (extended), and the height is 2.28 meters, easily passing through narrow doorways, gates, and indoor spaces.
Flexible Steering: The minimum turning radius at the front is only 1.44 meters (up to 1.21 meters when swaying), and the turning radius at the rear is only 0.62 meters, allowing for on-the-spot turning or agile U-turns in extremely limited spaces.
Low Ground Pressure: The ground pressure is only 28 kPa, causing minimal damage to lawns and hard surfaces, providing excellent passability.
Powerful Performance, High Efficiency
Reliable Power: Equipped with a Kubota D722-EF11 water-cooled inline three-cylinder diesel engine, rated at 14 hp (10.2 kW), providing ample power, stable operation, and good fuel economy.
High Digging Force: The bucket's maximum digging force reaches 15.8 kN, excellent among small excavators in its class, effectively handling hard soil and clay conditions.
Stable Hydraulic System: Working pressure up to 18.5 MPa ensures smooth, powerful, and precise operation.
Wide Operating Range, Strong Adaptability
Deep Digging Height: Maximum digging height up to 3.54 meters, maximum digging depth up to 2.31 meters, and maximum digging radius up to 3.90 meters, meeting most conventional digging, slope trimming, and trenching needs.
Easy Unloading: Maximum unloading height of 2.44 meters, facilitating loading and unloading with small dump trucks or designated hoppers.
Strong Climbing Ability: Capable of climbing slopes up to 30°, adapting to common slopes and rugged terrain on construction sites. In summary, this 1.7-ton mini tracked excavator is a versatile construction machine that is "small in size but powerful in function." It adapts to the most demanding space constraints with extreme flexibility, ensures efficient operation with reliable power and hydraulic systems, and boasts a wide range of operating parameters to meet diverse construction needs. For users who require precise and efficient earthmoving operations in confined spaces, it is an excellent choice that combines economy and practicality.
With technological innovation, our product configuration and parameters will continue to
change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
