| parameter |
| Model | 10T |
| Rated load | 10000KG |
| Load center distance | 800mm |
| Lifting height | 6000mm |
| Gantry tilt angle (forward/backward tilt) | 6°，12° |
| Maximum travel speed | 38Km/h |
| Full load grade | 20° |
| Self weight | 14000KG |
| Track (front/rear) | front 2400mm , rear2000mm |
| Wheelbase | 2630mm |
| Dimensions (length x width x height) | 7000x2700x3140mm |
| Full load lifting speed | 200mm/s |
| Minimum turning radius | 5600mm |
| Minimum ground clearance | 330mm |
| engine | model | WP6G125E22 |
| manufacturer | Weichai |
| Rated power | 92Kw |
| Battery | Voltage | 24V |
| Capacity | 100Ah |
| Transmission | Forward hydraulic torque converter gearbox |
| Working system | Pilot operating system |
| Tire | Front | 4*14.00R24 |
| Rear | 2*17.5-25 |
| Drive axle | 40-wheel side deceleration bridge | Four-wheel drive | Pneumatic clamp brake |
| Fork | Fork positionsers |
| Cabin | Cab with sound system, fan |

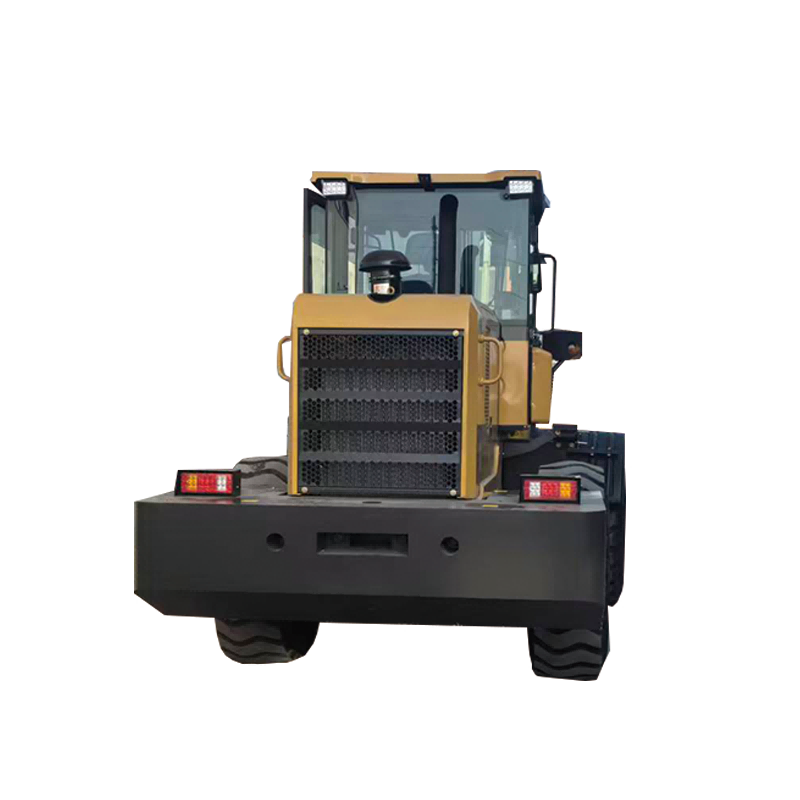

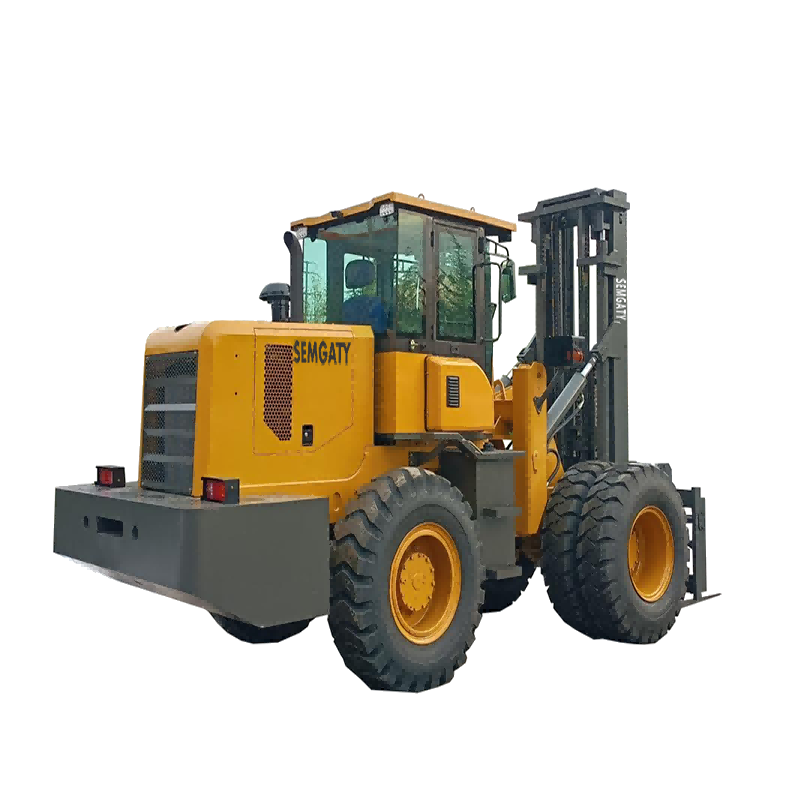

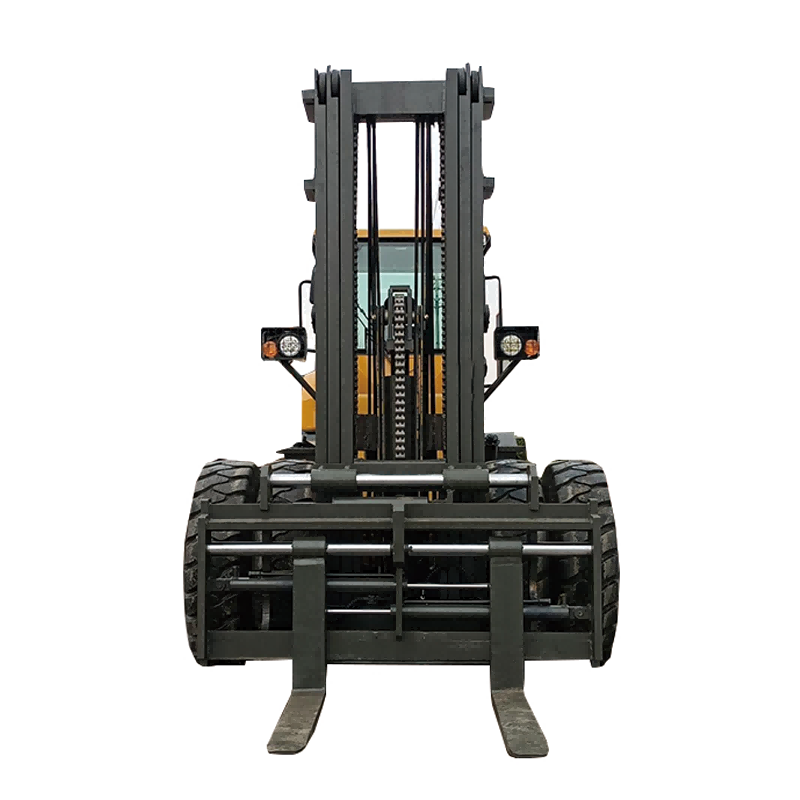

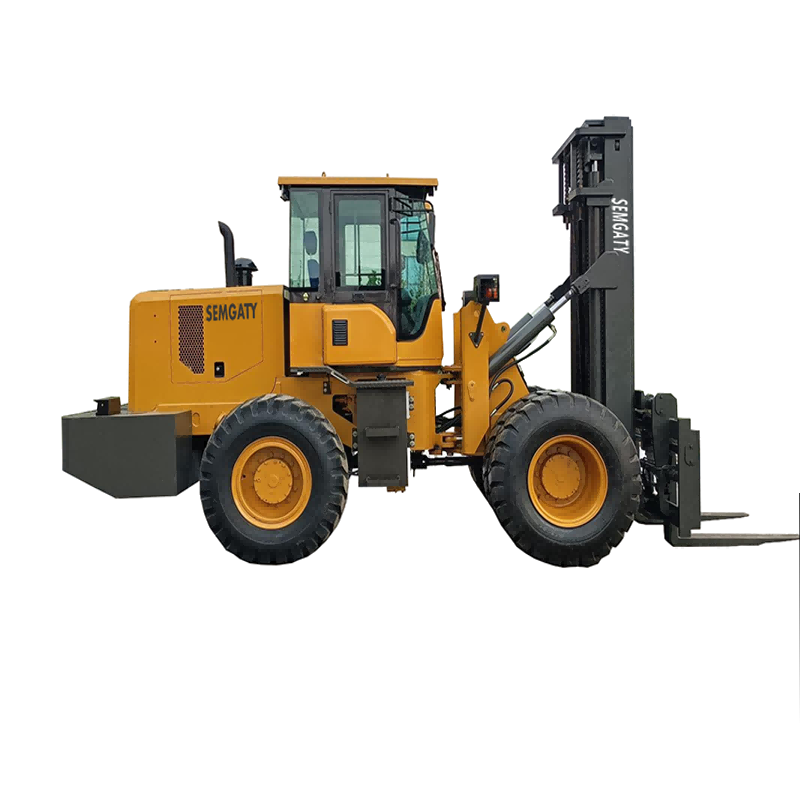

10-Ton Heavy-Duty Diesel Forklift – Precision Lifting for Industrial Giants
For large-scale industrial operations, efficiency, safety, and lifting capacity are critical. The 10-ton diesel forklift is engineered to meet these exacting demands, delivering unmatched performance for heavy-duty material handling. Capable of lifting up to 10,000 kg to a height of 6 meters, this forklift is ideal for manufacturing plants, logistics hubs, large distribution centers, and construction yards where both strength and precision are essential.

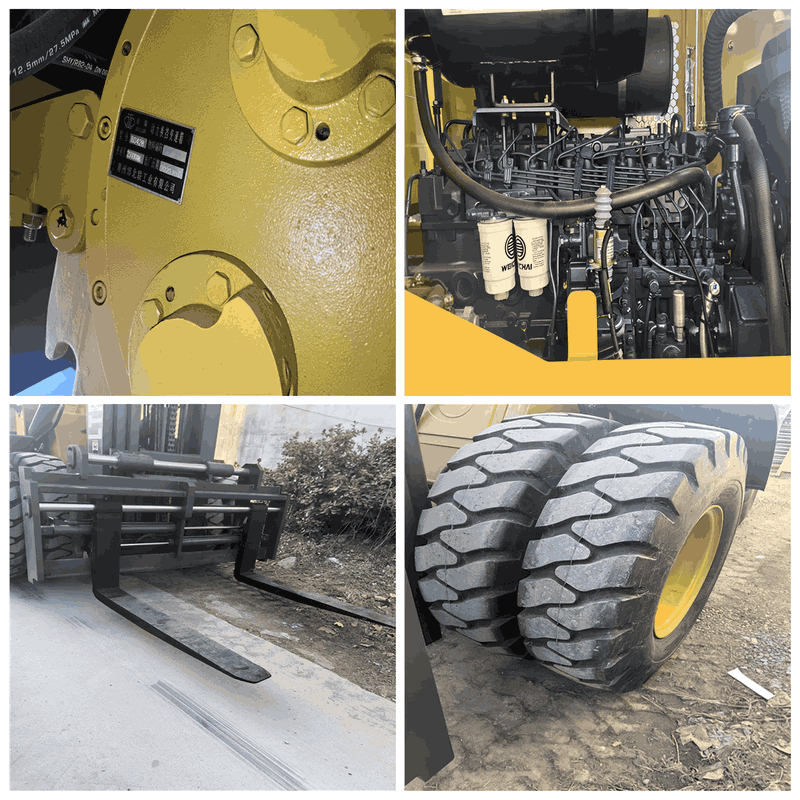

At its core is the WEICHAI WP6G125E22 92 kW diesel engine, known for its durability and high torque output. Paired with a forward hydraulic torque converter gearbox, this combination provides smooth power delivery under load, allowing operators to handle large pallets, containers, or bulky equipment with confidence. The forklift’s full 4-wheel drive system enhances traction and stability across uneven surfaces, ramps, or outdoor yards, ensuring that heavy loads remain secure during transport.
This 10-ton model is not only about power—it is built for productivity and operational efficiency. With a maximum travel speed of 38 km/h and a full-load lifting speed of 200 mm/s, it reduces cycle times in high-volume environments. Its robust chassis design and wide wheelbase (2630 mm) provide structural stability, minimizing risk during lifting, cornering, or high-speed maneuvering. Operators benefit from a carefully designed cab with clear visibility, a comfortable sound system, and ventilation fan, which improve comfort and reduce fatigue during long shifts.
Safety is a key differentiator for this forklift. Equipped with pneumatic clamp brakes, gantry tilt control (6° forward, 12° backward), and a reinforced frame, the machine mitigates the risks associated with full-load handling. Additional features include battery protection systems, pilot-operated controls, and adjustable fork positioners, allowing precise handling of a variety of cargo while reducing the chance of tipping or overloading.
Beyond performance, this forklift offers economic advantages. Its efficient diesel engine reduces operating costs, while the durable construction lowers maintenance frequency and extends service life. Compared to competitors in the heavy-duty class, this 10-ton model delivers a rare combination of high lifting capacity, mobility, operator safety, and long-term reliability, making it a strategic investment for industrial-scale operations.
In essence, the 10-ton diesel forklift is a powerhouse designed for environments where strength meets precision. Its heavy-duty lifting capability, smooth operation, stability, and operator-centric design make it a dependable partner for industrial enterprises aiming to enhance productivity, safety, and efficiency in large-scale material handling.
With technological innovation, our product configuration and parameters will continue to
change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
