| Parameters |
|
| Power type | Diesel |
| Rated load | 6000KG |
| The external dimensions are length, width and height | 4800*2190*2596mm |
| Load center distance | 600mm |
| The maximum height that the forks can lift | 4280mm |
| Maximum lifting height | 3000mm |
| The full height of the mast (with the forks on the ground and the mast vertical) | 2560mm |
| Freely increase height | 100mm |
| Front overhang | 696mm |
| Rear overhang | 1413mm |
| Wheelbase | 2341mm |
| Minimum ground clearance (at the mast) | 349mm |
| Track length (front wheel/rear wheel) | 1540/1540mm |
| Inside the minimum turning radius | 2632mm |
| Outside the minimum turning radius | 4530mm |
| Mast tilt Angle (front/rear) | F8°,R10° |
| Fork size | 1220*50*150mm |
| Maximum driving speed (full load/empty load) | 30/35Km/h |
| Speed increase (full load/empty load) | 350/500mm/s |
| Speed decrease (full load/empty load) | 550/450mm/s |
| Maximum climbing capacity (full load/empty load) | 25/35° |
| Number of wheels X/ Drive wheels | 4X/4 |
| Tire type (front/rear) | Pneumatic tire |
| Front wheel tire | 16/70-20 |
| Rear wheel tire | 16/70-20 |
| Service brake | Disc brakes |
| Parking brake | Mechanical handbrake |
| Engine model (Foreign trade) | Weifang National II 4102 turbocharged engine |
| Engine power (Foreign trade) | 76Kw |
| Model of reducer | 265 |
| Total weight | 7450KG |

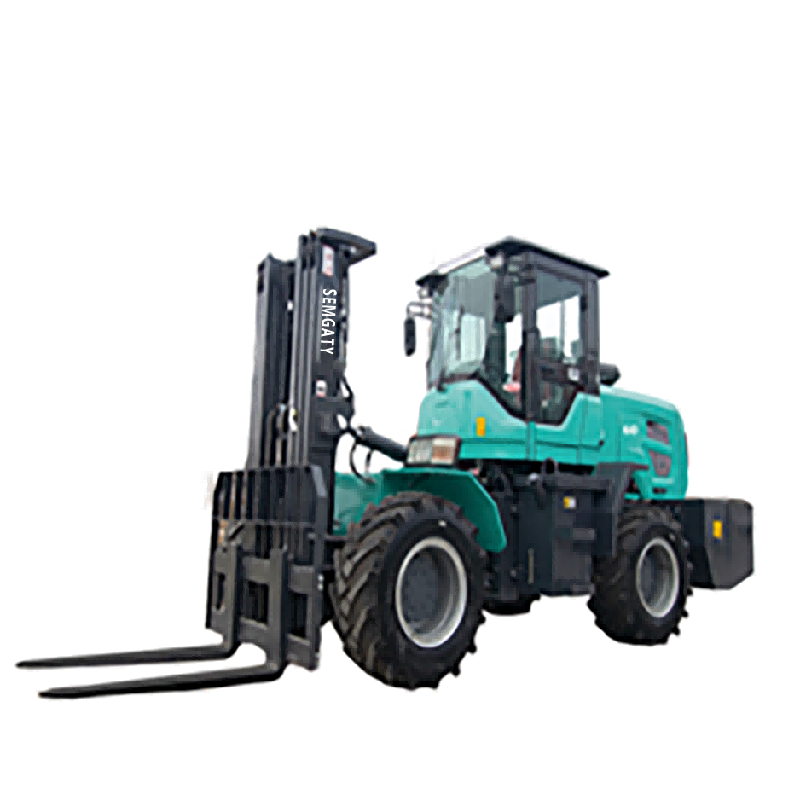

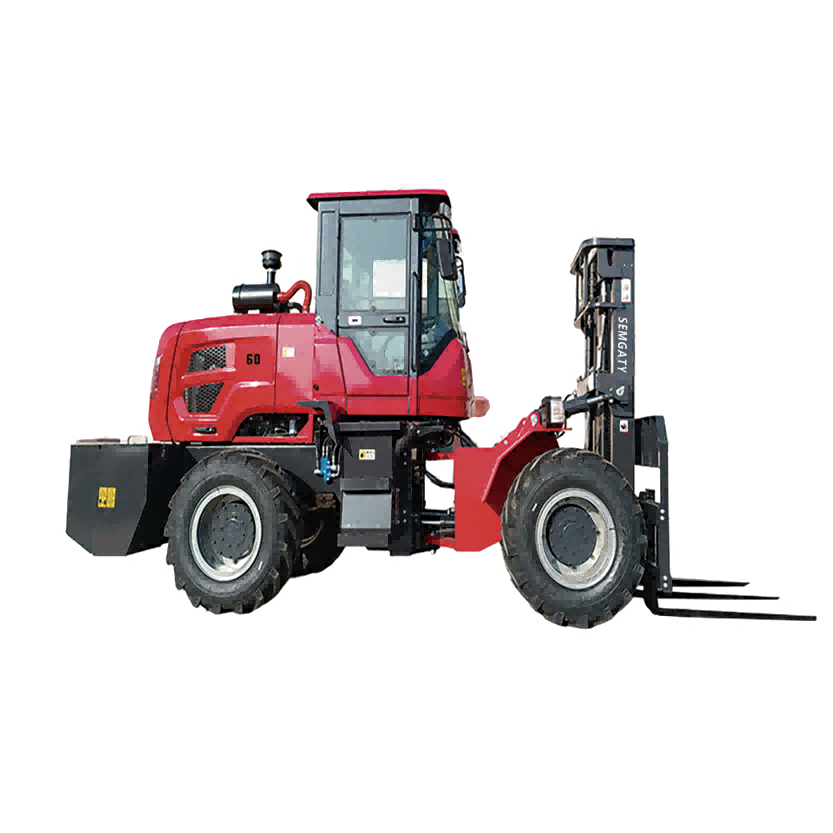

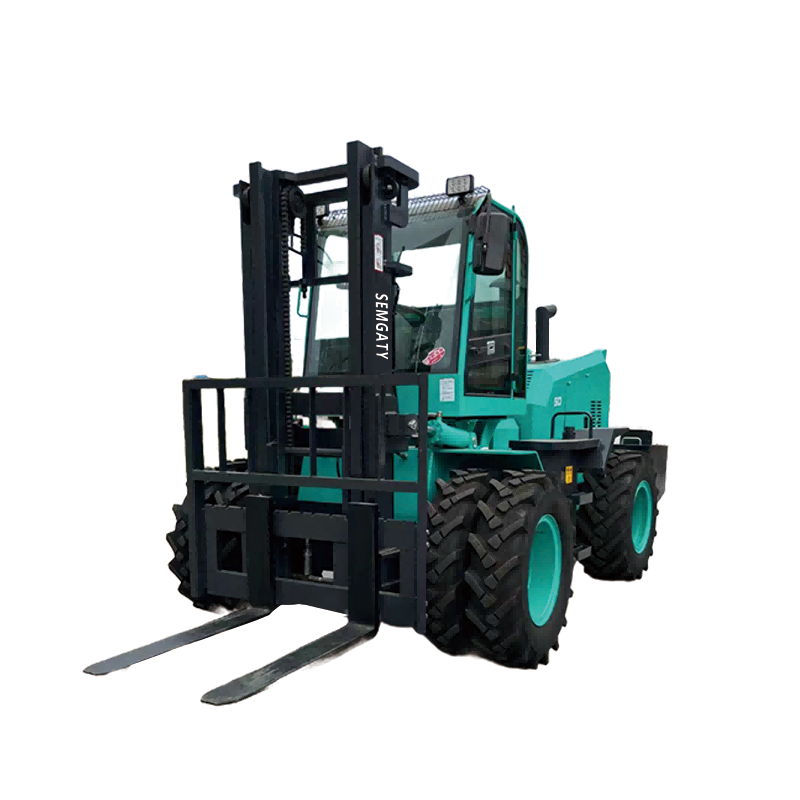

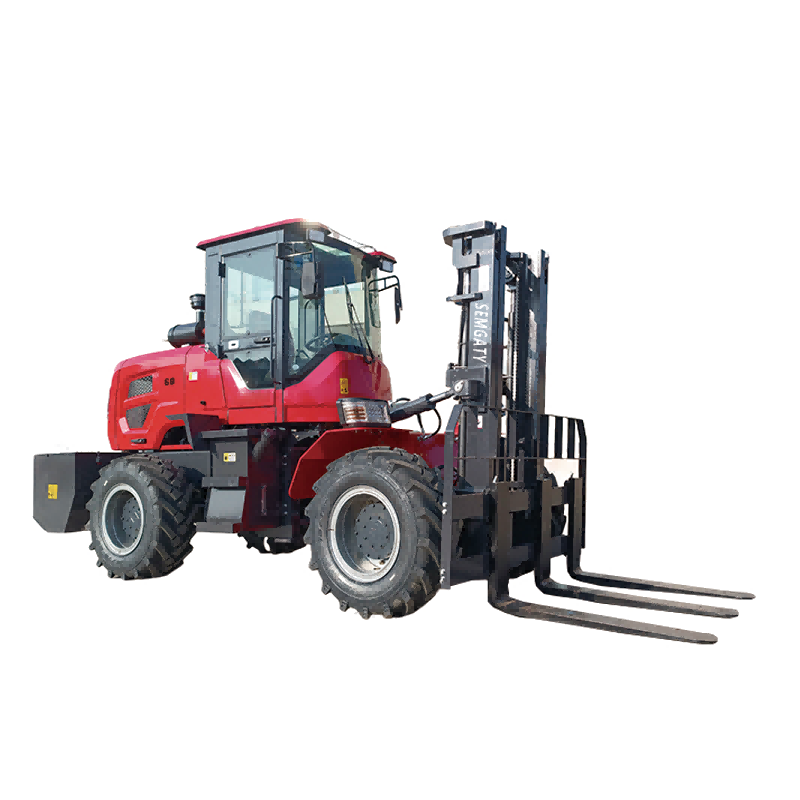

6-Ton All-Terrain Diesel Forklift – Heavy-Duty Strength Meets Precision Control
The 6-ton all-terrain diesel forklift is engineered for demanding industrial and logistics operations where load capacity, stability, and operational precision are paramount. Capable of handling up to 6,000 kg and lifting to a height of 4,280 mm, this forklift is tailored for large warehouses, distribution centers, construction sites, and outdoor yards where uneven ground and heavy loads are common challenges.
At the heart of this forklift lies the Weifang National II 4102 turbocharged diesel engine, delivering 76 kW of power to a robust 4×4 drive system. This combination ensures consistent traction, smooth acceleration, and reliable performance across rough terrain or sloped surfaces. With a wheelbase of 2,341 mm and a minimum ground clearance of 349 mm, the machine maintains low center-of-gravity stability, reducing the risk of tipping even under full load.
One of the key advantages of the 6-ton forklift is its precision handling capability. The mast tilts 8° forward and 10° backward, while the forks measure 1,220 × 50 × 150 mm, enabling operators to safely stack, position, and transport heavy materials with accuracy. Smooth hydraulic response and controlled speed—30 km/h fully loaded, 35 km/h empty—allow fast, efficient operation without compromising safety.
This forklift is specifically designed with all-terrain versatility in mind. Its pneumatic 16/70-20 tires and balanced weight distribution provide excellent traction and shock absorption, making it ideal for gravel, uneven ground, and outdoor storage yards. The disc brakes and mechanical handbrake ensure reliable stopping power under heavy loads, while the durable reducer system enhances the drivetrain’s longevity and load-bearing capacity.
Differentiated advantages of the 6-ton all-terrain forklift include:
Heavy-Duty Stability: Optimized weight distribution and 4×4 traction minimize rollover risk and maintain control during high-lift operations.
All-Terrain Adaptability: Handles soft soil, gravel, ramps, and uneven surfaces where standard forklifts would struggle.
Precision Material Handling: Mast tilt, fork dimensions, and responsive hydraulics provide accurate positioning for pallets, crates, and machinery.
High Efficiency: Balanced powertrain, fast travel, and smooth lift cycles reduce cycle times in industrial and logistics operations.
Durable and Reliable: Turbocharged diesel engine, reinforced chassis, and robust tires extend service life, reduce maintenance, and provide excellent ROI.
In summary, the 6-ton all-terrain diesel forklift delivers a perfect blend of power, control, and versatility, making it a reliable solution for businesses that need to move heavy materials efficiently and safely across varied terrains. Its combination of lifting strength, stability, operational precision, and durability positions it as a premium choice for mid-to-large scale industrial, construction, and logistics applications.
With technological innovation, our product configuration and parameters will continue to
change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
