| Parameters |
|
| Power type | Diesel |
| Rated load | 5000KG |
| The external dimensions are length, width and height | 4360*1950*2434mm |
| Load center distance | 500mm |
| The maximum height that the forks can lift | 4270mm |
| Maximum lifting height | 3000mm |
| The full height of the mast (with the forks on the ground and the mast vertical) | 2530mm |
| Freely increase height | 100mm |
| Front overhang | 696mm |
| Rear overhang | 1413mm |
| Wheelbase | 2100mm |
| Minimum ground clearance (at the mast) | 349mm |
| Track length (front wheel/rear wheel) | 1540/1540mm |
| Inside the minimum turning radius | 2632mm |
| Outside the minimum turning radius | 4530mm |
| Mast tilt Angle (front/rear) | F8°,R10° |
| Fork size | 1220*50*150mm |
| Maximum driving speed (full load/empty load) | 30/35Km/h |
| Speed increase (full load/empty load) | 350/500mm/s |
| Speed decrease (full load/empty load) | 550/450mm/s |
| Maximum climbing capacity (full load/empty load) | 25/35° |
| Number of wheels X/ Drive wheels | 4X2/6 |
| Tire type (front/rear) | Pneumatic tire |
| Front wheel tire | 16/70-20 |
| Rear wheel tire | 16/70-20 |
| Service brake | Disc brakes |
| Parking brake | Mechanical handbrake |
| Engine model (Foreign trade) | Weifang National II 4102 turbocharged engine |
| Engine power (Foreign trade) | 76Kw |
| Model of reducer | 265 |
| Total weight | 6450KG |

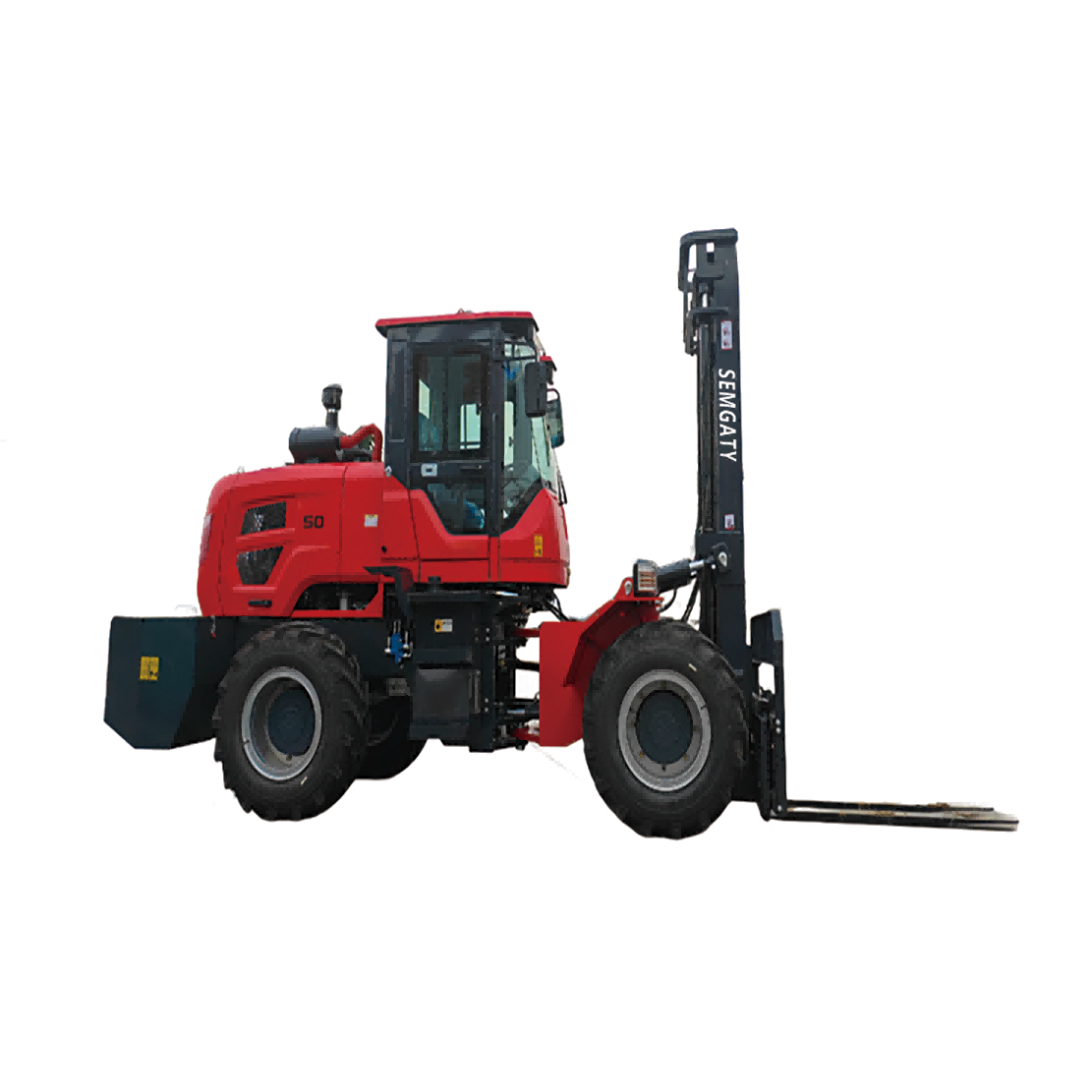

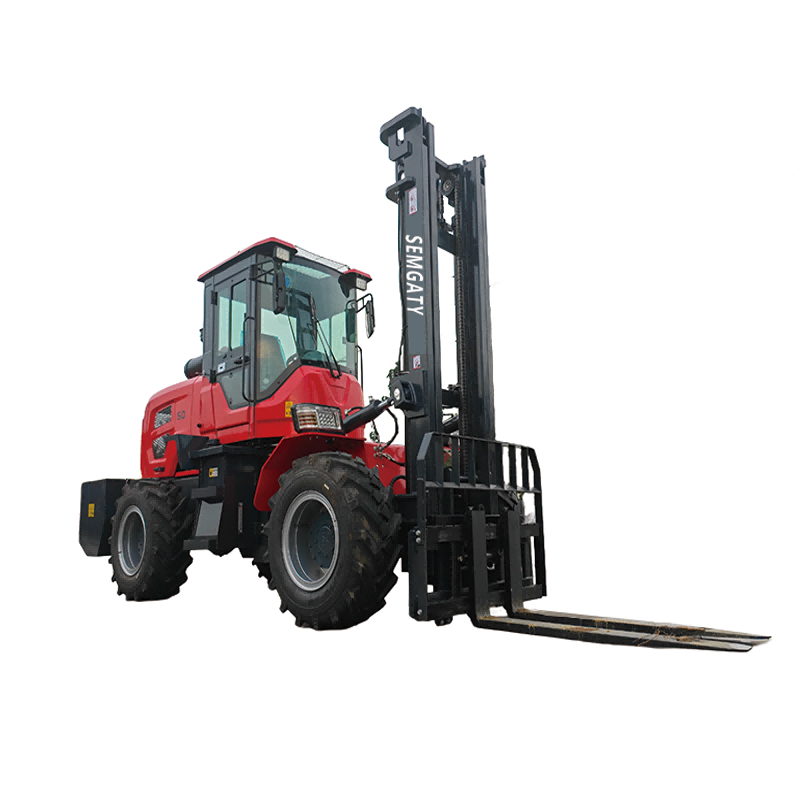

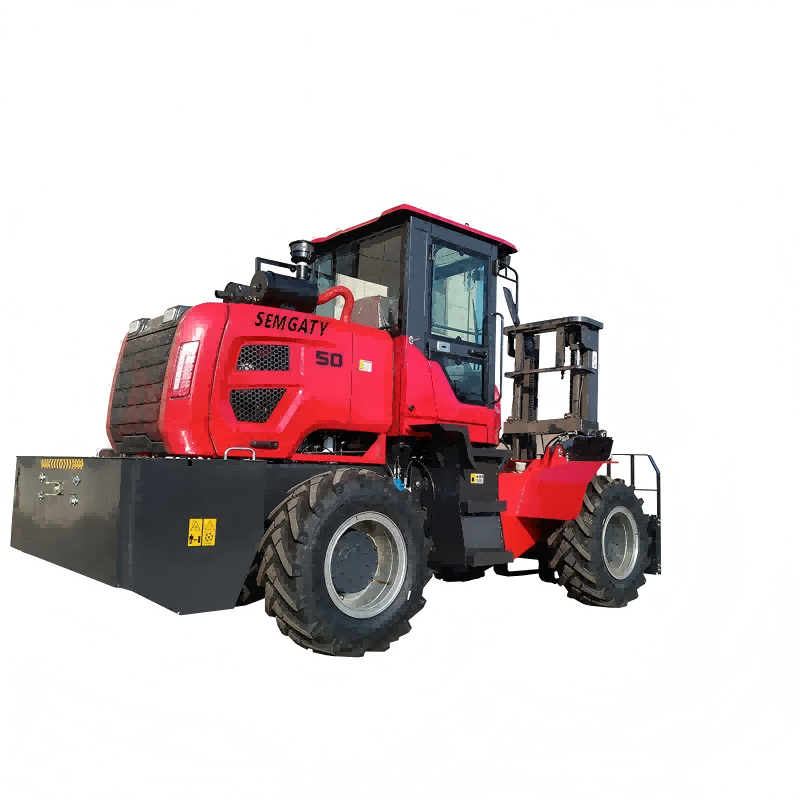

5-Ton Off-Road Diesel Forklift – Power, Stability, and All-Terrain Versatility
The 5-ton off-road diesel forklift is designed for businesses that demand a perfect balance between robust lifting capacity, terrain adaptability, and operational safety. Capable of handling loads up to 5,000 kg and reaching a lift height of 4,270 mm, this forklift excels in industrial yards, logistics hubs, construction sites, and any environment where both load size and ground conditions vary significantly.
At its core, the forklift is powered by the Weifang National II 4102 turbocharged diesel engine, delivering 76 kW of rated power. Combined with a 6-wheel drive configuration, the machine ensures consistent traction, stability, and responsiveness even when carrying heavy loads across uneven or soft terrain. Its drivetrain and reinforced frame reduce the risk of tipping, while pneumatic 16/70-20 tires maintain grip and shock absorption, allowing the operator to maintain precise control under challenging conditions.
A standout feature of this model is its versatility across diverse operational scenarios. With mast tilt angles of 8° forward and 10° backward, and a fork size of 1,220 × 50 × 150 mm, the forklift enables accurate load placement in stacking, transport, and material handling tasks. Its maximum speed of 30 km/h under full load and smooth acceleration/deceleration provide efficiency for yard-to-yard movement, reducing cycle times in high-volume operations.
Safety and operator-centric design are prioritized throughout. The chassis design, with a wheelbase of 2,100 mm and minimum ground clearance of 349 mm, ensures a low center of gravity, enhancing stability on ramps or inclines up to 25° under full load. The forklift also incorporates disc brakes on all wheels, a mechanical handbrake, and an advanced reducer system, providing reliable stopping power and operational confidence. Additionally, the electrical and hydraulic systems include protective measures to prevent overload or unexpected shutdowns, ensuring both operator safety and equipment longevity.
Differentiating advantages of the 5-ton off-road diesel forklift include:
All-Terrain Performance: The 4X2/6 drive and robust suspension allow operation on soft soil, gravel, or uneven surfaces where standard forklifts struggle.
Heavy Load Safety: Optimized weight distribution and a stable chassis reduce tipping risk during high-lift or uneven operations.
Operational Precision: Mast tilt, fork dimensions, and smooth hydraulic response facilitate careful handling of pallets, crates, and heavy machinery.
High Productivity: Fast travel speed and responsive lift controls enable efficient movement of materials in large-scale warehouses or outdoor yards.
Durable Design: Turbocharged diesel engine, reinforced frame, and high-quality tires extend service life and reduce maintenance intervals, providing excellent return on investment.
In essence, the 5-ton off-road forklift merges strength, agility, and reliability into a single machine, tailored for medium-to-heavy industrial operations. Its combination of lifting power, terrain adaptability, operator safety, and durability makes it an essential asset for logistics, construction, and industrial enterprises seeking efficiency without compromise.
With technological innovation, our product configuration and parameters will continue to
change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
