| Parameters |
|
| Power type | Diesel |
| Rated load | 2500KG |
| The external dimensions are length, width and height | 3650*1570*2220mm |
| Load center distance | 500mm |
| The maximum height that the forks can lift | 4050mm |
| Maximum lifting height | 3000mm |
| The full height of the mast (with the forks on the ground and the mast vertical) | 1930mm |
| Freely increase height | 100mm |
| Front overhang | 500mm |
| Rear overhang | 1050mm |
| Wheelbase | 1950mm |
| Minimum ground clearance (at the mast) | 200mm |
| Track length (front wheel/rear wheel) | 1280/1280mm |
| Inside the minimum turning radius | 2200mm |
| Outside the minimum turning radius | 3100mm |
| Mast tilt Angle (front/rear) | F8°,R10° |
| Fork size | 1070*40*100mm |
| Maximum driving speed (full load/empty load) | 30/35Km/h |
| Speed increase (full load/empty load) | 350/500mm/s |
| Speed decrease (full load/empty load) | 550/450mm/s |
| Maximum climbing capacity (full load/empty load) | 25/35° |
| Number of wheels X/ Drive wheels | 4X/4 |
| Tire type (front/rear) | Pneumatic tire |
| Front wheel tire | 12-16.5 |
| Rear wheel tire | 12-16.5 |
| Service brake | Disc brakes |
| Parking brake | Mechanical handbrake |
| Engine model (Foreign trade) | Yunnei/Quanchai National II 490 |
| Engine power (Foreign trade) | 42Kw |
| Model of reducer | 265 |
| Total weight | 3050KG |

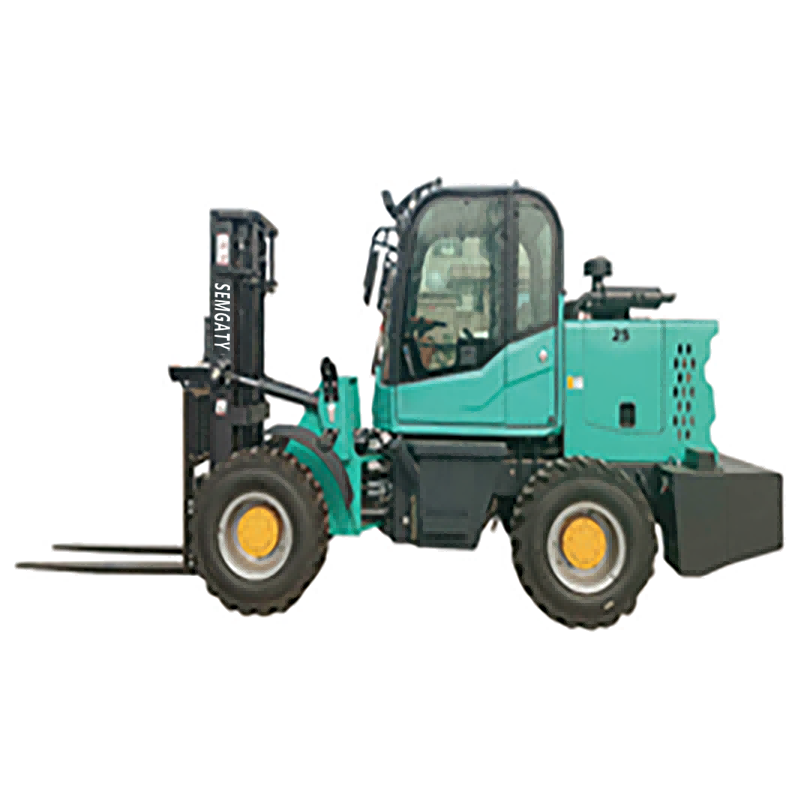

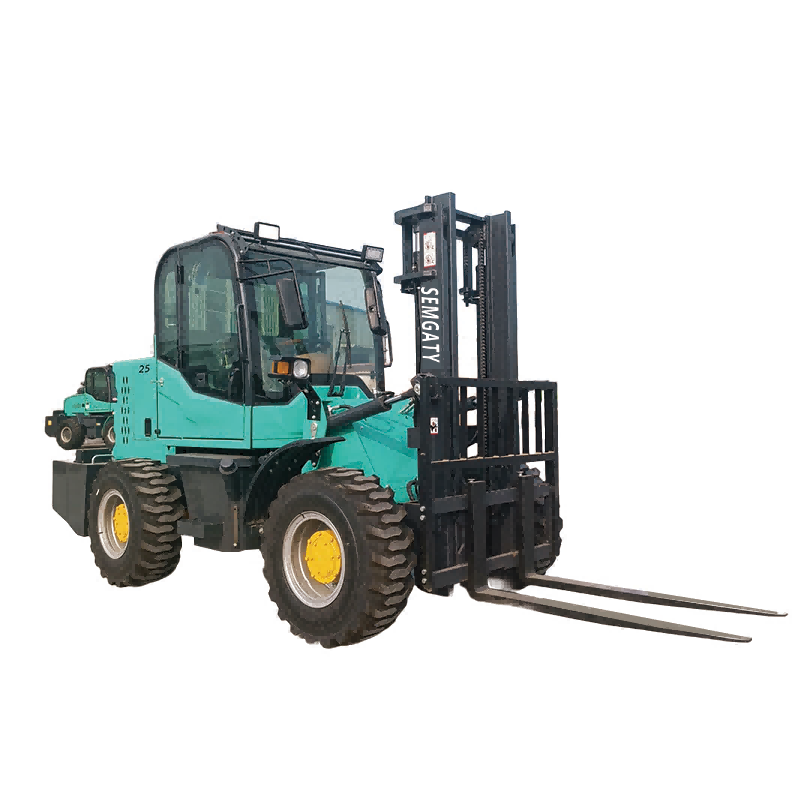

2500kg Diesel Forklift – Compact Power for Urban Efficiency
The 2500kg diesel forklift is designed to deliver exceptional performance in compact spaces, offering the perfect balance between power and maneuverability for modern warehouses and logistics operations. With a robust Yunnei/Quanchai National II 490 engine generating 42kW of reliable power, this forklift can tackle daily material handling tasks with remarkable efficiency and consistency. Its four-wheel drive system, combined with pneumatic tires, ensures stable movement across diverse surfaces, while a mechanical handbrake and disc brakes provide reliable safety control in every situation.
Despite its compact size (3650×1570×2220mm), the forklift features a lifting height of 4050mm and a maximum lift of 3000mm, enabling operators to stack pallets safely and efficiently. The combination of high climbing capacity, responsive acceleration, and precise speed control makes it exceptionally versatile in multi-level storage environments or uneven industrial floors. Its tight turning radius allows effortless navigation through narrow aisles, making it ideal for urban warehouses, production workshops, or retail distribution centers.
Operator comfort and safety are thoughtfully designed, with an ergonomically positioned seat, clear visibility, and well-balanced overhangs front and rear, minimizing the risk during load transport. The 265 model reducer ensures smooth, reliable transmission, enhancing operational stability even under full load. With a total weight of just 3050kg, this model is lightweight yet sturdy, enabling quick deployment and flexible operations wherever needed.
In essence, the 2500kg diesel forklift is not just a tool for lifting; it’s a solution that optimizes workflow, increases productivity, and reduces operational risk in tight and dynamic working environments. Its combination of compact design, dependable power, and precise control makes it a must-have asset for businesses seeking agile, high-performance material handling solutions.
With technological innovation, our product configuration and parameters will continue to
change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
