| parameter |
| Power type | Diesel |
| Rated load | 10000KG |
| The external dimensions are length, width and height | 4270*2165*2560mm |
| Load center distance | 600mm |
| The maximum height that the forks can lift | 4320mm |
| Maximum lifting height | 3000mm |
| The full height of the mast (with the forks on the ground and the mast vertical) | 2840mm |
| Freely increase height | 100mm |
| The height of the barrier shelf (calculated from the fork surface of the mast) | 1015mm |
| The distance from the seat surface to the roof guard | 1080mm |
| Front suspension distance (the distance from the center of the front axle to the center of the fork) | 720mm |
| Rear overhang distance (the distance from the center point of the rear axle to the very end) | 742mm |
| Wheelbase (the vertical distance from the center of the front axle to the center of the rear axle | 2800mm |
| Tow pin height | 520mm |
| Minimum ground clearance (at the mast) | 225mm |
| Outside the fork distance (maximum/minimum) | 1830/300mm |
| Track length (front wheel/rear wheel) | 1120/1196mm |
| Outside the minimum turning radius | 4080mm |
| Inside the minimum turning radius | 2400mm |
| Mast tilt Angle (front/rear) | 6 forward shift ,12reverse shift |
| Fork size | 1220*80*175mm |
| Maximum driving speed (full load/empty load) | 18/20Km/h |
| Maximum climbing capacity (full load/empty load) | 22% |
| Number of wheels X/ Drive wheels | 4X/2 |
| Tire type (front/rear) | Pneumatic tire |
| Front wheel tire | 9.00-20-16PR |
| Rear wheel tire | 9.00-20-16PR |
| Total weight | 12860KG |

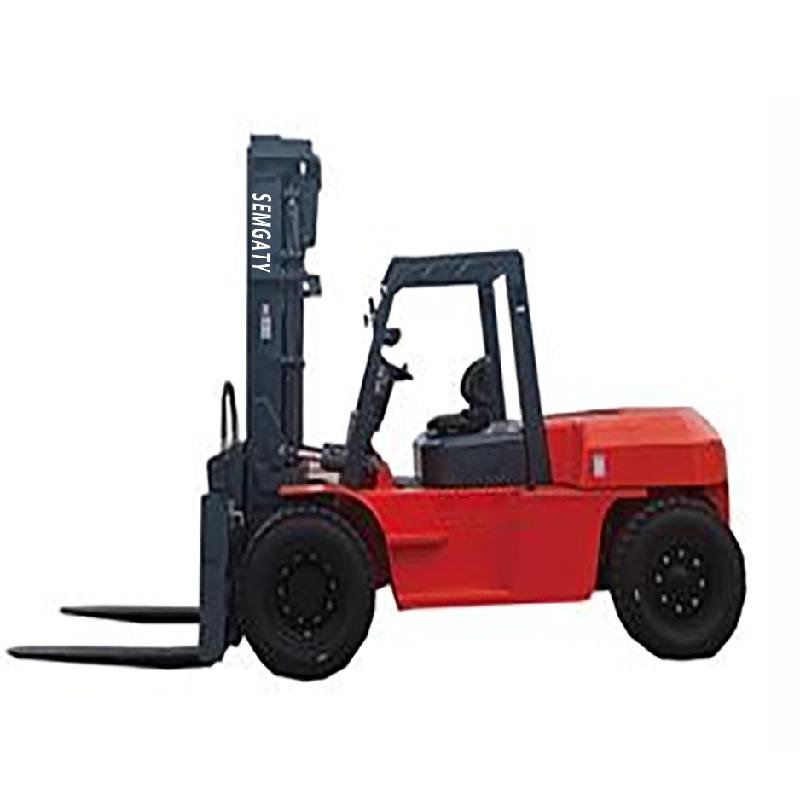

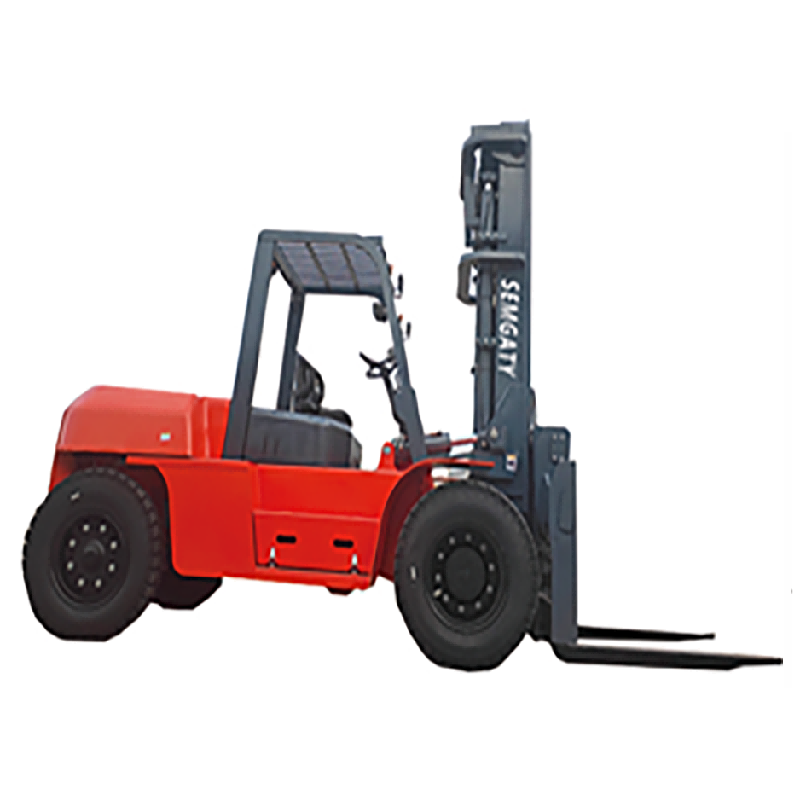

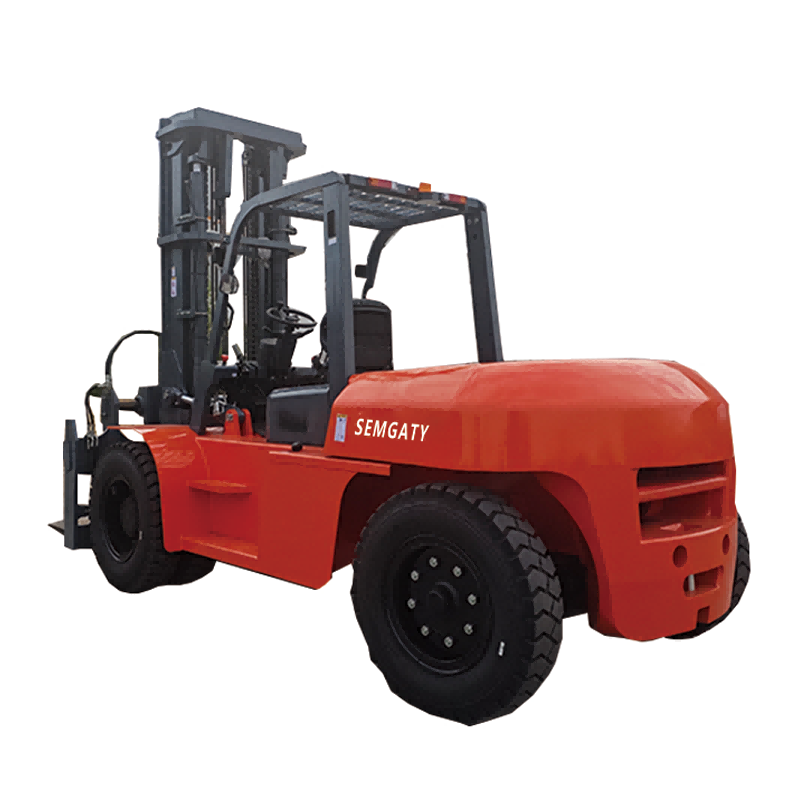

10-Ton Diesel Forklift – Heavy-Duty Lifting for Industrial Operations
The 10-ton diesel forklift is engineered for demanding industrial and logistics applications where maximum lifting capacity and durability are essential. With a rated load of 10,000 kg, this forklift handles large, heavy pallets, machinery, and construction materials with ease, making it suitable for ports, warehouses, and heavy-duty construction projects.
Its robust frame measures 4,270 mm in length, 2,165 mm in width, and 2,560 mm in height, providing both stability and operator visibility. The wheelbase of 2,800 mm combined with a minimum turning radius of 2,400 mm (inside) / 4,080 mm (outside) ensures smooth maneuvering in semi-restricted areas, while a ground clearance of 225 mm maintains stability on moderately uneven terrain.

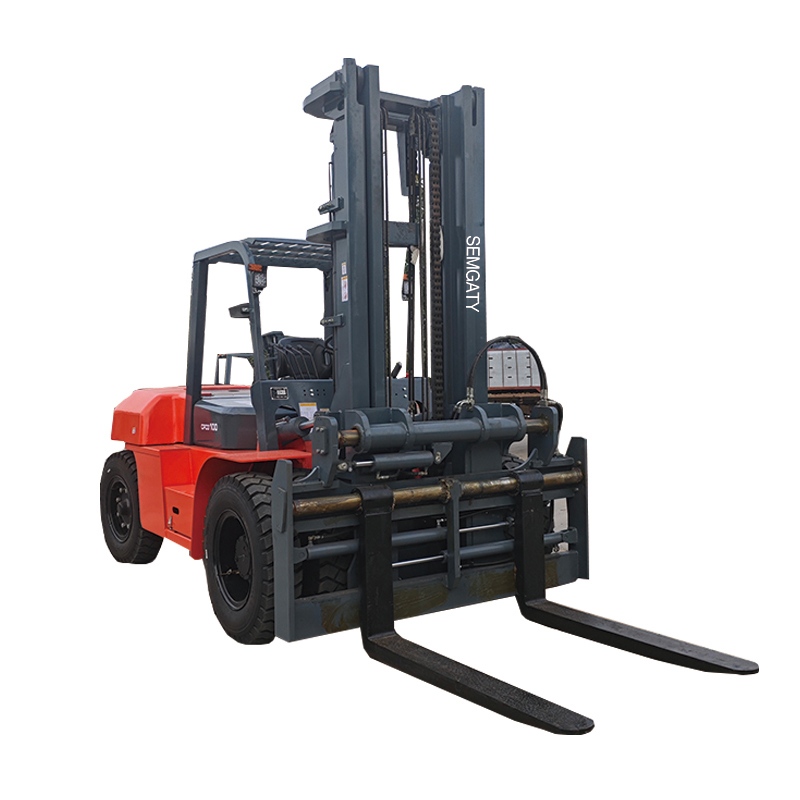

The forklift’s mast enables a maximum fork lift height of 4,320 mm, with an additional free lift of 100 mm, allowing safe stacking and precise placement of materials at different elevations. The mast tilt of 6° forward and 12° backward ensures secure handling, while heavy-duty forks measuring 1,220 × 80 × 175 mm provide the strength needed for larger, bulkier loads.

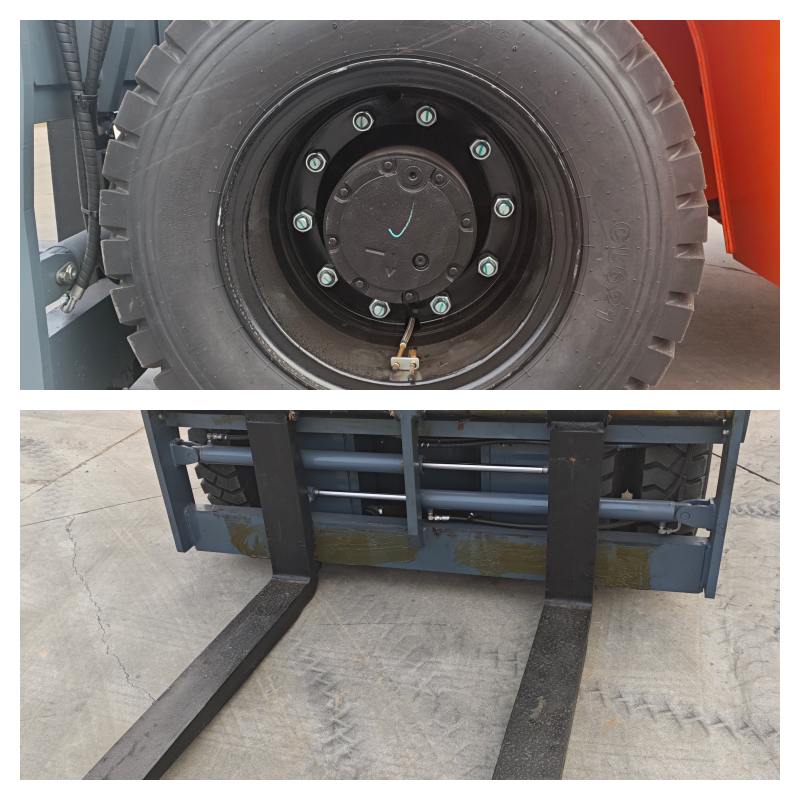

Powered by a reliable diesel engine with four cylinders, the forklift provides consistent torque and smooth operation. The pneumatic tires (front 9.00-20, rear 9.00-20, 16PR) offer superior traction and stability, while the forklift maintains a maximum speed of 18 km/h under full load and can tackle inclines up to 22%, balancing power with agility.

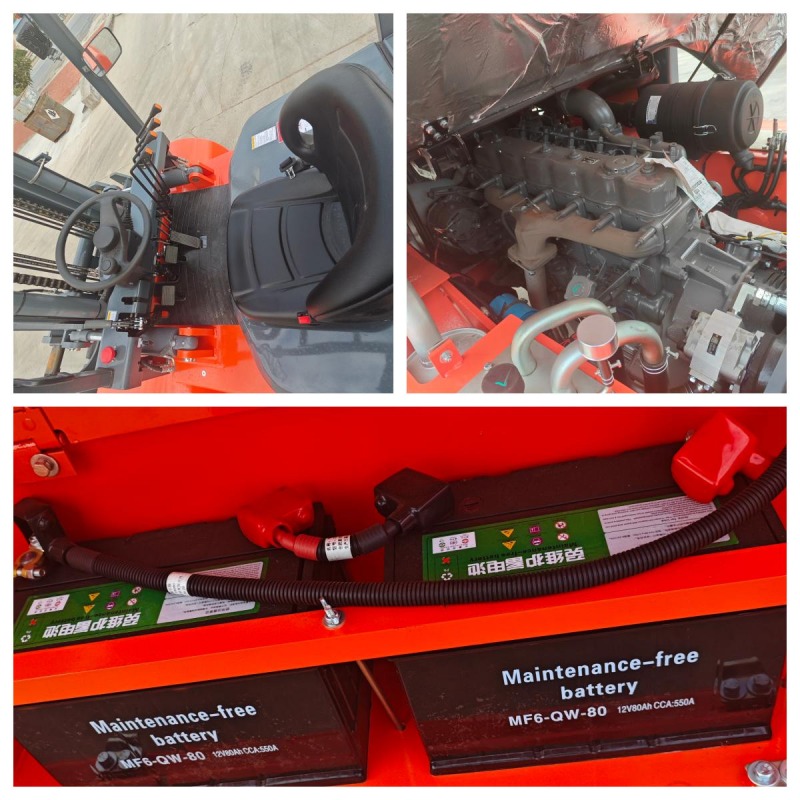

With operator comfort in mind, the forklift features a seat-to-roof clearance of 1,080 mm, a well-designed suspension system, and a solid frame to ensure safe and controlled operations. Its design supports long working shifts with minimal fatigue, making it suitable for industrial tasks that demand reliability and endurance.
The 10-ton diesel forklift delivers high-capacity lifting, enhanced safety, and operational efficiency, making it the ideal choice for industries that require heavy-duty forklifts to maintain productivity and safety standards in demanding environments.
With technological innovation, our product configuration and parameters will continue to
change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
