| parameter |
| Power type | Diesel fuel |
| Rated load | 3000KG |
| The external dimensions are length, width and height | 2850*1214*2176mm |
| Load center distance | 500mm |
| The maximum height that the forks can lift | 4100mm |
| Maximum lifting height | 3000mm |
| The full height of the mast (with the forks on the ground and the mast vertical) | 2089mm |
| Freely increase height | 100mm |
| The height of the barrier shelf (calculated from the fork surface of the mast) | 1100mm |
| The distance from the seat surface to the roof guard | 1050mm |
| Front suspension distance (the distance from the center of the front axle to the center of the fork) | 455mm |
| Rear overhang distance (the distance from the center point of the rear axle to the very end) | 498mm |
| Wheelbase (the vertical distance from the center of the front axle to the center of the rear axle | 1800mm |
| Tow pin height | 310mm |
| Minimum ground clearance (at the mast) | 154mm |
| Outside the fork distance (maximum/minimum) | 1100/250mm |
| Track length (front wheel/rear wheel) | 1030/992mm |
| Outside the minimum turning radius | 2407mm |
| Inside the minimum turning radius | 1582mm |
| Mast tilt Angle (front/rear) | 6 forward shift 12reverse shift |
| Fork size | 1070*45*125mm |
| Maximum driving speed (full load/empty load) | 18/20Km/h |
| Maximum climbing capacity (full load/empty load) | 15/20% |
| Number of wheels X/ Drive wheels | 4X/2 |
| Tire type (front/rear) | Pneumatic tire |
| Front wheel tire | 28*9-15 |
| Rear wheel tire | 6.50-10 |
| Engine model | Xinchai National II 490 |
| Engine power | 42KW |
| Model of reducer | JDS30 |
| Engine torque/rotational speed | 154N.M/1800r/min |
| Number of engine cylinders | four cylinder |
| Engine fuel tank capacity | 55.5L |
| Total weight | 4170KG |

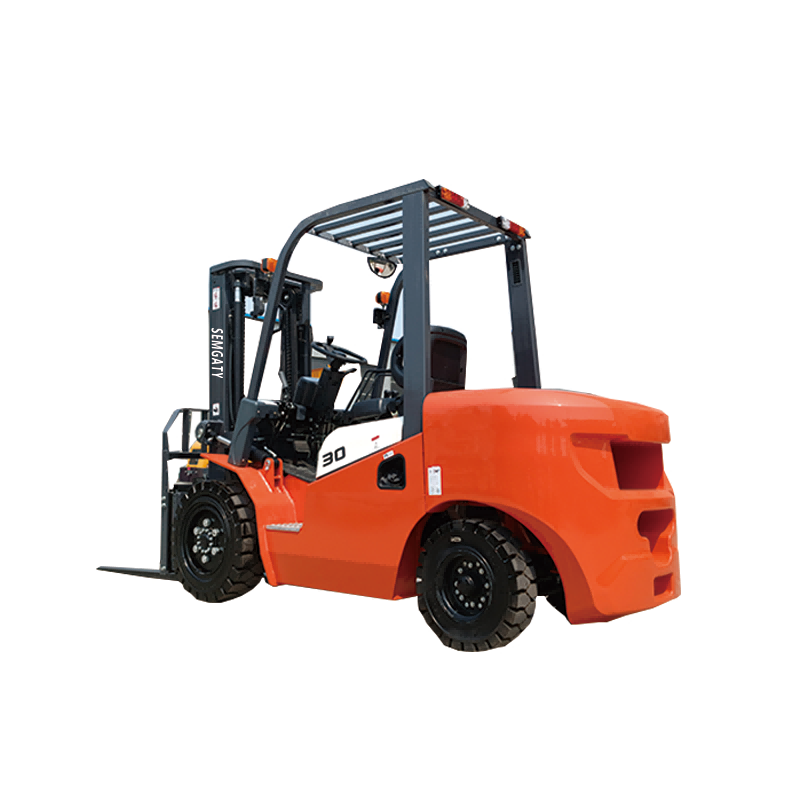

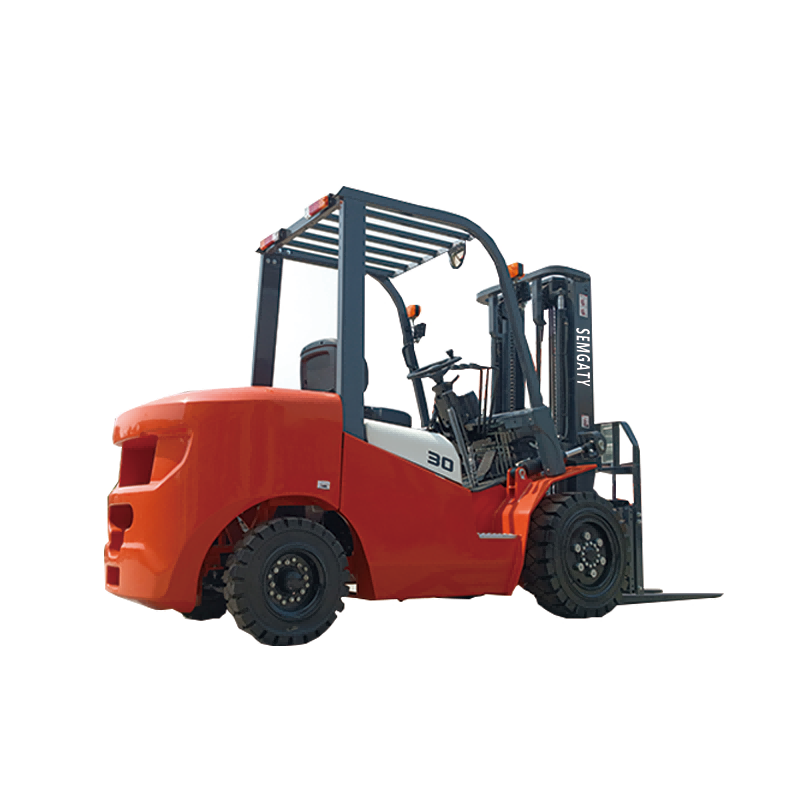

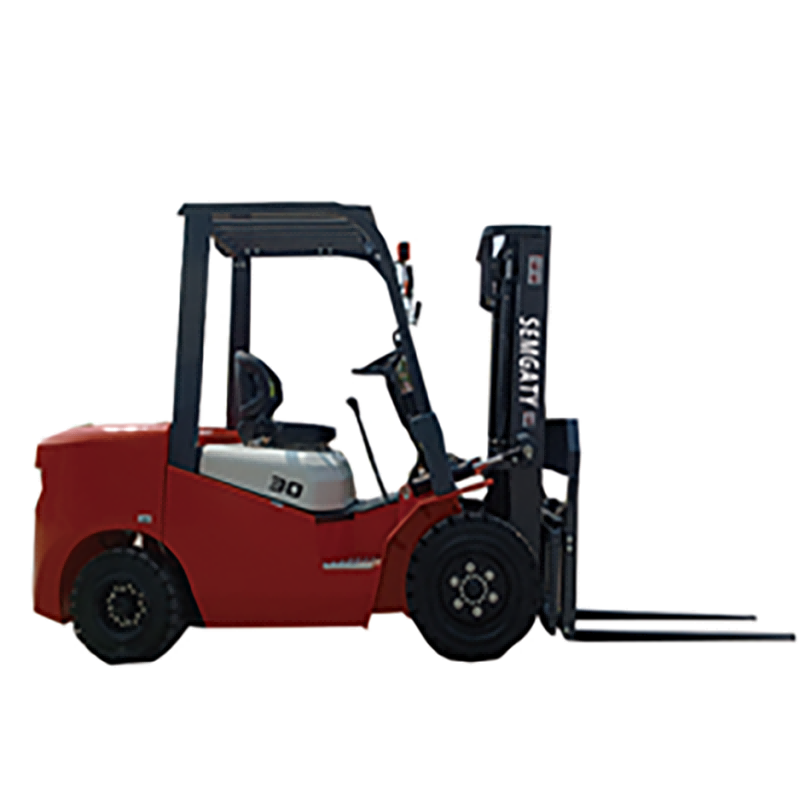

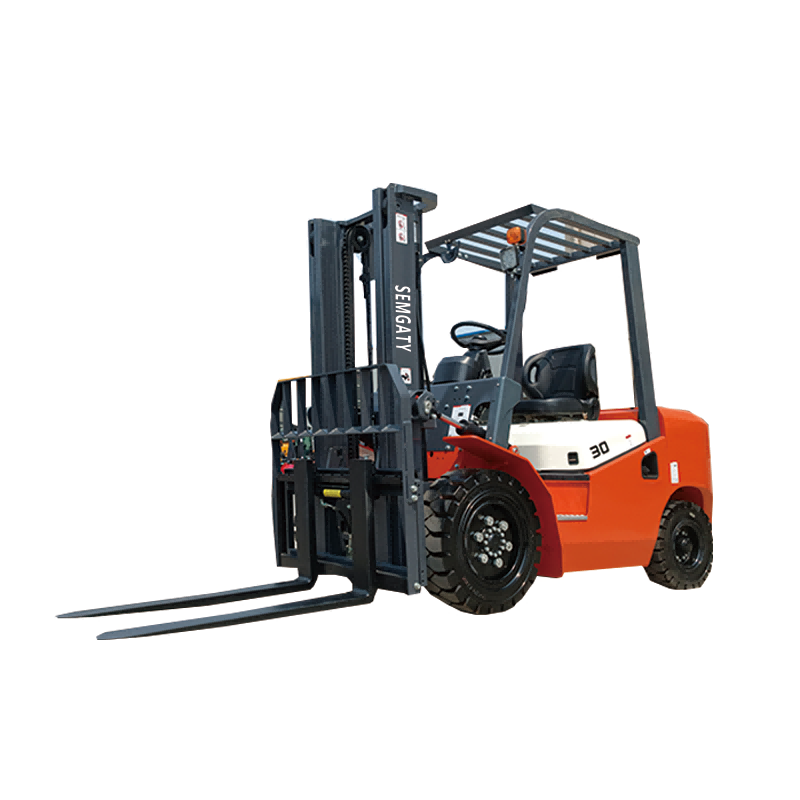

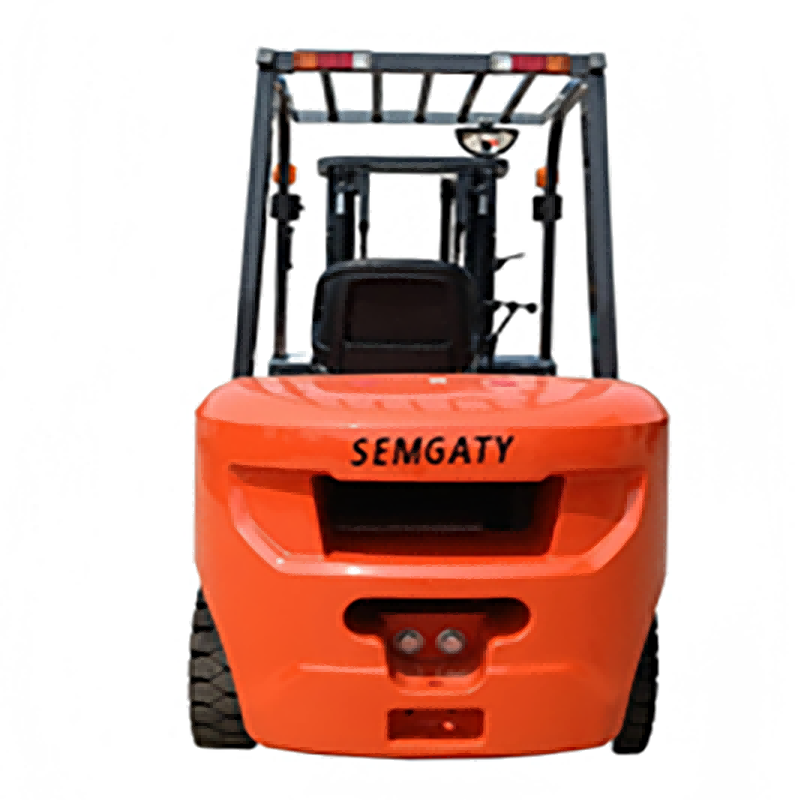

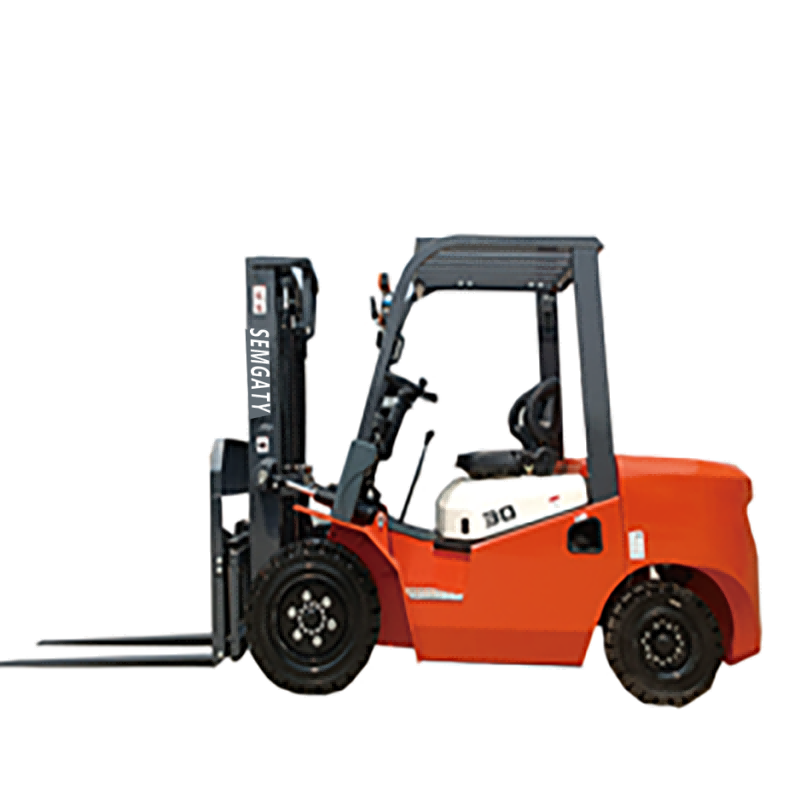

3-Ton Diesel Forklift – Compact Design, Big Performance
The 3-ton diesel forklift is engineered for small to medium-scale industrial and warehouse operations where agility, reliability, and efficiency are paramount. Despite its compact dimensions of 2,850 mm length, 1,214 mm width, and 2,176 mm height, this machine delivers a robust lifting capacity of 3,000 kg, allowing operators to handle pallets, construction materials, and bulk goods with confidence.
Precision Lifting in Tight Spaces
With a maximum fork lifting height of 4,100 mm and a free-lift range of 100 mm, this forklift ensures materials can be stacked and retrieved even in confined warehouse aisles or under low overhead obstacles. Its mast tilt of 6° forward and 12° backward adds extra safety and precision during lifting operations, reducing the risk of load slippage or accidental tipping.
Compact Footprint and Maneuverability
Designed for agile operation, the forklift features a wheelbase of 1,800 mm and a tight turning radius (1,582 mm inside / 2,407 mm outside), enabling effortless navigation in narrow corridors, loading docks, or small storage yards. A minimum ground clearance of 154 mm ensures stability on uneven floors, while the short rear overhang of 498 mm enhances rear visibility and minimizes collision risks.
Powerful and Efficient Engine
The forklift is powered by a Xinchai National II 490 four-cylinder diesel engine, producing 42 kW at 1,800 rpm with a torque of 154 N·m. Coupled with the JDS30 reducer, this powertrain delivers smooth, reliable acceleration and consistent lifting performance, even under continuous operation. The 55.5 L fuel tank provides extended working hours, minimizing downtime for refueling.
Robust Design and Safety Features
Constructed for durability, the forklift’s chassis and mast are reinforced to withstand heavy-duty industrial cycles. The pneumatic tires (front: 28×9-15, rear: 6.50-10) offer excellent traction and shock absorption, providing stability on both smooth warehouse floors and slightly rough outdoor terrain. Its climbing capacity of 15% under load and 20% unloaded ensures the forklift can operate on ramps or uneven surfaces without compromise.
Efficient Material Handling
Fork dimensions of 1,070 × 45 × 125 mm provide strong support for heavy loads, while the precise hydraulic controls allow smooth lifting, lowering, and tilting. With maximum travel speeds of 18 km/h under load and 20 km/h unloaded, the forklift balances power and efficiency for fast material transport across the yard or warehouse.
Applications
Ideal for warehouses, logistics centers, manufacturing plants, and small construction sites, the 3-ton diesel forklift is perfect for operators who need compact design, powerful lifting capability, and dependable performance in a versatile, easy-to-maneuver machine. Compared with similar forklifts, it stands out for its tight turning radius, high lift height, and stable diesel power, solving common challenges like restricted space handling and high-volume material movement.
With technological innovation, our product configuration and parameters will continue to
change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
