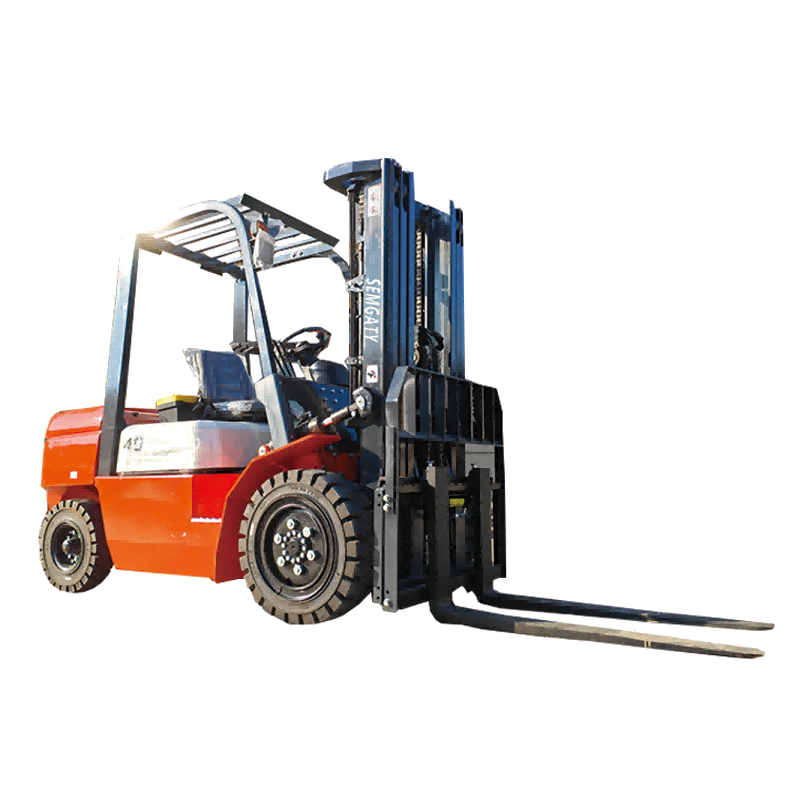

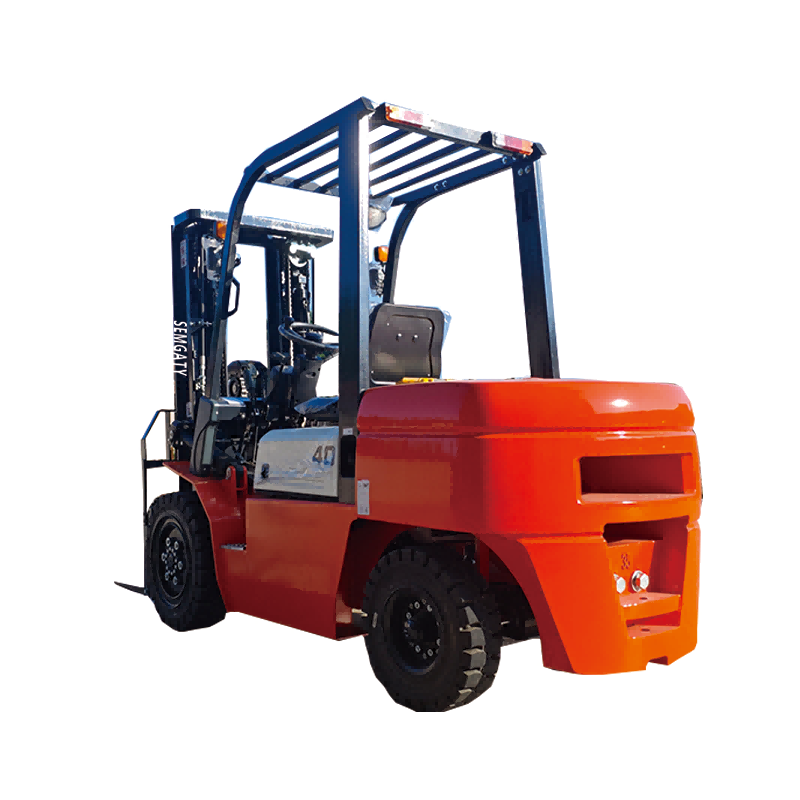

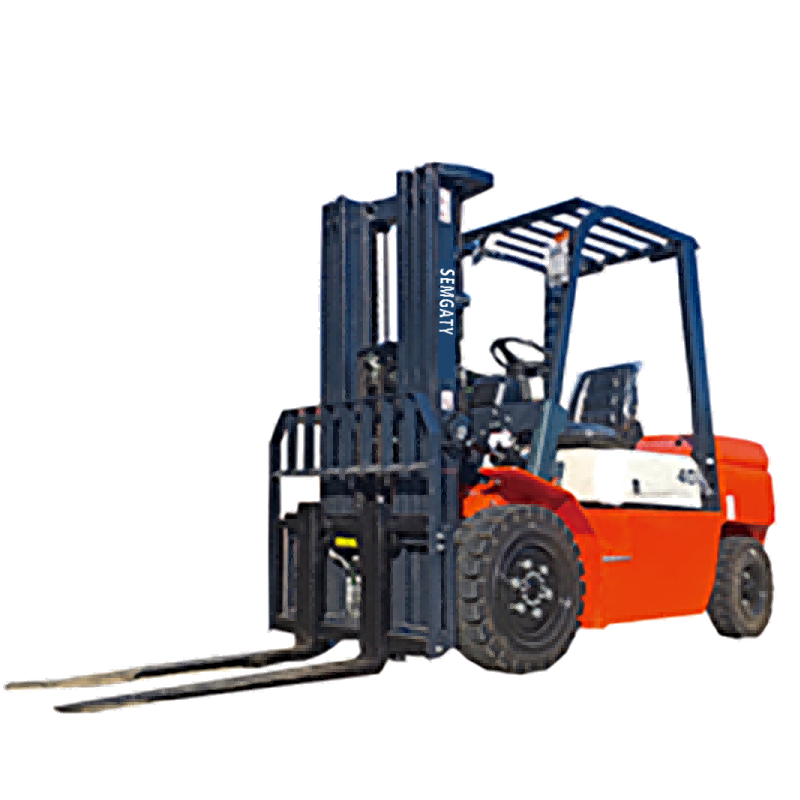

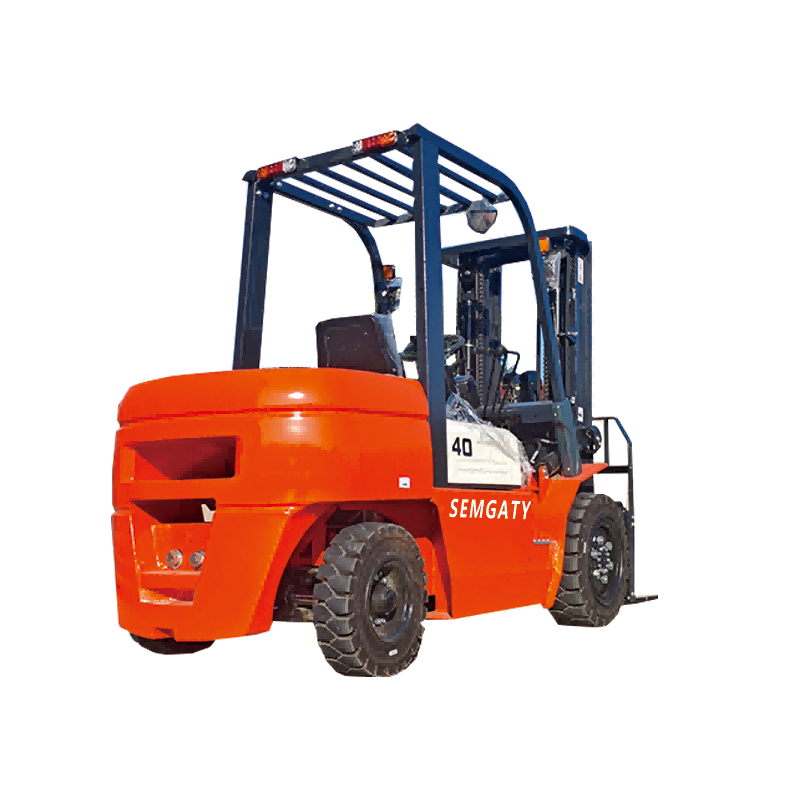

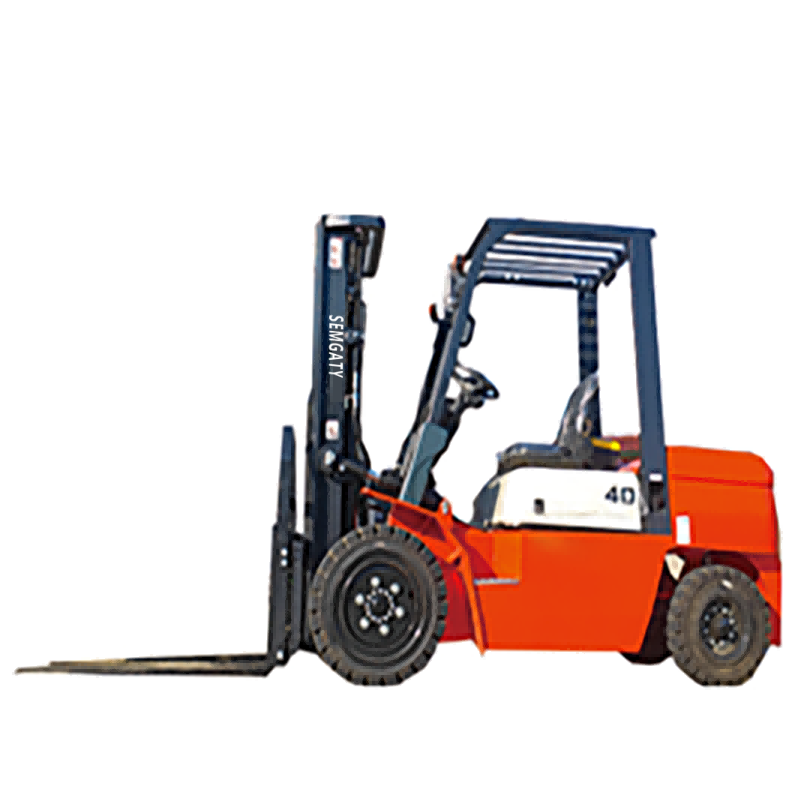

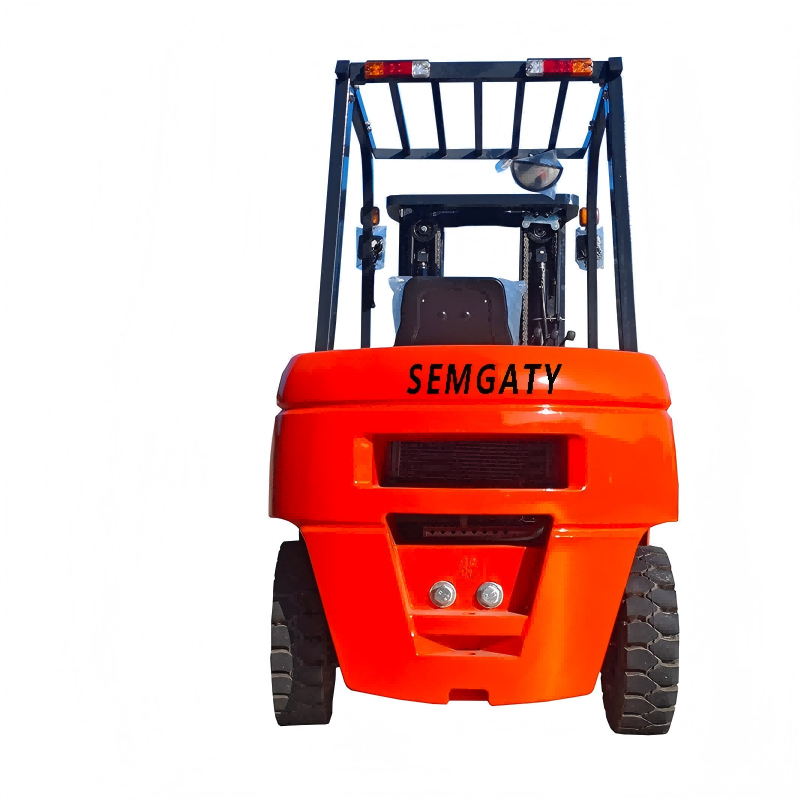

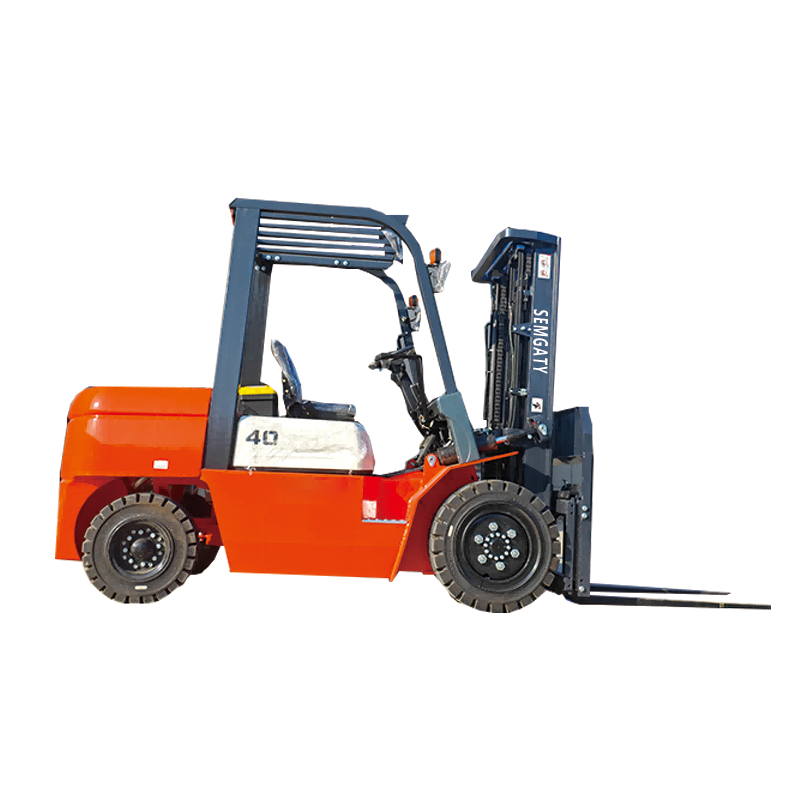

4 Ton New Forklift Powerful Lift Truck Machine

BrandSEMGATY
Product originCHINA
Delivery time30days
Supply capacityAnnual production and supply capacity 2000 units

1.Strong lifting power with a durable diesel engine. 2.Smooth hydraulic control for precise handling. 3.Reinforced chassis for long-lasting stability and safety.

parameter
Power type		diesel fuel
Rated load		4000KG
The external dimensions are length, width and height		295012142176mm
Load center distance		500mm
The maximum height that the forks can lift		4100mm
Maximum lifting height		3000mm
The full height of the mast (with the forks on the ground and the mast vertical)		2089mm
Freely increase height		100mm
The height of the barrier shelf (calculated from the fork surface of the mast)		1100mm
The distance from the seat surface to the roof guard		1050mm
Front suspension distance (the distance from the center of the front axle to the center of the fork)		455mm
Rear overhang distance (the distance from the center point of the rear axle to the very end)		695mm
Wheelbase (the vertical distance from the center of the front axle to the center of the rear axle		1900mm
Tow pin height		310mm
Minimum ground clearance (at the mast)		154mm
Outside the fork distance (maximum/minimum)		1100/250mm
Track length (front wheel/rear wheel)		1030/992mm
Outside the minimum turning radius		2650mm
Inside the minimum turning radius		1720mm
Mast tilt Angle (front/rear)		6 forward shift 12reverse shift
Fork size		107045125mm
Maximum driving speed (full load/empty load)		18/20Km/h
Maximum climbing capacity (full load/empty load)		15/20%
Number of wheels X/ Drive wheels		4X/2
Tire type (front/rear)		Pneumatic tire
Front wheel tire		28*9-15
Rear wheel tire		6.50-10
Engine model		Xinchai National II 495
Engine power		42KW
Model of reducer		JDS30
Engine torque/rotational speed		154N.M/1800r/min
Number of engine cylinders		four cylinder
Engine fuel tank capacity		65L
Total weight		4870KG

4.0T Heavy-Duty Diesel Forklift

Designed for High-Frequency Heavy Loads

Product Overview

The 4.0T Diesel Forklift is engineered for continuous heavy-duty operation, where strength, durability, and stability are essential. Its longer chassis and reinforced rear structure significantly reduce vibration and improve load control.

Engineering Advantages

Enhanced Structural Stability

A 1900mm wheelbase and widened track distribute load more evenly, ensuring safe lifting and transport of heavy materials.

Upgraded Power System

The Xinchai 495 engine provides consistent performance under high load, making it ideal for intensive industrial cycles.

Heavy-Duty Construction

Strengthened mast and fork carriage
Industrial-grade pneumatic tires
Large fuel tank for extended shifts
Durable axle and suspension system

Ideal Industries

Steel & metal fabrication · Construction materials · Heavy manufacturing · Industrial yards

Key Data

Rated Load: 4000KG
Turning Radius: 2650mm
Fuel Tank: 65L
Total Weight: 4870KG
