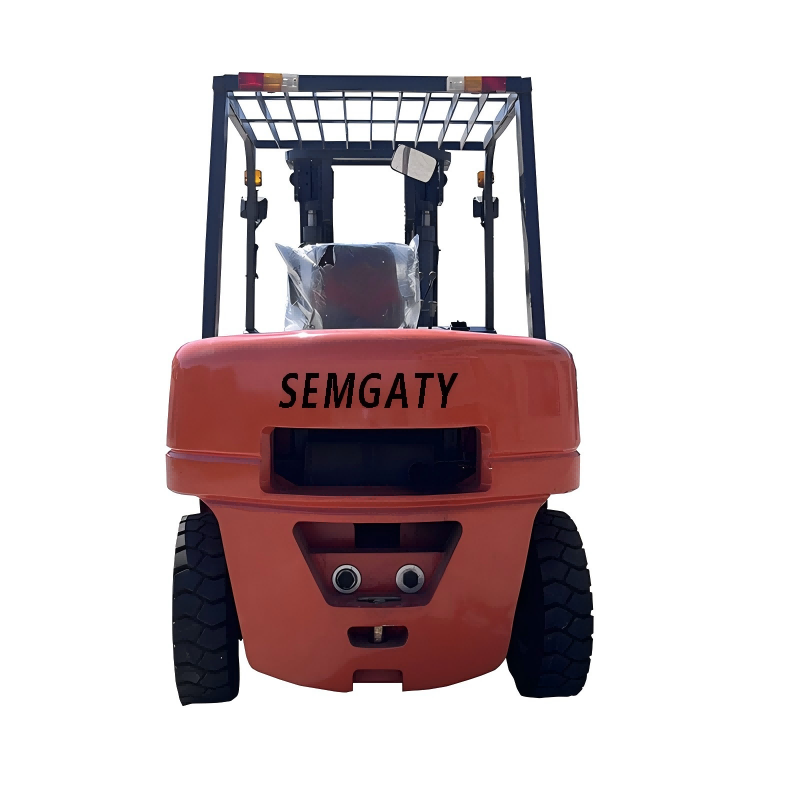

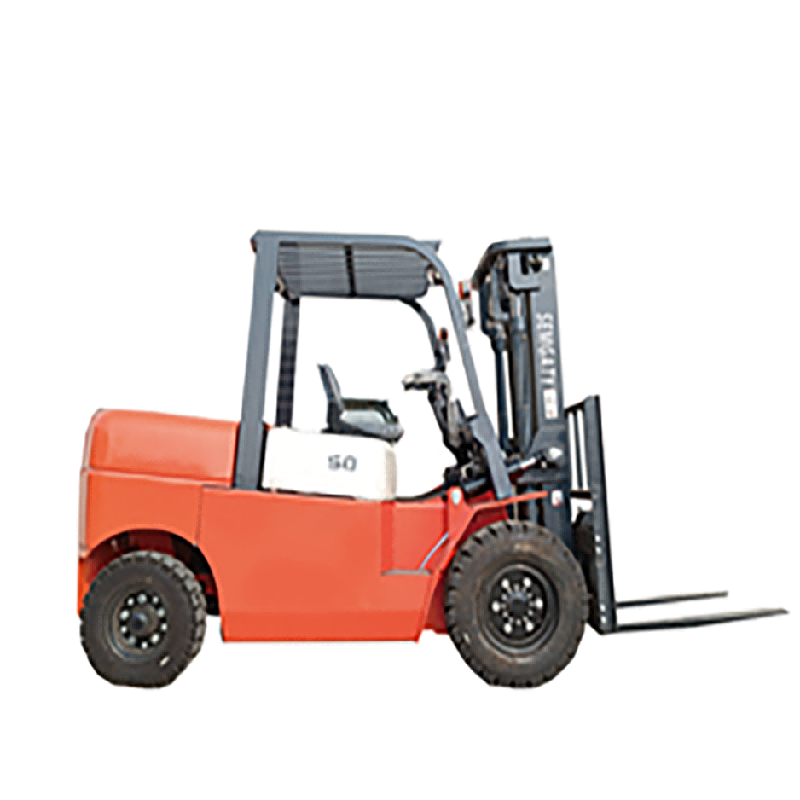

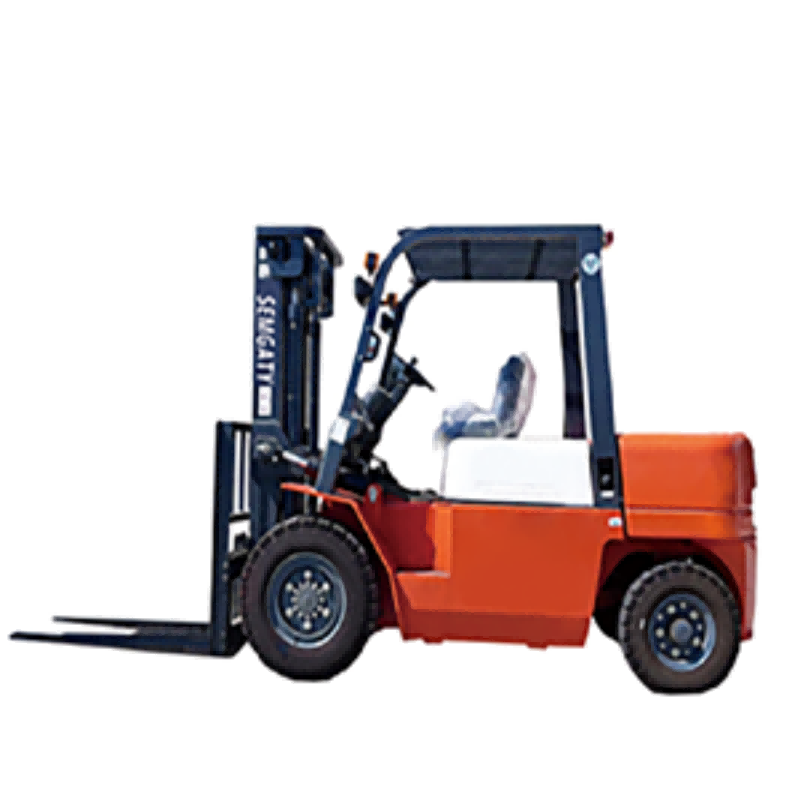

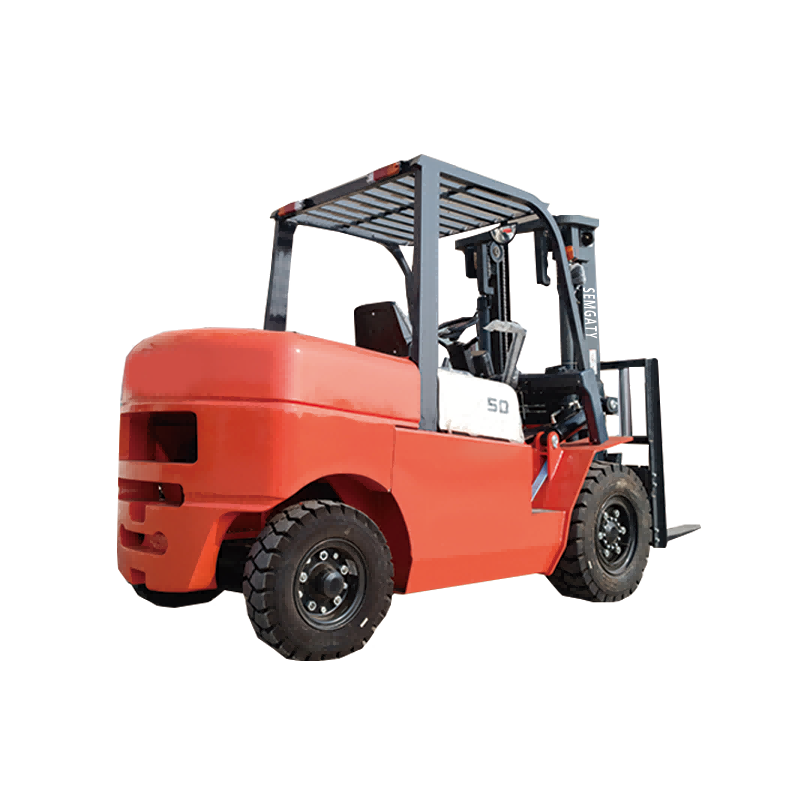

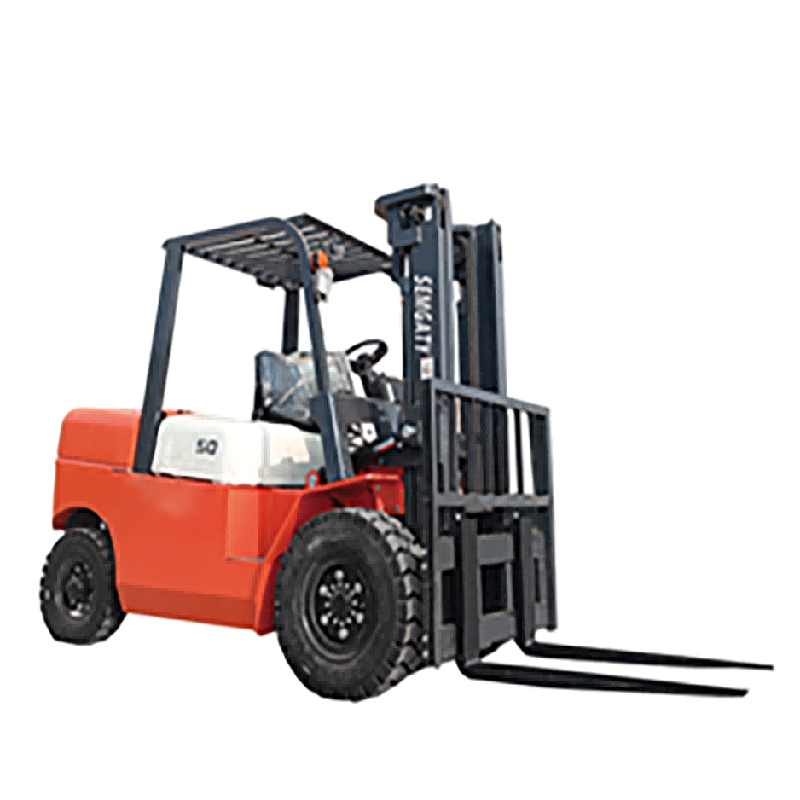

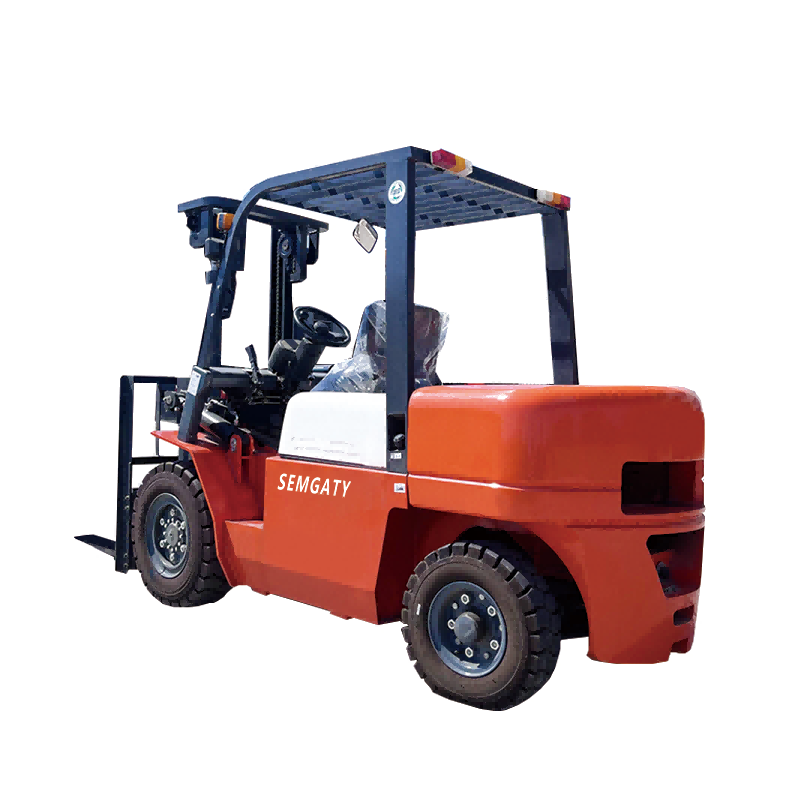

Powerful 5 Ton Forklift Industrial Lift Truck

BrandSEMGATY
Product originCHINA
Delivery time30days
Supply capacityAnnual production and supply capacity 2000 units

1.High-powered diesel engine for strong performance. 2.Reinforced frame and mast for heavy-duty stability. 3.Ergonomic cabin design for operator comfort and safety.

parameter
Power type		Diesel
Rated load		5000KG
The external dimensions are length, width and height		318014582408mm
Load center distance		500mm
The maximum height that the forks can lift		4100mm
Maximum lifting height		3000mm
The full height of the mast (with the forks on the ground and the mast vertical)		2358mm
Freely increase height		132mm
The height of the barrier shelf (calculated from the fork surface of the mast)		1100mm
The distance from the seat surface to the roof guard		1050mm
Front suspension distance (the distance from the center of the front axle to the center of the fork)		588mm
Rear overhang distance (the distance from the center point of the rear axle to the very end)		553mm
Wheelbase (the vertical distance from the center of the front axle to the center of the rear axle		2100mm
Tow pin height		500mm
Minimum ground clearance (at the mast)		183mm
Outside the fork distance (maximum/minimum)		1350/300mm
Track length (front wheel/rear wheel)		1120/1196mm
Outside the minimum turning radius		2887mm
Inside the minimum turning radius		1958mm
Mast tilt Angle (front/rear)		6 forward shift ，12reverse shift
Fork size		122050150mm
Maximum driving speed (full load/empty load)		18/20
Maximum climbing capacity (full load/empty load)		15/20
Number of wheels X/ Drive wheels		4X/2
Tire type (front/rear)		Pneumatic tire
Front wheel tire		300-15
Rear wheel tire		7.00-12
Engine model		National III 4D35ZG31-004
Engine power		60KW
Model of reducer		JDS45
Engine torque/rotational speed		300N.M/1800r/min
Number of engine cylinders		Four cylinder
Engine fuel tank capacity		128L
Total weight		6730KG

The 5-ton diesel forklift is a robust solution for heavy-duty material handling, rated for a 5000kg load. With dimensions of 3180×1458×2408mm and a wheelbase of 2100mm, it provides stability for large pallets and industrial loads. Equipped with a National III 4D35ZG31-004 engine producing 60kW, it delivers powerful and efficient performance. The mast achieves a maximum lifting height of 3000mm, with forks extending to 4100mm, supported by durable JDS45 reducers. Pneumatic tires (300-15 front, 7.00-12 rear) offer traction on rough terrain, while the reinforced 500mm tow pin height and 183mm minimum ground clearance enhance operational versatility. The forklift’s 128L fuel tank allows extended runtime. Ideal for manufacturing, logistics, and heavy warehousing, this model excels in lifting capacity, stability, and durability.

With technological innovation, our product configuration and parameters will continue to

change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail;
