| parameter |
|
| Power type | Diesel |
| Rated load | 7000KG |
| The external dimensions are length, width and height | 3440*1995*2450mm |
| Load center distance | 600mm |
| The maximum height that the forks can lift | 4380mm |
| Maximum lifting height | 3000mm |
| The full height of the mast (with the forks on the ground and the mast vertical) | 2500mm |
| Freely increase height | 205mm |
| The height of the barrier shelf (calculated from the fork surface of the mast) | 1372mm |
| The distance from the seat surface to the roof guard | 1045mm |
| Front suspension distance (the distance from the center of the front axle to the center of the fork) | 590mm |
| Rear overhang distance (the distance from the center point of the rear axle to the very end) | 740mm |
| Wheelbase (the vertical distance from the center of the front axle to the center of the rear axle | 2250mm |
| Tow pin height | 395mm |
| Minimum ground clearance (at the mast) | 200mm |
| Outside the fork distance (maximum/minimum) | 1830/300mm |
| Track length (front wheel/rear wheel) | 1120/1196mm |
| Outside the minimum turning radius | 3370mm |
| Inside the minimum turning radius | 2150mm |
| Mast tilt Angle (front/rear) | 6 forward shift, 12reverse shift |
| Fork size | 1220*70*150mm |
| Maximum driving speed (full load/empty load) | 18/20Km/h |
| Maximum climbing capacity (full load/empty load) | 22% |
| Number of wheels X/ Drive wheels | 4X/2 |
| Tire type (front/rear) | Pneumatic tire |
| Front wheel tire | 8.25-15-14PR |
| Rear wheel tire | 8.25-15-14PR |
| Model of reducer | / |
| Engine torque/rotational speed | 460N.M/1300-1700r/min |
| Number of engine cylinders | 4X110X125 |
| Engine fuel tank capacity | 140L |
| Total weight | 9340KG |

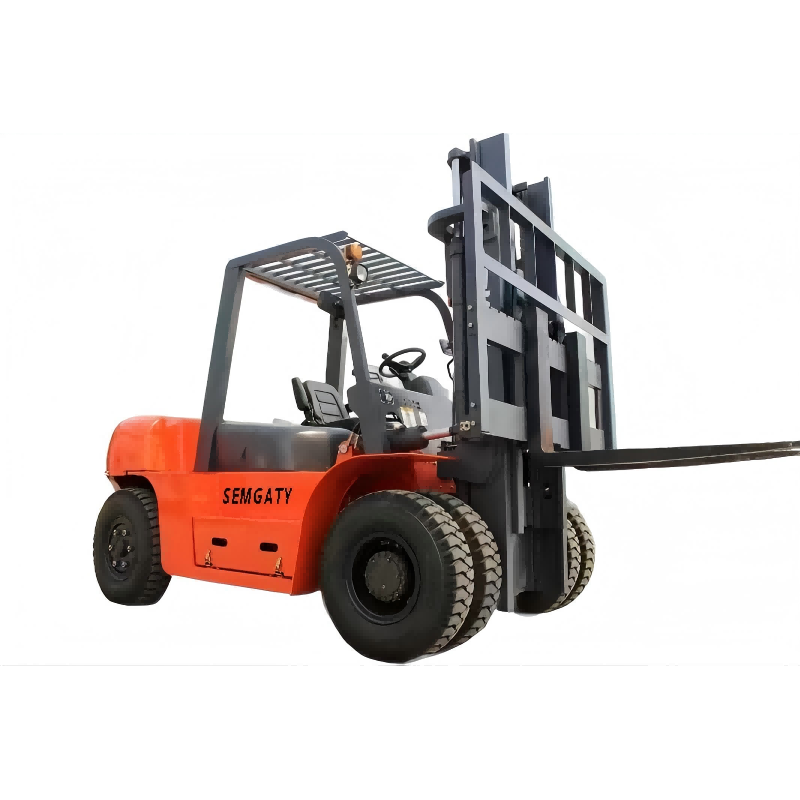

7-Ton Diesel Industrial Lifter – Robust Power in a Compact Frame
Built for demanding industrial tasks, this 7-ton diesel lifter is engineered to deliver heavy-duty material handling performance without sacrificing agility. With a lifting capacity of 7,000 kg, it excels at moving pallets, construction supplies, and other dense loads across warehouses, storage yards, and construction sites.
The machine’s compact dimensions—3,440 mm long, 1,995 mm wide, and 2,450 mm high—allow operation in tight corridors and crowded environments where larger machines cannot reach. A wheelbase of 2,250 mm and finely tuned steering system provide exceptional control, while a minimum ground clearance of 200 mm ensures stability over uneven surfaces and moderate obstacles.
Its lifting mechanism is designed for precision and reliability. The forks reach a maximum height of 4,380 mm, with a free lift of 205 mm for flexible stacking, while the mast tilts 6° forward and 12° backward, improving load security during vertical movements. The heavy-duty forks (1,220 × 70 × 150 mm) support heavy payloads with confidence, maintaining balance even under demanding use.
Powering the lifter is a high-torque, 4-cylinder diesel engine producing 460 N·m of torque between 1,300–1,700 rpm, offering smooth and consistent power for extended work shifts. The 140 L fuel tank supports long operational hours without frequent refueling. The machine’s drivetrain, paired with durable pneumatic tires (8.25-15, 14PR), ensures traction, stability, and durability across concrete, gravel, or uneven terrain.
Operator safety and comfort are integral to the design. The cabin provides 1,045 mm of overhead space, ergonomic seating, and intuitive control placement for reduced fatigue and precise handling. With a top travel speed of 18 km/h under load and a climbing capacity of 22%, this machine balances speed, strength, and control.
Perfect for industrial warehouses, construction sites, and logistical operations, this 7-ton diesel industrial lifter combines a compact footprint with formidable lifting power, enabling efficient, safe, and reliable material handling in confined or challenging environments. Its rugged design, dependable diesel engine, and precision lifting mechanism make it a trusted asset for operators demanding high performance in every shift.
With technological innovation, our product configuration and parameters will continue to
change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
