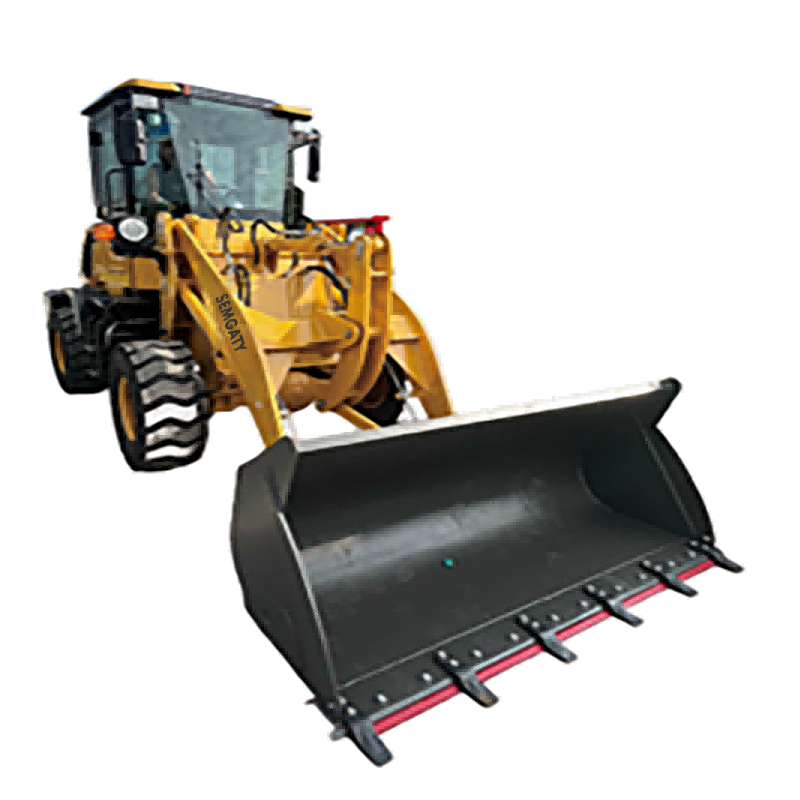

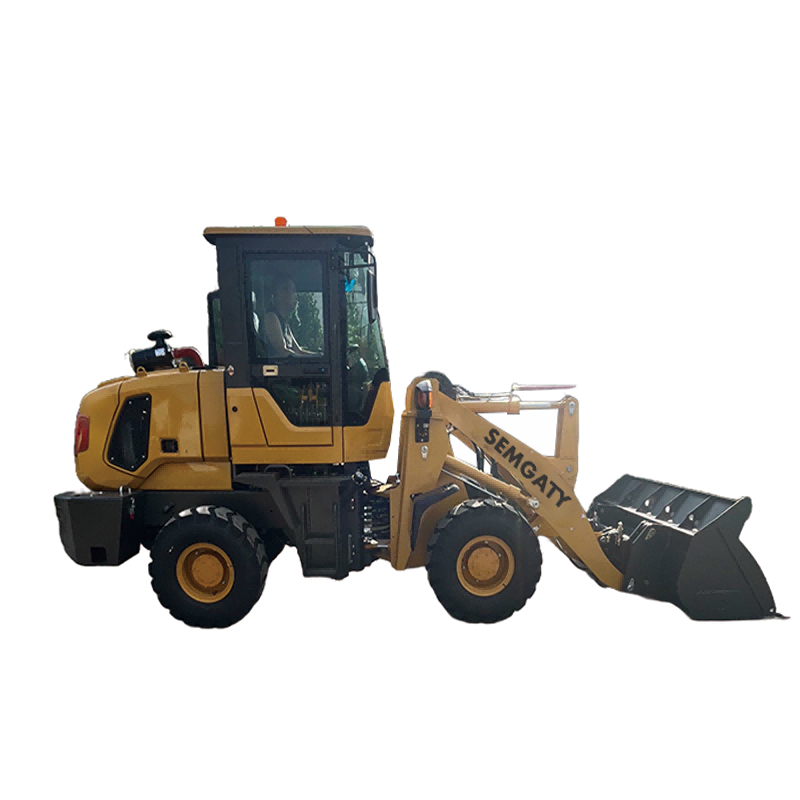

1.8 Ton Small Articulating Front End Loader

Compact Wheel Loader – High Efficiency & Robust Performance

The compact wheel loader is engineered to deliver outstanding efficiency and reliability for medium-duty construction and material handling tasks. With a rated loading capacity of 1,800 kg and a bucket volume of 0.85 m³, it provides excellent versatility for site leveling, earthmoving, and material transport. Despite its robust capabilities, the loader maintains a manageable overall weight of 3,850 kg for easy maneuverability on tight sites.

Engine & Power
Powered by the YN27GBZ engine, featuring an inline, water-cooled, dry-cylinder design with precise fuel injection, the machine produces 58 kW at 2,400 rpm and a maximum torque of 147 N·m. The engine meets National II emission standards, ensuring efficient performance while complying with environmental regulations.

Transmission & Drive System
The loader’s single-stage, four-element, twin-turbine torque converter combined with a planetary power transmission gearbox ensures smooth operation and reliable power delivery. The system offers 2 forward and 2 reverse gears, reaching a maximum speed of 25 km/h. The main drive axles feature spiral bevel gear reduction and planetary first-grade deceleration, providing strong traction and stability.

Hydraulic & Operational Performance
Equipped with a high-efficiency hydraulic system, the loader achieves a boom lifting time of 8.9 seconds and a total operational cycle of 10 ±0.2 seconds. With a maximum breakout force of 40 kN and a maximum traction force of 80 kN, it handles heavy loads effortlessly. The machine also maintains a maximum gradeability of 25°, enabling safe operation on inclined surfaces.

Dumping & Dimensions
The loader features a maximum dump height of 3,200 mm and a reach of 800 mm, optimizing material discharge for precision and speed. Its compact dimensions (5,600 × 1,810 × 2,600 mm) and wheelbase of 2,250 mm provide excellent stability and maneuverability in confined spaces.

Brakes & Tires
Safety and control are ensured through a four-wheel service brake with oil cap and disc and a manual disc parking brake. The loader runs on 20.5–16 tires, with recommended pressures of 0.4 MPa for the front and 0.35 MPa for the rear, offering durability and traction on diverse terrains.

This compact wheel loader combines strength, efficiency, and precision, making it an ideal choice for construction sites, landscaping projects, and material handling operations where reliability and maneuverability are essential.

With technological innovation, our product configuration and parameters will continue to change without notice;

 if there is any doubt, the specific confirmation of our international trade sales shall prevail;
