| parameter |
| Performance | 1 | Rated load | 6000KG |
| 2 | Overall weight | 19800KG |
| 3 | Rated bucket capacity | 3m3 -4.5m3 |
| 4 | Maximum tractive force | 158Kn |
| 5 | Maximum breakout force | 204Kn |
| 6 | Maximum grade ability | 30℃ |
| 7 | Maximum dump height | 3217mm |
| 8 | Maximum dump reach | 1156mm |
| 9 | Overall dimension (L×W×H) | 8050×2870×3463mm |
| 10 | Minimum turning radius | 70200mm |
| Engine | 11 | Model | Weichai Steyr WD10G240E201 |
| 12 | Type | National II\Water cooling\Dry cylinder liner\ Injection |
|
| 13 | No. of cylinder-bore/stroke | 6－126×130mm |
| 14 | Rated power | 178kw--2400r/min |
| 15 | Maximum torque | 920N.m |
| 16 | Min fuel-consume ratio | ≤215g/Kw.h |
| Transmission system | 17 | Torque converter | YJ375 |
| 18 | Gearbox mode | Power shift normally engaged straight gear |
| 19 | Gear shift | 4 forward shift 4reverse shift |
|
| 20 | Maximum speed | 38Km/h |
| Drive axles | 21 | Main reducing spiral | Bevel gear grade 1reduction |
|
| 22 | Decelerating mode | Planetary reduction,grade 1 |
|
| 23 | Wheel base (mm) | 3200mm |
| 24 | Wheel tread | 2250mm |
| 25 | Minimum ground clearance | 450mm |
| Hydraulic system | 26 | System working pressure | 17MPa |
| 27 | Boom lifting time | 6.05±0.25s |
| 28 | Total time | 10.8±0.5s |
| 29 | Fuel tank capacity | 300L |
| 30 | Function of leveling automatically | Yes |
|
| Brake system | 31 | Service brake | Air over hydraulic disc brake on 4 wheels |
|
| Tyre | 32 | Parking brake | Manual parking brake |
| 33 | Type specification | 23.5-25 |
| 34 | Front tyre pressure | 0.4Mpa |
| 35 | Rear tyre pressure | 0.35Mpa |
Product Overview

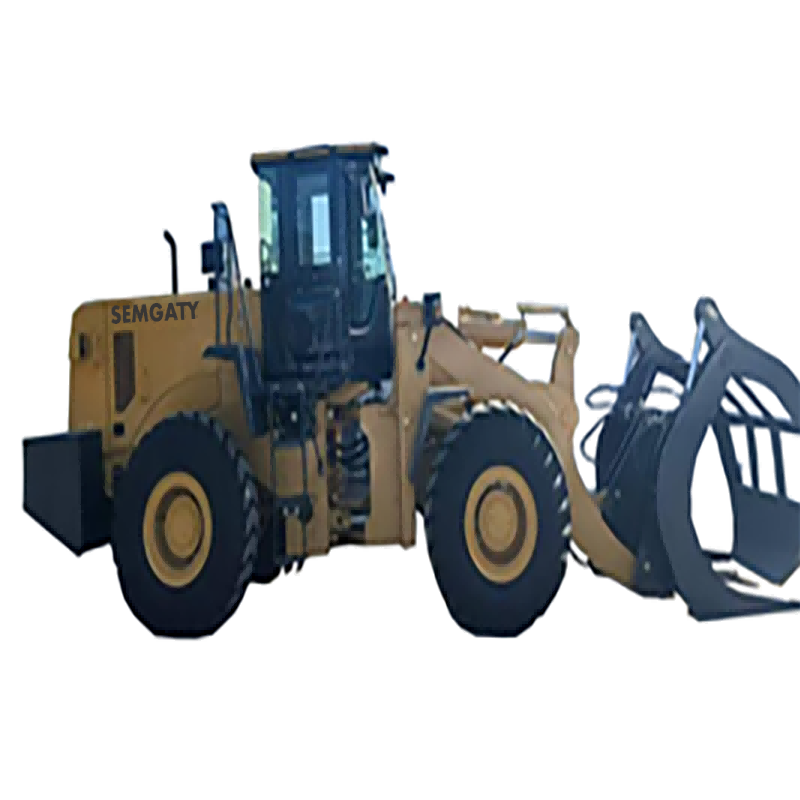

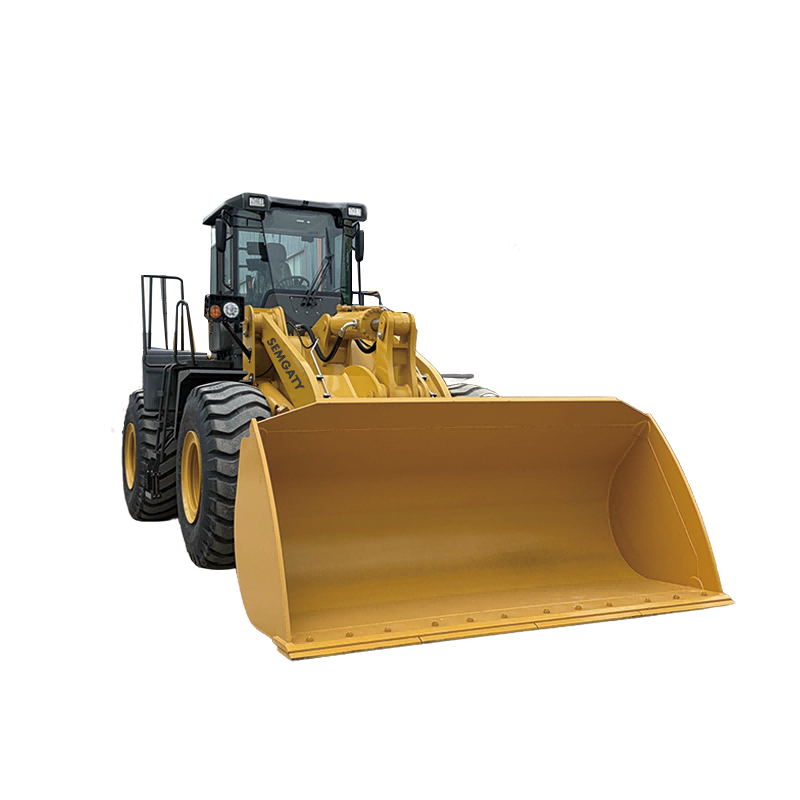

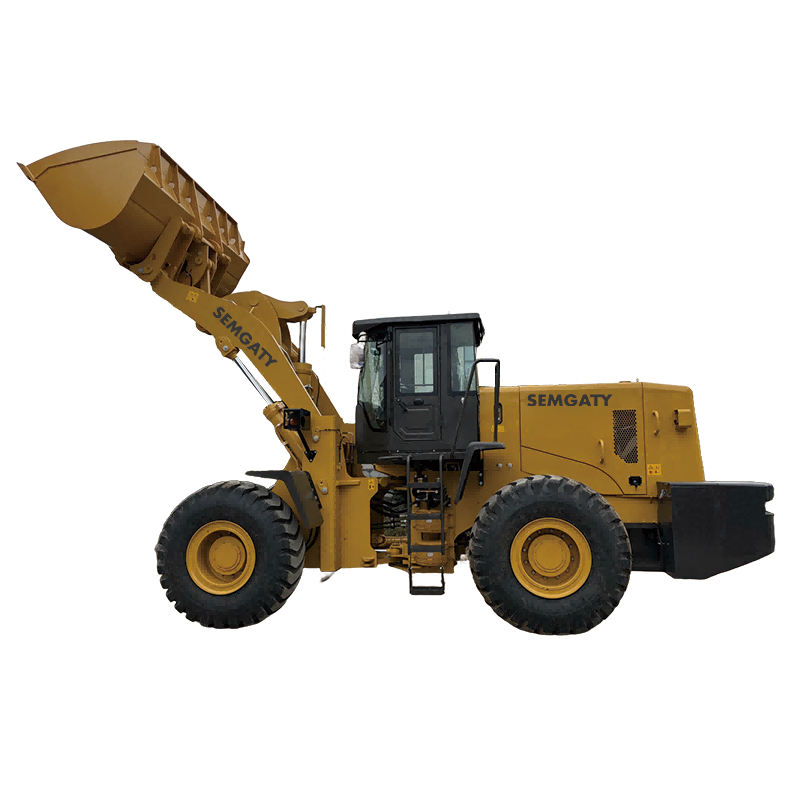

The 6-ton articulated wheel loader is a heavy-duty construction machine designed for efficient material handling in demanding working conditions. It is widely used in mining, quarrying, construction sites, ports, and aggregate yards. With strong breakout force, high loading efficiency, and reliable performance, this model is ideal for customers seeking productivity and long-term durability.
Key Features & Configuration
Powerful and Reliable Engine
The loader is powered by a Weichai Steyr WD10 series diesel engine, delivering 178 kW of rated power with high torque output. The engine adopts water-cooling and direct injection technology to ensure stable performance, low fuel consumption, and reliable operation under heavy loads. Emission standards comply with China National II (higher standards available upon request).
Efficient Transmission System
Equipped with a hydraulic torque converter (YJ375) and a power-shift transmission, the loader offers 4 forward and 4 reverse gears, enabling smooth gear changes and excellent drivability. The maximum travel speed of 38 km/h allows efficient movement between job sites.
High Productivity and Strong Loading Capacity
With a rated load of 6,000 kg and a bucket capacity of 3.0–4.5 m³, this loader provides high material handling efficiency. A maximum breakout force of 204 kN and tractive force of 158 kN ensure excellent performance in tough working conditions such as rock, gravel, and compacted soil. The high dump height and long dump reach allow easy truck loading.
Robust Structure and Stability
The reinforced chassis and planetary reduction drive axles ensure high strength and long service life. A 30° gradeability, 450 mm ground clearance, and optimized wheelbase provide excellent stability and off-road capability, even on uneven or muddy terrain.
Advanced Hydraulic System
The hydraulic system operates at 17 MPa, delivering fast and precise movements. The boom lifting time is approximately 6.05 seconds, and the total cycle time is 10.8 seconds, significantly improving work efficiency. An automatic bucket leveling function helps maintain accurate material handling and reduces operator fatigue.
Safety and Operator Comfort

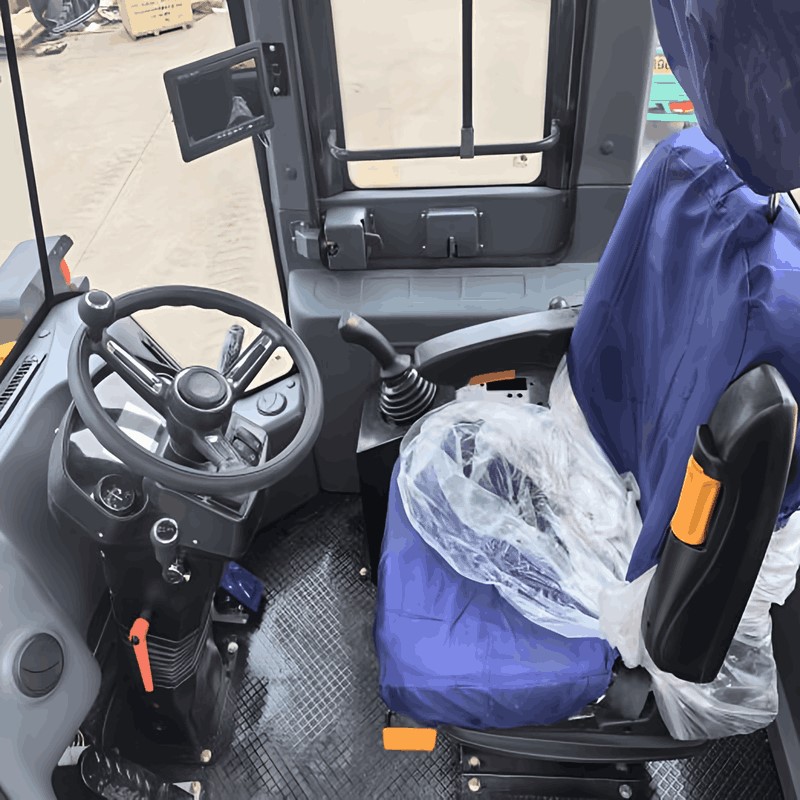

The loader is equipped with an air-over-hydraulic disc brake system on all four wheels, ensuring reliable braking performance. A manual parking brake provides additional safety. The spacious cab offers good visibility and ergonomic control layout. Optional ROPS/FOPS certified cab, air conditioning, and upgraded seats are available for enhanced comfort and safety.
Applications
Mining and quarry operations
Construction and road projects
Sand and aggregate plants
Ports, yards, and logistics centers
After-Sales Service
We provide comprehensive after-sales support to ensure worry-free operation:
Fast spare parts supply and technical support
Remote troubleshooting and operation guidance
Optional on-site service and dealer support (depending on region)
Customization Options
To meet different market and working requirements, we offer flexible customization, including:
Engine emission upgrades (China III / Euro III or above)
Bucket size and special attachments
Tire type (rock tires, solid tires, etc.)
Cab configuration (ROPS/FOPS, A/C, joystick control)
Color, logo, and branding customization
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
