| parameter |
| Rated Load | 7000KG |
| OperatingWeight with Standard Bucket | 20000KG |
| Bucket Capacity | 3.5-5.5m³ |
| Wheel Base | 3350mm |
| Overall Dimension (outside of tire) | 8414*3370*3458mm |
| Operating Specifications |
| Breakout Force | 183Kn |
| Dump Clearance | 3048mm |
| Articulated Angle | 38±1° |
| Transmission |
| Transmission Type | Countershat, power shift |
| Transmission Gears | F4/R4 |
| Torque Converter Type | Single stage 3 elements |
| Maker & Type |
| Forward I/ Reverse I | 7.4/7.4 |
| Forward II/ Reverse II | 14/14 |
| Forward III/ Reverse III | 22/22 |
| Forward IV/ Reverse IV | 38/38 |
| Axle |
| Main Drive Type | Spiral bevel gear, single stage |
| Final Drive Reduction Type | Planetary type, single stage |
| Rear - Oscillating +/- | ±11° |
| Engine |
| Model | WD10G240 |
| Rated Power | 178KW |
| Rated Speed | 2000r/min |
| Displacement | 9.726 |
| Implement Hydraulic |
| Implement System Type | Singleload sensing flow sharing system |
| Boom Raise Time | 5.3s |
| HydraulicCycleTime(ratedpayload) | 9.7s |
| System Presure Setting | 18Mpa |
| Brake System |
| Service Brake | Dry & caliper, air to oil control |
| Parking Brake | Drum type shoe brake,
spring applied & oil released |
| System Type | Flow amplifying |
| Steering Pump Type | Piston pump |
| System Presure Setting | 18Mpa |
| Steering Angle (L/R) | 38±1° |
| Tires |
| Size | 23.5-25 |
| Type | Bias |
| Layer | 20 |
| Textured Type | L3/E3 |

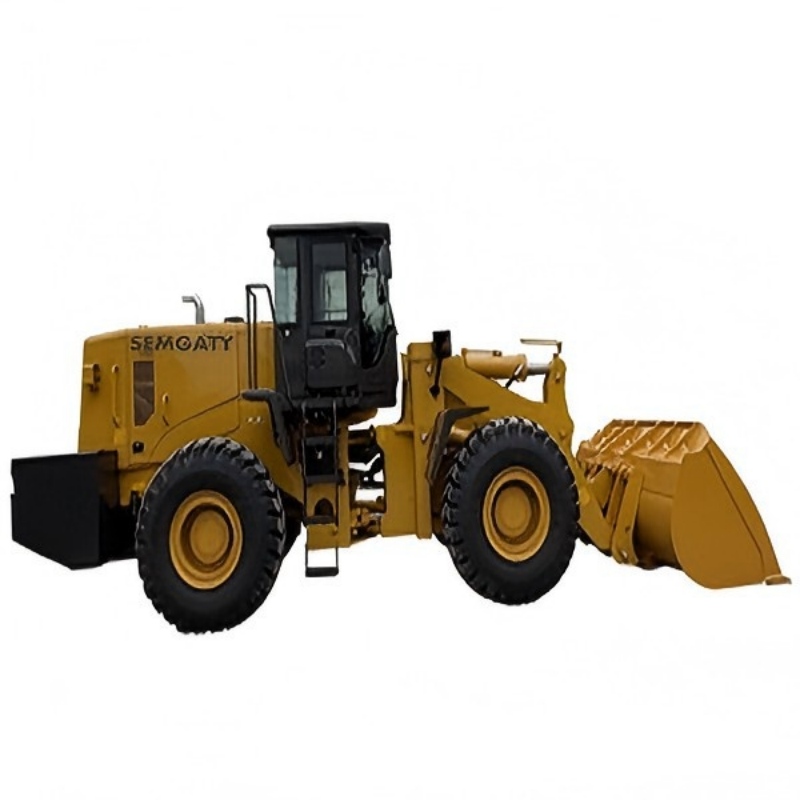

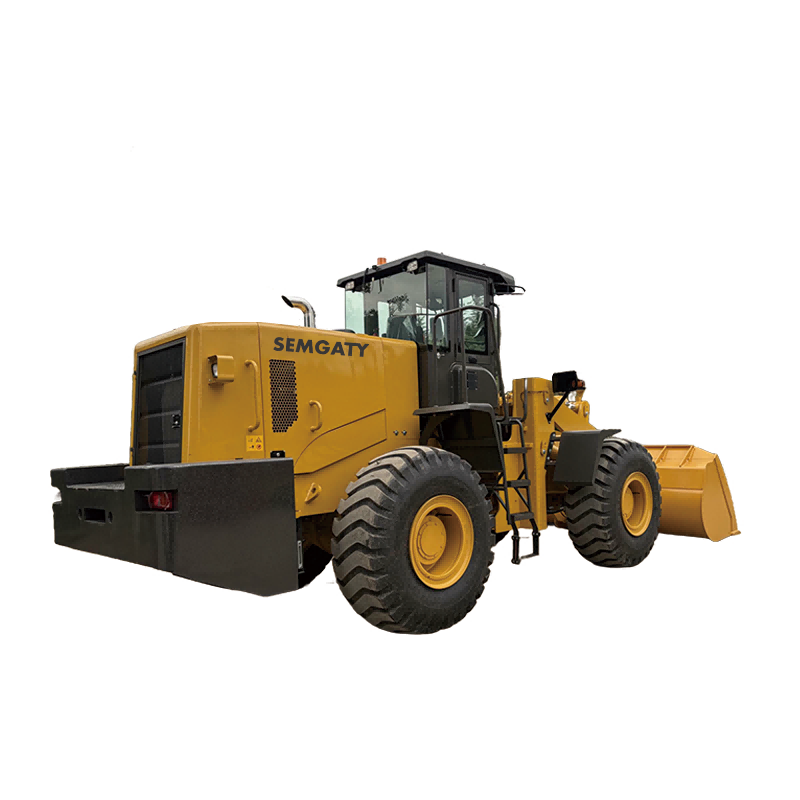

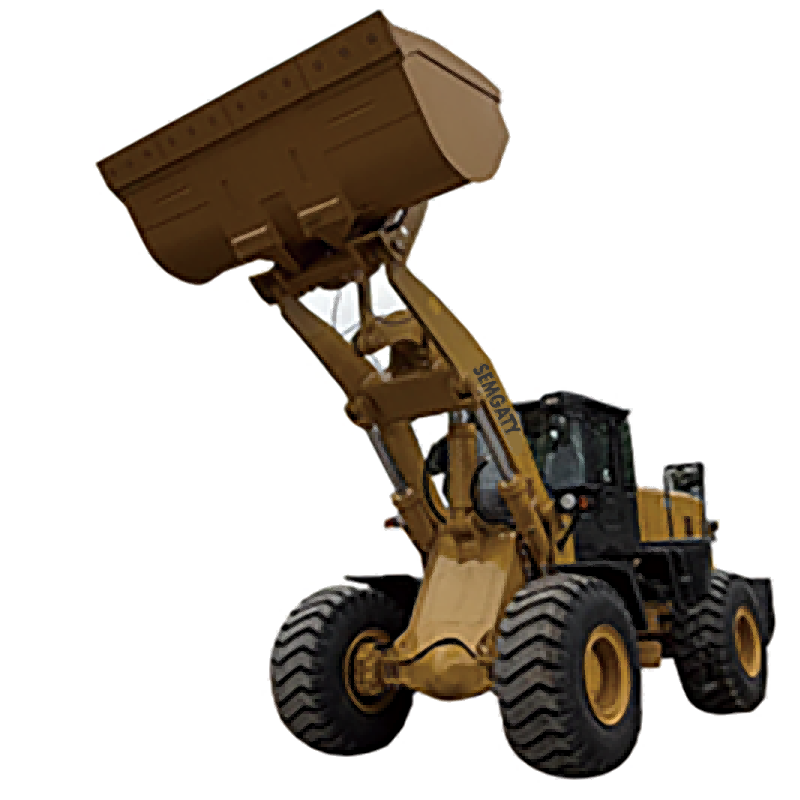

Product Overview
The 7-ton articulated wheel loader is a heavy-duty machine designed for high-efficiency material handling in demanding applications. With a strong powertrain, large bucket capacity, and robust structural design, it is ideal for mining, quarrying, aggregate yards, construction projects, and port operations.
This model combines high productivity, durability, and operator comfort, making it a reliable choice for long-term and intensive use.
Key Features & Performance
Strong Loading Capability
With a rated load of 7,000 kg and a bucket capacity ranging from 3.5 to 5.5 m³, the loader delivers excellent loading efficiency. A breakout force of 183 kN ensures powerful digging performance, even when handling dense materials such as gravel, rock, and compacted soil. The 3048 mm dump clearance allows easy and fast truck loading.
Powerful Engine System
The loader is equipped with a WD10G240 diesel engine, providing 178 kW of rated power at 2000 r/min. With a 9.726 L displacement, the engine delivers high torque, stable output, and reliable performance under heavy working conditions. It is designed for durability, fuel efficiency, and ease of maintenance.
Efficient Transmission & Drivetrain
A countershaft power-shift transmission with 4 forward and 4 reverse gears ensures smooth gear changes and high driving comfort. The single-stage, three-element torque converter enhances traction and operational stability.
The drivetrain features:
Spiral bevel gear, single-stage main drive
Planetary final drive reduction
Rear axle oscillation of ±11°
These features provide excellent stability and adaptability on uneven or rough terrain.
Advanced Hydraulic System
The loader adopts a single load-sensing flow-sharing hydraulic system, ensuring precise control and high working efficiency.
Boom raise time: 5.3 seconds
Full hydraulic cycle time (rated payload): 9.7 seconds
System pressure: 18 MPa
This system reduces energy loss, improves fuel efficiency, and allows smooth and responsive operation.
Articulated Steering & Maneuverability
The articulated frame design provides a steering angle of 38 ±1°, offering excellent maneuverability in confined or busy work areas while maintaining stability during high-load operations.
Brake & Steering System
The service brake uses a dry caliper brake with air-to-oil control, ensuring reliable and responsive braking performance.
The parking brake is a drum-type shoe brake, spring-applied and oil-released, providing safe and secure parking even on slopes.
The steering system features:
Flow-amplifying system
Piston-type steering pump
System pressure of 18 MPa
Tires & Durability
The loader is equipped with 23.5–25 bias tires, 20-ply rating, with L3/E3 tread pattern, providing excellent traction, wear resistance, and long service life in harsh working environments.
Typical Applications
Mining and quarry operations
Sand and aggregate plants
Large construction sites
Ports, yards, and bulk material handling
Infrastructure and road construction projects
After-Sales Service
We offer comprehensive after-sales support to ensure reliable operation and long service life:
Fast spare parts supply and technical support
Online troubleshooting and operation guidance
Optional overseas dealer or on-site service support (subject to region)
Customization Options
To meet different market requirements and operating conditions, customization is available, including:
Emission standard upgrades (China III / Euro III or above)
Bucket size and special attachments (rock bucket, coal bucket, forks, etc.)
Cab options: ROPS/FOPS, air conditioning, upgraded seat
Tire options for mining or special ground conditions
Color, logo, and private branding customization
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
