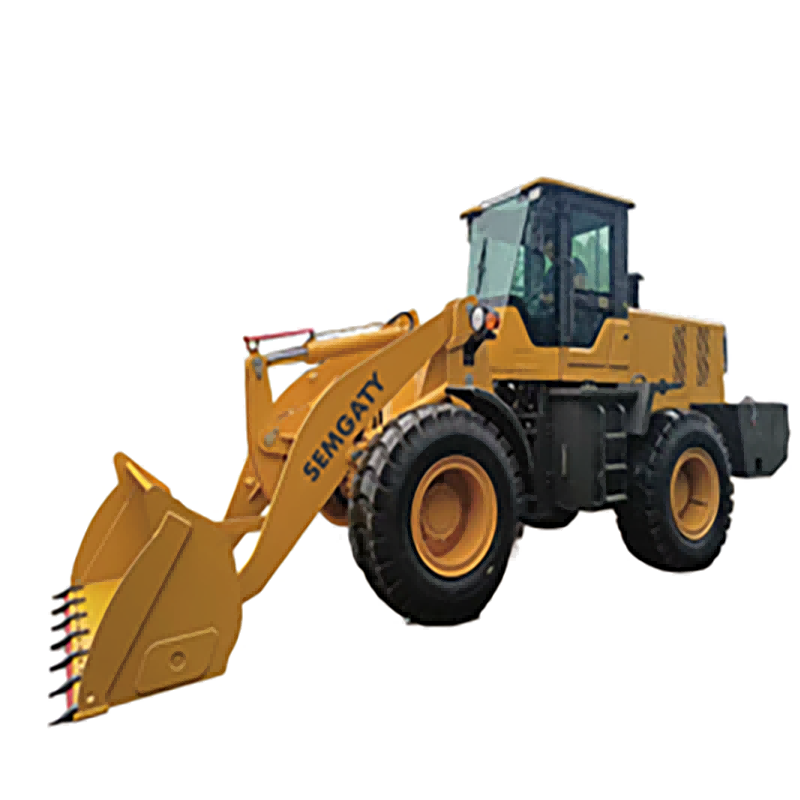

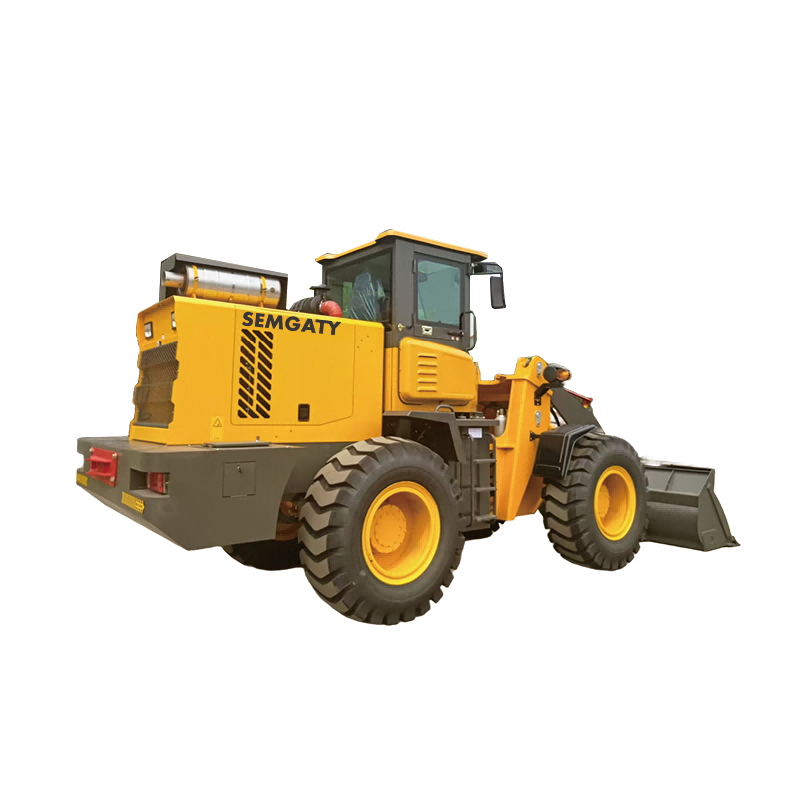

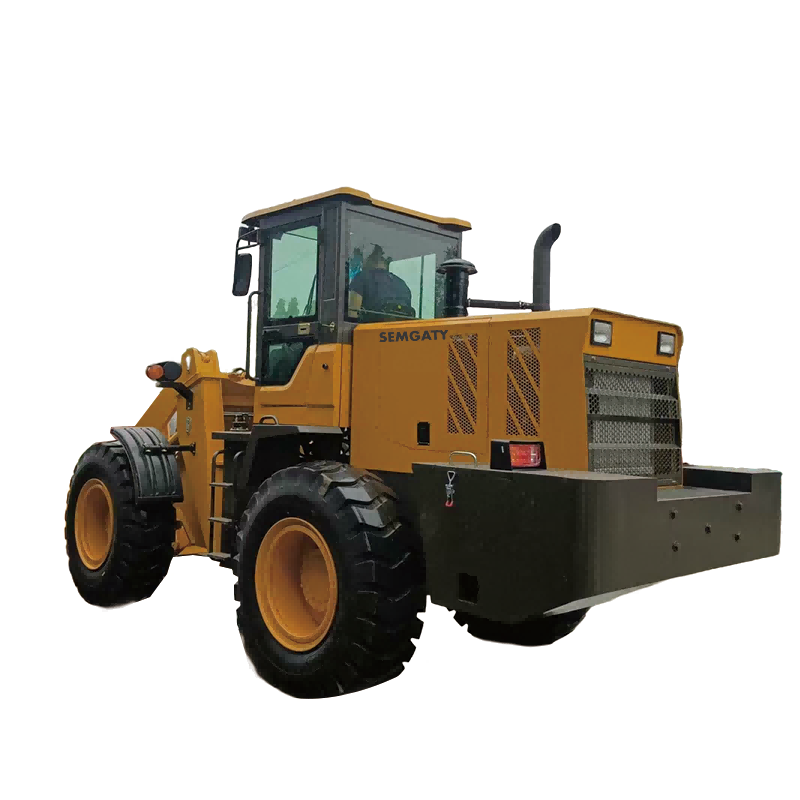

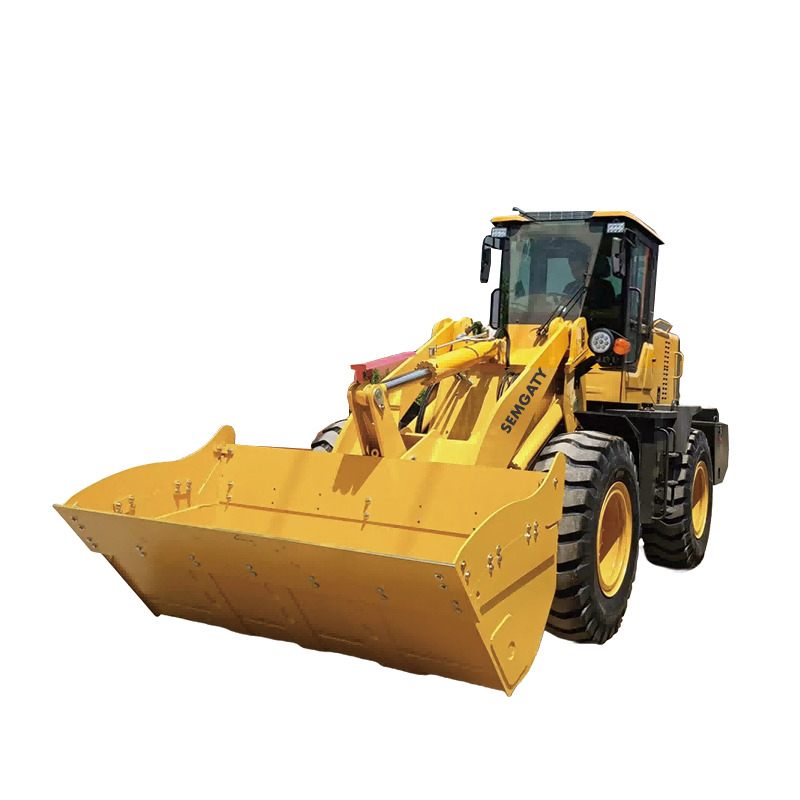

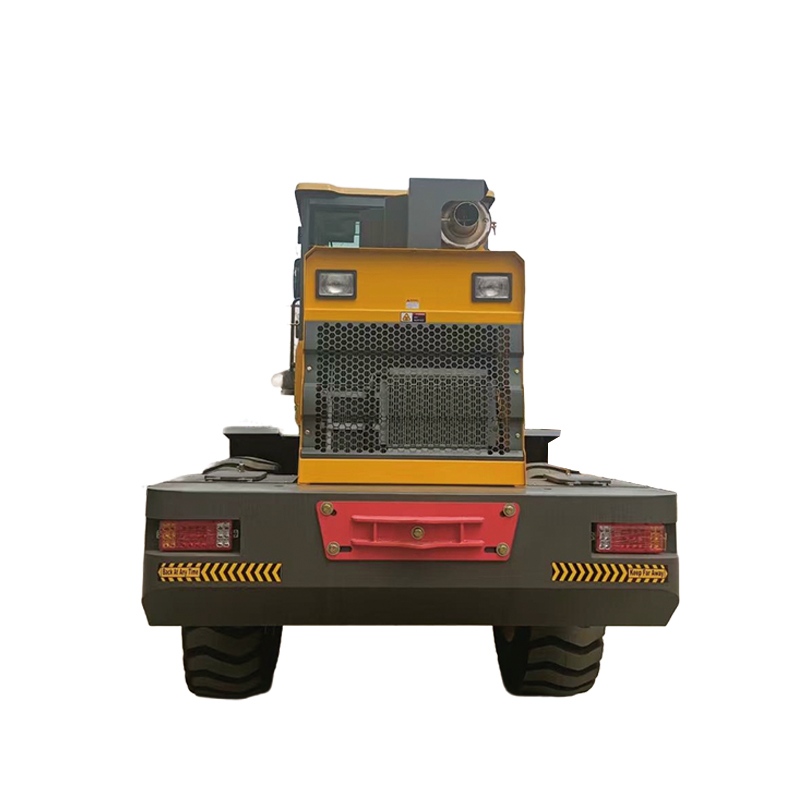

3 Ton Compact Articulating Payloader

3-Ton Wheel Loader – Product Value Highlights

1. Core Value & Operating Efficiency

This 3-ton wheel loader is engineered to deliver an optimal balance between power, efficiency, and reliability for medium-duty material handling applications. With a 3,000 kg rated load and a 1.6 m³ bucket, it provides strong productivity while maintaining excellent fuel economy.

Powered by the Weichai WP6G125E22 diesel engine, the machine produces 92 kW at 2200 rpm and 500 N·m of torque, ensuring stable output during continuous operation. The optimized powertrain, combined with a YJ320-X torque converter and power-shift transmission, enables smooth power delivery and fast response under load.

High breakout force (127 kN) and traction force (95 kN) allow efficient digging, pushing, and loading of materials such as sand, gravel, soil, and aggregates. The advanced hydraulic system operates at 16.5 MPa, with a fast boom lifting time of 4.83 seconds and a total cycle time of 9.15 seconds, significantly improving loading efficiency and reducing operating time per cycle.

2. Application Scenarios & Operator Experience

Thanks to its compact overall dimensions (7500 × 2200 × 3070 mm) and a minimum turning radius of 5,097 mm, this wheel loader is highly suitable for job sites with limited space and frequent maneuvering requirements.

It performs efficiently in a wide range of applications, including:

• Construction and municipal engineering

• Agriculture and farm operations

• Logistics yards and material depots

• Industrial plants and warehouses

• Site leveling and earthmoving projects

The 4 forward and 4 reverse gear configuration provides flexibility for different working conditions, while the maximum travel speed of 40 km/h improves mobility between job sites. The stable chassis design, combined with a 2,750 mm wheelbase and 400 mm ground clearance, ensures smooth operation on uneven or rough terrain.

The air-assisted disc brake system on all four wheels enhances operational safety and provides confident braking performance, contributing to a secure and comfortable operating experience throughout long working hours.

3. Differentiated Competitive Advantages

Balanced Powertrain Configuration
Unlike entry-level loaders with limited output, this model combines a proven Weichai engine with a reliable power-shift transmission, delivering consistent performance and lower long-term maintenance costs.

High Productivity in a Compact Class
With a 3.5-meter dump height and 1,006 mm dump reach, the loader easily meets common truck-loading requirements, outperforming many machines in the same tonnage class in terms of working range and efficiency.

Durability and Structural Strength
The drive axles feature bevel gear primary reduction and planetary final reduction, enhancing load-bearing capacity and extending service life in demanding environments.

Operational Efficiency Advantage
Fast hydraulic response, efficient cycle times, and optimized fuel consumption (≤210 g/kW·h) translate directly into lower cost per working hour, providing users with a strong return on investment.

Adaptability and Upgrade Potential
The machine supports various attachments and configuration options, allowing it to adapt to multiple tasks and future application needs without replacing equipment.

With technological innovation, our product configuration and parameters will continue to change without notice;

 if there is any doubt, the specific confirmation of our international trade sales shall prevail;
