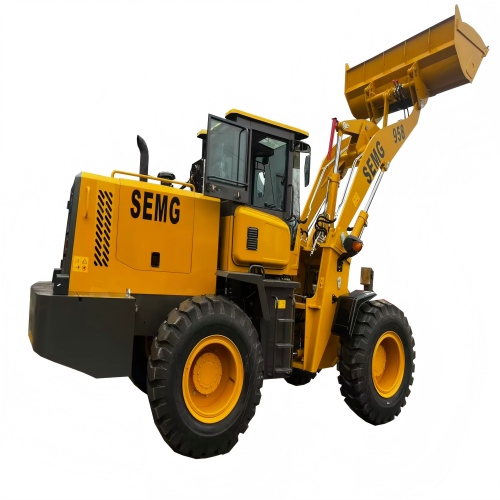

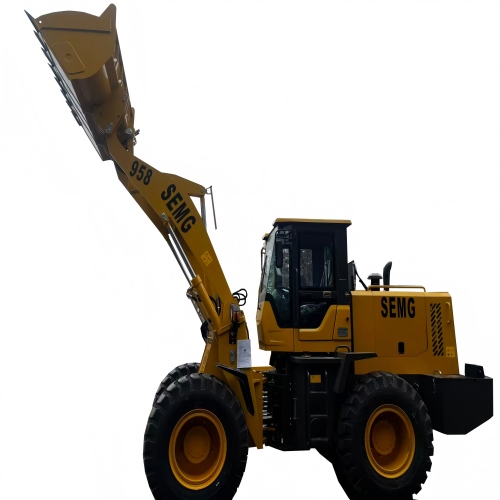

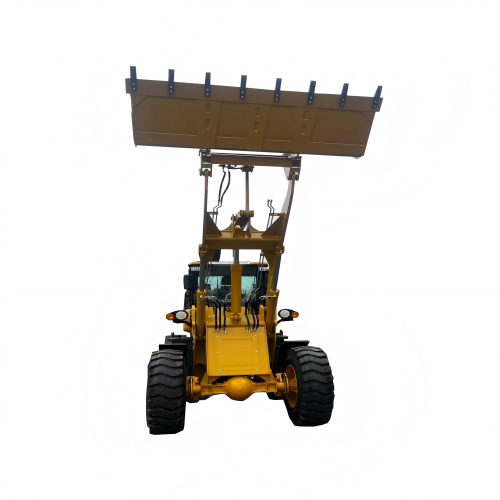

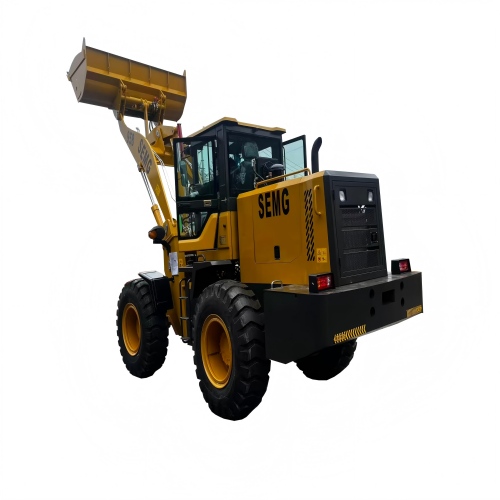

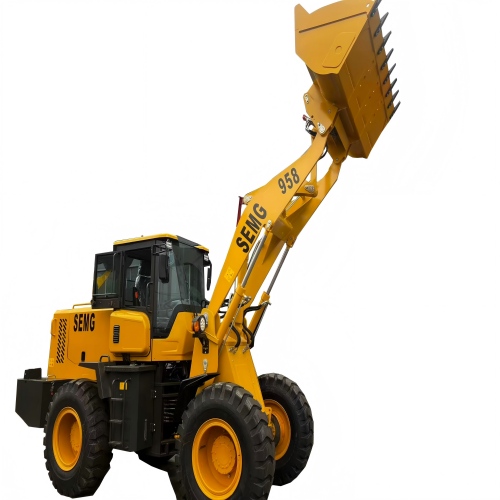

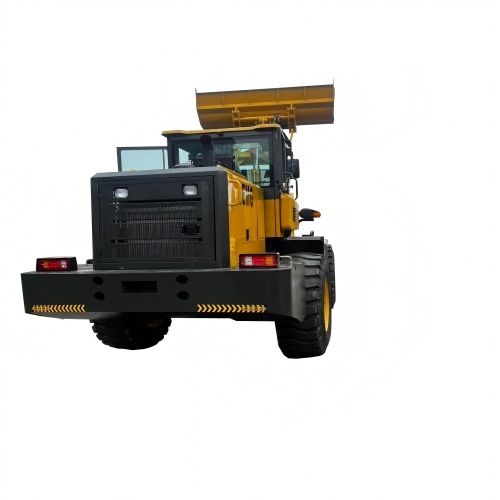

30 Loader: Big Wheel Loader

BrandSEMGATY
Product originCHINA
Delivery time30days
Supply capacityAnnual production and supply capacity 2000 units

1.Powerful & Efficient Performance Equipped with a high-torque engine, this 30 wheel loader machine delivers exceptional power for heavy-duty tasks while maintaining low fuel consumption. 2.Robust & Durable Structure Built with reinforced steel, the big wheel loader ensures maximum stability and longevity, easily handling tough construction environments. 3.Smart & Comfortable Operation Featuring an ergonomic cabin and intuitive controls, operating this versatile loader reduces driver fatigue and boosts overall work efficiency.

parameter
Performance	1	Rated loading	3000kg
	2	Overall weight	9000kg
	3	Bucket capacity	1.6m3
	4	Maximum breakout force	127KN
	5	Maximum dump height	3500mm
	6	Overall dimension (L×W×H)	750022003070mm
	7	Minimum turning radius	5097mm
Engine	8	Model	WeichaiWP6G125E22
Engine	9	Rated power	92kw—2200r/min
Transmission system	10	Min. fuel-consume ratio	≦210Kw/h
	11	Gearbox mode	Power shaft normally engaged straight gear
	11	Gearbox mode	Power shaft normally engaged straight gear
	12	Gears	4 forward 4 reverse
	12	Gears	4 forward 4 reverse
	13	Maximum speed	40km/h
Drive axles	14	Main reducing spiral	bevel gear grade 1reduction
	15	Decelerating mode	Planetary reduction grade 1
	15	Decelerating mode	Planetary reduction grade 1
	16	Wheel base (mm)	2750mm
	17	Wheel tread	1800mm
	18	Ground clearance	400mm
Hydraulic system	19	System working pressure	16,5MPa
	20	Boom lifting time	4.83S
	21	Total time	9.15±0.5s
Brake system	22	Service brake	air assist disc brake on 4 wheels
	22	Service brake	air assist disc brake on 4 wheels
	23	Parking brake	Manual disk brake
	23	Parking brake	Manual disk brake
	24	Type specification	17.5-25
Tyre	25	Front tyre pressure	0.4Mpa
	26	Rear tyre pressure	0.35Mpa

High-Performance 30 Wheel Loader: Power Meets Efficiency

Introducing our latest generation 30 wheel loader machine, engineered to deliver exceptional productivity across construction, mining, and heavy industrial applications. With a robust rated loading capacity of 3000kg and an overall operating weight of 9000kg, this equipment stands as a reliable partner for demanding material handling tasks. The optimized 1.6m³ bucket ensures high filling rates, allowing you to move more material in less time while maintaining superior operational stability.

Powerful Weichai Engine & Efficient Transmission
At the heart of this big wheel loader lies the renowned Weichai WP6G125E22 engine. Delivering a rated power of 92kW at 2200r/min, it provides the necessary torque reserve for heavy-duty cycles. Paired with a YJ320-X torque converter and a power-shift transmission featuring 4 forward and 4 reverse gears, the machine achieves a maximum travel speed of 40km/h. This setup not only ensures rapid site mobility but also optimizes fuel efficiency, keeping your operating costs low without compromising on raw power.

Superior Hydraulics and Breaking Force
Efficiency is further enhanced by an advanced hydraulic system operating at 16.5MPa. The machine boasts an impressive maximum breakout force of 127KN, enabling it to penetrate tough piles effortlessly. With a boom lifting time of just 4.83 seconds and a total hydraulic cycle time of approximately 9.15 seconds, work cycles are completed rapidly. The maximum dump height of 3500mm and a dump reach of 1006mm ensure precise and easy loading into high-sided trucks and hoppers.

Rugged Chassis and Safety Features
Built for durability, the chassis features a 2750mm wheelbase and 400mm ground clearance, providing excellent traction and stability on uneven terrain. The drive axles utilize planetary reduction for maximum torque transfer. Safety and control are paramount; the machine is equipped with air-assisted disc brakes on all four wheels for reliable stopping power, complemented by a manual parking brake. Rolling on durable 17.5-25 tires, this versatile loader
