| parameter |
| Performance | 1 | Rated loading | 4000KG |
| 2 | Overall weight | 12500KG |
| 3 | Bucket capacity | 2.3m3 |
| 4 | Maximum traction force | 120Kn |
| 5 | Maximum breakout force | 125Kn |
| 6 | Maximum grade ability | 30℃ |
| 7 | Maximum dump height | 2950mm |
| 8 | Maximum dump reach | 1055mm |
| 9 | Overall dimension (L×W×H) | 7295*2574*3324mm |
| Engine | 10 | Model | Weichai DeutzWP6G175E22 |
| 11 | Type | lnline / Water cooling /Dry cylinder/ Injection |
| 12 | NO. of cylinder-bore*stroke | 105*130mm |
| 13 | Rated power | 129Kw-2200r/min |
| 14 | Maximum torque | 640N.M |
| 15 | Emission standards | National II |
| Transmission system | 16 | Torque converter | Single-stage four-element twin-turbine torque converter |
| 17 | Gearbox mode | Fixed-axis power transmission |
| 18 | Gears | 4 forward shift 2reverse shift |
|
| 19 | Maximum speed | 38Km/h |
| Drive axles | 20 | Main reducing spiral | Bevel gear grade 1reduction |
| 21 | Decelerating mode | Planetary reduction grade 1 |
|
| 22 | Wheel base (mm) | 3200mm |
| 23 | Wheel tread | 2250mm |
| Hydraulic system | 24 | System working pressure | 16MPa |
| 25 | Boom lifting time | 5.73 |
| 26 | Total time | 10±0.2s |
| Brake system | 27 | Service brake | Air assist disc brake on 4 wheels |
|
| 28 | Parking brake | Manual disk brake |
| Tyre | 29 | Type specification | 20.5-25 |
| 30 | Front tyre pressure | 0.4Mpa |
| 31 | Rear tyre pressure | 0.35Mpa |

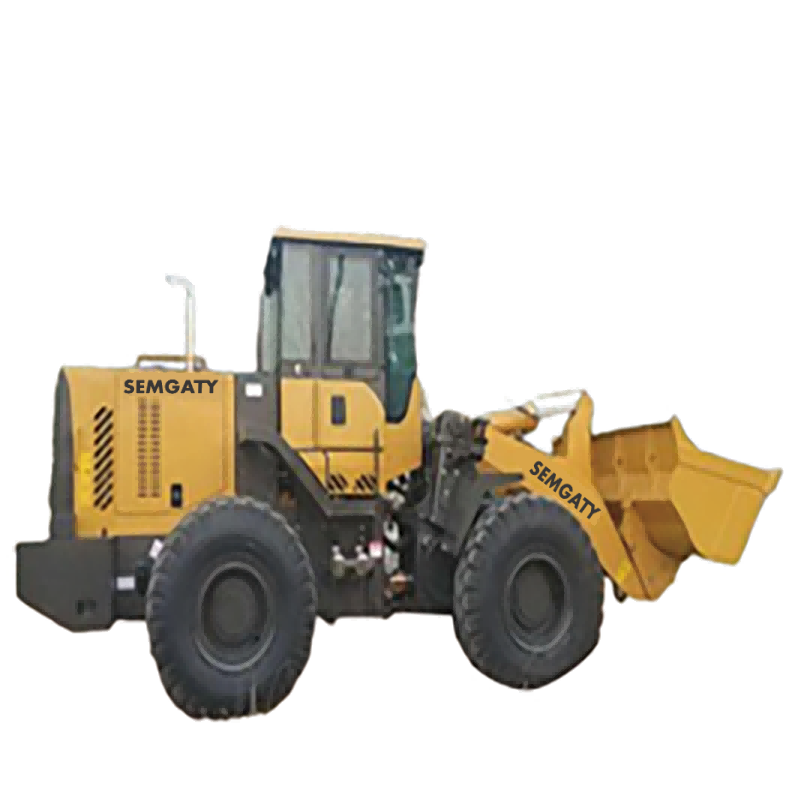

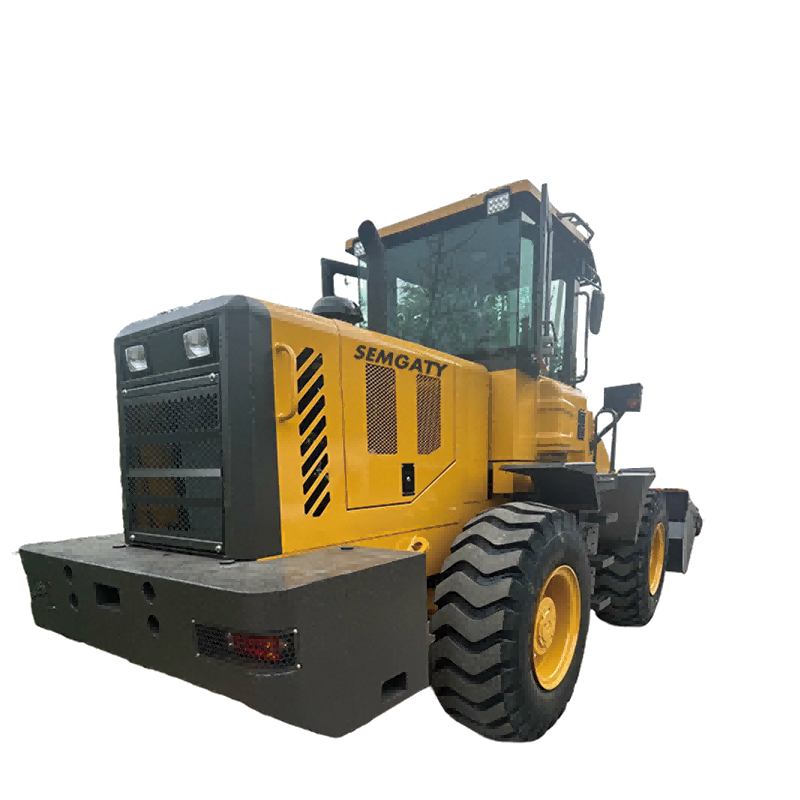

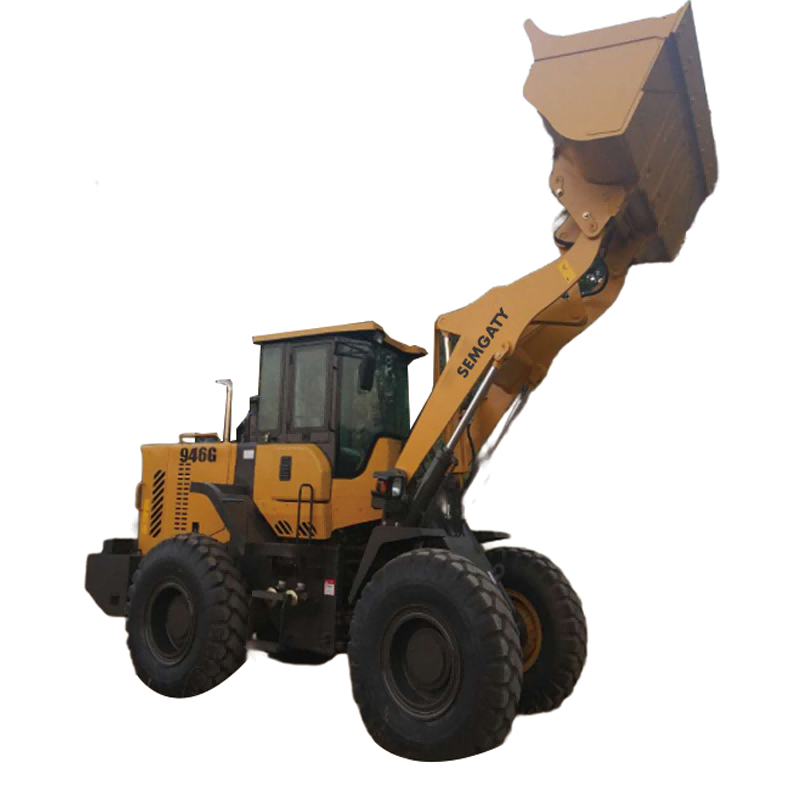

4-Ton Wheel Loader – Cost-Effective & Reliable
Designed for stable performance and low operating cost, this model is well suited for medium-duty loading applications in construction, aggregates, and municipal projects.
Key Selling Points
Strong Performance at Competitive Cost
Rated load: 4,000 kg
Bucket capacity: 2.3 m³
High breakout force (125 kN) for efficient loading
This model offers performance comparable to higher-priced brands while maintaining a more competitive purchase cost.
Reliable Engine – Easy Maintenance
Powered by the Weichai Deutz WP6 diesel engine (129 kW), widely recognized for durability and fuel efficiency.
Spare parts are easily available, and maintenance costs remain low—ideal for dealers supporting multiple machines in the field.
Simple & Durable Transmission
Torque converter with 4 forward / 2 reverse gears
Max travel speed: 38 km/h
The drivetrain is designed for reliability rather than complexity, reducing downtime and service risks.
Low Operating & Ownership Cost
Optimized hydraulic system for efficient fuel use
Strong drive axles and reinforced structure for long service life
Standardized components simplify after-sales support
This loader is especially suitable for price-sensitive markets where durability and ease of service are key decision factors.
Applications / Suitable Working Scenarios
Construction contractors
Equipment rental companies
Municipal service providers
Aggregate & sand yards
Emerging and developing markets
Dealer & Distributor Advantages
Competitive ex-factory pricing with strong margin potential
Stable quality, suitable for long-term cooperation
Fast production and flexible delivery schedules
OEM / private label support for brand building
After-Sales Support
Spare parts supply at factory-direct prices
Technical documentation and service guidance
Remote technical support and training
Customization & OEM Options
We offer:
Color and logo customization
Cab options (ROPS/FOPS, A/C)
Different bucket sizes and attachments
Emission standard upgrades for local market requirements
This 4-ton wheel loader delivers reliable performance, low maintenance cost, and strong resale value.
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
