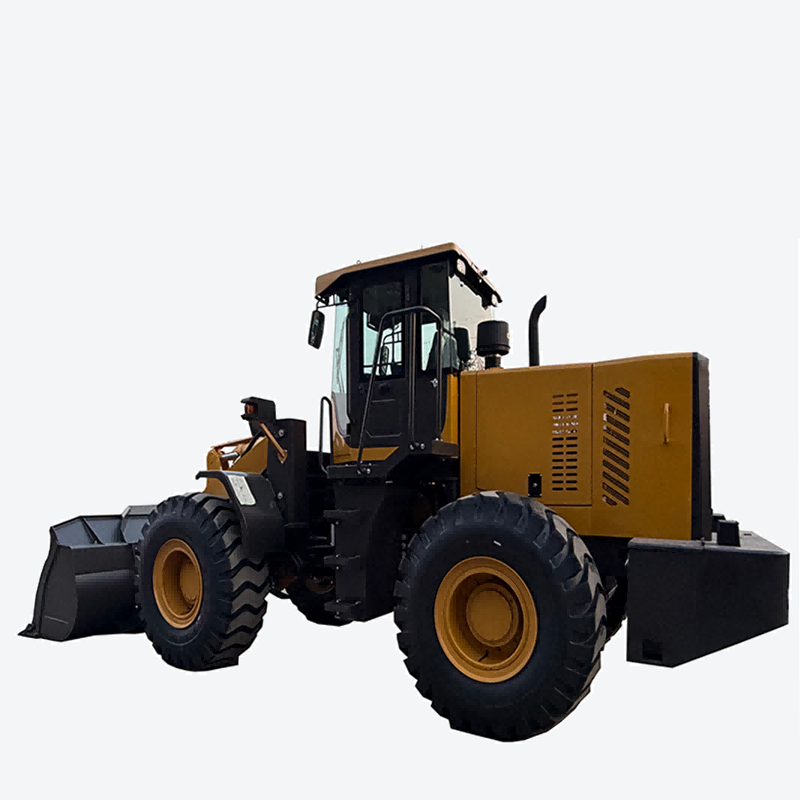

5 Ton Wheel Loader Machine

5-Ton Wheel Loader – Product Value Proposition

1. Core Value & Operating Efficiency

This 5-ton wheel loader is designed for heavy-duty material handling where power, efficiency, and durability are critical. With a 5,000 kg rated load and a 3–5 m³ bucket capacity, it delivers high productivity for large-volume loading tasks while maintaining stable and fuel-efficient operation.

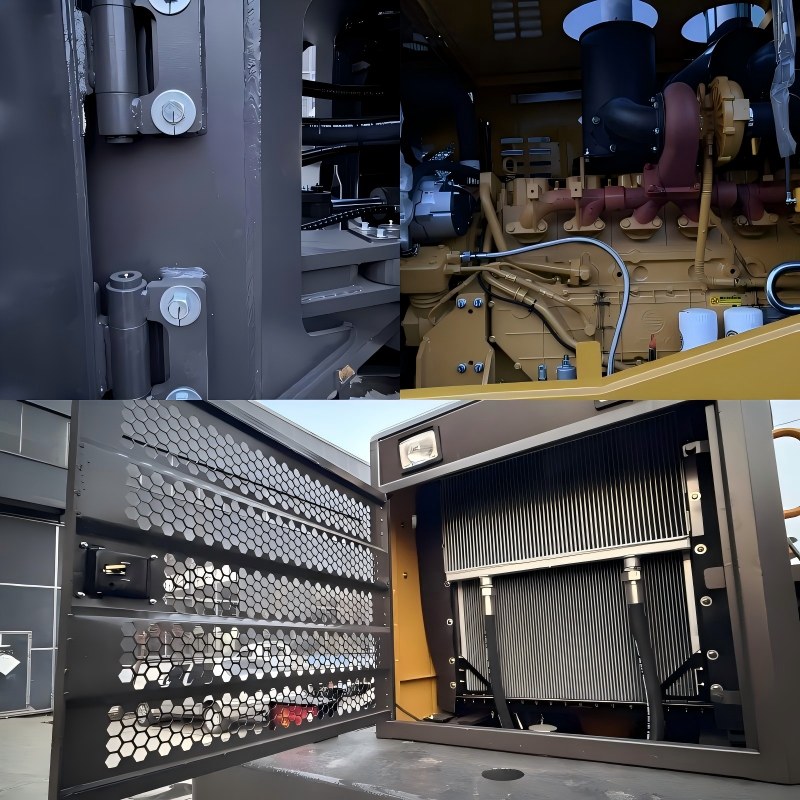

Powered by the Weichai Steyr WD10G220E21 diesel engine, the machine produces 162 kW at 2200 r/min and a maximum torque of 900 N·m, ensuring strong output under continuous heavy load. The optimized engine design achieves a minimum fuel consumption of ≤198 g/kW·h, reducing operating costs per ton of material moved.

The combination of a YJ375 torque converter and a power-shift transmission enables smooth power delivery and efficient torque multiplication. High breakout force (194 kN) and tractive force (148 kN) allow the loader to handle dense materials such as gravel, rock, and ore with ease. A fast hydraulic response, with a total working cycle time of approximately 10.8 seconds, significantly improves loading efficiency and shortens operation cycles.

2. Application Scenarios & Operator Experience

This wheel loader is engineered for demanding, high-intensity work environments, including:

• Mining and quarry operations

• Construction and infrastructure projects

• Ports and logistics yards

• Road construction and bulk material handling

With a maximum dump height of 3,200 mm and a dump reach of 1,000 mm, it is well suited for loading large dump trucks and material hoppers. The 3,200 mm wheelbase, 2,270 mm wheel tread, and 450 mm ground clearance provide excellent stability and terrain adaptability, even on rough or uneven surfaces.

The automatic bucket leveling function improves loading accuracy, reduces material spillage, and lowers operator fatigue during repetitive cycles. The machine reaches a maximum travel speed of 38 km/h, ensuring efficient movement within large job sites.

Operator safety and control are enhanced by an air-over-hydraulic disc brake system on all four wheels, delivering reliable braking performance under heavy loads, while the manual parking brake ensures secure positioning during downtime.

3. Differentiated Competitive Advantages

High Power Density in the 5-Ton Class
Compared with standard 5-ton loaders, the combination of 162 kW engine power and 900 N·m torque provides superior digging force and sustained productivity in heavy-load applications.

Optimized Fuel Economy for Heavy-Duty Work
The advanced engine design with low specific fuel consumption directly reduces long-term operating costs, making the machine highly competitive in fuel-sensitive markets.

Fast Cycle Time and Automatic Leveling
Efficient hydraulic performance and automatic leveling improve cycle consistency and reduce operator workload, resulting in higher daily output compared with conventional models.

Reinforced Drivetrain and Axle System

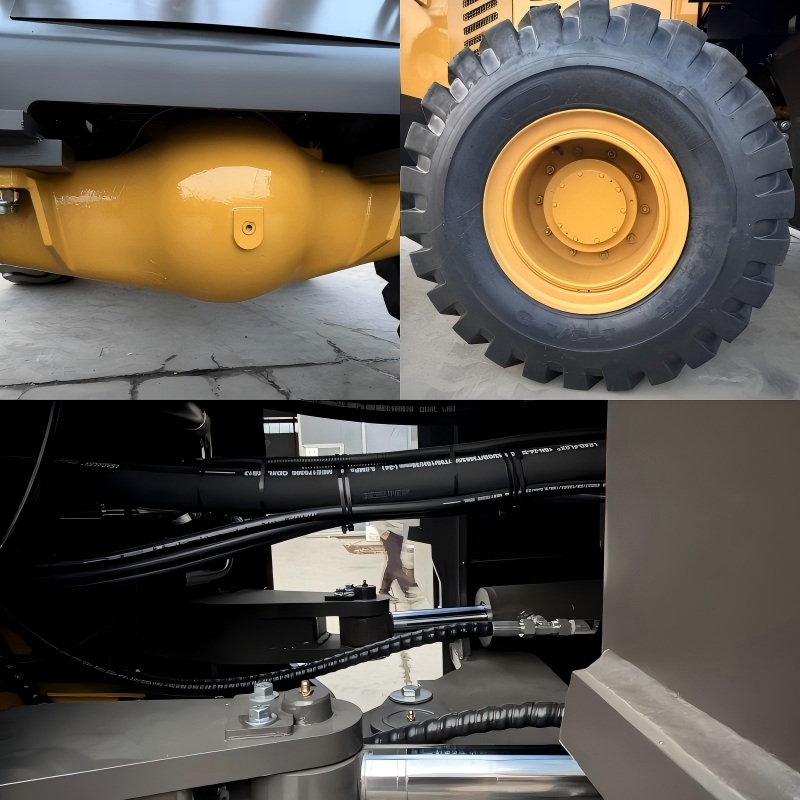

The bevel gear primary reduction combined with planetary final reduction enhances load-bearing capacity and drivetrain durability, extending service life in harsh working conditions.

Long Operating Time and Reduced Downtime
A 300-liter fuel tank supports extended working hours, minimizing refueling interruptions and maximizing machine availability on site.

With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail;
