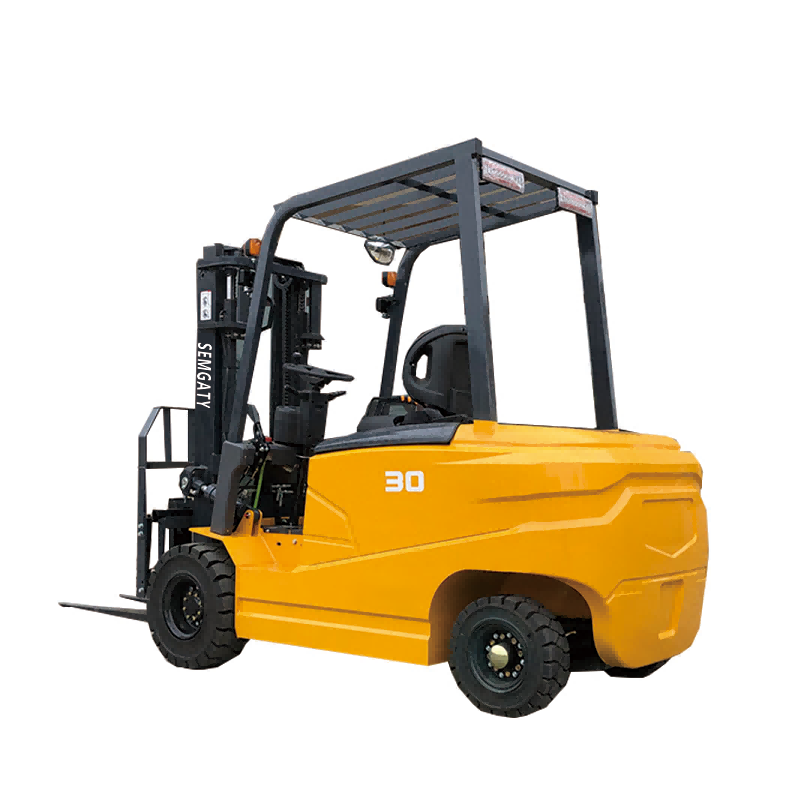

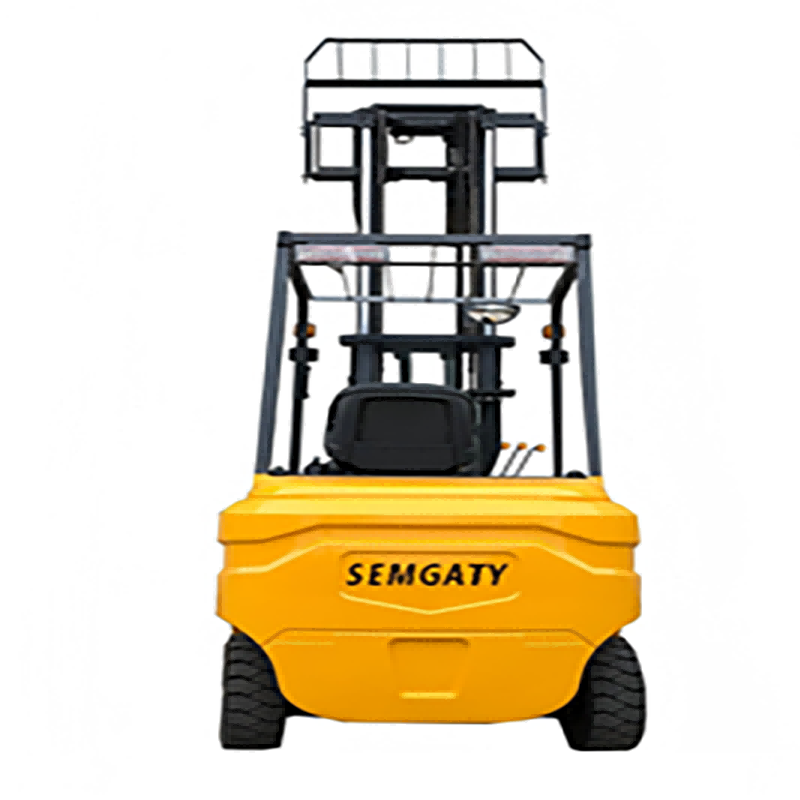

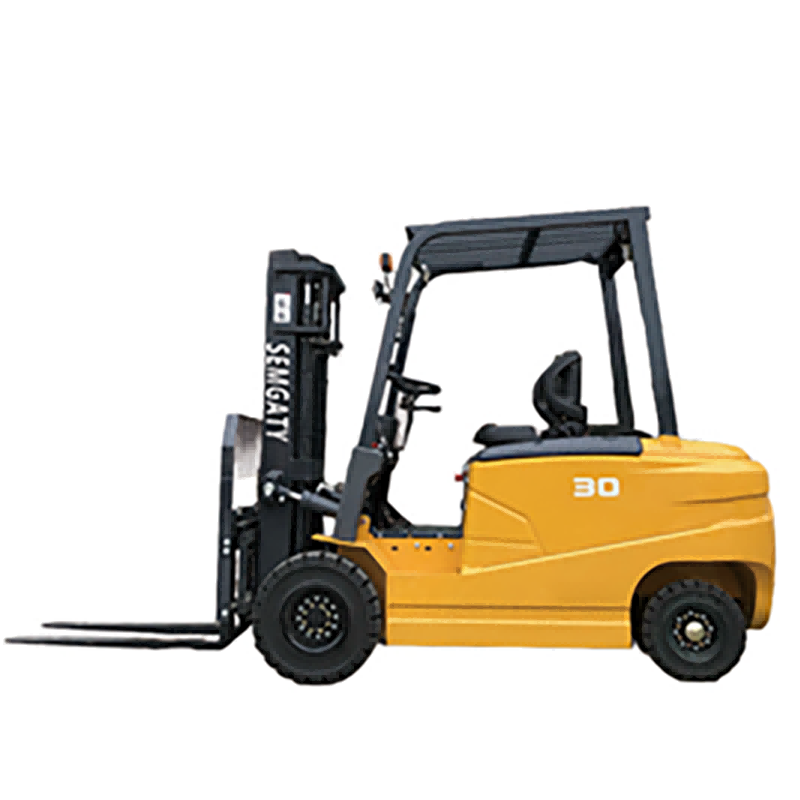

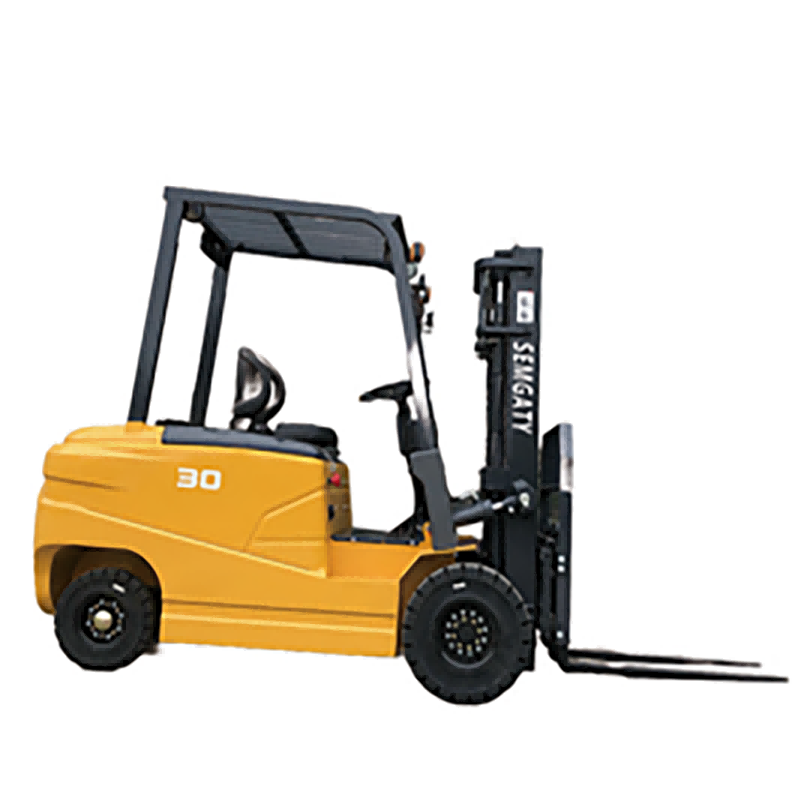

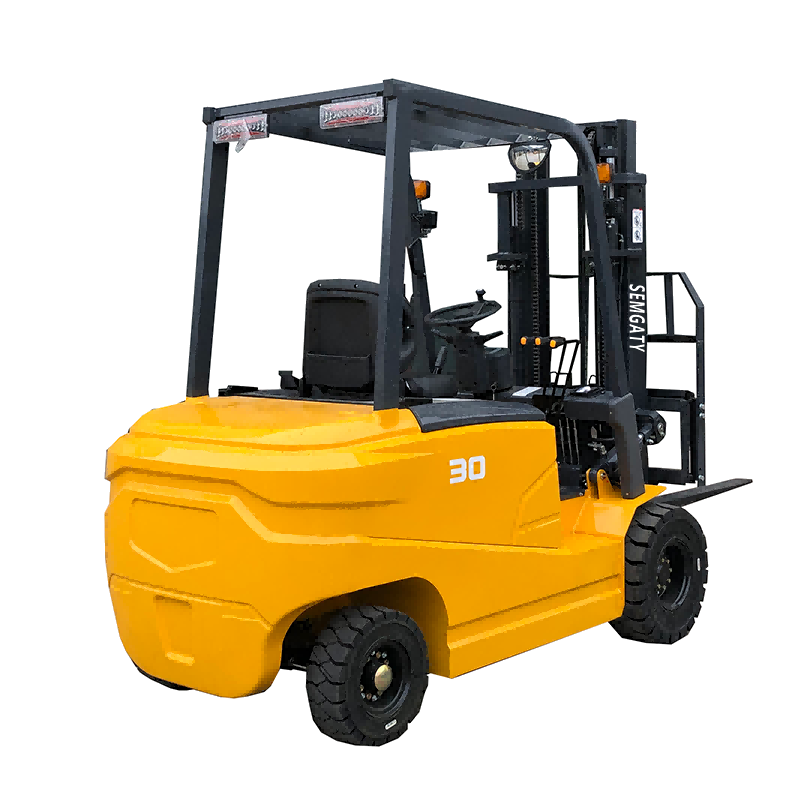

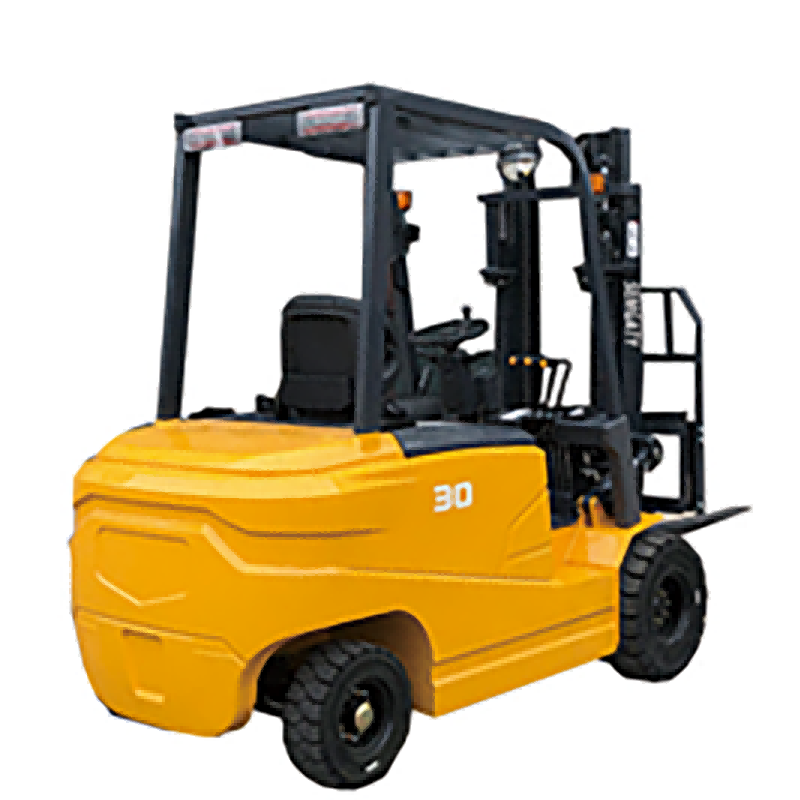

Efficient Electric Warehouse Forklift 3 Ton

  • SEMGATY
  • CHINA
  • 30days
  • Annual production and supply capacity 2000 units
1.High-capacity lithium battery for long working hours. 2.Precision control with advanced electric steering system. 3.Zero-emission design ideal for indoor and green logistics.


parameter
Power typeElectric
Rated load3000KG
The external dimensions are length, width and height2600*1250*2200 mm
Load center distance500mm
The forklift lands at the static height, and the mast reaches its full height2090mm
Maximum lifting height3000mm
The distance from the front overhang to the center of the front axle and the center end of the arrival fork550mm
The distance from the center point of the rear axle to the very end of the rear overhang445mm
The vertical distance from the center of the front axle to the center of the rear axle is the wheelbase1780mm
Minimum ground clearance (at the mast)100mm
Track length (front wheel/rear wheel)1010/950mm
Inside the minimum turning radius1400mm
Outside the minimum turning radius1850mm
Mast tilt Angle (front/rear)F6,R12
Fork size1070*45*120mm
Maximum driving speed (full load/empty load)13/16Km/h
Maximum climbing capacity (full load/empty load)12/14°
Number of wheels X/ Drive wheels4X/2
Tire type (front/rear)Custom solid tires
Front wheel tire23*9-10
Rear wheel tire18*7-8
Lighting and signalsHeadlights, left and right turn signals, brake lights, daytime running lights, instrument panel, electric horn, etc.
Steering modeHydraulic power assist
ControllerJiaheng
Battery (Voltage/Capacity)60V 70Ah

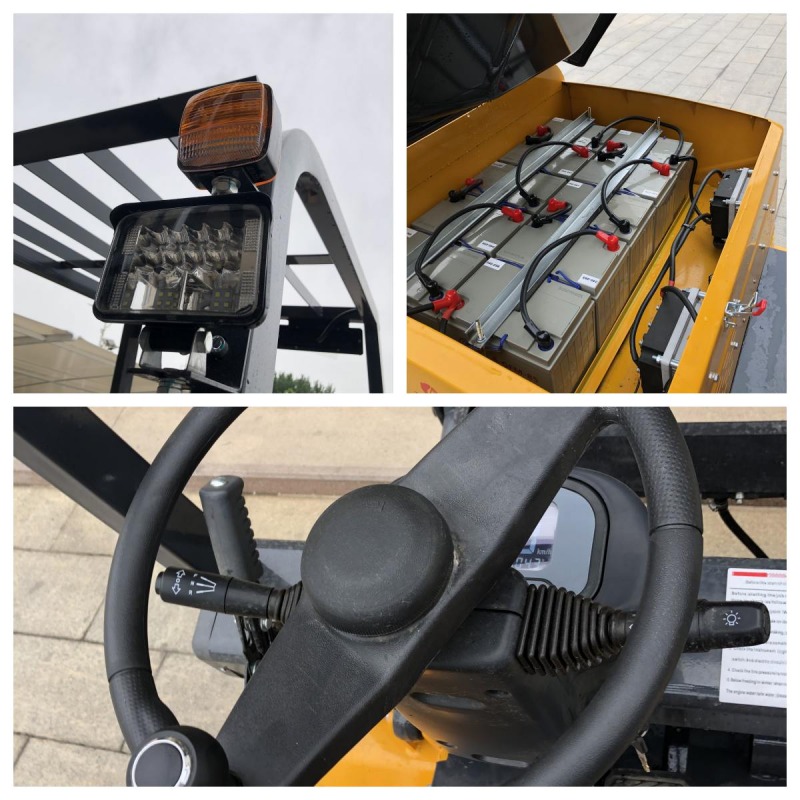

Battery10 maintenance-free batteries(12V-85Ah)
Walking motor7.5/48-72kw/V
Oil pump motor5/48-72kw/V
Total weight3900KG

EcoMove 3.0T Electric Forklift

Clean Power for Indoor & Emission-Sensitive Operations

Product Introduction

The EcoMove 3.0T Electric Forklift is designed for indoor material handling and environmentally sensitive environments. With zero emissions, low noise, and smooth electric drive, it is ideal for warehouses, food processing facilities, and logistics centers.

Electric Performance Advantages

Powered by a 60V battery system and controlled by a JIAHENG controller, this forklift offers precise speed control and smooth acceleration. Solid tires reduce maintenance requirements while ensuring stable operation on flat surfaces.

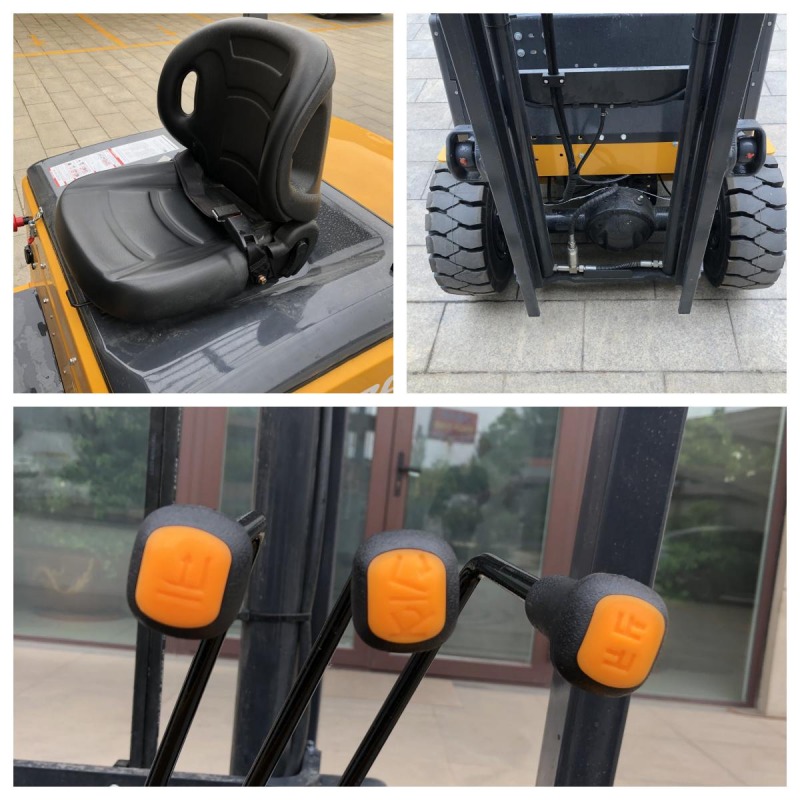

Comfort & Safety Features

  • Hydraulic power steering for effortless control

  • Full lighting and signal system for enhanced safety

  • Clear instrument panel for real-time status monitoring

  • Maintenance-free battery configuration

Best Application Areas

  • Indoor warehouses

  • Cold storage facilities

  • Food & pharmaceutical logistics

  • Supermarkets and distribution centers

Key Specifications

Rated Load: 3000KG
Maximum Lifting Height: 3000mm
Travel Speed (Loaded/Unloaded): 13 / 16 km/h
Battery Configuration: 10 × 12V maintenance-free batteries
Total Weight: 3900KG


With technological innovation, our product configuration and parameters will continue to

change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail;


Tags:
3 ton electric forkliftelectric forklift smallelectric warehouse forklift

  • Can you provide detailed product specifications/certification documents?

    Of course. Please let us know the specific product model you are interested in and we will immediately send you the latest technical specifications, test reports and our existing certifications (such as CE, RoHS, FCC, etc.) via email.

  • Can you accept customization (OEM/ODM) according to our requirements?

    Yes, we offer professional OEM and ODM services. We have a strong R&D and engineering team. Please provide us with your detailed requirements or design draft, and we will evaluate the feasibility and provide you with a proposal and quotation.

  • What payment methods are supported?

    We accept a variety of secure payment methods, including: · T/T (Telegraphic Transfer): This is our most commonly used method. The down payment ratio is a 30% deposit, and the final payment is 70%, payable before shipment. · L/C (Letter of Credit): We accept letters of credit at sight, but they must be issued by a reputable bank.

  • How long is the production cycle?

    Our standard production time is approximately 30 days after receiving the deposit. The specific time may vary slightly depending on the order quantity and production schedule. Once the order is confirmed, we will provide you with a precise production schedule.
