| parameter |
| Power type | Electric |
| Rated load | 3500KG |
| The external dimensions are length, width and height | 2830*1250*2240mm |
| Load center distance | 500mm |
| The forklift lands at the static height, and the mast reaches its full height | 2090mm |
| Maximum lifting height | 3000mm |
| The distance from the front overhang to the center of the front axle and the center end of the arrival fork | 550mm |
| The distance from the center point of the rear axle to the very end of the rear overhang | 445mm |
| The vertical distance from the center of the front axle to the center of the rear axle is the wheelbase | 1900mm |
| Minimum ground clearance (at the mast) | 115mm |
| Track length (front wheel/rear wheel) | 1010/950mm |
| Inside the minimum turning radius | 1450mm |
| Outside the minimum turning radius | 1970mm |
| Mast tilt Angle (front/rear) | F6,R12 |
| Fork size | 1070*45*120mm |
| Maximum driving speed (full load/empty load) | 13/16Km/h |
| Maximum climbing capacity (full load/empty load) | 12/14° |
| Number of wheels X/ Drive wheels | 4X/2 |
| Tire type (front/rear) | Custom solid tires |
| Front wheel tire | 28*9-15 |
| Rear wheel tire | 6.50-10 |
| Lighting and signals | Headlights, left and right turn signals, brake lights, daytime running lights, instrument panel, electric horn, etc. |
| Steering mode | Hydraulic power assist |
| Controller | Jiaheng |
| Battery (Voltage/Capacity) | 60V 70Ah |
| Battery | 10 maintenance-free batteries(12V-85Ah) |
| Walking motor | 10/48-72Kw/V |
| Oil pump motor | 10/48-72Kw/V |
| Total weight | 4200KG |

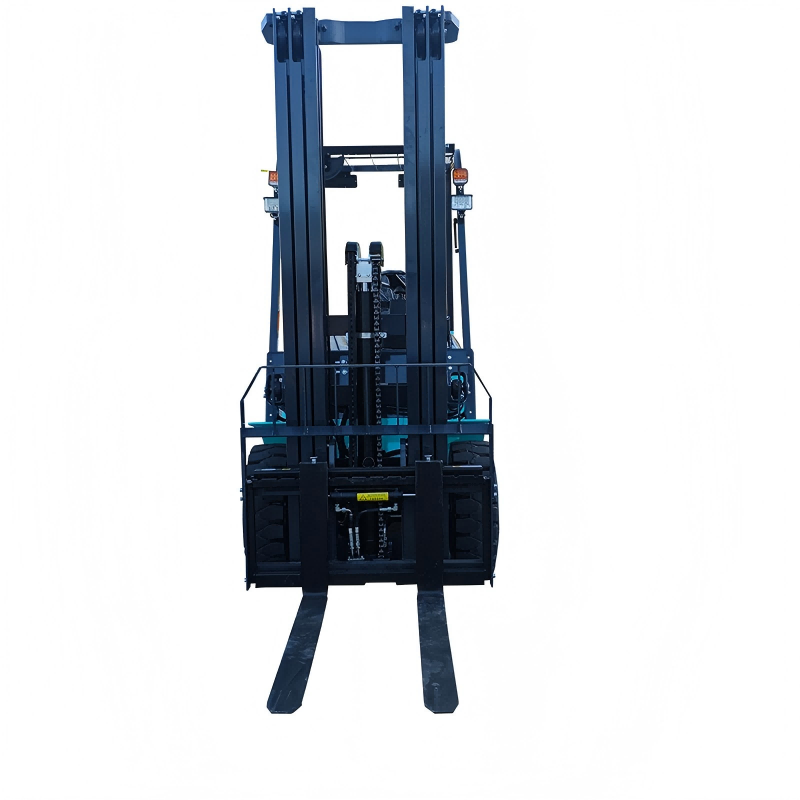

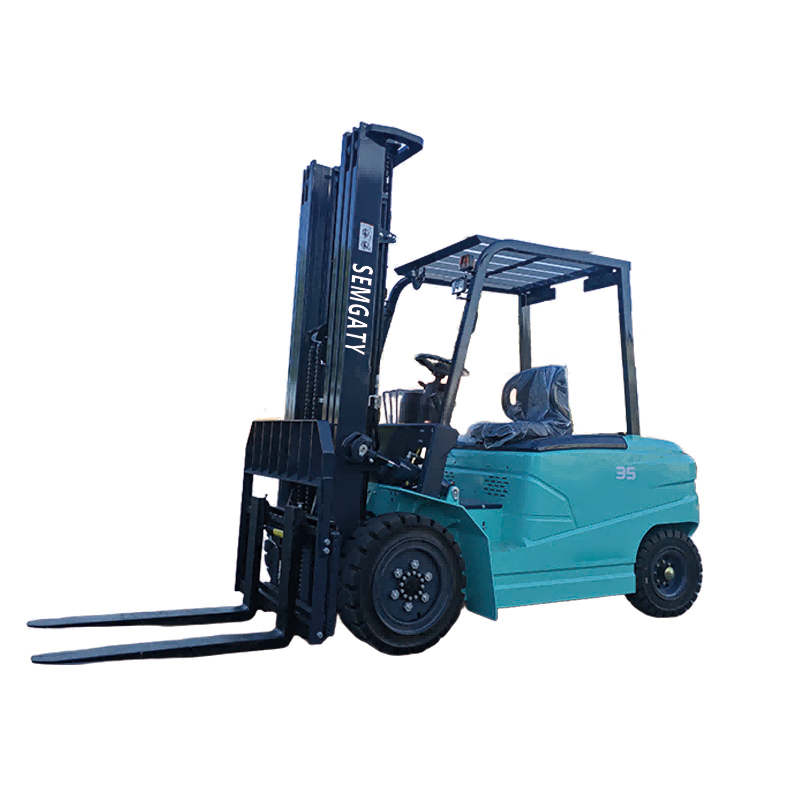

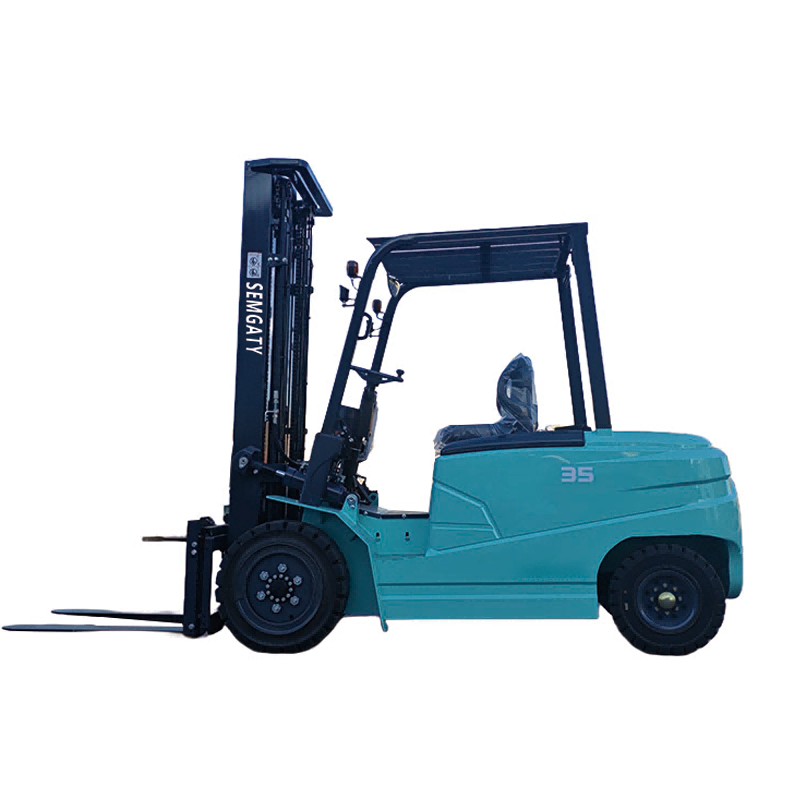

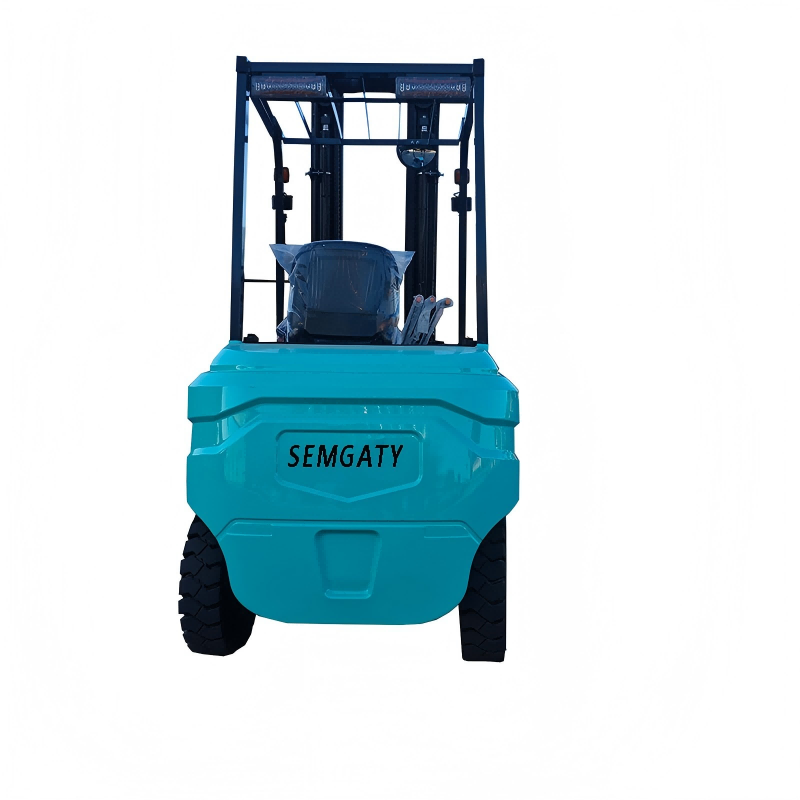

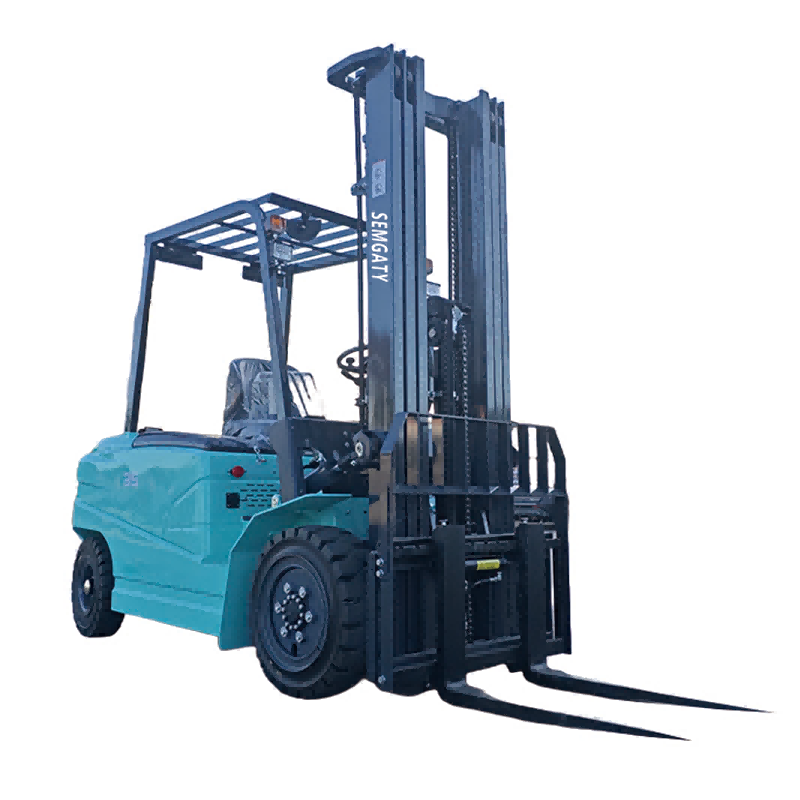

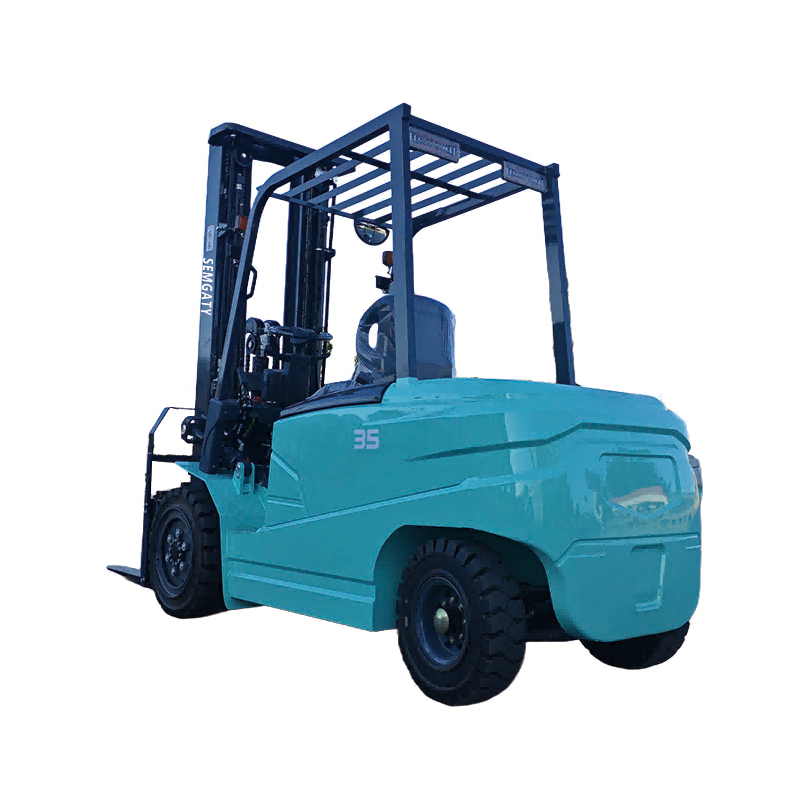

3.5-Ton Electric Forklift – Stability and Safety at the Core
The 3.5-ton electric forklift is engineered with a focus on operational safety, stability, and reliable performance, making it a perfect solution for modern warehouses, factories, and logistics hubs. Its well-balanced design ensures that the weight distribution across the chassis and wheelbase is optimized, providing exceptional stability even when lifting heavy loads up to 3,500kg. The forklift’s low center of gravity reduces the risk of tipping during high-lift operations, allowing operators to work confidently in tight spaces or when handling bulky materials.
At the heart of this machine is a high-performance JIAHENG electric controller paired with a 60V 70Ah battery system composed of ten maintenance-free 12V-85Ah batteries. This powertrain ensures consistent performance, precise acceleration, and smooth lifting, while the robust walking and oil pump motors provide up to 72kW of continuous power. The combination of intelligent battery management and energy-efficient motors extends operating time and reduces downtime, giving your operation reliable all-day productivity.
Safety is a core principle of this forklift. It is equipped with multiple protective features, including overcurrent and overload protection to prevent mechanical or electrical damage, and a battery disconnect system that instantly cuts power in emergency situations. The hydraulic power-assisted steering provides precise control, reducing operator fatigue and ensuring stable handling at all speeds. Emergency braking systems and disc brakes allow rapid deceleration when needed, while integrated lights, turn signals, brake lights, daytime running lights, and an electric horn enhance visibility and communication in busy work environments.
The mast design, capable of reaching a full lift height of 3000mm, works in harmony with the chassis to maintain stability under heavy loads. Mast tilt angles of 6° forward and 12° backward allow safe pallet placement and material stacking, minimizing the risk of load slippage. The custom solid tires and optimized track width further enhance grip, ensuring smooth maneuverability on a variety of floor surfaces. Even during steep inclines of up to 14°, the forklift maintains balanced performance without compromising safety.
Overall, this 3.5-ton electric forklift combines cutting-edge stability engineering, robust electrical systems, and a suite of safety mechanisms to provide operators with a reliable, secure, and highly productive material-handling solution. Whether used for high-density storage, industrial logistics, or fast-paced warehouse environments, it delivers peace of mind, efficiency, and long-term operational value.
With technological innovation, our product configuration and parameters will continue to
change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
