| parameter |
|
| Power type | Electric |
| Rated load | 2000KG |
| The external dimensions are length, width and height | 2270*1100*2190mm |
| The forklift lands at the static height, and the mast reaches its full height | 2090mm |
| Maximum lifting height | 3000mm |
| The distance from the front overhang to the center of the front axle and the center end of the arrival fork | 452mm |
| The distance from the center point of the rear axle to the very end of the rear overhang | 330mm |
| The vertical distance from the center of the front axle to the center of the rear axle is the wheelbase | 1580mm |
| Minimum ground clearance (at the mast) | 130mm |
| Track length (front wheel/rear wheel) | 960/930mm |
| Inside the minimum turning radius | 1200mm |
| Outside the minimum turning radius | 1570mm |
| Fork size | 1070*45*120mm |
| Number of wheels X/ Drive wheels | 4X/2 |
| Front wheel tire | 6.50-10 |
| Rear wheel tire | 5.00-8 |
| Lighting and signals | Headlights, left and right turn signals, brake lights, daytime running lights, instrument panel, electric horn, etc. |
| Steering mode | Hydraulic power assist |
| Controller | Jiaheng |
| Battery (Voltage/Capacity) | 60V 70Ah |
| Battery | 5 maintenance-free batteries(12V-70Ah) |
| Walking motor | 4/48-72kw/V |
| Oil pump motor | 4/48-72kw/V |
| Total weight | 2600KG |

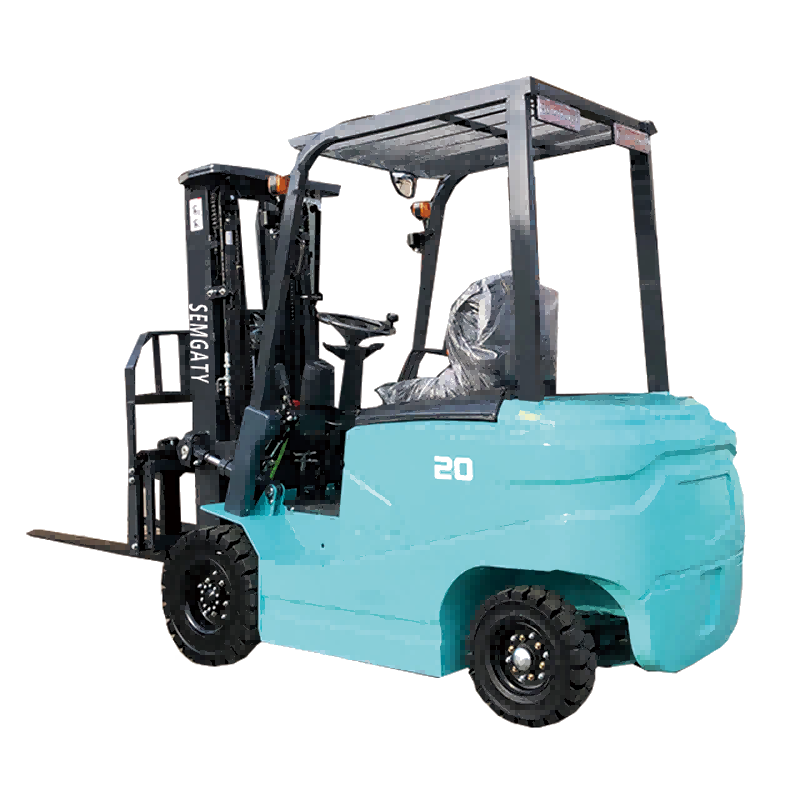

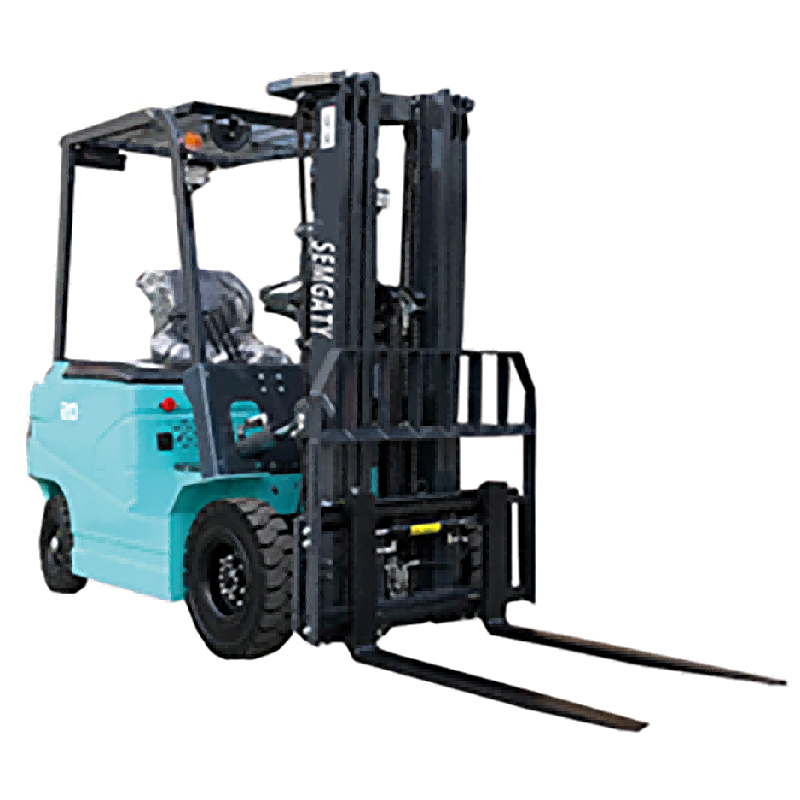

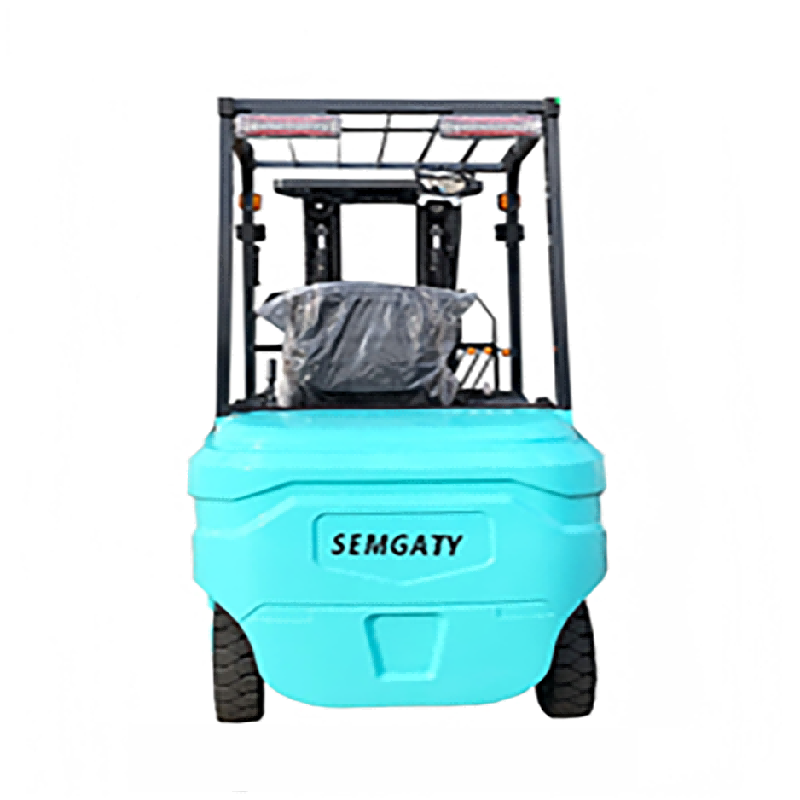

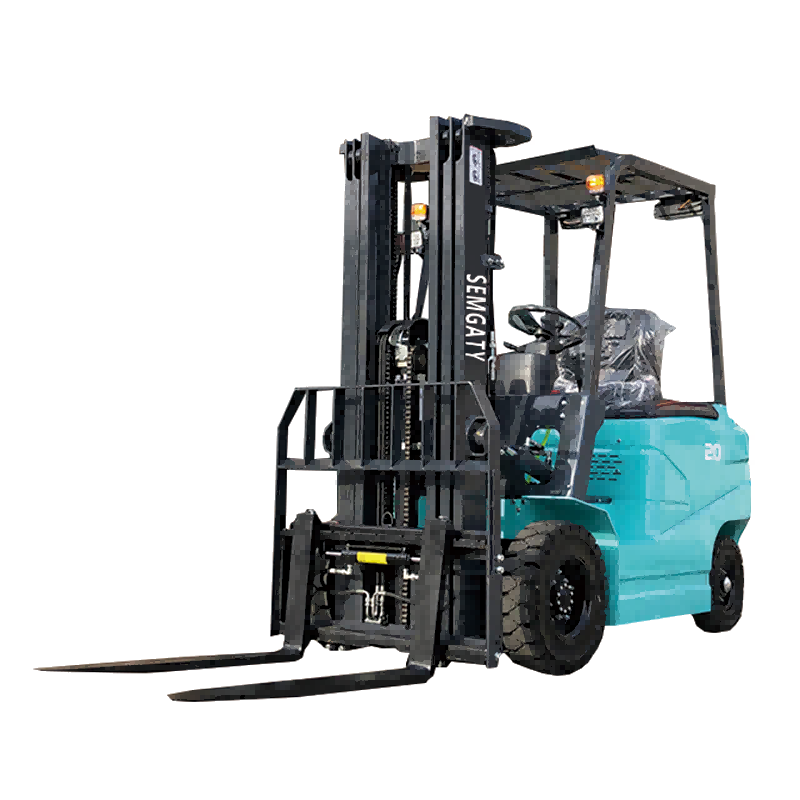

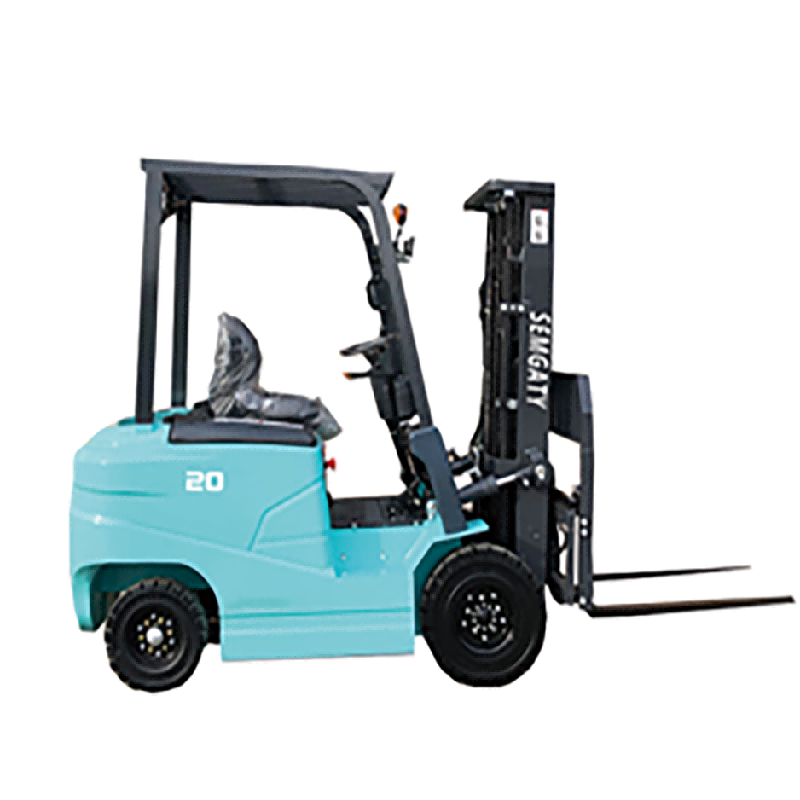

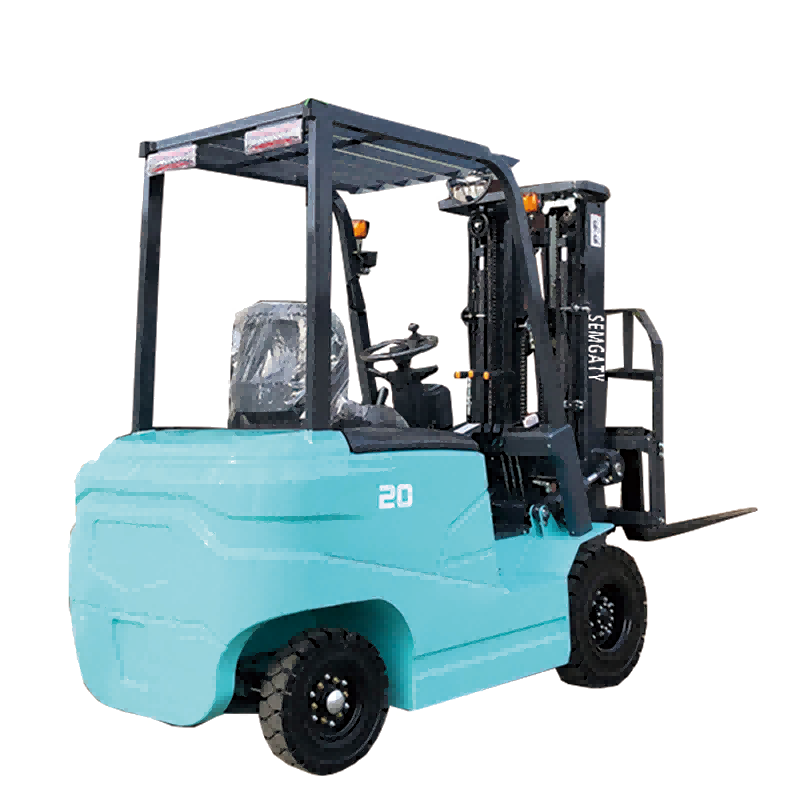

2.0-Ton Lead-Acid Electric Forklift – Clean, Quiet & Efficient
This 2.0-ton lead-acid electric forklift is designed for efficient material handling in indoor and light-duty environments. Powered by an electric drive system, it produces zero exhaust emissions and extremely low noise levels, making it an environmentally friendly solution for warehouses, workshops, logistics centers, and other enclosed spaces.
With a rated load capacity of 2,000 kg and a maximum lifting height of 3,000 mm, the forklift delivers stable and reliable lifting performance for daily pallet handling. Its compact overall dimensions of 2270 × 1100 × 2190 mm, combined with a small turning radius, allow smooth operation in narrow aisles and confined working areas. The low minimum ground clearance at the mast ensures enhanced stability during lifting and travel.
The forklift is equipped with a hydraulic power steering system that provides light and precise control, reducing operator fatigue during long working hours. A high-quality JIAHENG controller ensures smooth acceleration, responsive braking, and efficient energy management. The 60V 70Ah lead-acid battery system delivers dependable power output while maintaining easy maintenance and cost-effective operation.
Noise and vibration are significantly reduced compared with internal combustion forklifts, creating a safer and more comfortable working environment. Standard safety features include headlights, turn signals, brake lights, daytime running lights, an instrument panel, and an electric horn, ensuring clear visibility and operational safety.
With its clean electric power, quiet performance, and excellent indoor adaptability, this 2-ton electric forklift is an ideal choice for businesses seeking an efficient, eco-friendly, and reliable material handling solution.
With technological innovation, our product configuration and parameters will continue to
change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
