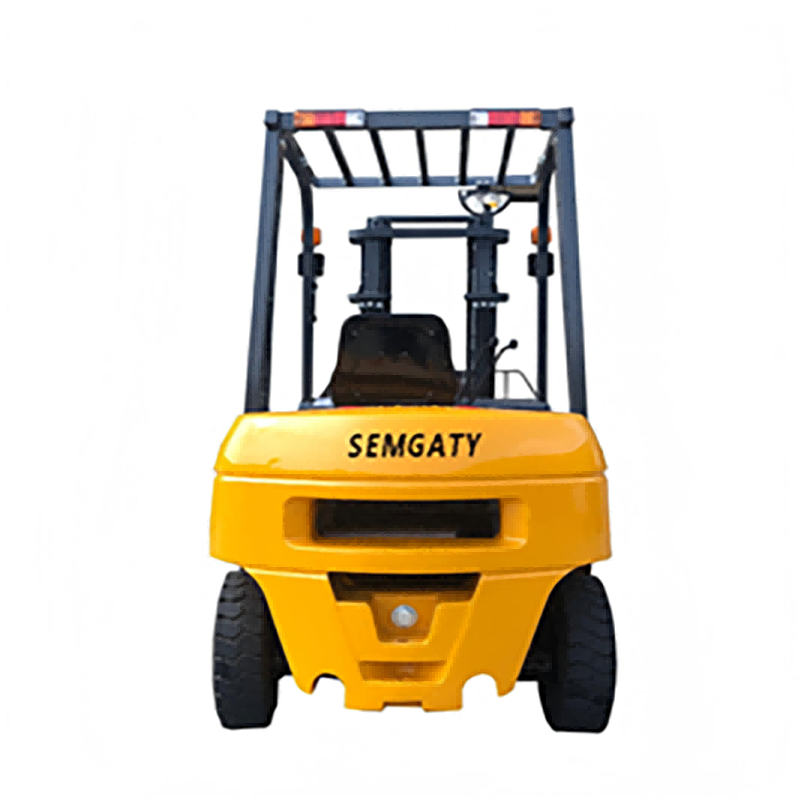

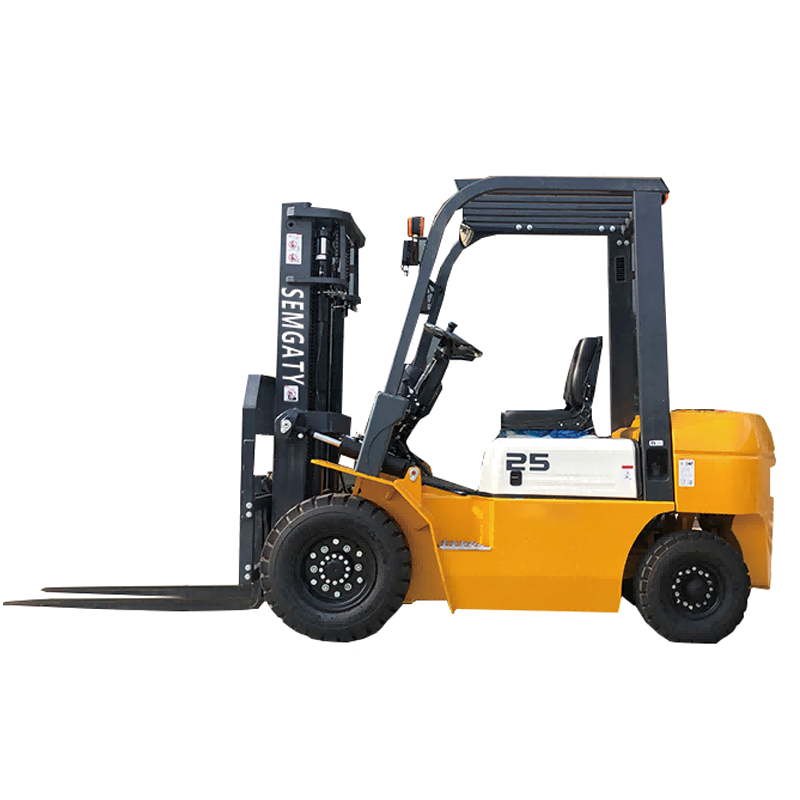

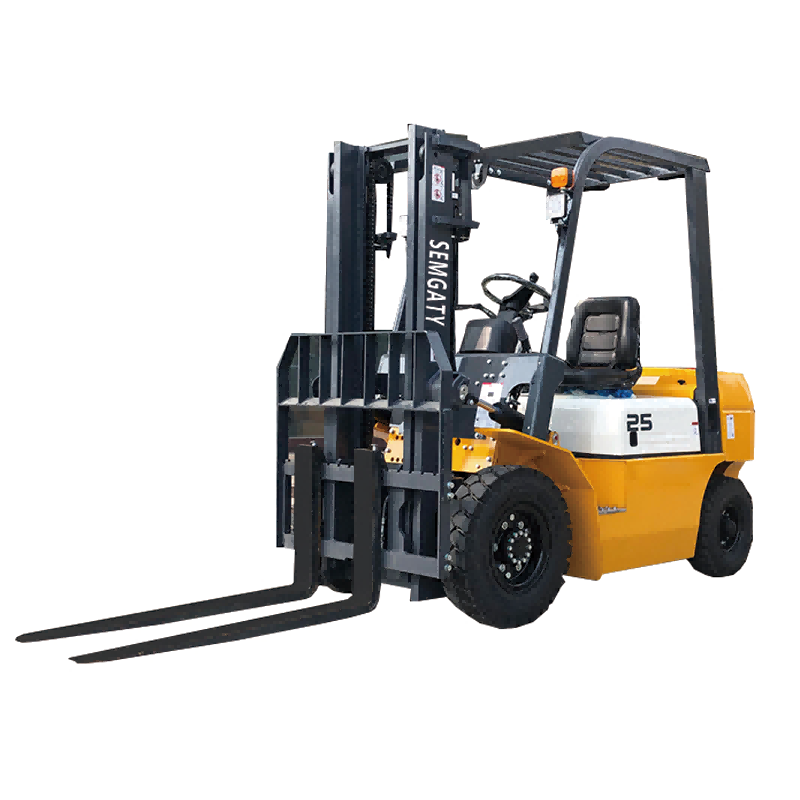

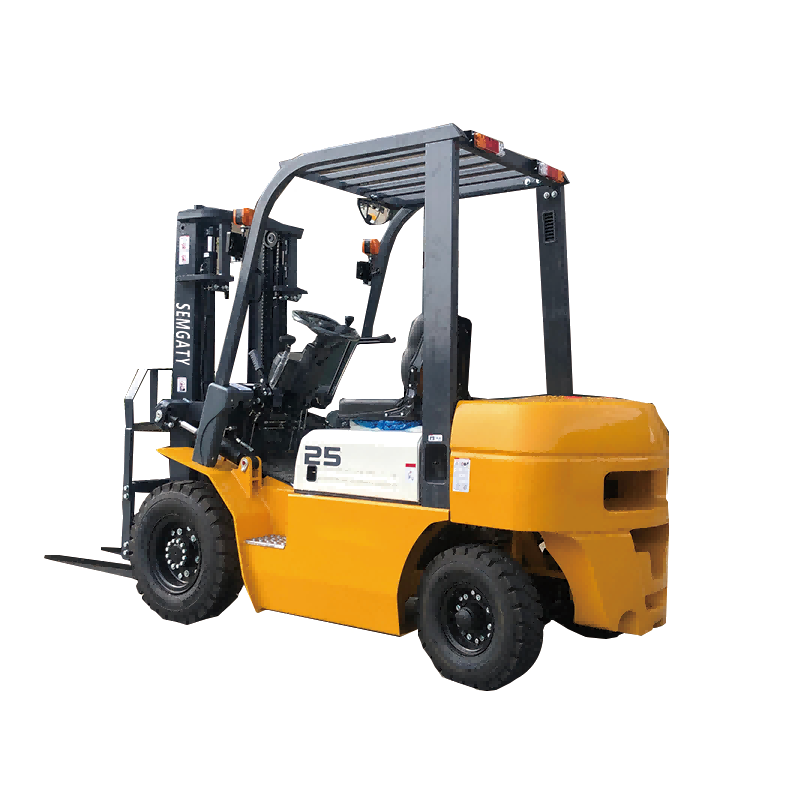

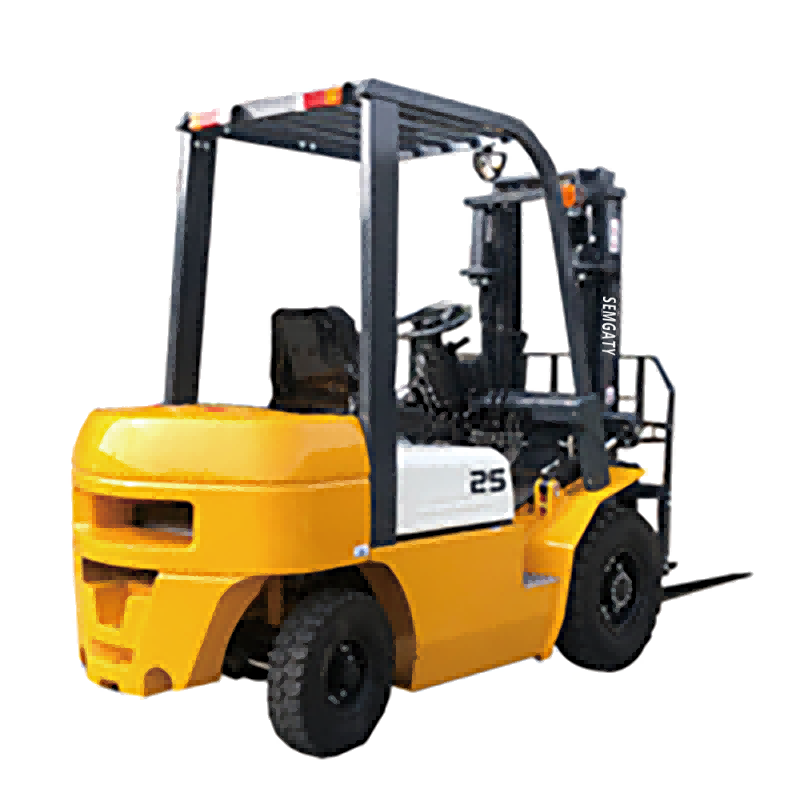

2.5 Tonne Diesel Lift Truck Forklift Machine

BrandSEMGATY
Product originCHINA
Delivery time30days
Supply capacityAnnual production and supply capacity 2000 units

1.Powerful diesel engine provides strong and stable performance. 2.Ergonomic design ensures comfortable and efficient operation. 3.Reinforced chassis and mast guarantee durability and long service life.

parameter
Power type		Diesel
Rated load		2500KG
The external dimensions are length, width and height		255012142185mm
Load center distance		500mm
The maximum height that the forks can lift		4100mm
Maximum lifting height		3000mm
The full height of the mast (with the forks on the ground and the mast vertical)		2089mm
Freely increase height		100mm
The height of the barrier shelf (calculated from the fork surface of the mast)		1100mm
The distance from the seat surface to the roof guard		1050mm
Front suspension distance (the distance from the center of the front axle to the center of the fork)		455mm
Rear overhang distance (the distance from the center point of the rear axle to the very end)		495mm
Wheelbase (the vertical distance from the center of the front axle to the center of the rear axle		1650mm
Tow pin height		290mm
Minimum ground clearance (at the mast)		125mm
Outside the fork distance (maximum/minimum)		1100/244mm
Track length (front wheel/rear wheel)		930/810mm
Outside the minimum turning radius		2270mm
Inside the minimum turning radius		1500mm
Mast tilt Angle (front/rear)		6 forward shift 12reverse shift
Fork size		107045125
Maximum driving speed (full load/empty load)		18/20Km/h
Maximum climbing capacity (full load/empty load)		15/20%
Number of wheels X/ Drive wheels		4X/2
Tire type (front/rear)		Pneumatic tire
Front wheel tire		7.00-12
Rear wheel tire		6.00-9
Engine model (Foreign trade)		Xinchai National II 490
Engine power (Foreign trade)		42KW
Model of reducer		JDS30
Engine torque/rotational speed		154N.M/1800r/min
Number of engine cylinders		Four cylinder
Engine fuel tank capacity		54.7L
Total weight		3650KG

2.5T Heavy-Duty Diesel Forklift
Product Introduction
Designed for higher load demands and intensive industrial use, the 2.5-ton Heavy-Duty Diesel Forklift features a reinforced chassis and extended wheelbase to improve stability during full-load operation. This model is especially suitable for users who require continuous operation with heavier cargo.

Product Highlights
Higher Load Capacity
Rated at 2500KG, ideal for dense pallets and heavier materials
Extended Wheelbase Design
1650mm wheelbase improves weight distribution and reduces forward tipping risk

Optimized Turning Structure

Inside turning radius of 1500mm maintains maneuverability even under load
Strengthened Travel System

Wider front and rear tracks enhance ground grip and driving stability
Technical Specifications

Rated Load: 2500KG
Dimensions (L×W×H): 2550 × 1214 × 2185mm

Wheelbase: 1650mm
Minimum Ground Clearance (mast): 125mm
Outside Turning Radius: 2270mm
Max Gradeability (Loaded/Unloaded): 15% / 20%
Total Weight: 3650KG
Power & Drivetrain
Engine: Xinchai National II 490
Engine Power: 42KW
Reducer Model: JDS30
Fuel Tank Capacity: 54.7L
This powertrain configuration ensures strong torque output and consistent performance, making it suitable for high-intensity industrial environments.
Recommended Industries

Heavy manufacturing
Steel and metal processing
Port and cargo yards
Building material distribution centers
📩 Request a Custom Configuration

With technological innovation, our product configuration and parameters will continue to

change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail;
