| parameter |
|
|
| Overall Operating Weight | 4000KG |
|
| Transport Dimension |
| L*W*H（mm） | 5600x1650x2700mm |
| Min. Ground Clearance | 220mm |
|
| Bucket Capacity | 0.5m3 |
| Loading Lifting Capacity | 800KG |
|
| Bucket Dumping Height | 2400mm |
|
| Backhoe Capacity（Width） | 0.1m3 |
|
| Max. Digging Depth | 2000mm |
|
| Axle track | 2330mm |
| Wheelbase | 1580mm |
| Engine |
| Model | Yunnei YN27 Turbo |
| Type | In Line，Direct injection，Four-Stroke，Water Cooling |
|
| Rated Power | 42KW |
| Rated Speed | 2400r/min |
| Optional engine | Xinchai EURO3 or 5/Yanmar EPA3/Cummins EPA4 |
| Steering System |
| Steering Angle | ±36° |
| Min. turning radius | 4800mm |
|
| Pressure of the system | 12Mpa |
|
| Axle |
| Model | 130Narrow drive axle |
| Drive type | Four wheel drive |
| Transmission System |
| Torque Converter |
| Model | YJ265 |
| Cooling Method | Oil-cooling Pressure Circulation |
| Gearbox |
| Type | Power Transmission |
| Gears | Two Gears Ahead, Two Gears Astern |
| Max.Speed | 28Km/h |
| Tyre |
| Model | 31.5*15.5-15 |
| 0.22 Mpa |
| Pressure of Front wheel |
| Pressure of Back Wheel | 0.22 Mpa |
|
| Brake System |
| Service Brake | Oil Over Oil Caliper Brake |
| Self-regulation |
| Self-balance |
| Emergency Brake | Operation Power Implementing brake |
| Manual Operation Power Terminating Brake |
| Hydraulic System |
| Pressure of Hydraulic System | 16Mpa |
|

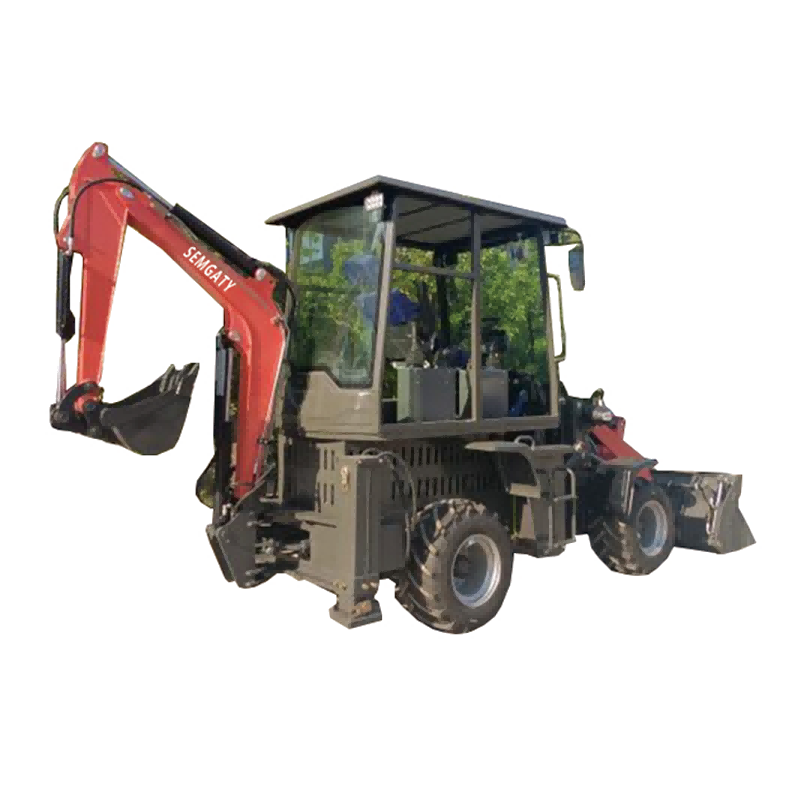

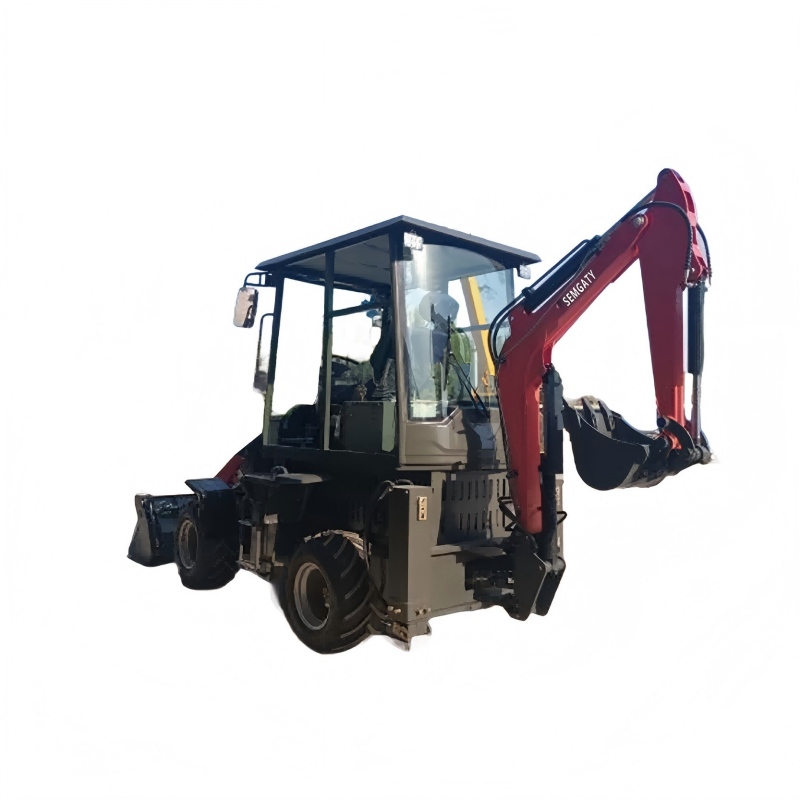

Backhoe Loader 35-10 – Compact Yet Powerful
The Backhoe Loader 35-10 is a versatile construction machine designed for small to medium-scale operations, combining digging, lifting, and loading capabilities in a compact form. With a rated loading capacity of 800 kg and a bucket volume of 0.5 m³, it delivers efficient material handling while maintaining excellent maneuverability. The backhoe attachment supports a 0.1 m³ digging capacity with a maximum digging depth of 2,000 mm, making it ideal for urban construction and landscaping projects.
Structural Stability & Dimensions
Weighing 4,000 kg with a minimum ground clearance of 220 mm, the loader provides stability and smooth operation on varied terrain. Its transport dimensions of 5,600 × 1,650 × 2,700 mm, wheelbase of 1,580 mm, and axle track of 2,330 mm ensure compactness for working in tight spaces while maintaining reliable balance.
Engine & Power
Powered by the YUNNEI YN27 Turbo engine, featuring inline, four-stroke, direct injection, and water cooling, the machine produces 42 kW at 2,400 rpm. Optional engines include XINCHAI EURO3/5, YANMAR EPA3, and CUMMINS EPA4, providing flexibility for different emission standards and operational needs.
Transmission & Mobility
The loader uses a YJ265 oil-cooled, pressure-circulation torque converter paired with a two-speed forward and two-speed reverse gearbox, reaching a maximum speed of 28 km/h. Combined with four-wheel drive and a steering angle of ±36° (minimum turning radius 4,800 mm), it delivers excellent maneuverability and traction even in confined sites.
Hydraulic System & Safety
The 16 MPa hydraulic system ensures smooth and responsive control of both the loader and backhoe functions. Safety features include a self-regulating, self-balancing oil-over-oil caliper service brake and an emergency/manual operation brake, guaranteeing secure operation under all conditions.
Operational Advantage
Compact, efficient, and reliable, the Backhoe Loader 35-10 is ideal for construction, excavation, and material handling projects where agility and precision are critical. Its combination of lightweight design and strong digging and lifting capability makes it a practical solution for urban and small-site applications.
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
