| Parameter |
| Overall Operating Weight | 6800KG |
| Transport Dimension |
| L*W*H(mm) | 7800×2100×3200mm |
| Wheel base | 2250mm |
| Min. Ground Clearance | 350mm |
| Bucket Capacity | 1.4m3 |
| Breakout Force | 38Kn |
| Loading Lifting Capacity | 2800KG |
| Bucket Dumping Height | 3600mm |
| Bucket Dumping Distance | 1062mm |
| Digging Depth | 52mm |
| Backhoe Capacity（Width） | 0.35m3(620mm) |
| Max. Digging Depth | 4082mm |
| Swing Angle of backhoe | 190° |
| Max. Pulling Force | 39Kn |
| Engine |
| Model | Yuchai 4105Turbo |
| Type | In Line，Direct injection，Four-Stroke，Water Cooling |
| Rated Power | 85KW |
| Rated Speed | 2400r/min |
| Displacement | 4.4L |
| Steering System |
| Steering Angle | ±36 o |
Min. turning radius
| 5018mm |
| Pressure of the system | 12Mpa |
| Axle |
| Model | Wheel Hub Reducer |
| Final Reducer | Single Stage Final Reducer |
| Transmission System |
| Torque Converter |
| Model | YJ280 |
| Type | Single-stage Three Elements |
| Cooling Method | Oil-cooling Pressure Circulation |
| Gearbox |
| Type | Fixed Shaft Power Transmission |
| Gears | 2forward,2reverse |
| Max.Speed | 30Km/h |
| Optional Gears | 4forward,4reverse |
| Max.Speed | 45Km/h |
| Tyre |
| Model | 16/70-24 |
| Pressure of Front wheel | 0.22 Mpa |
| Pressure of Back Wheel | 0.22 Mpa |
| Brake System |
| Service Brake | Air Over Oil Caliper Brake |
| External Type |
| Self-regulation |
| Self-balance |
| Emergency Brake | Operation Power Implementing brake
Manual Operation Power Terminating Brake |
| Hydraulic System |
| Pressure of Hydraulic System | 22Mpa |

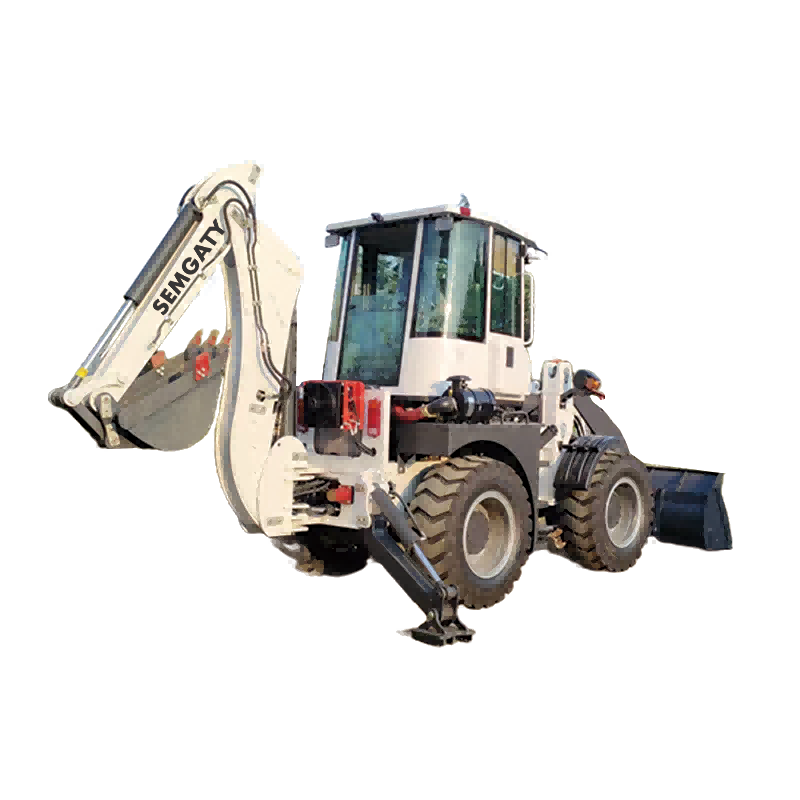

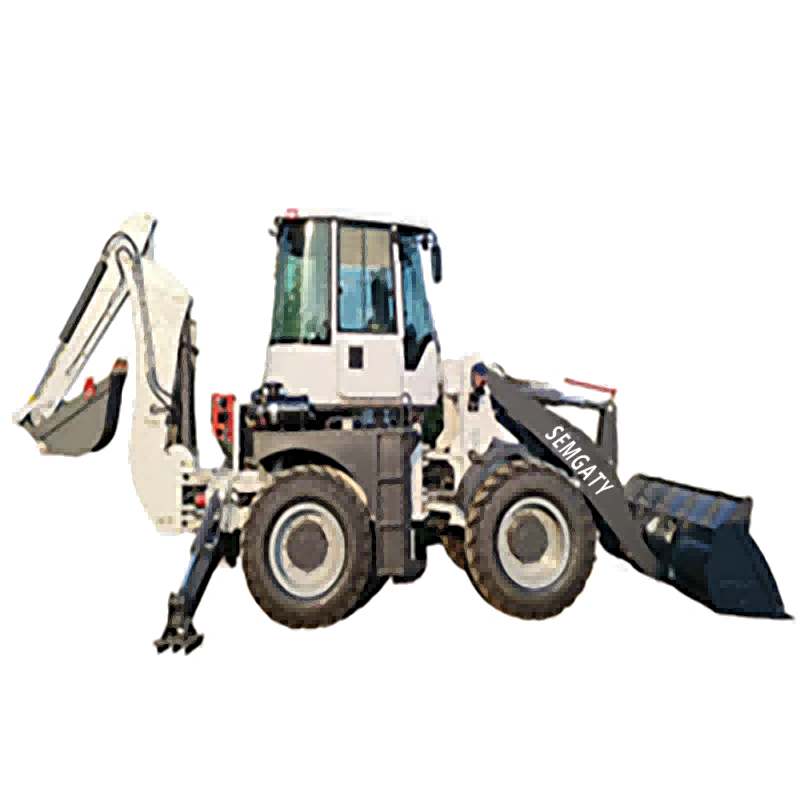

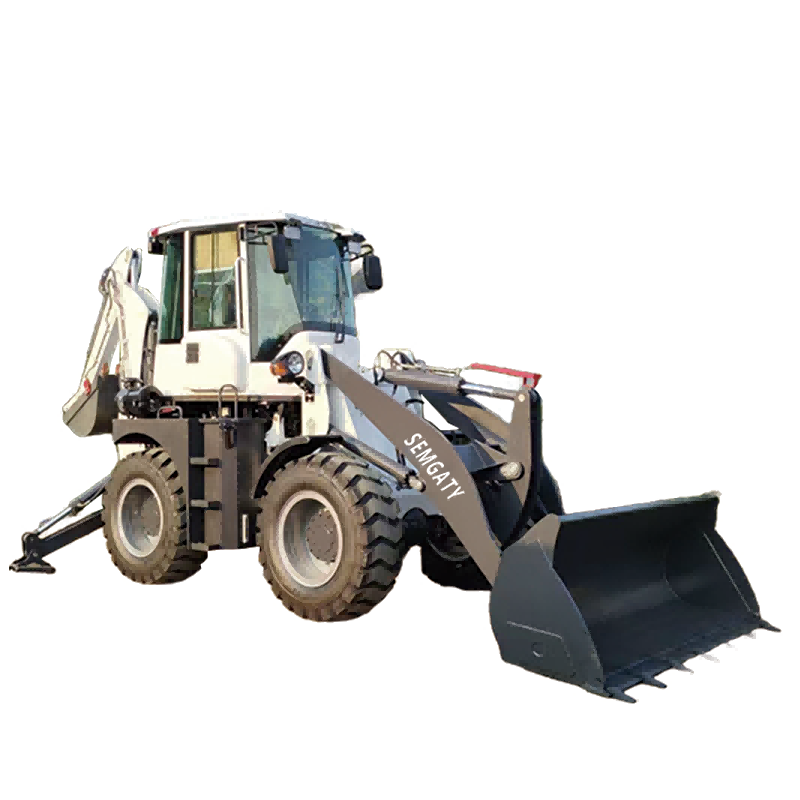

35-25 Backhoe Loader – Powerful, Efficient, and Versatile
The 35-25 Backhoe Loader is built to tackle demanding construction and excavation tasks with ease. Combining strong lifting capability with reliable digging performance, this machine delivers productivity and precision across a variety of job sites.
Exceptional Excavation and Loading Performance
With a well-designed loader and backhoe, the 35-25 handles material efficiently, allowing operators to move soil, gravel, or construction debris quickly and accurately. Its rear backhoe provides excellent reach and flexibility, making trenching, foundation work, and site preparation straightforward, even in tight or complex areas.
Reliable Power and Smooth Operation
Equipped with a robust turbocharged engine and advanced transmission system, the 35-25 ensures consistent power for continuous operations. The machine’s responsive controls and hydraulic system allow precise handling of both loader and backhoe functions, reducing operator fatigue and increasing work efficiency.
Stability and Maneuverability
Designed for diverse construction environments, the 35-25 maintains stability on uneven terrain and offers agile maneuvering, making it ideal for urban construction sites, roadwork, or confined spaces. Its well-balanced chassis and optimized weight distribution provide a safe, steady platform for lifting and digging tasks.
Durability and Low Maintenance
Built with high-quality components and a durable hydraulic system, the 35-25 is engineered for long-term reliability. Maintenance is simplified, ensuring the machine stays productive and operational with minimal downtime.
Applications
This backhoe loader excels in excavation, material handling, landscaping, and general construction. Its combination of lifting strength, digging flexibility, and dependable stability makes the 35-25 a versatile solution for contractors seeking efficiency and reliability.
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
