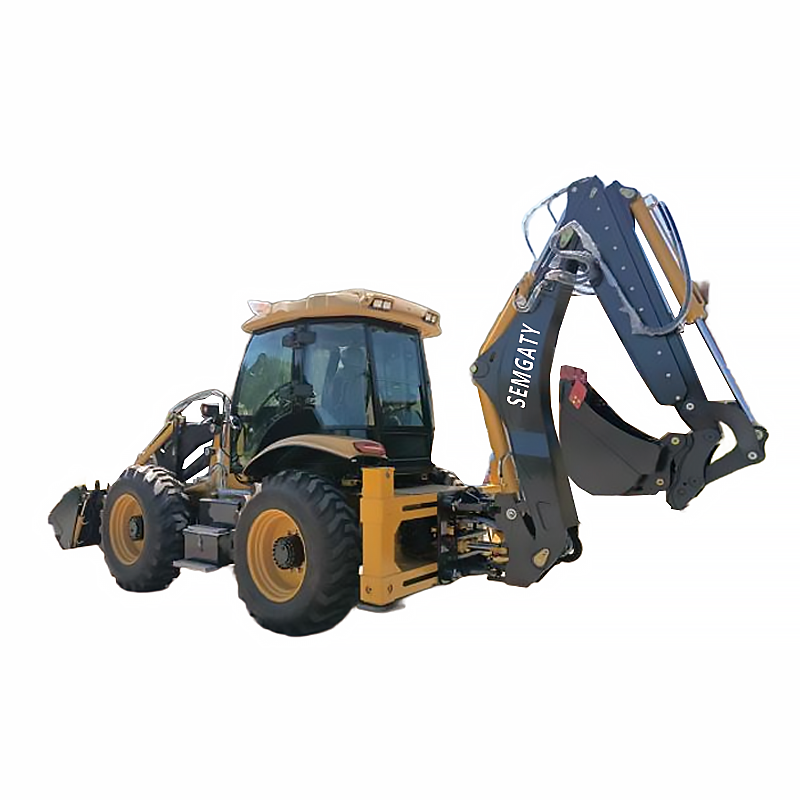

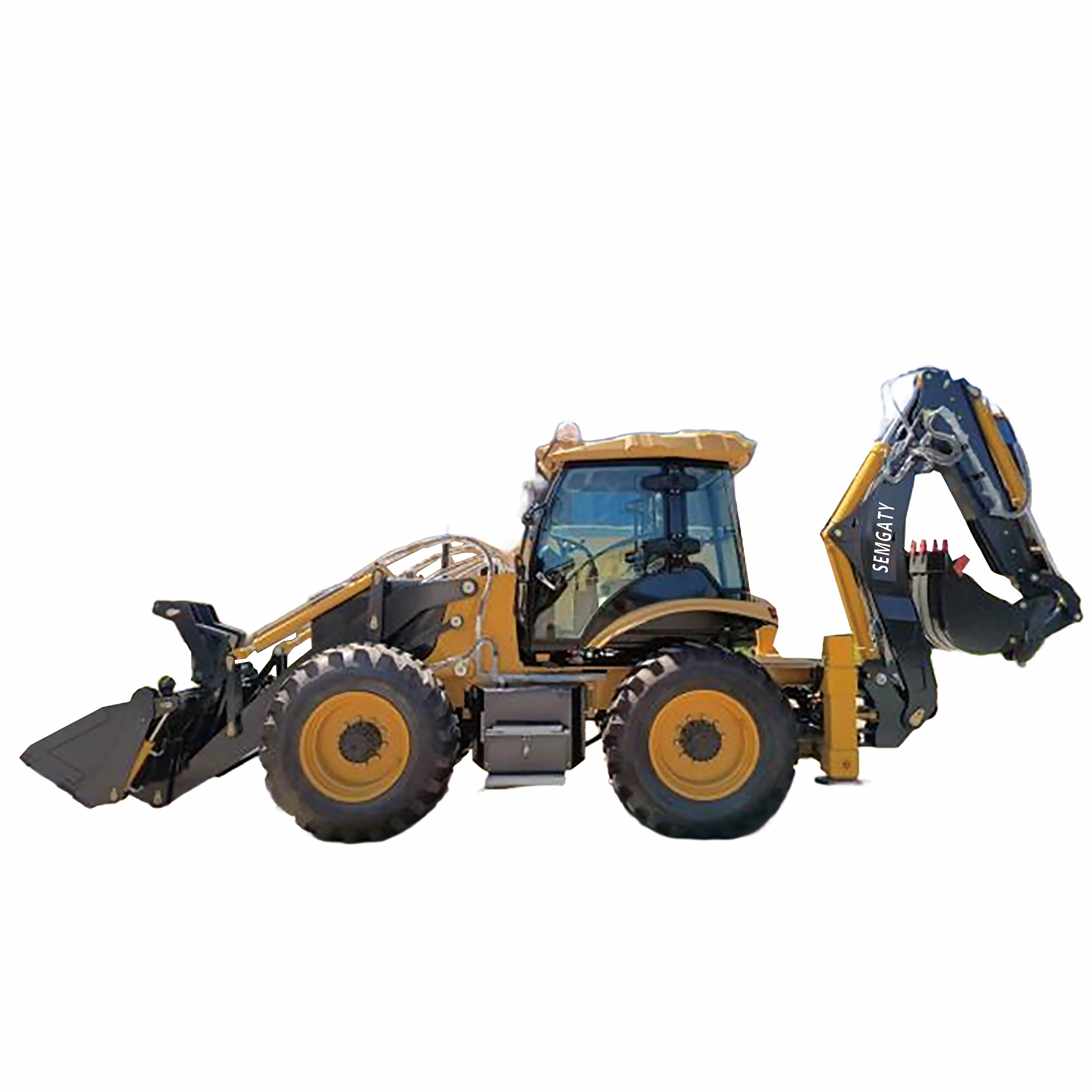

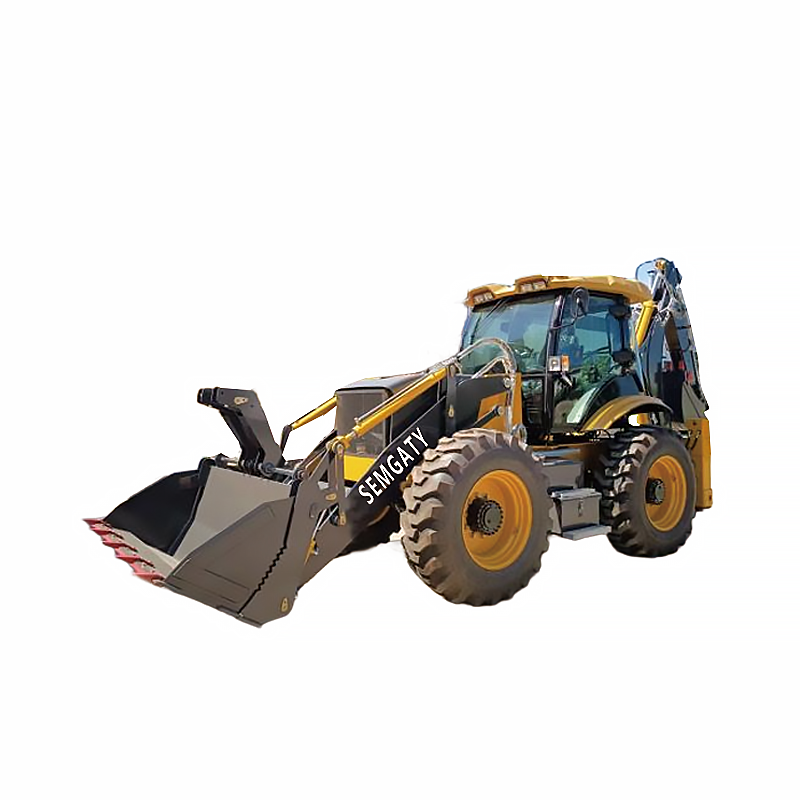

388H Back Loader Machine Backhoe Excavator Loader

  • SEMGATY
  • CHINA
  • 30days
  • Annual production and supply capacity 2000 units
1.Multi-purpose design for loading, digging, and leveling. 2.High-efficiency hydraulics ensure smooth, powerful operation. 3.Reinforced frame and components extend service life and durability.
 Parameter

Overall Operating Weight8500KG
Transport Dimension
L*W*Hmm 6450x2490x3100mm
Min. Ground Clearance450mm
 Bucket Capacity1.2m3
Loading Lifting Capacity2500KG
Bucket Dumping Height3050mm
Backhoe CapacityWidth0.3m3
Max. Digging Depth3820mm
Axle track2335mm
Wheelbase2050mm
Engine
ModelYunnei
Type Turbocharged, four-stroke.
Rated Power76KW
Rated Speed2200r/min
Optional engineCummins 75KW  Weichai75KW FeiyateEPA475KW
Steering System
Steering Angle±36°
Min. turning radius6581mm
Pressure of the system12Mpa
Axle
ModelDomestic steering bridge
Drive typeFour wheel drive
Transmission System
Torque Converter
Model315
Cooling MethodOil-cooling Pressure Circulation
Gearbox
TypePower Transmission
Gears4forward4reverse
Max.Speed36Km/h
Tyre
Model16.9-28Front  16.9-28Rear
Pressure of Front wheel0.4 Mpa
Pressure of Back Wheel0.35 Mpa
Brake System
Service BrakeOil Over Oil Caliper Brake

Self-regulation

Self-balance
Emergency BrakeOperation Power Implementing brake
Manual Operation Power Terminating Brake
Hydraulic System
Pressure of Hydraulic System20Mpa

Compared with the 388A, the 388H wheel loader offers several notable advantages that make it more versatile and capable in demanding work environments.

Firstly, the 388H delivers higher lifting and digging capacity while maintaining stable handling. Its optimized hydraulic system operates at slightly higher pressure, providing smoother, faster, and more precise bucket and backhoe control, which translates into greater efficiency in loading, digging, and material handling operations. This makes the 388H better suited for heavier-duty tasks or continuous work cycles without operator fatigue.

Secondly, the 388H features a more robust and modern drive system, with improved torque converters and transmission matching that enhance power delivery and climbing ability. It ensures consistent performance even under full load or on uneven terrain, giving operators confidence in challenging conditions where the 388A may require more careful handling.

Maneuverability is also a highlight: although both models share similar steering angles, the 388H’s design optimizes wheelbase and axle articulation for better stability and tighter operation in confined or uneven sites. Combined with a reliable engine platform, it offers superior fuel efficiency and durability, reducing long-term operational costs.

Finally, the 388H emphasizes operator experience and safety, with more responsive controls, improved visibility, and a smoother hydraulic response, allowing operators to complete tasks quickly and accurately with reduced effort. In short, the 388H is a more powerful, precise, and efficient loader, ideal for projects that demand higher productivity and reliability than the 388A.



  With technological innovation, our product configuration and parameters will continue to change

without notice;

 if there is any doubt, the specific confirmation of our international trade sales shall prevail;


  • Can you provide detailed product specifications/certification documents?

    Of course. Please let us know the specific product model you are interested in and we will immediately send you the latest technical specifications, test reports and our existing certifications (such as CE, RoHS, FCC, etc.) via email.

  • Can you accept customization (OEM/ODM) according to our requirements?

    Yes, we offer professional OEM and ODM services. We have a strong R&D and engineering team. Please provide us with your detailed requirements or design draft, and we will evaluate the feasibility and provide you with a proposal and quotation.

  • What payment methods are supported?

    We accept a variety of secure payment methods, including: · T/T (Telegraphic Transfer): This is our most commonly used method. The down payment ratio is a 30% deposit, and the final payment is 70%, payable before shipment. · L/C (Letter of Credit): We accept letters of credit at sight, but they must be issued by a reputable bank.

  • How long is the production cycle?

    Our standard production time is approximately 30 days after receiving the deposit. The specific time may vary slightly depending on the order quantity and production schedule. Once the order is confirmed, we will provide you with a precise production schedule.
