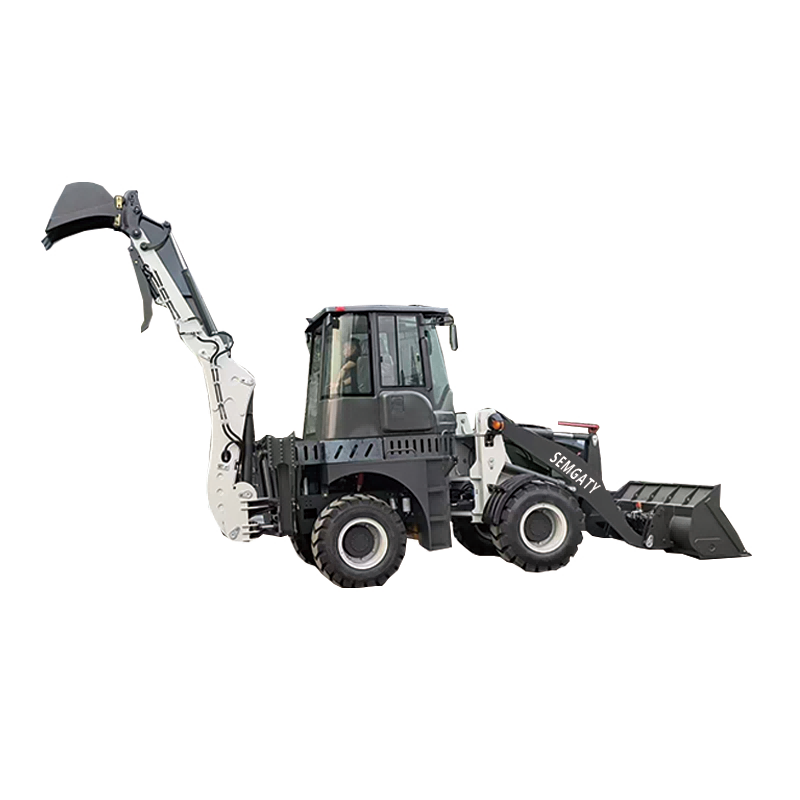

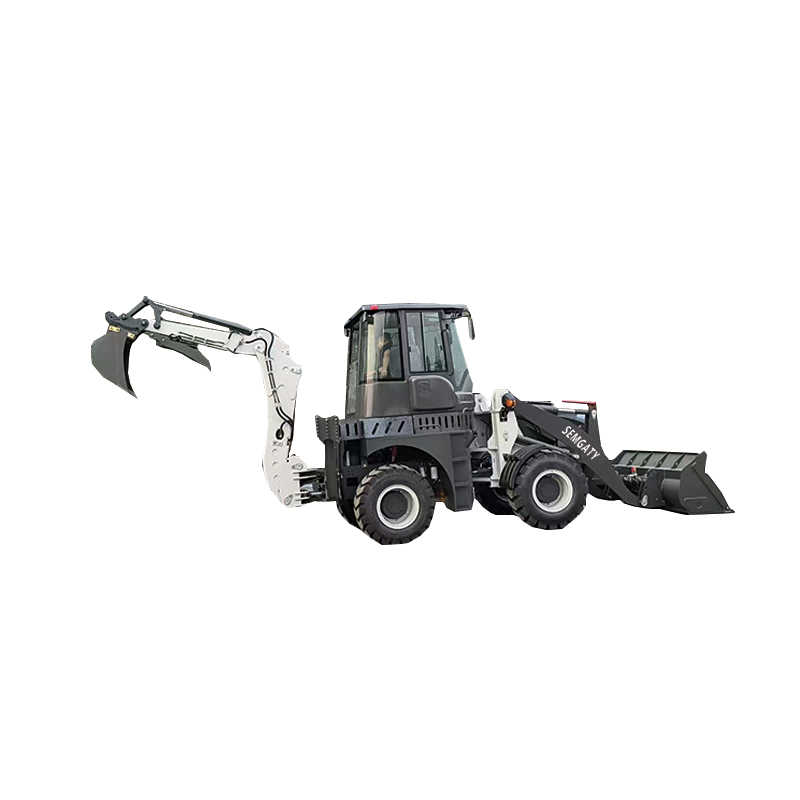

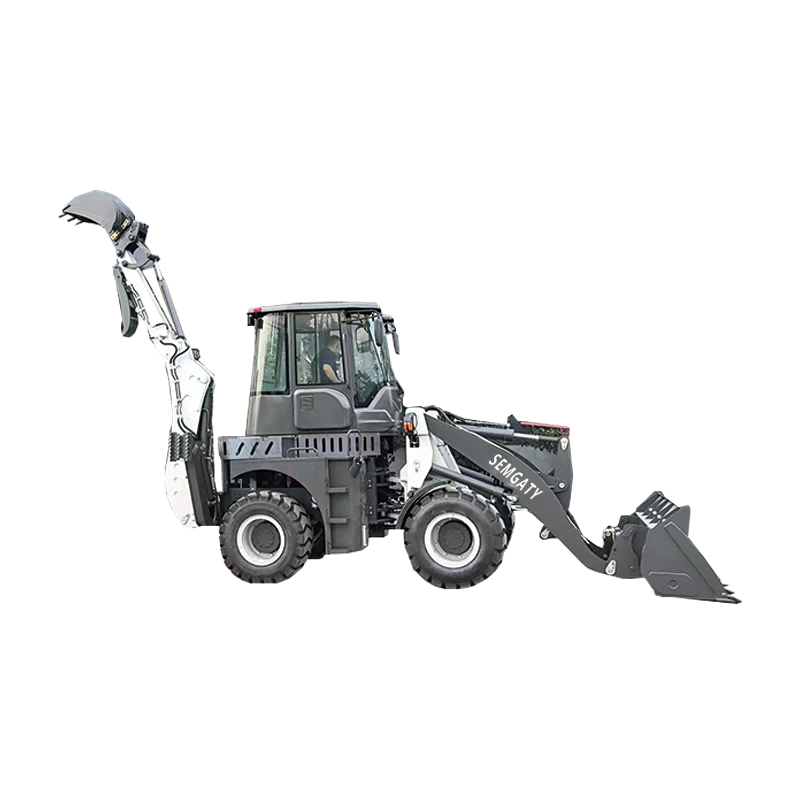

35-20 Backhoe Digger Front End Loader with Backhoe

  • SEMGATY
  • CHINA
  • 30days
  • Annual production and supply capacity 2000 units
1.Versatile Function: Combines digging, loading, and lifting in one compact unit. 2.Strong Power: Efficient engine delivers outstanding performance and fuel economy. 3.Rugged Design: Heavy-duty frame ensures stability and long-lasting operation.


 Parameter
Overall Operating Weight5500KG
Transport Dimension
L*W*H(mm )6950x2000x3100mm
Min. Ground Clearance300mm
Bucket Capacity1m3
Loading Lifting Capacity2000KG
Bucket Dumping Height3500mm
Backhoe Capacity(Width)0.2m3
Max. Digging Depth3500mm
Axle track2330mm
Wheelbase1580mm
Engine
ModelYunnei YN38GBZ Turbo
TypeIn Line,Direct injection,Four-Stroke,Water Cooling
Rated Power76KW
Rated Speed2400r/min
Optional engineXinchai EURO3 or 5/Yanmar EPA3/Cummins EPA4
Steering System
Steering Angle±36°
Min. turning radius4800mm
Pressure of the system12Mpa
Axle
ModelWheel hub reducer drive axle
Drive typeFour wheel drive
Torque Converter
ModelYJ265
Cooling MethodOil-cooling Pressure Circulation
Gearbox
TypePower Transmission
Gears2forward,2reverse
Max.Speed28Km/h
Optional Gears2forward,2reverse
Max.Speed38Km/h
Tyre
Model16/70-20
Pressure of Front wheel0.22 Mpa
Pressure of Back Wheel0.22 Mpa
Brake System
Service BrakeAir Over Oil Caliper Brake
External Type
Self-regulation
Self-balance
Emergency BrakeOperation Power Implementing brake
Manual Operation Power Terminating Brake
Hydraulic System
Pressure of Hydraulic System22Mpa

The 35-20 wheel loader stands out compared with the 388H by offering a more compact and agile design, making it ideal for projects in confined sites or urban construction zones. Its smaller footprint and tighter turning radius enable operators to maneuver efficiently in narrow spaces, reducing repositioning time and improving overall site productivity. Despite its lighter overall weight, the 35-20 maintains robust lifting performance, with precise bucket control and stable handling, making it well-suited for frequent loading cycles or smaller-scale material handling tasks where responsiveness matters.

Its hydraulic system is optimized for quick, smooth operation, ensuring the bucket and backhoe movements are precise and energy-efficient, which translates into reduced fuel consumption and lower operational costs. The combination of a reliable YUNNEI turbocharged engine and oil-cooled torque converter delivers steady power and durability, supporting continuous work in moderate-duty applications without compromising performance.

Additionally, the 35-20 emphasizes operator convenience and safety through ergonomic controls and responsive steering, allowing confident operation even in tight or uneven terrain. Overall, the 35-20 excels where maneuverability, efficiency, and adaptable performance are critical, offering a lighter, more flexible alternative to larger loaders like the 388H while maintaining reliable load-handling capabilities.

With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail;



  • Can you provide detailed product specifications/certification documents?

    Of course. Please let us know the specific product model you are interested in and we will immediately send you the latest technical specifications, test reports and our existing certifications (such as CE, RoHS, FCC, etc.) via email.

  • Can you accept customization (OEM/ODM) according to our requirements?

    Yes, we offer professional OEM and ODM services. We have a strong R&D and engineering team. Please provide us with your detailed requirements or design draft, and we will evaluate the feasibility and provide you with a proposal and quotation.

  • What payment methods are supported?

    We accept a variety of secure payment methods, including: · T/T (Telegraphic Transfer): This is our most commonly used method. The down payment ratio is a 30% deposit, and the final payment is 70%, payable before shipment. · L/C (Letter of Credit): We accept letters of credit at sight, but they must be issued by a reputable bank.

  • How long is the production cycle?

    Our standard production time is approximately 30 days after receiving the deposit. The specific time may vary slightly depending on the order quantity and production schedule. Once the order is confirmed, we will provide you with a precise production schedule.
