| parameter |
|
|
| Overall Operating Weight | 8200KG |
|
| Transport Dimension |
| L*W*H（mm） | 6050x2465x3100mm |
| Min. Ground Clearance | 300mm |
|
| Bucket Capacity | 1.0m3 |
| Loading Lifting Capacity | 2500KG |
|
| Bucket Dumping Height | 2650mm |
|
| Backhoe Capacity（Width） | 0.3m3 |
|
| Max. Digging Depth | 4085mm |
|
| Axle track | 2280mm |
| Wheelbase | 1580mm |
| Engine |
| Model | Yuchai115HP |
| Type | Turbocharged, four-stroke |
| Rated Power | 85KW |
| Rated Speed | 2200r/min |
| Optional engine | CUMMINS 75KW , WEICHAI75KW, FEIYATE（EPA4）75KW |
| Steering System |
| Steering Angle | ±36° |
| Min. turning radius | 6581mm |
|
| Pressure of the system | 12Mpa |
|
| Axle |
| Model | Laiyang |
| Drive type | Four wheel drive |
| Transmission System |
| Torque Converter |
| Model | 290 |
| Cooling Method | Oil-cooling Pressure Circulation |
| Gearbox |
| Type | Power Transmission |
| Gears | Four Gears Ahead, Four Gears Astern |
| Max.Speed | 40Km/h |
| Tyre |
| Model | Jiazi brand 14-17.5 (front) 19.5L-24 (rear) |
| Pressure of Front wheel | 0.4 Mpa |
|
| Pressure of Back Wheel | 0.35 Mpa |
|
| Brake System |
| Service Brake | Oil Over Oil Caliper Brake |
| Self-regulation |
| Self-balance |
| Emergency Brake | Operation Power Implementing brake |
| Manual Operation Power Terminating Brake |
| Hydraulic System |
| Pressure of Hydraulic System | 18Mpa |
|

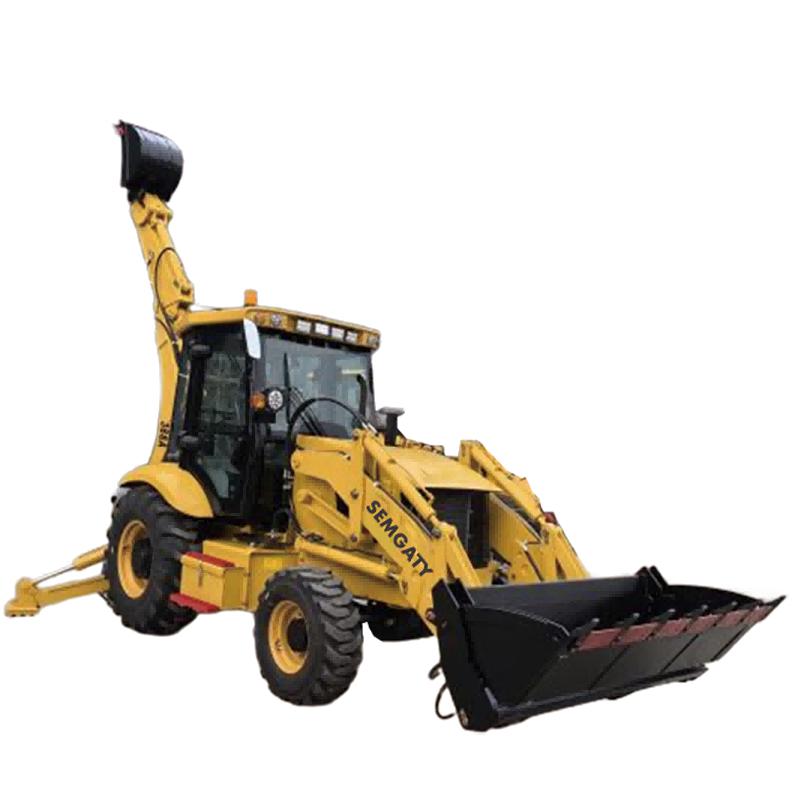

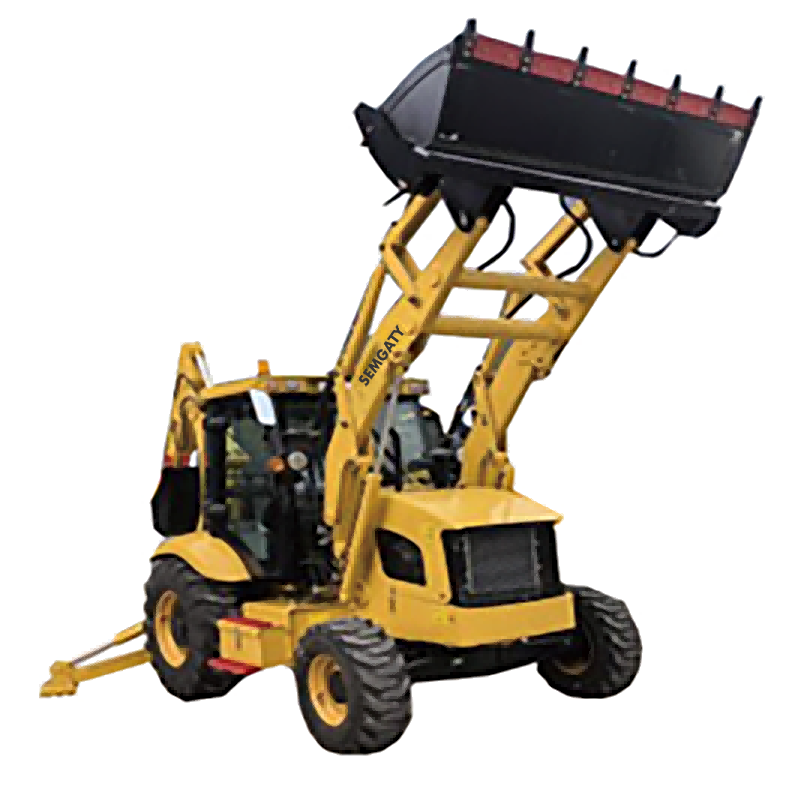

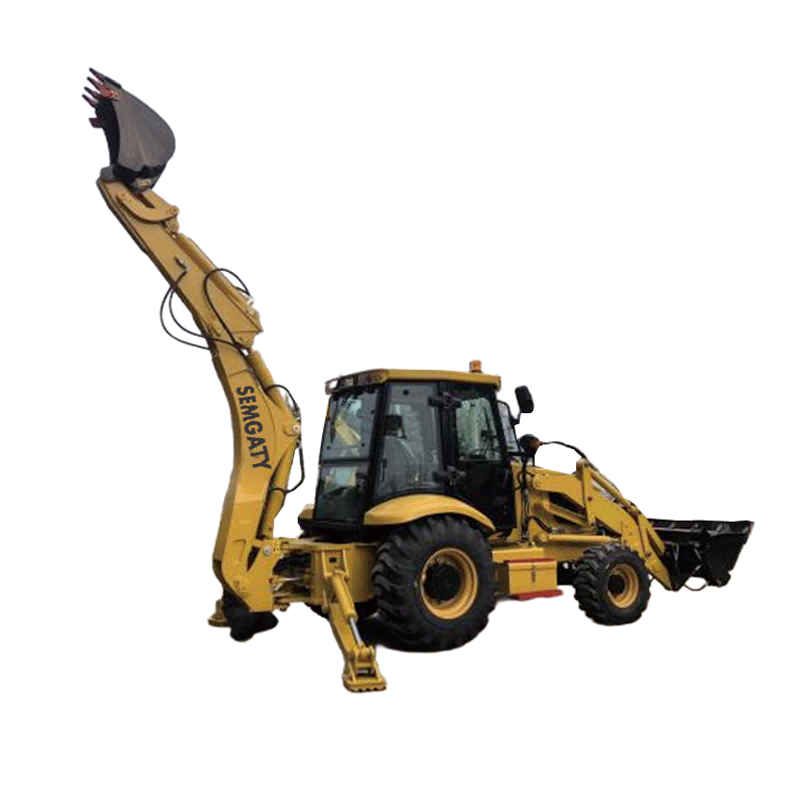

388A Backhoe Loader – Powerful Performance, Superior EfficiencyThe Parameter-388A backhoe loader is a versatile and robust machine designed for heavy-duty construction, excavation, and material handling tasks. With a rated loading capacity of 2,500 kg and a bucket capacity of 1.0 m³, it delivers high lifting performance and reliable material handling. The backhoe attachment further extends its capabilities, offering a digging capacity of 0.3 m³ and a maximum digging depth of 4,085 mm for efficient excavation operations.
Structural Strength & Stability
Weighing 8,200 kg with a minimum ground clearance of 300 mm, the machine ensures stability and balanced ground pressure during heavy loading. The compact transport dimensions of 6,050 × 2,465 × 3,100 mm and a wheelbase of 1,580 mm allow excellent maneuverability on construction sites, while the axle track of 2,280 mm provides solid support on uneven terrain.
Engine & Power System
Equipped with the Yuchai 115 HP turbocharged, four-stroke engine, the loader generates 85 kW at 2,200 rpm for reliable operation. Optional engines include CUMMINS 75 kW, WEICHAI 75 kW, and FEIYATE (EPA4) 75 kW, allowing operators to tailor performance to site requirements. The oil-cooled, pressure-circulation torque converter ensures smooth power transmission through a four-speed forward and four-speed reverse gearbox, with a maximum speed of 40 km/h.
Hydraulic & Steering System
The loader’s hydraulic system operates at 18 MPa, supporting precise boom and bucket control. The steering system, with a ±36° steering angle and a minimum turning radius of 6,581 mm, offers agility and easy navigation in tight spaces.
Brakes & Tires
Safety is ensured with an oil-over-oil caliper service brake featuring self-regulation and balance, alongside an emergency/manual operation brake. Equipped with Jiazi brand tires (14-17.5 front, 19.5L-24 rear) at 0.4 MPa front and 0.35 MPa rear pressure, the loader provides excellent traction and stability on varied terrain.
Operational Advantages
With strong lifting, digging, and travel performance, coupled with a high maximum gradeability, the Parameter-388A is ideal for demanding construction, excavation, and material handling projects where reliability, speed, and stability are critical.
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
