| parameter |
| Excavation section |
| Excavator bucket capacity | 0.16-0.19m³ |
| Max. excavation depth | 3200mm |
| Max. excavation height | 4100mm |
| Boom slewing angle | 160° |
The Rise of Excavators
| 28.4Kn |
| Bucket digging force | 32.4Kn |
| Boom digging force | 22.9Kn |
| Loading section |
| Loading bucket capacity | 0.8-1.5m³ |
| Max .lifting height | 4300mm |
| Max. unloading height | 3500mm |
| Max. unloading distance | 1106mm |
| Rated load capacity | ≤1600KG |
| Boom lifting time | 3.5S |
| Boom descent time | 2.5S |
| Three items and time | 7S |
| Engine | Yuchai YCDA3G22-80 |
| Rated power | 58KW/2400r/min |
| Maximum flow | 50m/r |
| Work pressure | 16-21Mpa |
| L*W*H（mm） | 5140*1860*2960mm |
| Overall Weight | 4800KG |
| Gear | 2forward , 2reverse |
| Max.Speed | 25km/h |
| Tyre | 23.5/70-16 |
| Min. ground clearance | 310mm |
| wheelbase | 2030mm |
| Wheel Tread | 1810mm |

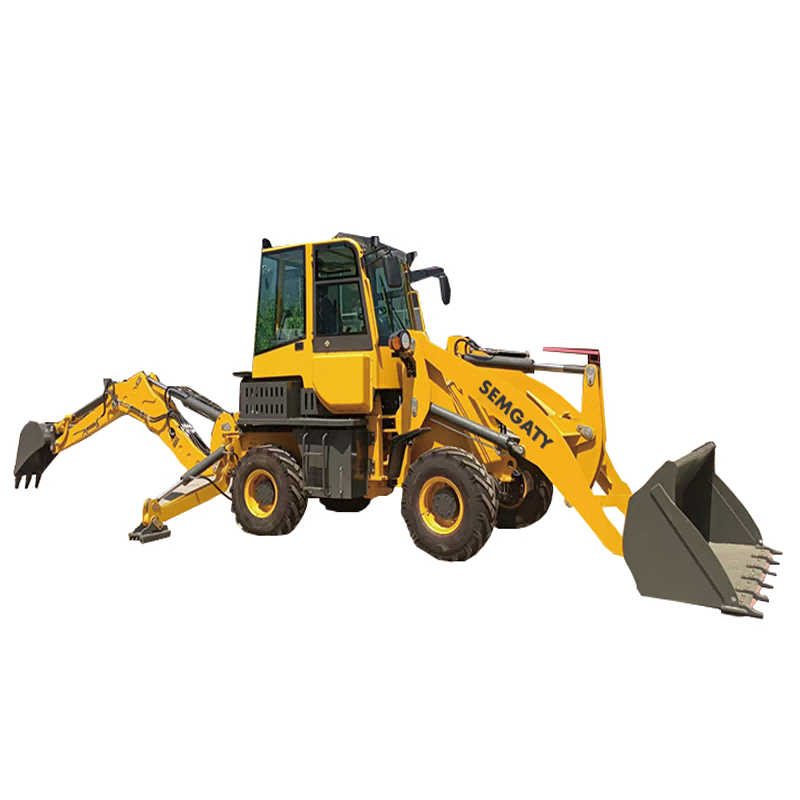

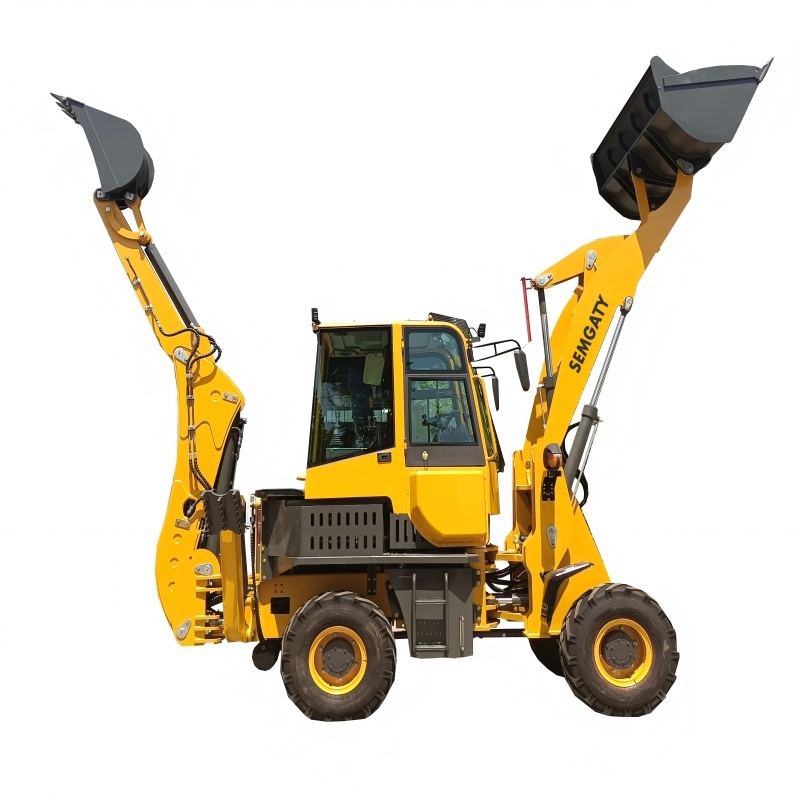

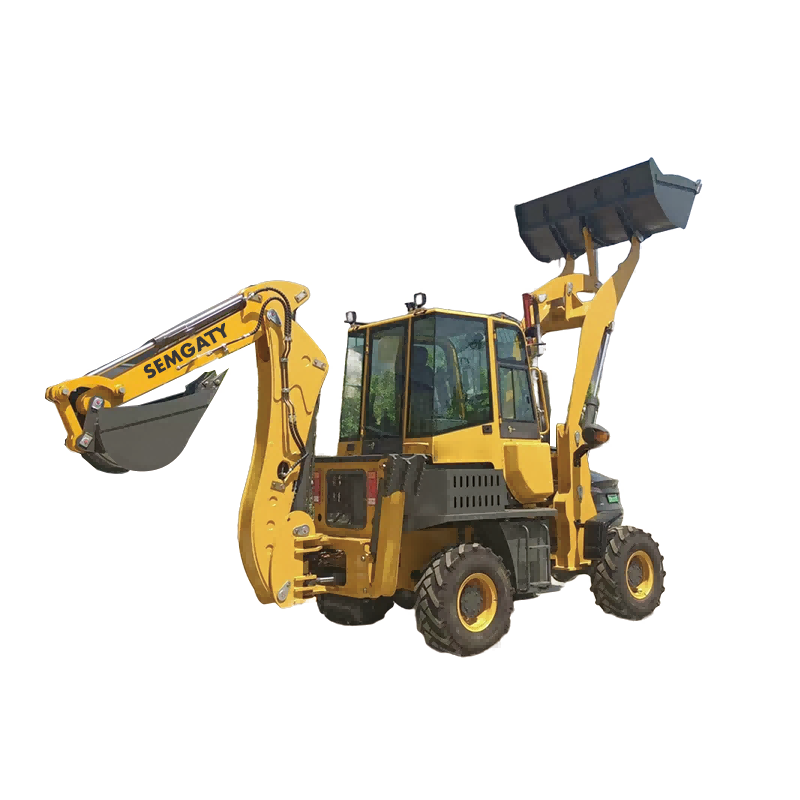

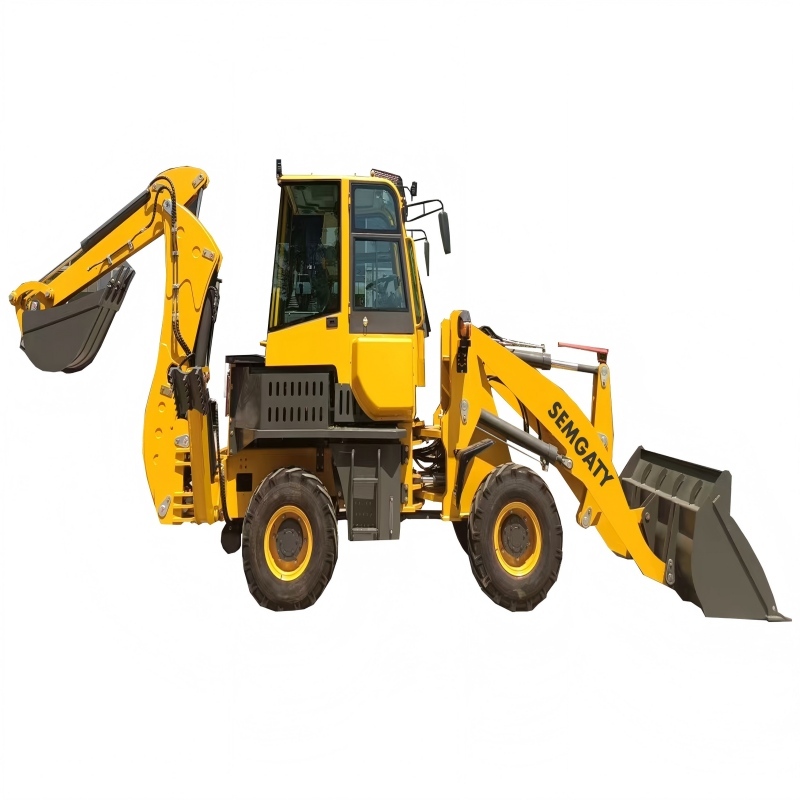

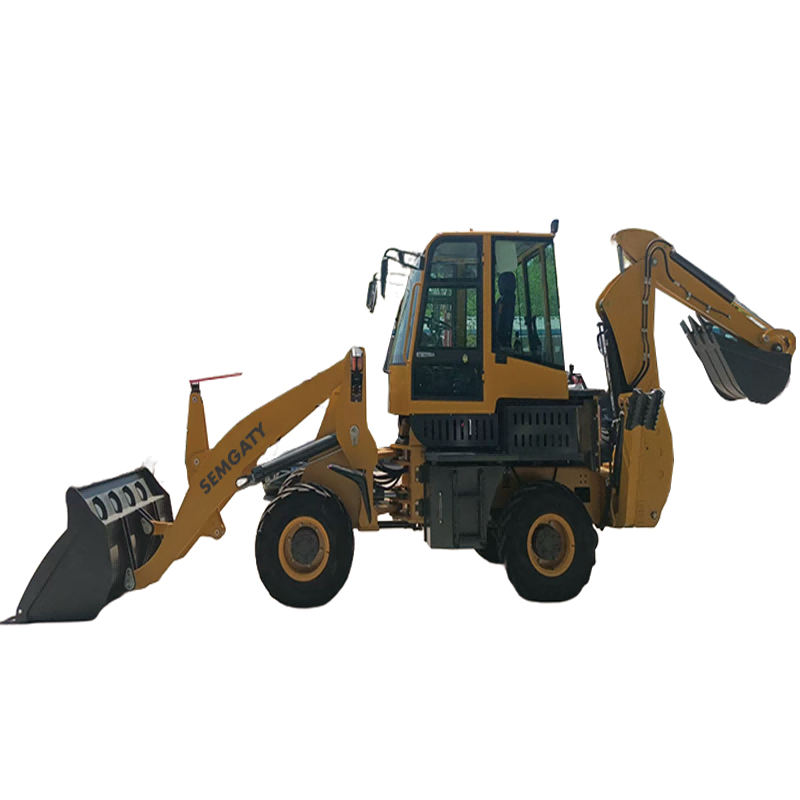

Compact Backhoe Loader – Efficient Excavation & Loading
This compact backhoe loader is designed for versatile construction and material handling, combining precise excavation and powerful loading in a single machine. The excavation section features a bucket capacity of 0.16–0.19 m³, a maximum digging depth of 3,200 mm, and a maximum digging height of 4,100 mm, with a boom slewing angle of 160°, providing flexibility for trenching, landscaping, and urban construction projects. The bucket delivers a digging force of 32.4 kN, while the boom offers 22.9 kN of lifting power, ensuring efficient material movement.
Loading Performance
The loader section is equipped with a bucket capacity of 0.8–1.5 m³ and a rated load capacity of up to 1,600 kg. It achieves a maximum lifting height of 4,300 mm and a maximum unloading height of 3,500 mm, with a reach of 1,106 mm. The boom lifting and descent times are 3.5 seconds and 2.5 seconds respectively, completing a full cycle in just 7 seconds, improving operational efficiency on busy worksites.
Engine & Hydraulic System
Powered by the YUCHAI YCDA3G22-80 engine generating 58 kW at 2,400 rpm, the machine delivers consistent performance with a hydraulic system pressure of 16–21 MPa and maximum flow of 50 L/min, ensuring smooth boom and bucket operation.
Dimensions & Mobility
Weighing 4,800 kg, this loader has compact dimensions of 5,140 × 1,860 × 2,960 mm, a wheelbase of 2,030 mm, wheel tread of 1,810 mm, and a minimum ground clearance of 310 mm. It features 2 forward and 2 reverse gears with a maximum speed of 25 km/h and rides on durable 23.5/70-16 tires, offering stability and maneuverability on various terrains.
Operational Advantage
Combining precise excavation with strong lifting capabilities, this backhoe loader is ideal for small to medium construction sites, road maintenance, and landscaping projects. Its compact size, quick cycle times, and robust hydraulic system make it a reliable partner for efficient and productive work.
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
