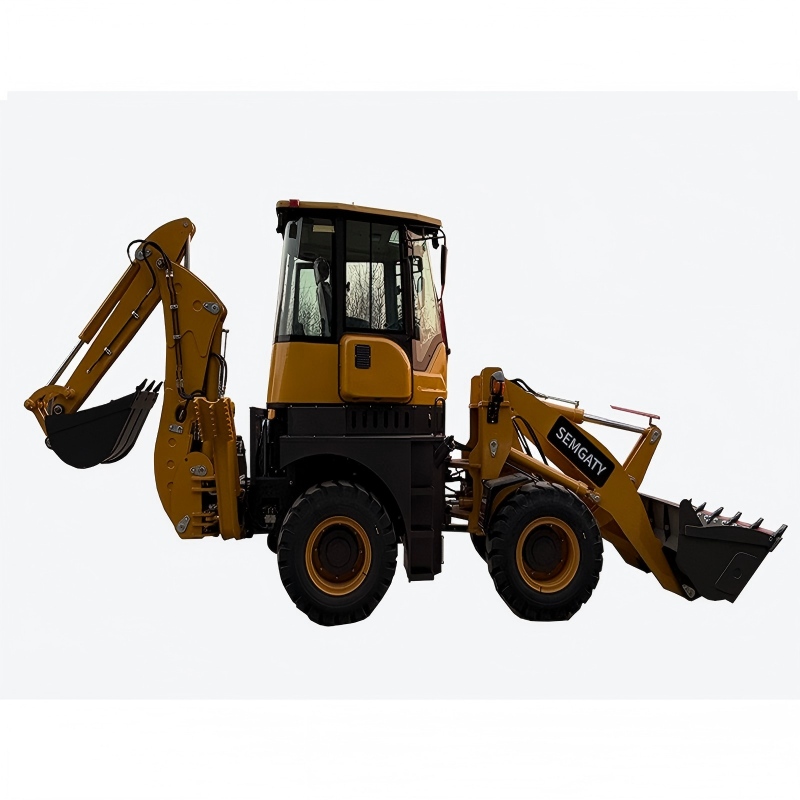

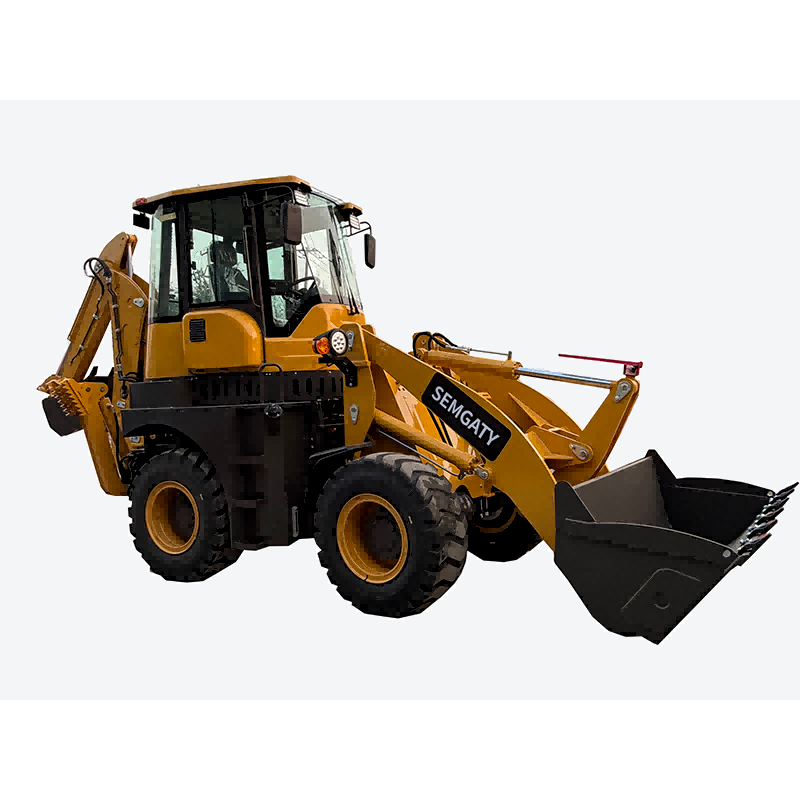

388 Small Front End Loader Backhoe Equipment

Efficient Excavation and Lifting

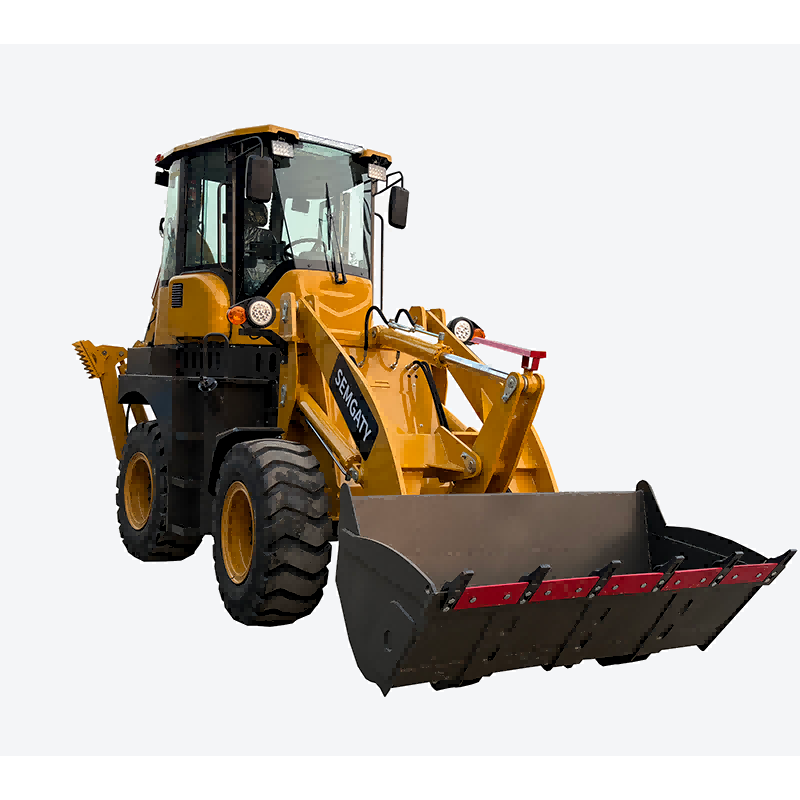

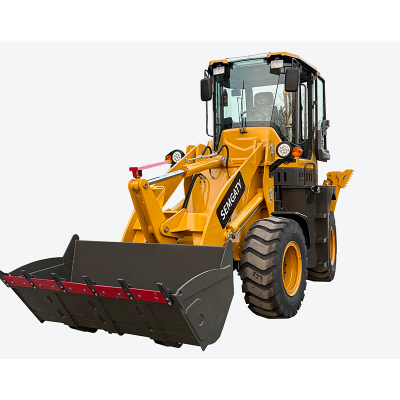

The Parameter Backhoe Loader is designed for versatility and reliability on construction sites, combining strong lifting performance with precise digging capabilities. The loader bucket has a capacity of 1.0 m³, a breakout force of 47 kN, and a rated lifting capacity of 2,500 kg, achieving a maximum dumping height of 2,650 mm and a dumping distance of 1,025 mm, ensuring efficient material handling.

Excavation Performance

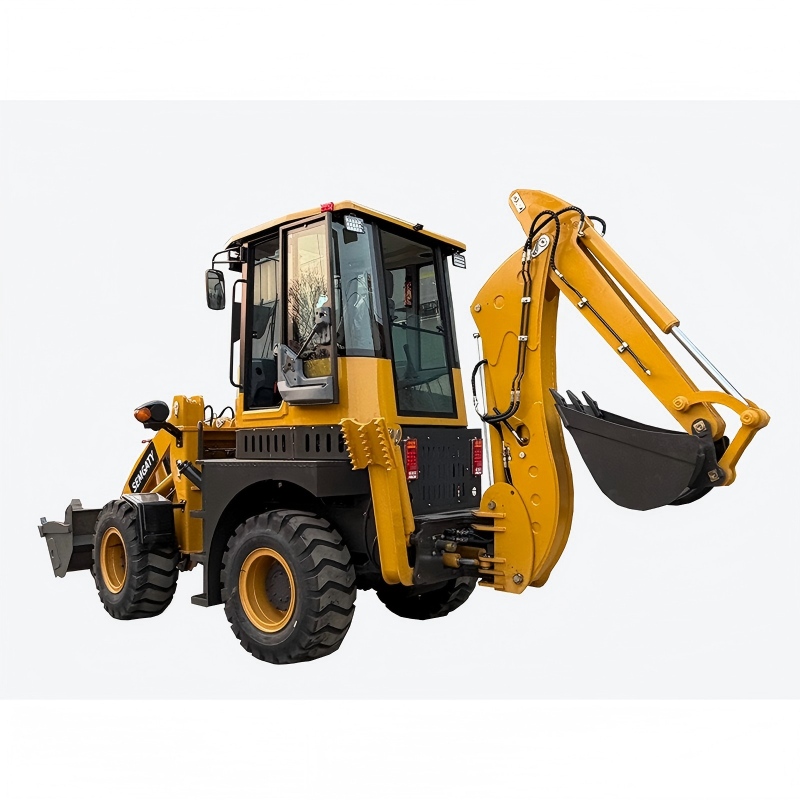

Equipped with a 0.3 m³ backhoe bucket, the machine reaches a maximum digging depth of 4,085 mm with a swing angle of 180°, providing excellent maneuverability in tight trenches. The excavator grab delivers 50 kN digging power, while the dipper arm provides 31 kN, allowing precise and productive excavation. The machine also achieves a maximum pulling force of 60 kN, suitable for tough digging and lifting tasks.

Engine & Powertrain
Powered by the YUCHAI YC4A105Z-T20 turbocharged four-stroke engine, it produces 75 kW at 2,200 rpm, with a displacement of 4.837 L and maximum torque of 400 N·m, delivering consistent power and fuel efficiency (minimum fuel consumption 230 g/kW·h). The YJ290 single-stage, three-element torque converter with oil-cooling ensures smooth power transfer, paired with a fixed-shaft power transmission gearbox featuring 2 forward and 2 reverse gears and a maximum speed of 24 km/h.

Chassis & Mobility

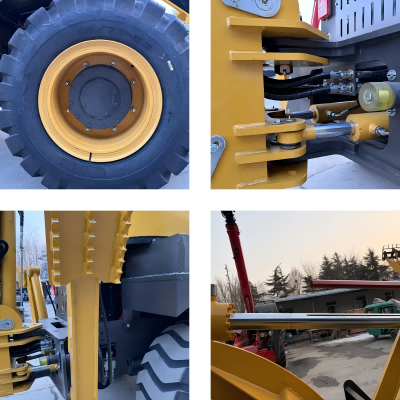

Weighing 8,200 kg, the loader has transport dimensions of 6,050 × 2,465 × 3,100 mm, a wheelbase of 2,280 mm, and a minimum ground clearance of 300 mm, ensuring stability on uneven terrain. Steering offers 36° turning angle with a minimum turning radius of 6,581 mm, while 14–17.5 front and 19.5L–24 rear tires with 0.4/0.35 MPa pressure provide excellent traction and maneuverability.

Hydraulic & Safety Systems

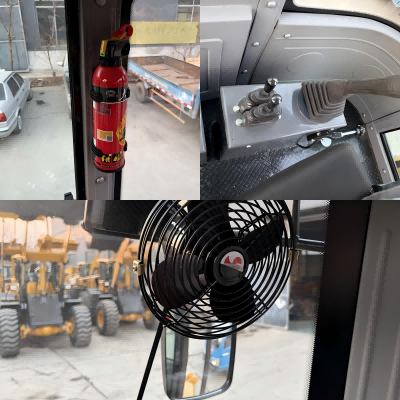

The hydraulic system pressure of 12 MPa allows responsive control of loader and backhoe functions. Bucket cycles are fast, with lifting in 6.8 s, lowering in 3.1 s, and discharge in 2.0 s, improving productivity. Safety is ensured with air-over-oil caliper service brakes with self-regulation and self-balance, and a manual/emergency operation brake.

Operational Advantage
With strong lifting, digging, and maneuverability, this backhoe loader is ideal for construction, excavation, and material handling tasks requiring precision, stability, and efficient operation on medium to large worksites.

With technological innovation, our product configuration and parameters will continue to change without notice;

 if there is any doubt, the specific confirmation of our international trade sales shall prevail;
