| parameter |
| Overall Operating Weight | 9200KG |
| Transport Dimension |
| L*W*H（mm ） | 8900×2300×3050mm |
| Wheel base | 2750mm |
| Min. Ground Clearance | 350mm |
|
| Bucket Capacity | 1.8m3 |
| Breakout Force | 125Kn |
| Loading Lifting Capacity | 3500KG |
|
| Bucket Dumping Height | 3200mm |
|
| Bucket Dumping Distance | 900mm |
|
| Digging Depth | 5200mm |
| Backhoe Capacity（Width） | 0.35m³(620mm) |
|
| Max. Digging Depth | 3950mm |
|
| Swing Angle of backhoe | 170° |
|
| Max. Pulling Force | 120Kn |
|
| Engine |
| Model | Weichai DeutzWP6G125E332 |
| Type |
|
| In Line，Direct injection，Four-Stroke，Water Cooling |
| Rated Power | 92KW |
| Rated Speed | 2400r/min |
| Displacement | 6.4L |
| Steering System |
| Steering Angle | ±35° |
| Min. turning radius | 5018mm |
|
| Pressure of the system | 12Mpa |
|
| Axle |
| Model | Wheel Hub Reducer |
| Final Reducer | Planetary reduction grade 1 |
| Torque Converter |
| Model | YJ315 |
| Type | Single-stage four-element twin-turbine torque converter |
| Cooling Method | Oil-cooling Pressure Circulation |
| Gearbox |
| Type | Fixed-axis power transmission |
| Gears | 4 forward shift 4reverse shift |
| Max.Speed | 38Km/h |
| Tyre |
| Model | 17.5-25 |
| Pressure of Front wheel | 0.4 Mpa |
|
| Pressure of Back Wheel | 0.35 Mpa |
|
| Brake System |
| Service Brake | Air assist disc brake on 4 wheels |
| External Type |
| Self-regulation |
| Self-balance |
| Emergency Brake | Manual disk brake |
| Manual Operation Power Terminating Brake |
| Hydraulic System |
| Pressure of Hydraulic System | 16Mpa |
|

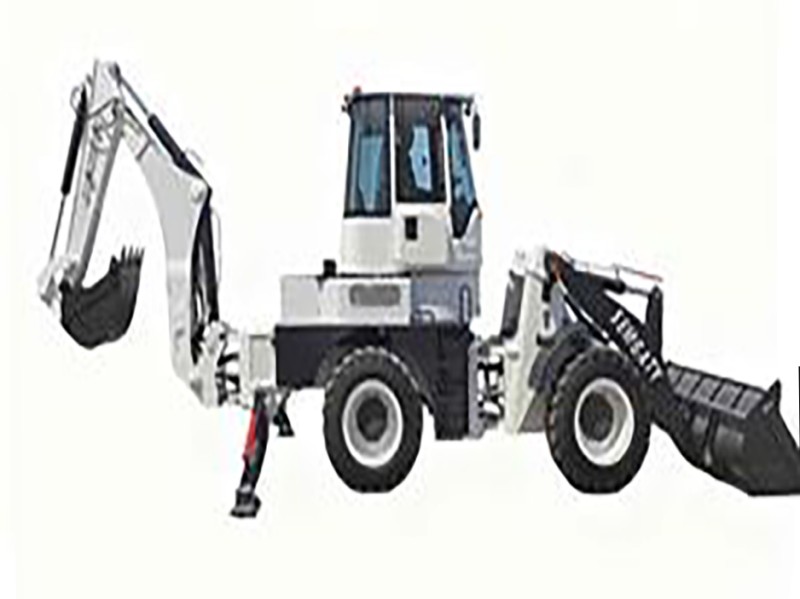

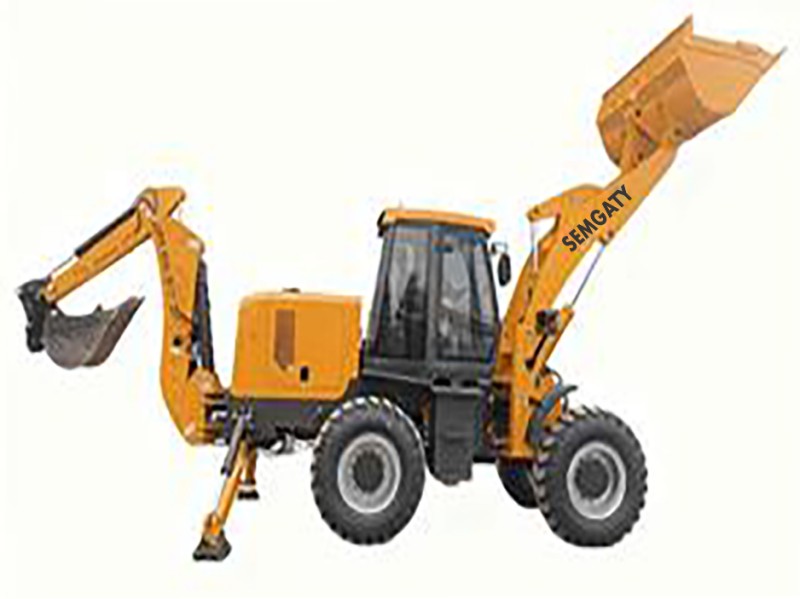

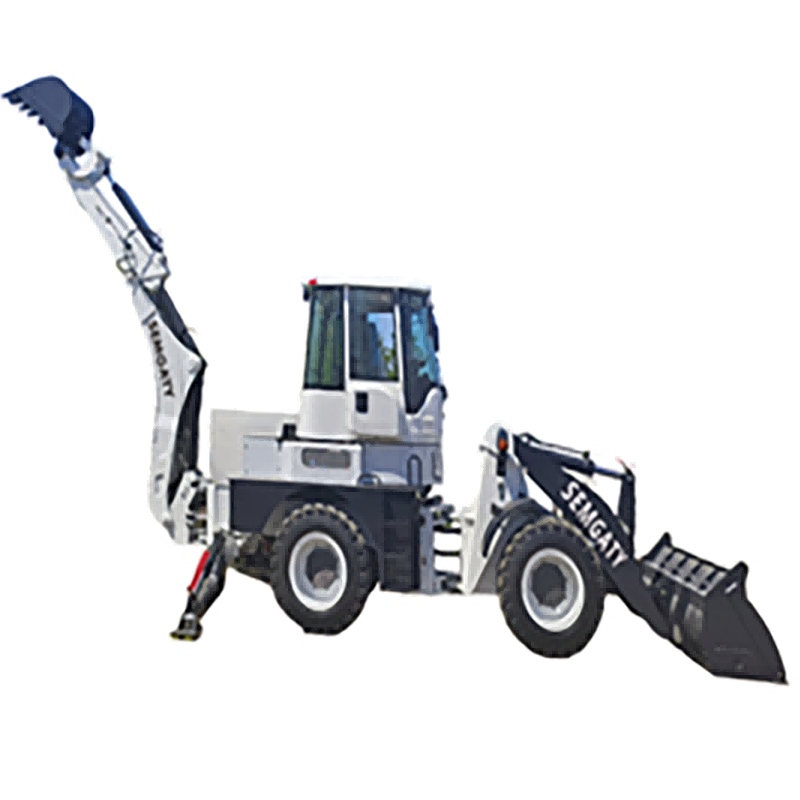

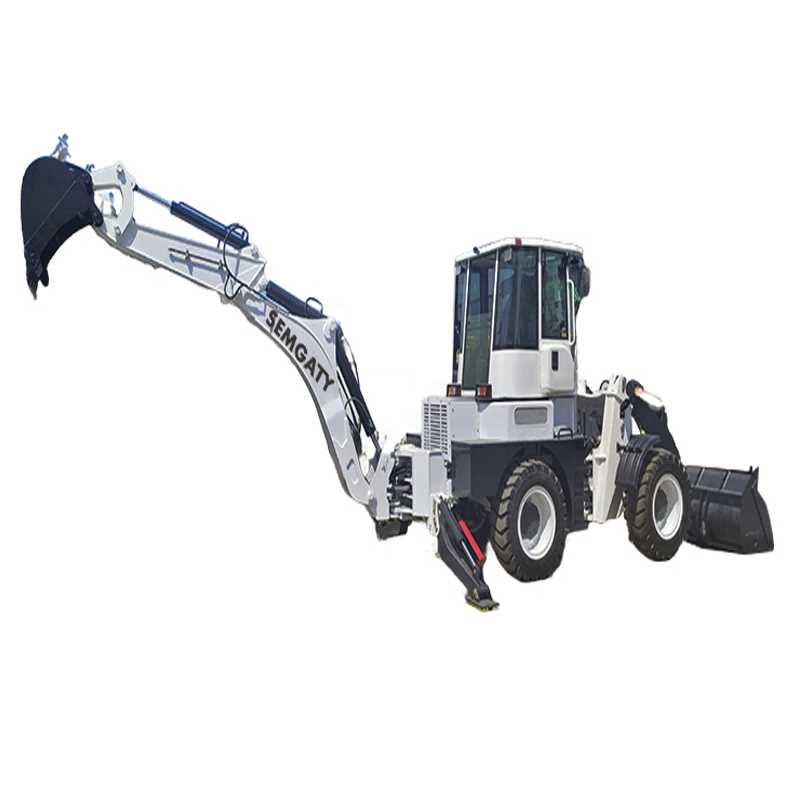

Heavy-Duty Backhoe Loader – Superior Lifting & Excavation
The Heavy-Duty Backhoe Loader is built for demanding construction and earthmoving operations, combining powerful lifting capabilities with deep digging performance. The loader bucket features a 1.8 m³ capacity with a breakout force of 125 kN and a rated lifting capacity of 3,500 kg, achieving a maximum dumping height of 3,200 mm and a dumping distance of 900 mm, enabling fast and efficient material handling.
Excavation Performance
The backhoe section is equipped with a 0.35 m³ (620 mm width) bucket, reaching a maximum digging depth of 3,950 mm and a swing angle of 170°. It delivers a maximum pulling force of 120 kN, allowing precise trenching, foundation digging, and heavy excavation even in tough ground conditions.
Engine & Powertrain
Powered by the Weichai Deutz WP6G125E332 inline engine with four-stroke, direct injection, and water cooling, the machine generates 92 kW at 2,400 rpm with a 6.4 L displacement, providing reliable and continuous performance. The YJ315 single-stage, four-element twin-turbine torque converter with a fixed-axis power transmission gearbox ensures smooth power delivery, featuring 4 forward and 4 reverse gears and a maximum travel speed of 38 km/h.
Chassis & Mobility
Weighing 9,200 kg, this loader has transport dimensions of 8,900 × 2,300 × 3,050 mm, a wheelbase of 2,750 mm, and a minimum ground clearance of 350 mm, offering stability on uneven terrain. The 17.5-25 tires with front/rear pressures of 0.4/0.35 MPa ensure excellent traction, while the ±35° steering angle and minimum turning radius of 5,018 mm provide smooth maneuverability in tight worksites.
Hydraulic & Safety Systems
The 16 MPa hydraulic system supports responsive loader and backhoe operations. Safety is enhanced with air-assist disc service brakes on all four wheels featuring self-regulation and balance, along with a manual disk emergency brake, ensuring secure operation in all conditions.
Operational Advantage
With a combination of high lifting capacity, strong digging force, and stable mobility, this backhoe loader is ideal for large-scale construction, roadwork, and excavation projects, delivering efficiency, reliability, and performance in challenging environments.
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
