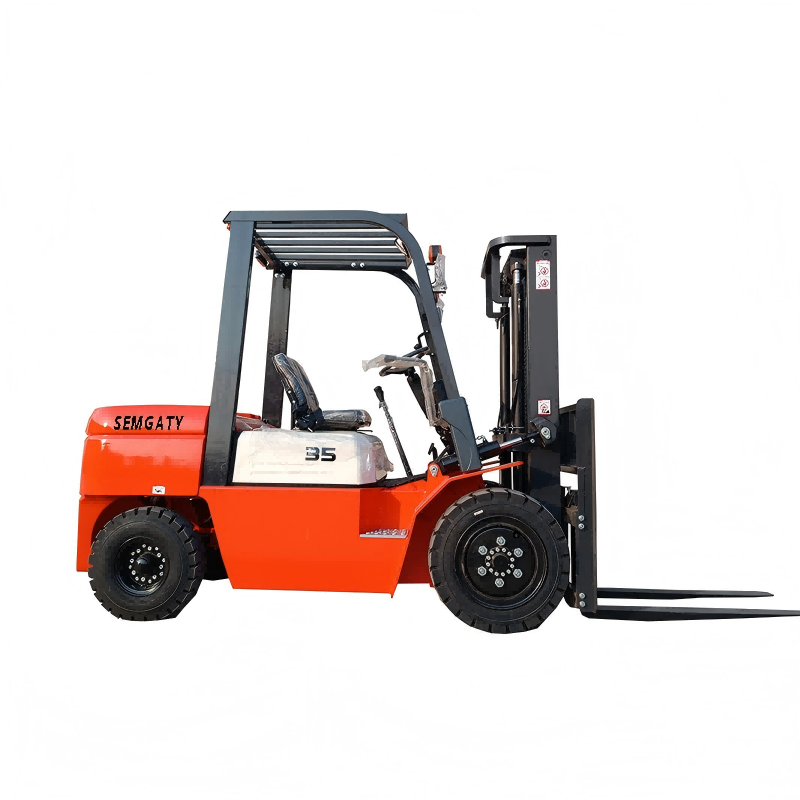

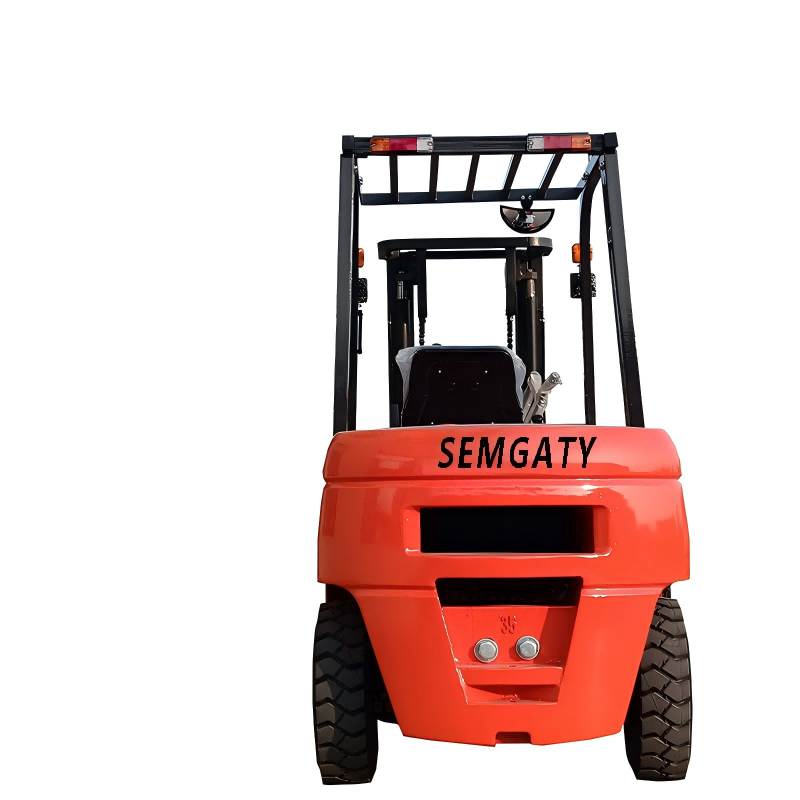

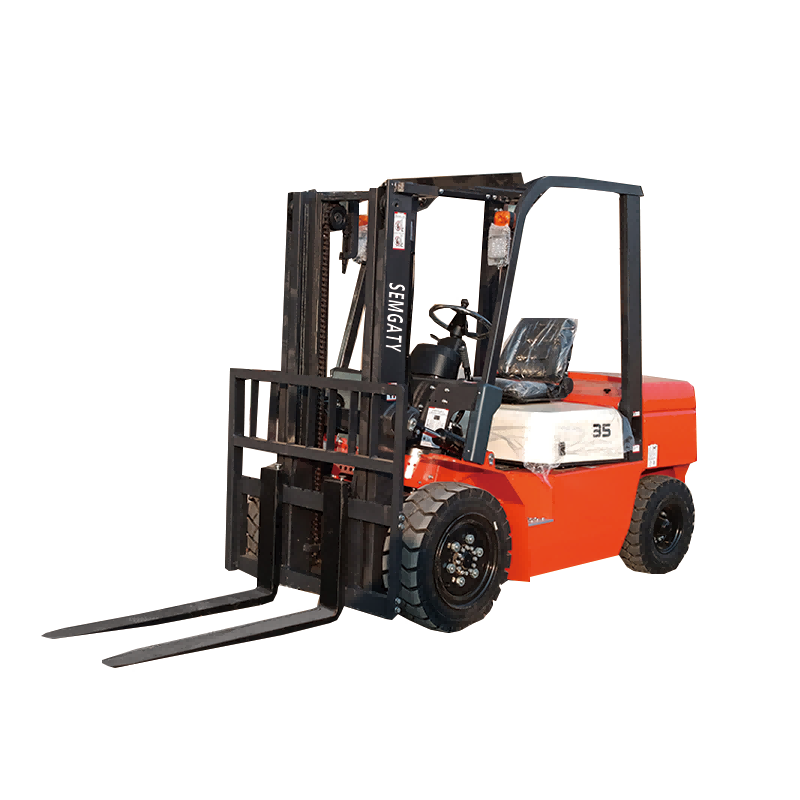

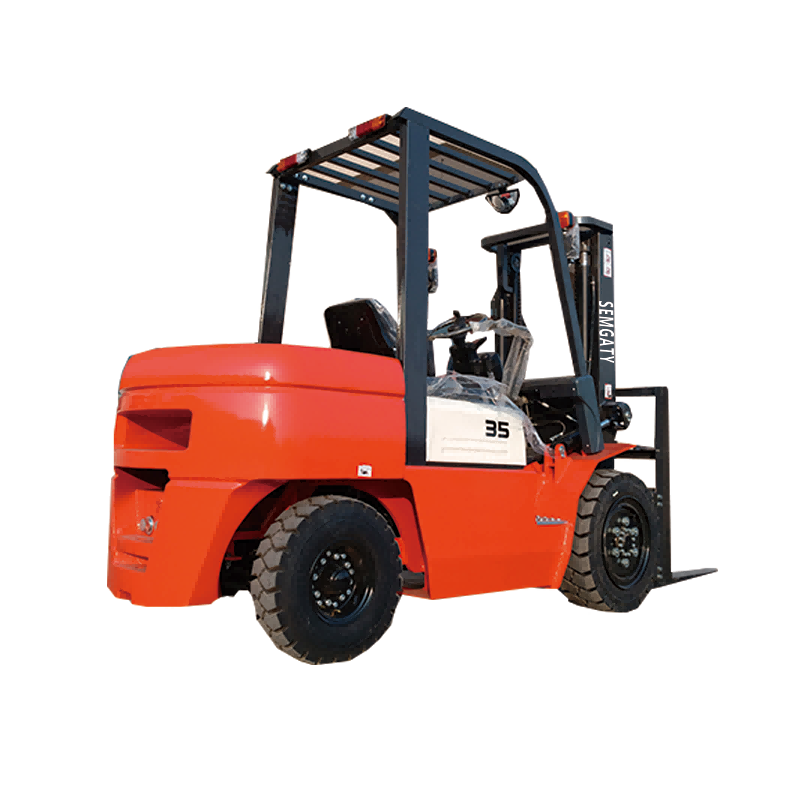

Durable 3.5 Ton Diesel Operated Forklift Truck

BrandSEMGATY
Product originCHINA
Delivery time30days
Supply capacityAnnual production and supply capacity 2000 units

1.Diesel counterbalance design offers strong lifting stability. 2.Efficient hydraulic system ensures smooth and precise control. 3.Robust frame and quality components guarantee long service life.

parameter
Power type		Diesel
Rated load		3500KG
The external dimensions are length, width and height		285012142176mm
Load center distance		500mm
The maximum height that the forks can lift		4100mm
Maximum lifting height		3000mm
The full height of the mast (with the forks on the ground and the mast vertical)		2089mm
Freely increase height		100mm
The height of the barrier shelf (calculated from the fork surface of the mast)		1100mm
The distance from the seat surface to the roof guard		1050mm
Front suspension distance (the distance from the center of the front axle to the center of the fork)		455mm
Rear overhang distance (the distance from the center point of the rear axle to the very end)		555mm
Wheelbase (the vertical distance from the center of the front axle to the center of the rear axle		1760mm
Tow pin height		310mm
Minimum ground clearance (at the mast)		154mm
Outside the fork distance (maximum/minimum)		1100/250mm
Track length (front wheel/rear wheel)		1030/992mm
Outside the minimum turning radius		2450mm
Inside the minimum turning radius		1650mm
Mast tilt Angle (front/rear)		6 forward shift 12reverse shift
Fork size		107045125mm
Maximum driving speed (full load/empty load)		18/20Km/h
Maximum climbing capacity (full load/empty load)		15/205%
Number of wheels X/ Drive wheels		4X/2
Tire type (front/rear)		Pneumatic tire
Front wheel tire		28*9-15
Rear wheel tire		6.50-10
Engine model		Xinchai National II 490
Engine power		42KW
Model of reducer		JDS30
Engine torque/rotational speed		154N.M/1800r/min
Number of engine cylinders		four cylinder
Engine fuel tank capacity		55.5L
Total weight		4450KG

PowerReach 3.5T Industrial Diesel Forklift

Higher Capacity with Balanced Control

Product Overview

The PowerReach 3.5T Diesel Forklift is designed for customers who require greater lifting capacity without sacrificing maneuverability. Its reinforced structure and extended wheelbase provide excellent balance under full load, making it suitable for demanding industrial environments.

Core Strengths

3500KG Rated Load for heavier pallets and dense materials
1760mm Wheelbase improves longitudinal stability
154mm Ground Clearance for uneven factory floors
Large Front Tires enhance load-bearing durability

Power & Drivetrain

Equipped with the Xinchai 490 diesel engine (42KW), the forklift ensures smooth acceleration and stable torque output even during continuous operation.

Recommended Applications

Manufacturing plants · Building material warehouses · Metal processing · Industrial logistics

Key Specifications

Turning Radius (Outside): 2450mm
Fuel Tank: 55.5L
Total Weight: 4450KG

📩 Get Industrial Pricing

Send us your working conditions and we’ll recommend the best configuration.

With technological innovation, our product configuration and parameters will continue to

change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail;
