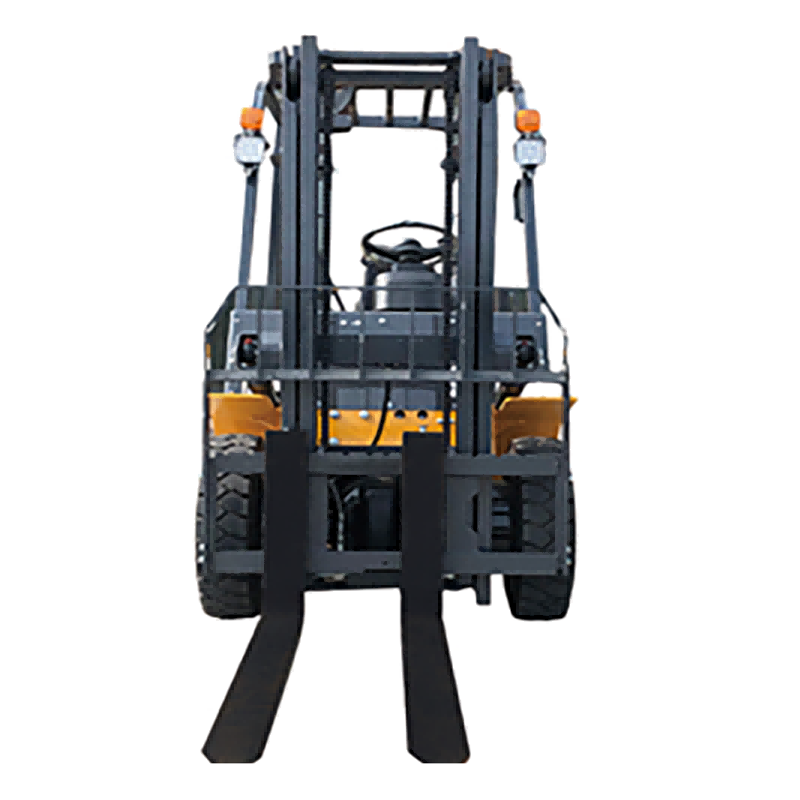

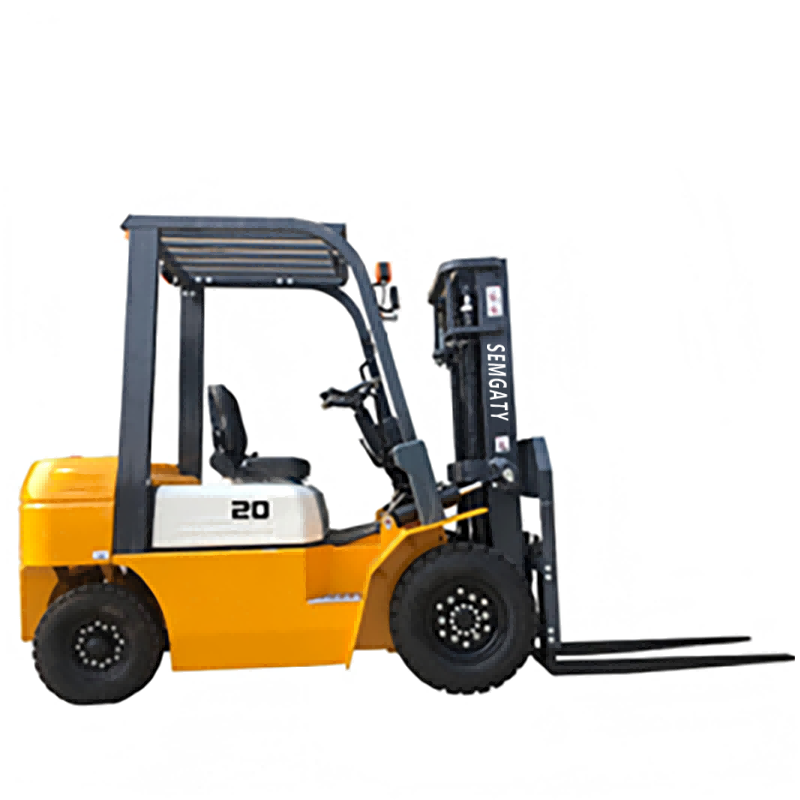

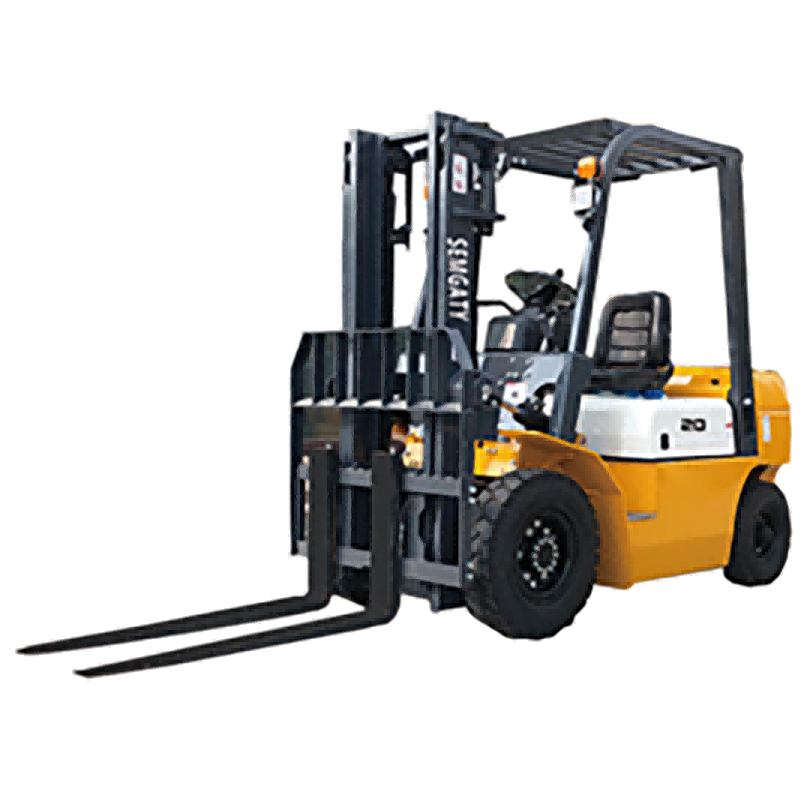

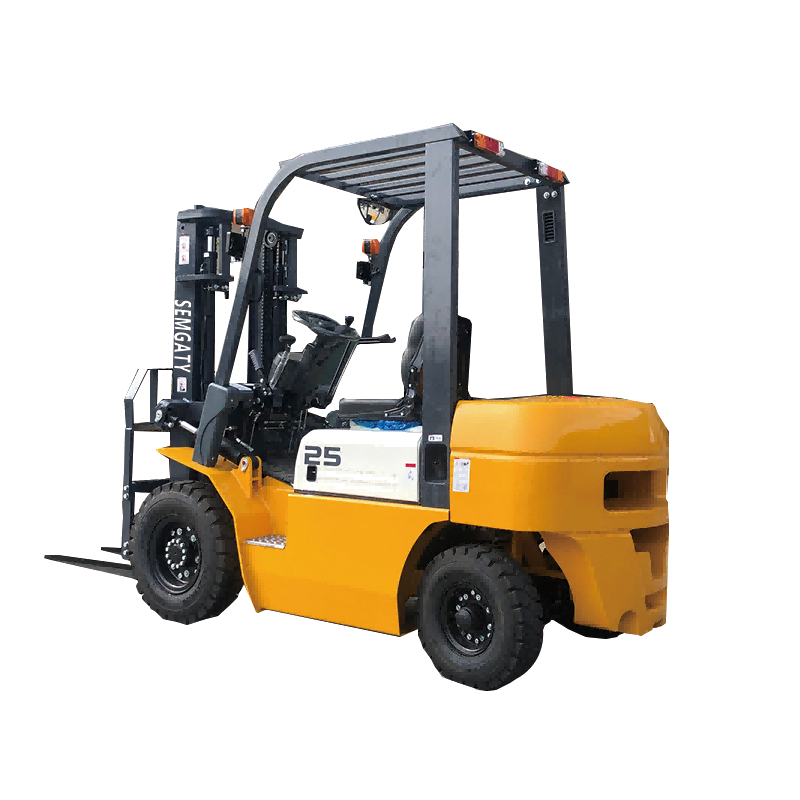

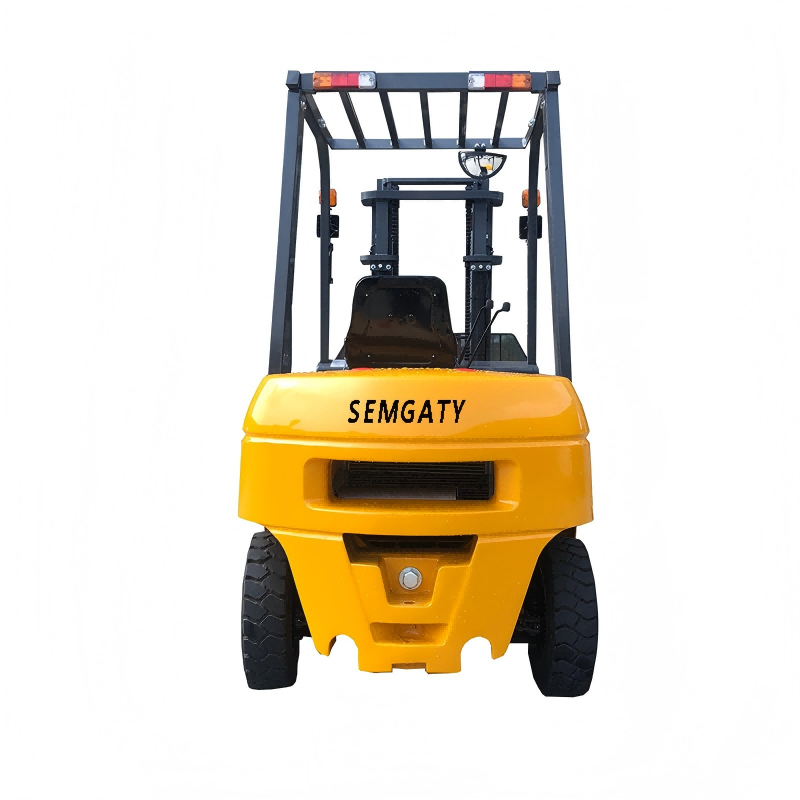

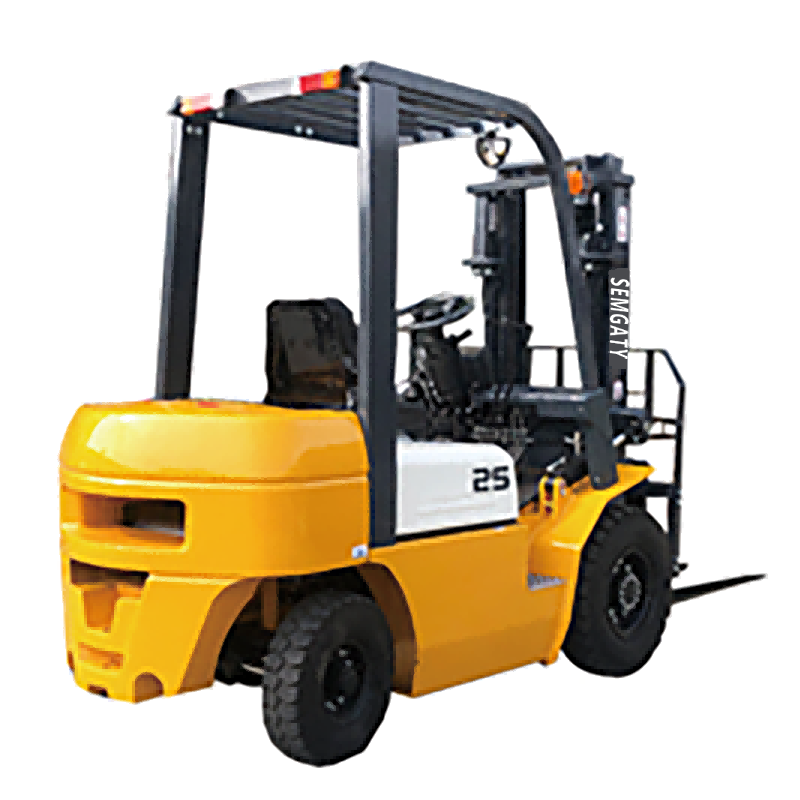

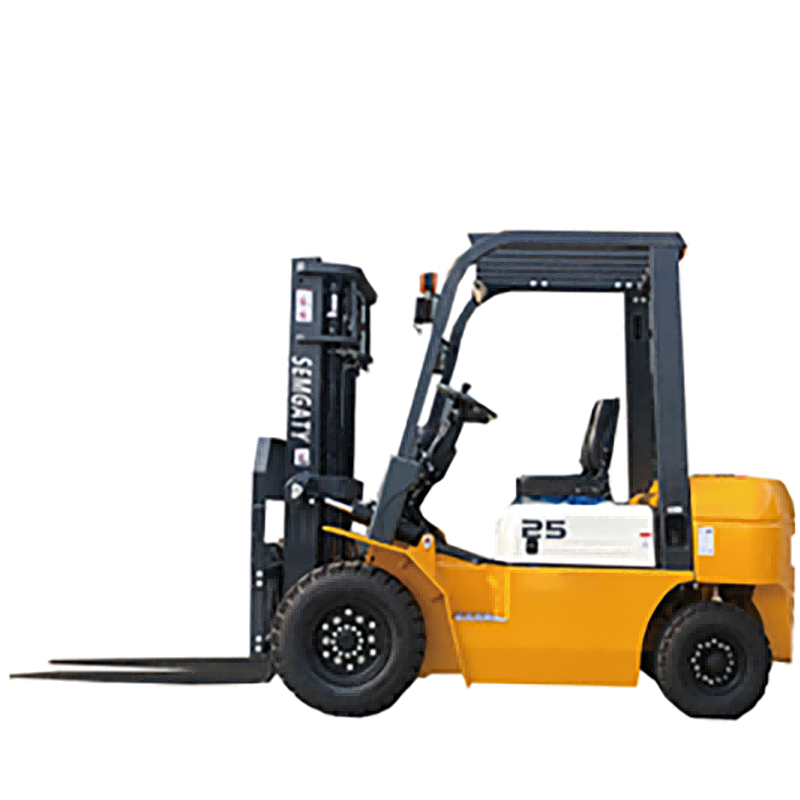

Small 2 Ton Diesel Forklift Reliable Fork Lifts

BrandSEMGATY
Product originCHINA
Delivery time30days
Supply capacityAnnual production and supply capacity 2000 units

1.High-torque diesel engine ensures strong and efficient lifting. 2.Compact design allows easy operation in tight warehouse spaces. 3.Durable frame and components provide long service life and low maintenance.

parameter
Power type		Diesel fuel
Rated load		2000KG
The external dimensions are length, width and height		250012142185mm
Load center distance		500mm
The maximum height that the forks can lift		4100mm
Maximum lifting height		3000mm
The full height of the mast (with the forks on the ground and the mast vertical)		2089mm
Freely increase height		100mm
The height of the barrier shelf (calculated from the fork surface of the mast)		1100mm
The distance from the seat surface to the roof guard		1050mm
Front suspension distance (the distance from the center of the front axle to the center of the fork)		440mm
Rear overhang distance (the distance from the center point of the rear axle to the very end)		475mm
Wheelbase (the vertical distance from the center of the front axle to the center of the rear axle		1500mm
Tow pin height		290mm
Minimum ground clearance (at the mast)		120mm
Outside the fork distance (maximum/minimum)		1100/244mm
Track length (front wheel/rear wheel)		900/750mm
Outside the minimum turning radius		2150mm
Inside the minimum turning radius		1410mm
Mast tilt Angle (front/rear)		6 forward shift 12reverse shift
Fork size		107045125mm
Maximum driving speed (full load/empty load)		18/20km/h
Maximum climbing capacity (full load/empty load)		15/20%
Number of wheels X/ Drive wheels		4X/2
Tire type (front/rear)		Pneumatic tire
Front wheel tire		7.00-12
Rear wheel tire		6.00-9
Engine model (Foreign trade)		Xinchai National II 490
Engine power (Foreign trade)		42KW
Model of reducer		JDS30
Engine torque/rotational speed		154N.M/1800r/min
Number of engine cylinders		four cylinder
Engine fuel tank capacity		54.7L
Total weight		3450KG

2.0T Compact Diesel Forklift

Agile Handling for Space-Limited Operations

Product Overview

The 2.0T Compact Diesel Forklift is designed for users who prioritize maneuverability, efficiency, and reliability in confined working environments. With a short wheelbase and optimized turning radius, this model performs exceptionally well in warehouses, containers, and narrow factory aisles where space is limited but productivity is critical.

Powered by the Xinchai National II 490 diesel engine, the forklift delivers stable torque output and dependable performance for daily material handling tasks.

Performance & Handling

The compact body length of 2500mm combined with a 2150mm outside turning radius allows operators to maneuver easily without repeated repositioning. The well-balanced chassis ensures stable lifting even when operating at maximum height.

The mast provides a maximum lifting height of 3000mm and a fork lift reach of up to 4100mm, making it suitable for standard pallet racking systems.

Structural & Safety Design

Reinforced mast structure for improved rigidity
Overhead guard designed to protect the operator from falling objects
Anti-slip access step improves safety during entry and exit
Pneumatic tires provide reliable traction on mixed indoor and outdoor surfaces

Typical Applications

Warehouse logistics
Container stuffing and unloading
Light industrial material handling
Distribution centers

Key Specifications

Rated Load: 2000KG
Wheelbase: 1500mm
Minimum Ground Clearance: 120mm
Travel Speed (Loaded/Unloaded): 18 / 20 km/h
Total Weight: 3450KG

With technological innovation, our product configuration and parameters will continue to

change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail;
